NTP can do more than simply keep your clocks synchronized on your local network: it’s designed to help you keep all your computers’ clocks set to an accurate time source. It does so by creating a hierarchy of NTP servers, most of which also function as clients to NTP servers that are closer to the ultimate time source—usually an atomic clock or a device that reads its time from one, such as a radio that receives signals from an atomic clock. This arrangement is illustrated in Figure 15-2.

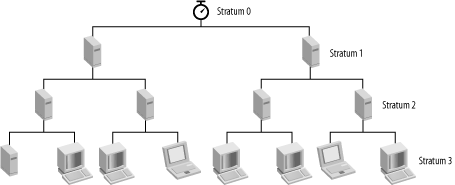

Figure 15-2. NTP links multiple layers of NTP servers to a highly accurate time source

The atomic clock or other time source is referred to as a stratum 0 time source. The servers that communicate with this device are known as stratum 1 servers; those that communicate with the stratum 1 servers are stratum 2 servers, and so on. This arrangement provides a powerful exponential effect on the number of computers a single time source can serve. For instance, if each server has just 100 clients, a single stratum 1 server can have 10,000 stratum 3 and 1,000,000 stratum 4 clients. As the stratum level increases, the accuracy of the clocks decreases, but not by much; times are typically accurate to well under a second up to several stratums. (The exact values depend on factors such as the variability of transit times and how evenly divided the transit times are on each leg of the journey.)

At each step of the way, NTP works by measuring the time it takes for packets to traverse the network. For instance, if you send a packet to a computer, and it replies, you can measure the round-trip transit time. (You can use ping to do this in a crude way.) If the return packet includes a time stamp, you can use the time stamp and round-trip transit time to set your own clock to that of the remote server; you use the time stamp in the packet and half the transit time. NTP uses this principle at its core, although it’s more sophisticated. For instance, a full NTP implementation runs as a daemon and checks its upstream time source on a periodic basis. It can use the data gleaned from these checks to adjust the rate at which its own clock “ticks,” thus maintaining a more accurate time even between time checks. NTP can also refer to multiple upstream time sources, thus providing redundancy and enabling it to select the best time source.

In practice, you’ll set up one computer as a master NTP server for your network. (You might set up more than one if your network is very large or is geographically diverse.) Your master NTP server refers to an upstream server to set its own clock; the rest of your computers set their clocks based on their own master NTP server. This configuration minimizes network traffic; you can set potentially thousands of computers’ clocks using the external bandwidth required to set just one system’s clock.

What computer should you use as your master NTP server? In practice, requirements are fairly minor. Compared to most other network protocols, NTP generates little network traffic and requires practically no disk space, aside from that needed for the OS itself. Therefore, it’s common to piggyback NTP duties onto another server. On the other hand, you don’t want to add master NTP duties to a server that’s already overloaded, because delays in handling the NTP packets will be quite detrimental to the NTP server functions. In any event, the server should have ready network access to the Internet and to all the computers on your local network. Of course, like all servers, NTP is a potential security risk, although it’s a minor one compared to servers that provide login or file access.

In Linux, an NTP server acts as both a client and a server. In fact, to maintain the most accurate time in Linux, you may want to install a full NTP server, even if it has no clients of its own; your NTP server will act only as a client.

All major Linux distributions ship with NTP servers, typically in packages called ntp, xntp, or a variant with a major version number appended, such as ntp4. The major NTP configuration file is /etc/ntp.conf. Most distributions ship ntp.conf files that should require few changes; you may only need to set an appropriate server. A few other options may need attention as well, though:

One of the trickiest aspects of NTP configuration is in selecting an upstream NTP server. NTP server lists are maintained at http://www.eecis.udel.edu/~mills/ntp/servers.html; this list has links to both stratum 1 and stratum 2 servers, and it describes rules of etiquette for using the servers. You may be able to find other sources, as well. For instance, your ISP might operate an NTP server that you can use, or if you’re setting up NTP for a single department in a much larger organization, your organization might run an NTP server. In most cases, you should contact the server’s operator before connecting your own server, although some server operators provide blanket permission for certain people to use their NTP servers. (Lists of NTP servers often contain information on what types of permission should be obtained before using any given server.) You should try to pick a server that’s close to you in network topology. For rough estimates of this measure, use ping to determine the round-trip transit time to potential servers, and use traceroute to measure the number of intervening systems. The lower the transit time and the fewer the intervening systems the better.

The higher you go in the NTP stratum hierarchy, the more accurate the times; however, NTP servers with low stratum numbers are few in number and shouldn’t be used except by clients that themselves serve many clients. As a general rule of thumb, you shouldn’t use a stratum 1 server unless your own server is itself delivering time to at least 100 clients. For smaller networks, use a stratum 2 or lower server; the accuracy of your time won’t suffer much, and the variability within your network won’t suffer at all, but you’ll be helping to distribute the load on the NTP network as a whole.

You can specify multiple upstream NTP servers, but you can get by with just one. Using multiple servers provides redundancy and enables the NTP software to pick the best server from the lot automatically. On the other hand, using few servers reduces network load. Generally speaking, small networks can get by just fine with just one server, although you might want to try several at first to determine which works best. Large networks, or networks on which precision timekeeping is particularly important, may do well to use multiple upstream servers—typically, at least three to make it easier to pick the bad time keeper, if there is one.

Once you’ve entered one or more server lines in ntp.conf and made any other changes you like, you should start NTP. On most distributions, this can be done using a SysV startup script, e.g., by typing /etc/init.d/ntpd start. (The exact name of the SysV startup script varies; some omit the d from the end of the script name or add x to the start.) To run NTP regularly, use tools such as chkconfig to add the NTP startup script to your default runlevel. Consult distribution-specific documentation for help on this topic.

Once the NTP server is running, you can use the ntpq tool to monitor its operation. Type ntpq to run the program, and it replies with a ntpq> prompt. Type peers to obtain a list of upstream NTP servers and assorted statistics on them. In particular, note the value of the st column, which shows the upstream server’s stratum. Initially, NTP polls the upstream servers frequently to determine which one is the most accurate. After a few minutes, it settles on one as its primary source and marks it with an asterisk (*) to the left of the server’s hostname. Other servers that generate reasonable results receive a plus (+) mark in this position. Be wary of a server that’s marked with an x to the left of its name; this is a false ticker, which is providing times that are inaccurate compared to the other servers.

To configure Linux NTP clients (which may run other servers, such as Samba), configure them just as you do your primary NTP server, but instead of pointing them at one or more external NTP servers, point them to your primary NTP server alone. Because these servers are all on the same network, the time for NTP packets to make their round trip will be tiny, and the NTP clients you configure will have times that are virtually identical to the time on your primary NTP server.

In principle, Windows computers are no different from Linux computers when it comes to NTP. In practice, though, it may be easier to use a standard Windows command, NET, to set their clocks than to install a full NTP package. You can take the full approach if you prefer, though. This is most likely to be helpful on important servers or if you want the Windows system to function as an NTP server to other clients.

C:\> NET TIME /SETSNTP:harrison.example.com

C:\> NET TIME \\HARRISON /SET /YES
