We will now describe how to configure, build, test, and finally, submit the test results for our example project to the dashboard:

1. The source targets are defined in src/CMakeLists.txt, as follows:

# example library
add_library(sum_integers "")

target_sources(sum_integers
  PRIVATE
    sum_integers.cpp
  PUBLIC
    ${CMAKE_CURRENT_LIST_DIR}/sum_integers.hpp
  )

target_include_directories(sum_integers
  PUBLIC
    ${CMAKE_CURRENT_LIST_DIR}
  )

# main code
add_executable(sum_up main.cpp)

target_link_libraries(sum_up sum_integers)

2. The tests are defined in tests/CMakeLists.txt:

add_executable(test_short test_short.cpp)
target_link_libraries(test_short sum_integers)

add_executable(test_long test_long.cpp)
target_link_libraries(test_long sum_integers)

add_test(
  NAME
    test_short
  COMMAND
    $<TARGET_FILE:test_short>
  )

add_test(
  NAME
    test_long
  COMMAND
    $<TARGET_FILE:test_long>
  )

3. The top-level CMakeLists.txt file references the two preceding files, and the new element in this recipe is the line containing include(CTest), which allows us to report to a CDash dashboard:

# set minimum cmake version
cmake_minimum_required(VERSION 3.5 FATAL_ERROR)

# project name and language
project(recipe-01 LANGUAGES CXX)

# require C++11
set(CMAKE_CXX_STANDARD 11)
set(CMAKE_CXX_EXTENSIONS OFF)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

# process src/CMakeLists.txt
add_subdirectory(src)

enable_testing()

# allow to report to a cdash dashboard
include(CTest)

# process tests/CMakeLists.txt
add_subdirectory(tests)

4. In addition, we create the file CTestConfig.cmake in the same directory as the top-level CMakeLists.txt file. This new file contains the following lines:

set(CTEST_DROP_METHOD "http")
set(CTEST_DROP_SITE "my.cdash.org")
set(CTEST_DROP_LOCATION "/submit.php?project=cmake-cookbook")
set(CTEST_DROP_SITE_CDASH TRUE)

5. We are now ready to configure and build the project, as follows:

$ mkdir -p build
$ cd build
$ cmake ..
$ cmake --build .

6. Having built the code, we can run the test set and report the test results to the dashboard:

$ ctest --dashboard Experimental

 Site: larry
 Build name: Linux-c++
Create new tag: 20180408-1449 - Experimental
Configure project
 Each . represents 1024 bytes of output
 . Size of output: 0K
Build project
 Each symbol represents 1024 bytes of output.
 '!' represents an error and '*' a warning.
 . Size of output: 0K
 0 Compiler errors
 0 Compiler warnings
Test project /home/user/cmake-recipes/chapter-15/recipe-01/cxx-example/build
 Start 1: test_short
1/2 Test #1: test_short ....................... Passed 0.00 sec
 Start 2: test_long
2/2 Test #2: test_long ........................ Passed 0.00 sec

100% tests passed, 0 tests failed out of 2

Total Test time (real) = 0.01 sec
Performing coverage
 Cannot find any coverage files. Ignoring Coverage request.
Submit files (using http)
 Using HTTP submit method
 Drop site:http://my.cdash.org/submit.php?project=cmake-cookbook
 Uploaded: /home/user/cmake-recipes/chapter-14/recipe-01/cxx-example/build/Testing/20180408-1449/Build.xml
 Uploaded: /home/user/cmake-recipes/chapter-14/recipe-01/cxx-example/build/Testing/20180408-1449/Configure.xml
 Uploaded: /home/user/cmake-recipes/chapter-14/recipe-01/cxx-example/build/Testing/20180408-1449/Test.xml
 Submission successful

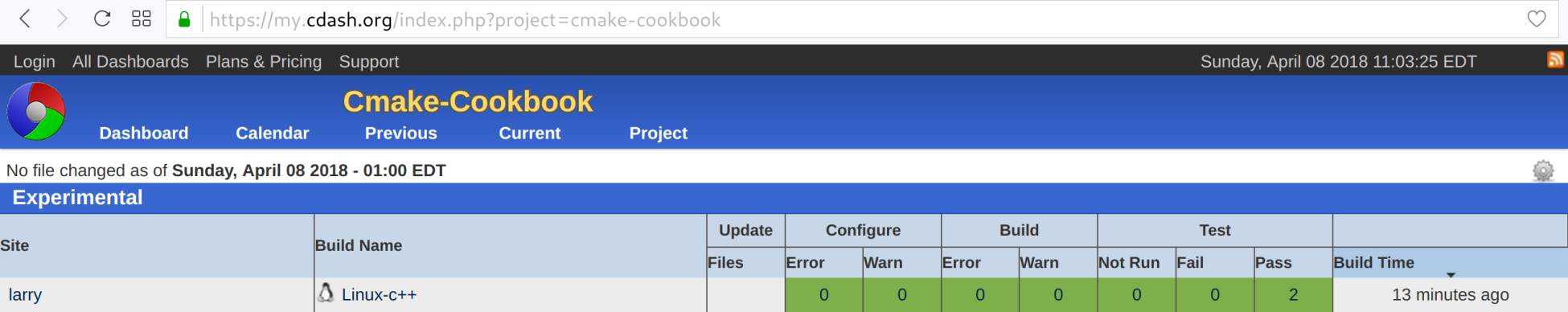

7. Finally, we can browse the test results in our browser (in this case, the test results are reported to https://my.cdash.org/index.php?project=cmake-cookbook):
