Let us go through the necessary steps in detail, as follows:

1. The file CMakeLists.txt starts by defining a minimum supported version, project name, supported languages, and, in this case, a requirement of the C++11 standard:

cmake_minimum_required(VERSION 3.5 FATAL_ERROR)

project(recipe-04 LANGUAGES CXX)

set(CMAKE_CXX_STANDARD 11)
set(CMAKE_CXX_EXTENSIONS OFF)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

2. Next, we locate the Threads library, define the executable, and link it against the Threads library:

find_package(Threads REQUIRED)

add_executable(example example.cpp)

target_link_libraries(example
  PUBLIC
    Threads::Threads
  )

3. Then, we offer the option and code to compile and link with support for the ThreadSanitizer:

option(ENABLE_TSAN "Enable ThreadSanitizer" OFF)

if(ENABLE_TSAN)
  if(CMAKE_CXX_COMPILER_ID MATCHES GNU)
    message(STATUS "ThreadSanitizer enabled")
    target_compile_options(example
      PUBLIC
        -g -O1 -fsanitize=thread -fno-omit-frame-pointer -fPIC
      )
    target_link_libraries(example
      PUBLIC
        tsan
      )
  else()
    message(WARNING "ThreadSanitizer not supported for this compiler")
  endif()
endif()

4. Finally, as a test, we execute the compiled example itself:

enable_testing()

# allow to report to a cdash dashboard
include(CTest)

add_test(
  NAME
    example
  COMMAND
    $<TARGET_FILE:example>
  )

5. The file CTestConfig.cmake is unchanged with respect to the previous recipes:

set(CTEST_DROP_METHOD "http")
set(CTEST_DROP_SITE "my.cdash.org")
set(CTEST_DROP_LOCATION "/submit.php?project=cmake-cookbook")
set(CTEST_DROP_SITE_CDASH TRUE)

6. The corresponding dashboard.cmake script is a simple adaptation to TSan from the previous recipe:

set(CTEST_PROJECT_NAME "example")
cmake_host_system_information(RESULT _site QUERY HOSTNAME)
set(CTEST_SITE ${_site})
set(CTEST_BUILD_NAME "${CMAKE_SYSTEM_NAME}-${CMAKE_HOST_SYSTEM_PROCESSOR}")

set(CTEST_SOURCE_DIRECTORY "${CTEST_SCRIPT_DIRECTORY}")
set(CTEST_BINARY_DIRECTORY "${CTEST_SCRIPT_DIRECTORY}/build")

include(ProcessorCount)
ProcessorCount(N)
if(NOT N EQUAL 0)
  set(CTEST_BUILD_FLAGS -j${N})
  set(ctest_test_args ${ctest_test_args} PARALLEL_LEVEL ${N})
endif()

ctest_start(Experimental)

ctest_configure(
  OPTIONS
    -DENABLE_TSAN:BOOL=ON
  )

ctest_build()
ctest_test()

set(CTEST_MEMORYCHECK_TYPE "ThreadSanitizer")
ctest_memcheck()

ctest_submit()

7. Let us take this example for a spin. Once again, we will set the generator passing the CTEST_CMAKE_GENERATOR option:

$ ctest -S dashboard.cmake -D CTEST_CMAKE_GENERATOR="Unix Makefiles"

   Each . represents 1024 bytes of output
    . Size of output: 0K
   Each symbol represents 1024 bytes of output.
   '!' represents an error and '*' a warning.
    . Size of output: 0K

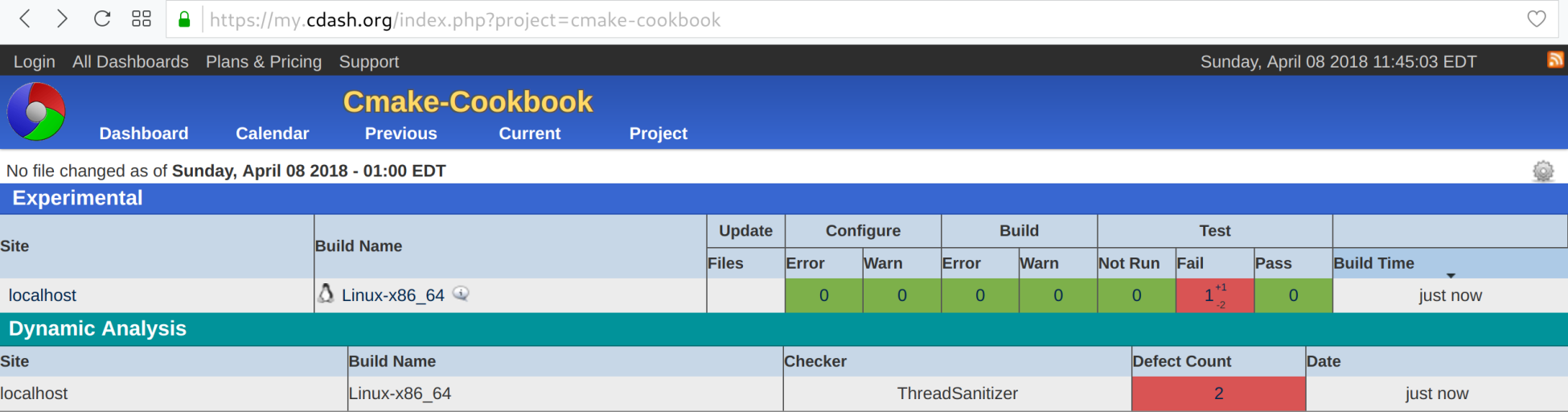

8. On the dashboard, we will see the following:

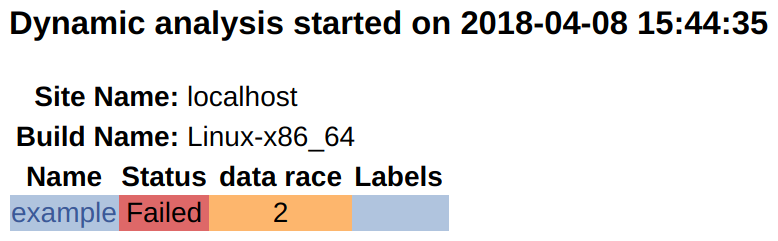

9. We can see the dynamic analysis in more detail as follows:
