Common Consumer Cases

Consumer bots are typically available via channels such as Facebook Messenger, Slack, and the other public messaging apps; web chat; voice interfaces; or even custom mobile apps when a custom interface is required. On the lower end of the quality scale, they are no more than toys. On the higher end, they can be impressive feats of design and engineering. Because of the general AI and bot fever we discussed in Chapter 1, many companies are deploying a bot along with their products. Atlassian, for example, has a Slackbot for its JIRA product. Even Amazon has a chat bot integrated into its mobile shopping app. You will also find brands dipping their toes into bots via Facebook Messenger. Facebook Pages makes it easy for a company to have an outward-facing public channel to talk to its customers via either public posts or Messenger. If it is Messenger, a human agent needs to log into the page inbox and reply to each message. A first step for many companies is to deploy a Messenger bot that replies to a few types of user queries, with the rest simply left for humans to reply to. Utility-wise, we are still trying to answer the question, what makes the most sense for users? The variety of bots in the space certainly points to that. The following are some broad categories of effective approaches.

FAQ Bot

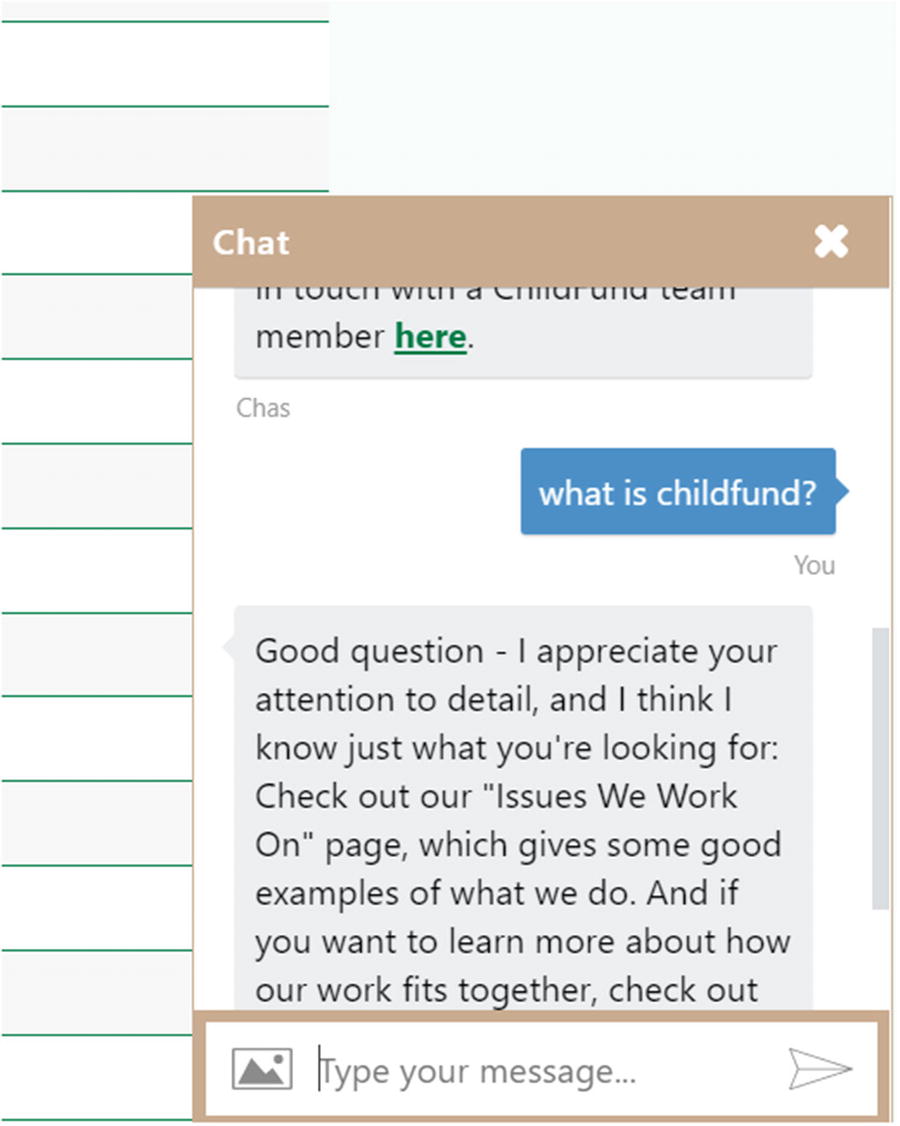

An FAQ bot is typically the first entry into the bot and NLP space by teams taking the technology for a test run. It is an easy use case: let’s take our existing FAQ and place it as a bot on Facebook Messenger or enterprise messaging. That way, the most typically asked questions can be caught by a bot before an employee spends time answering them. A simple text-based FAQ bot can turn into something quite interesting and aesthetically pleasing from a user perspective. An answer to a commonly asked question doesn’t simply have to be a block of boring text. The answer can include further content such as images, videos, and links to additional content.

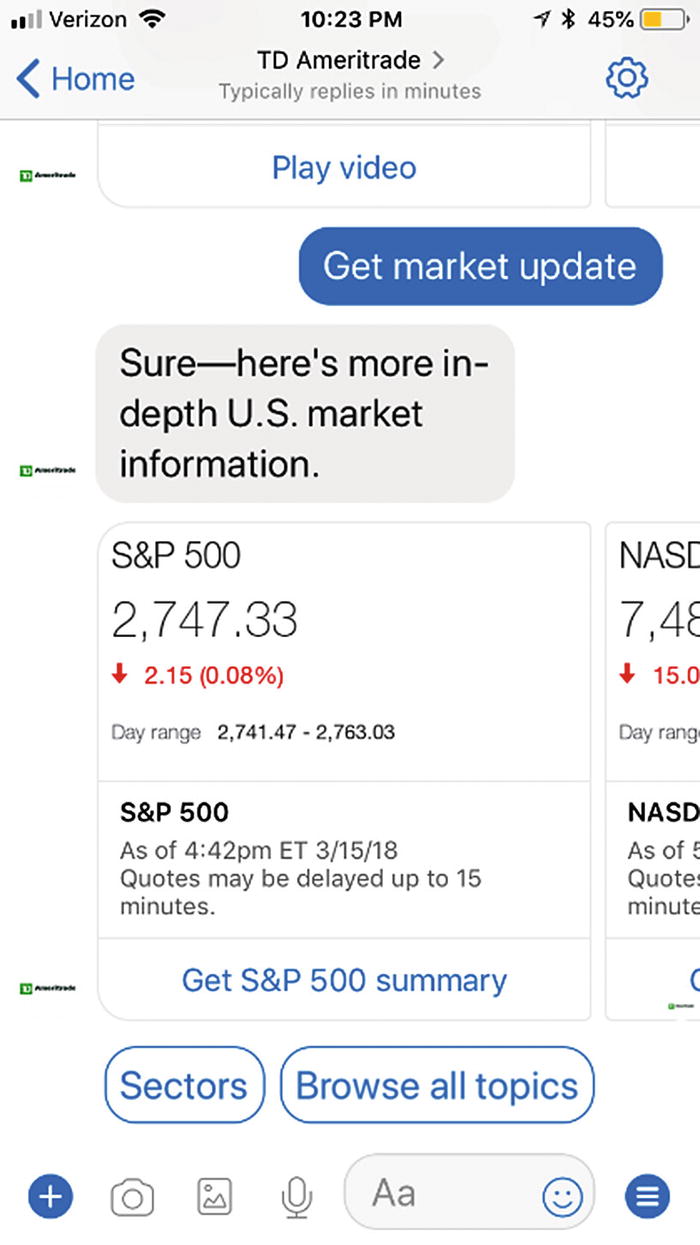

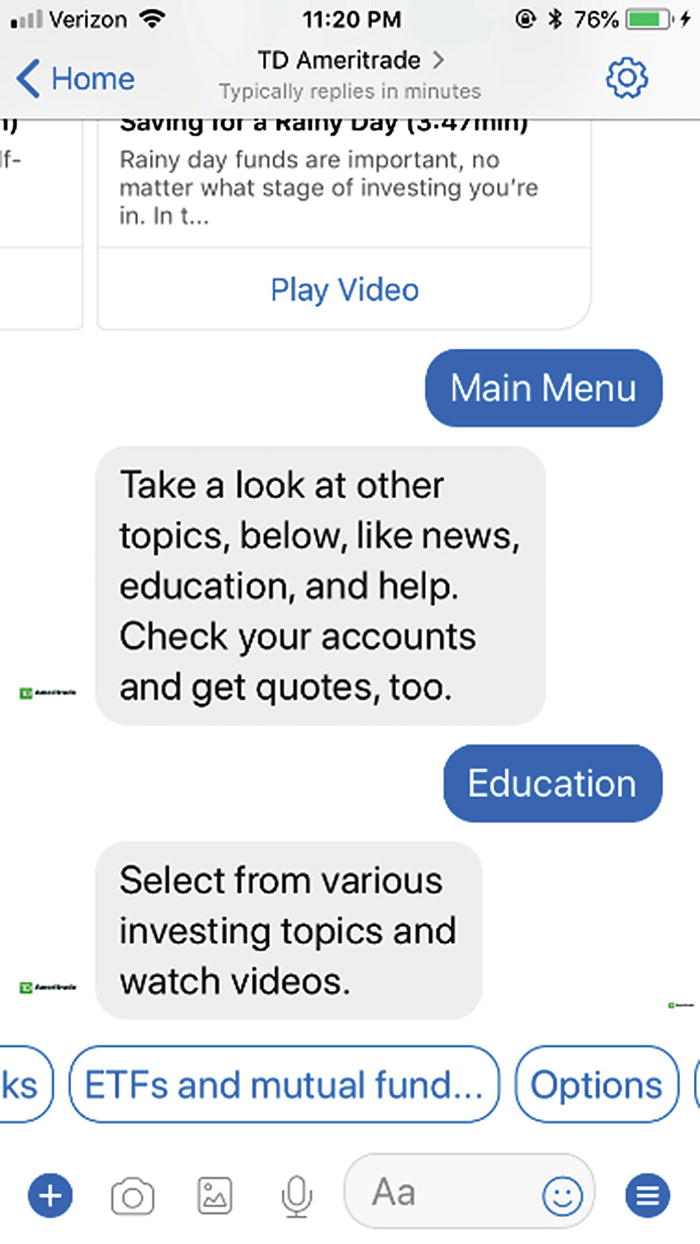

For example, consider a financial services bot that can answer different types of questions about financial topics. Within its response, it can embed additional suggested topics of interest as buttons. At that point, the user can look at related terms and their definitions. If there are websites that visually represent a concept, for example, the iron condor option investment strategy, those links can be included in the response for the user to click to get more information. Of course, our conversation design needs to balance all that content with possible user overload. The sweet spot in between can be effective at providing the user with a pleasant experience with the bot. Figure 4-1 is an example of Child Fund International’s FAQ bot embedded into a web page.

Task-Oriented Bot

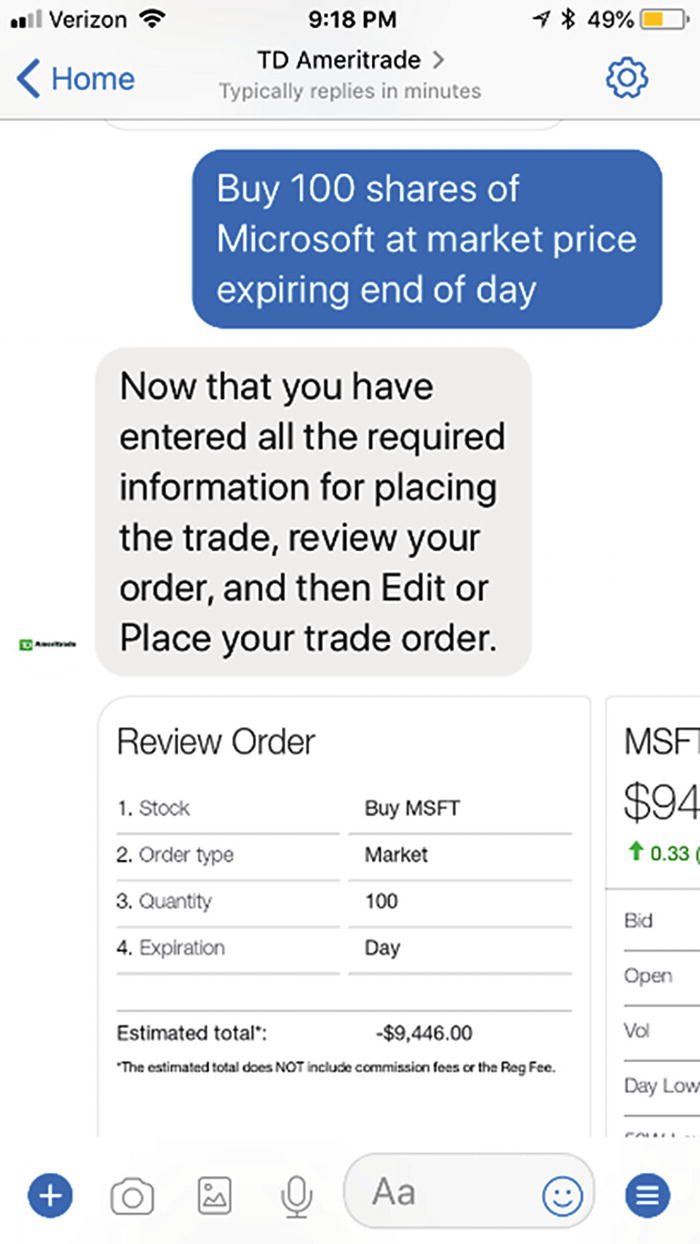

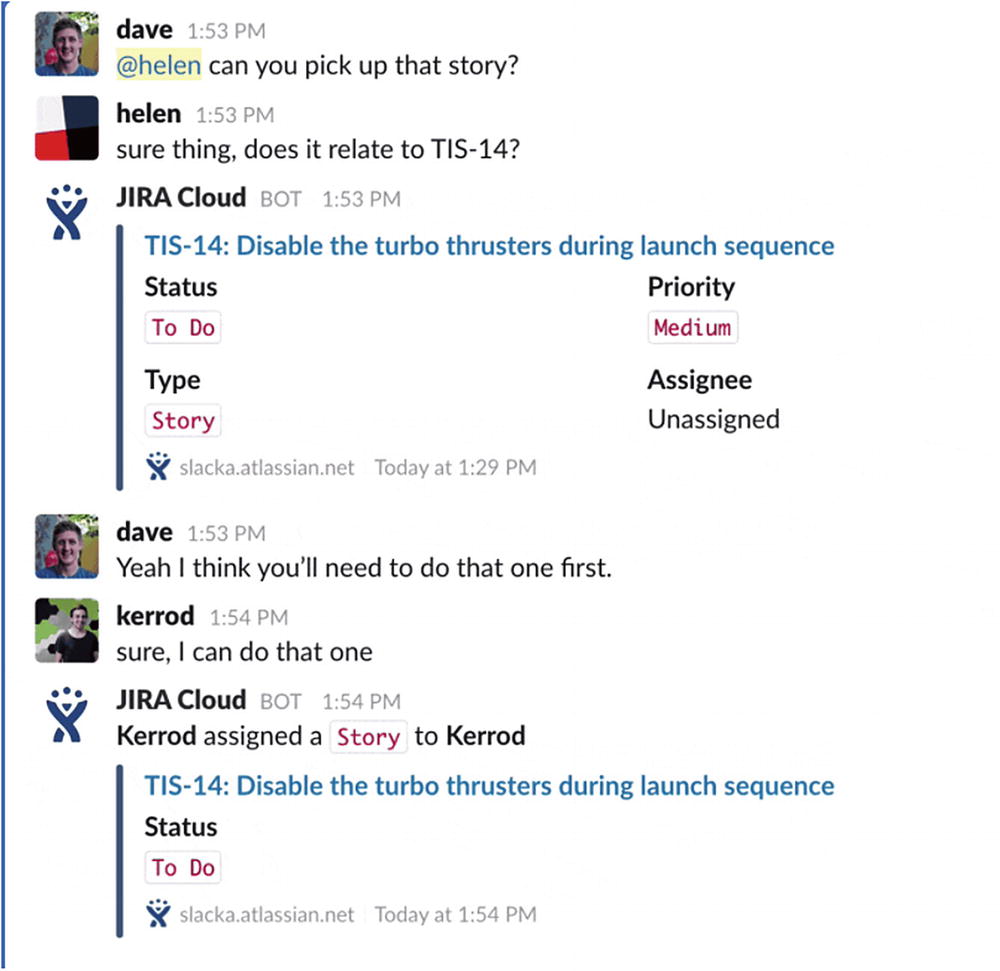

A task-oriented bot is a virtual agent that can help users with a variety of tasks specific to a domain. These types of bots are sometimes called concierge bots . For example, JIRA’s Slackbot (Figure 4-2) is task oriented. It can create tasks and assign tasks based on a conversation a team is having.

I once worked on a diabetes coach chat bot, which could help users who have Type 2 diabetes ask for meal and exercise advice personalized according to previous conversations and other data about the users. There are also financial services bots that connect to a trading account and update the user on their account balances and positions and even trade, like the TD Ameritrade bot (Figure 4-3). The Calendar LUIS app we developed in Chapter 3 is the base for a calendar task bot.

Broadcast Bot

A broadcast bot is an interesting concept and is quite common. We can think of this as a bot that reaches out to the user without prompting, as opposed to the user contacting the bot first. In some bots, it is more a pattern to keep bots engaged. For example, different news bots, like the CNN bot on Facebook Messenger, will reach out daily with the biggest stories of the day.

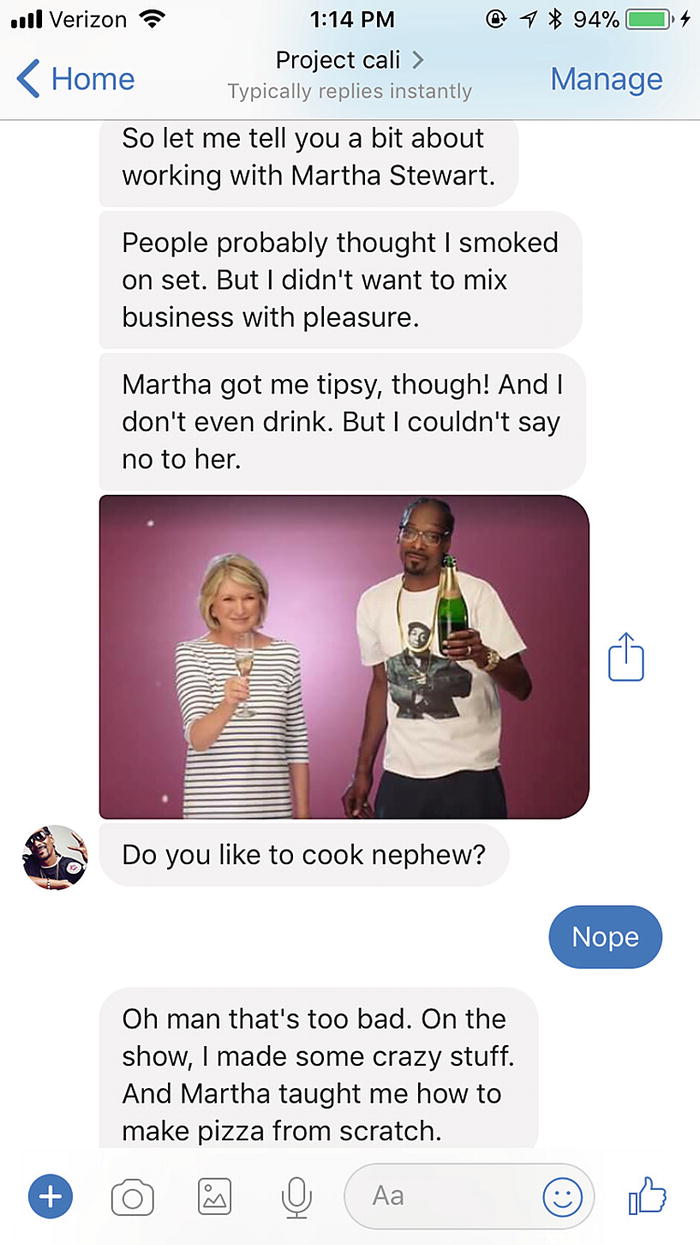

A subset and more nuanced version of this can be seen in some celebrity bot implementations. Typically, these types of bots exist for fun. They adopt the personality of a celebrity and can talk to users about topics of interest, products, and other ways of interacting with the celebrity’s branch. The bot can navigate you through a script of topics, send you videos and images, and maybe talk about products that the celebrity is endorsing. The conversation is almost entirely driven by the bot, instead of the user. It is an interesting storytelling device , but its success comes down to consistent fresh content. Figure 4-4 shows an example of Project Cali, a Snoop Dogg bot created for fun.

E-commerce Bot

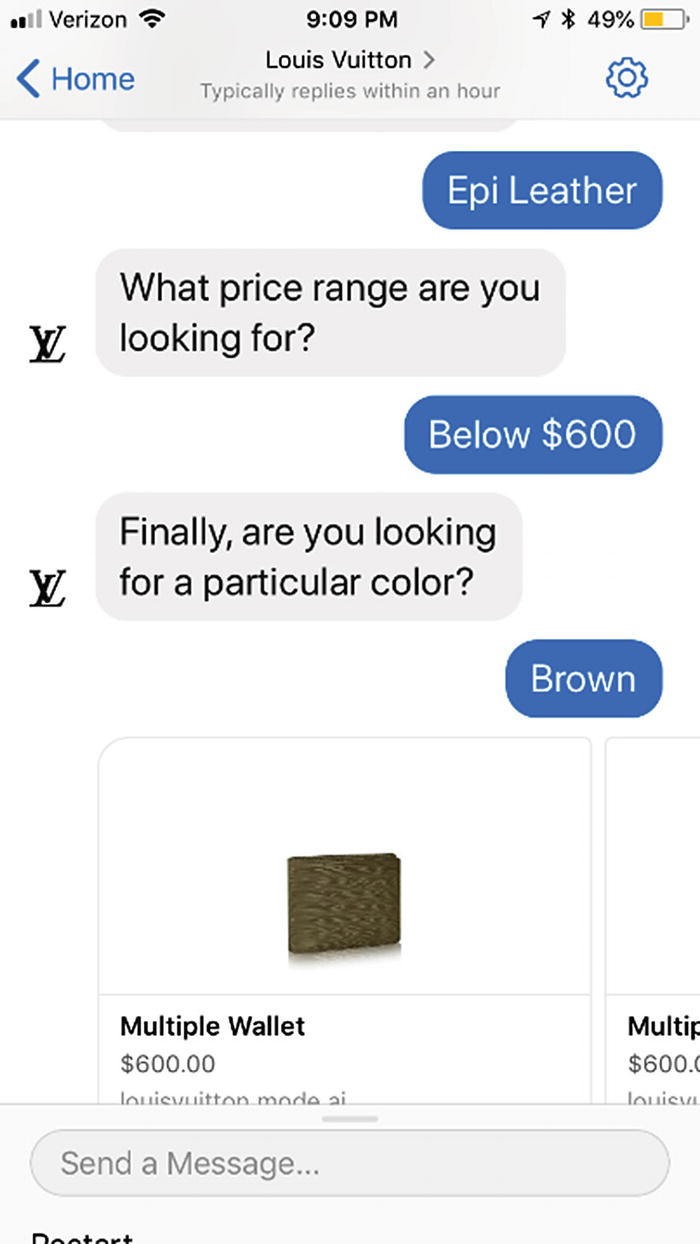

Although not yet big in North America, bots are slowly starting to sell products to consumers. It is not a terribly challenging task from a technical perspective; the bigger challenge is getting users to use a messaging instead of apps or websites. The amount of e-commerce integration in these kinds of bots varies. For example, some bots provide the complete end-to-end shopping experience. Looking at clothing items (Figure 4-5) or flowers (Figure 4-6) through a bot is different from an online shopping experience. Some bots lean into this and provide quirky or innovative ways of figuring out what products to show the user to get the impulse buy!

We also run into experiences where the bot is responsible only for broadcasting a receipt for a purchase and order status updates, with a limited set of bot functionality. Everything else gets automatically routed to a human customer support representative. Although this kind of experience is not fully integrated e-commerce, it is a great first step into that journey and into getting customers acquainted with bots. In short, companies are embracing what is being called the digitally driven consumer journey , and bots are part of this strategy.¹

Different messaging platforms provide different levels of payment support. We could certainly create e-commerce via a bot by providing a custom checkout page where the user can enter their payment information. The conversation is paused at this point. Once the payment is processed, a message is sent to the bot to continue the conversation. On the other hand, Facebook Messenger provides deeper integration with systems such as Stripe and PayPal. In that version, the payment experience stays completely within the Facebook Messenger app. From a user perspective, the less friction the better. And as users begin placing more trust in messaging apps to store their payment information, we will see more and more payment integrations like this. Apple has released its Business Chat² product and you bet that Apple Pay payments are fully integrated.³

Common Enterprise Cases

Enterprise bots may be more specialized to a domain or subject matter. They are typically deployed using a web chat component or integrated into enterprise messaging systems, or even enterprise Call Center and Interactive Voice Response (IVR) systems such as Cisco's Unified Communications Center. They can also be deployed on e-mail endpoints. The bots may be integrated with single sign-on solutions, powerful existing enterprise back ends, and knowledge management databases. Depending on the enterprise’s practice, these will range from simple pilot bots to machine learning–driven large-scale deployments.

Process Automation Bots

Robotic Process Automation (RPA) is a huge topic these days. Companies like IPsoft specialize in building bots and technology that can automate business and IT tasks.⁴ In this context, bots are not necessarily chat bots but rather computer agents that perform the automation. These tasks can include everything from account provisioning, website automation and business processes automation. There are companies that focus on creating automation platforms, such as Automation Anywhere and UiPath. With machine learning these days being used for everything from contract analysis to skin cancer diagnoses, chat bots can serve as an excellent front end into these processes. In an RPA scenario, the chat bot is more of an orchestrator rather than an automator. In addition, these bots may integrate into ticketing systems such as Remedy and ServiceNow to track its work.

In other instances, the chat bot is less visible to the user. For example, Slack is a great platform for bots that listen in to a team conversation and surface data as the right natural language arises. Bots that simply listen in to some natural language input and provide answers are a type of automation bot. Say, for example, a team of medical experts looks through text descriptions of procedures and is charged with translating them to insurance codes. That process can be automated by a machine learning algorithm that observes the team’s behavior and results and can then take over the data.

Again, the actual brains behind the logic may not be inside the bot itself. There may be a separate system that implements the machine learning model for the insurance codes. Or, the automation code may be Python, PowerShell, or any other script. The bot serves as the front end to receive the natural language and orchestrate the automation (Figure 4-7).

Building Blocks

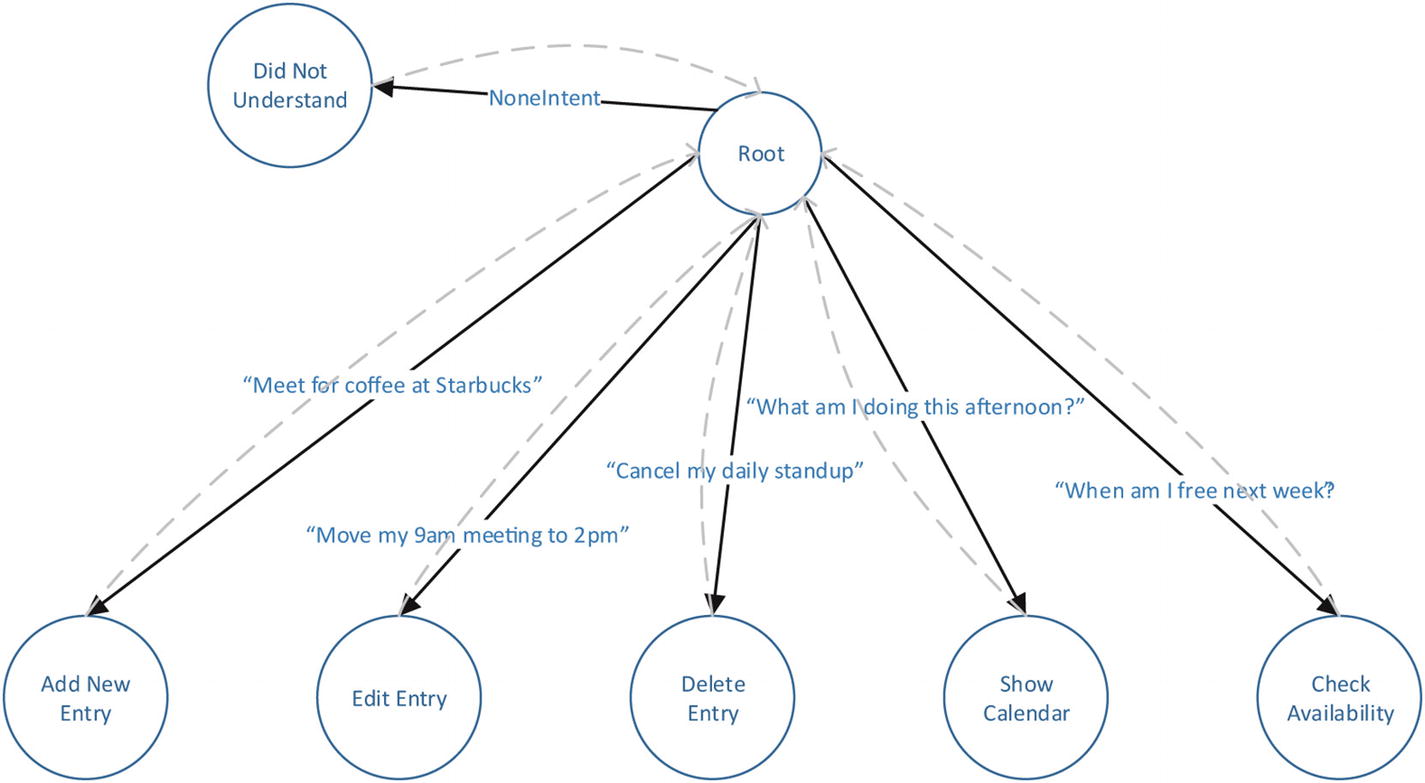

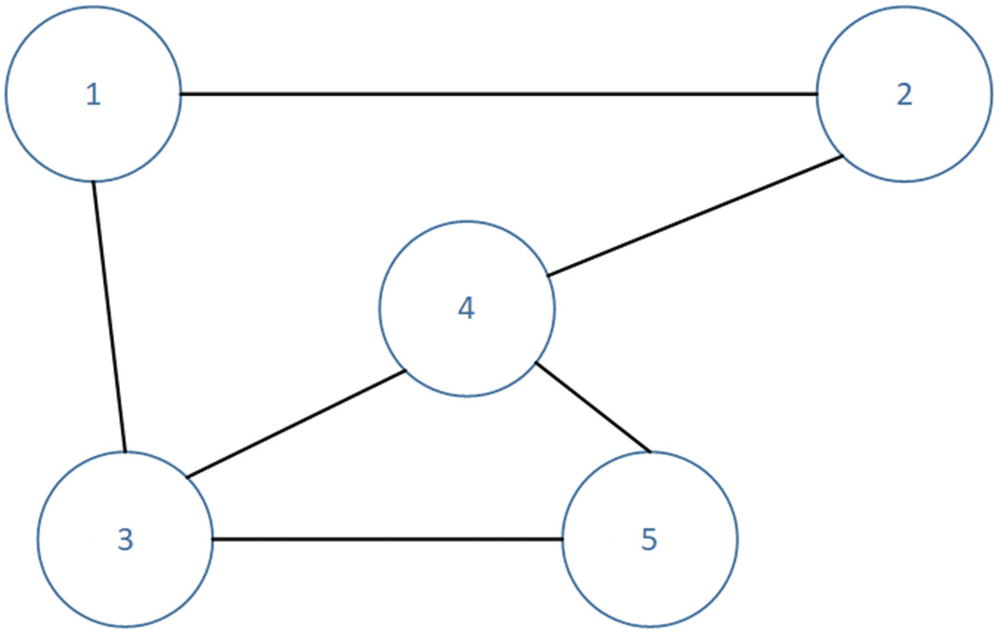

We now understand how we can take user input and map it to bot states and function. We also understand how we can organize our bot code into various conversation states. The next step in our design is to figure out what the bot sends to the user in return. Bots can respond in a variety of ways. By default, we think of text or speech output. Most typically, we simply send back plain text. Some messaging channels support something more complex like Markdown or HTML. Markdown is a plain-text formatting syntax.⁵ The following Markdown input translates to the formatted content in Figure 4-11:

# H1

# H2

Hello, my _name_ is **Szymon Rozga**

I like:

1. Bots

1. Dogs

1. Music

Bot platforms can also support speech response. Many platforms also support the Speech Synthesis Markup Language (SSML) as a speech output format. SSML is a markup language that provides metadata about how speech should be constructed using elements such as pauses, breaks, changes of rate and pitch, and others. Here is a self-explanatory sample from the WC3 Recommendation⁶:

Output to users does not always have to be text. We can use images and videos to communicate many ideas to our users. As part of any message sent back to the user, we may attach various content such as videos, audio files, and images. The specific supported formats will depend on the underlying operating system and channel. Some systems allow other file attachments as well, for instance XML files or a native format of some sort.

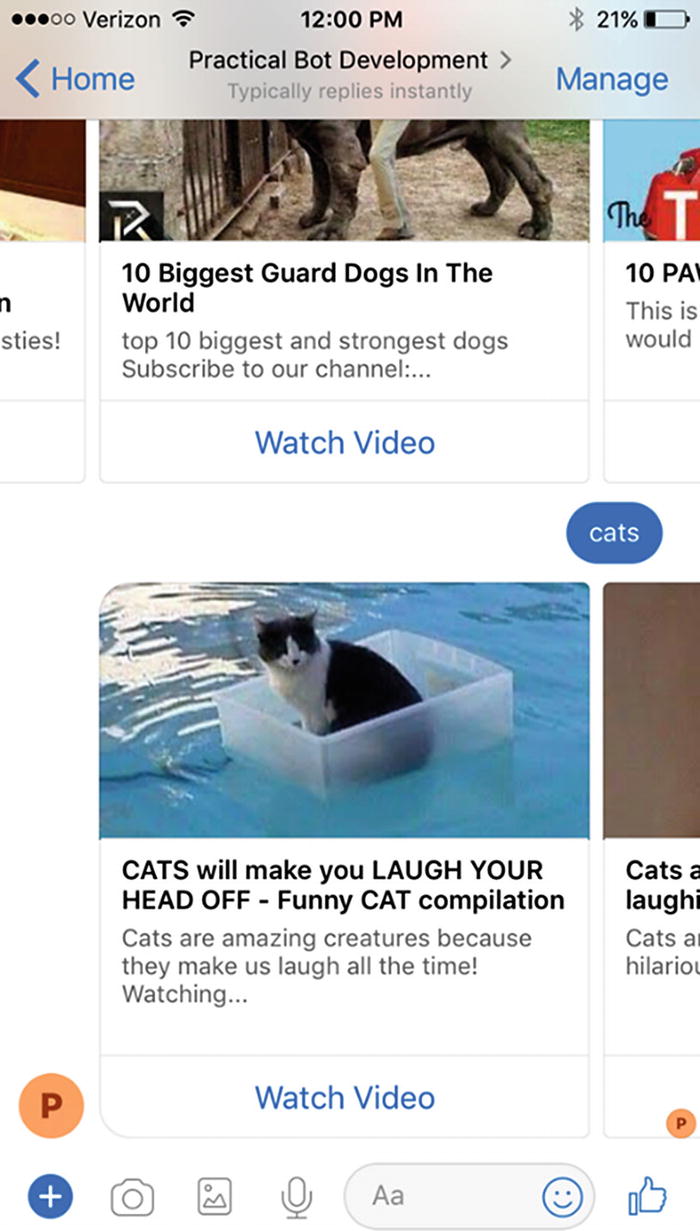

An alternative mechanism for presenting content to our users are cards. A card is typically a combination of an image, text, and optional buttons that serve as calls to action. Our YouTube Search bot from Chapter 1 (Figure 4-12) clearly displayed the video name, description, and a button to watch it in a set of cards.

This layout is called a carousel . It presents several cards side by side and gives the user the ability to swipe or scroll through the individual cards.

Buttons are typically sent as part of a card, but they can also be sent as stand-alone elements without an associate image. There are many types of buttons. The top three most popular buttons are used to open web pages, send a message back to the bot (IM back), or post a message back to the bot (post back). The difference between an IM back and a post back is that a post back message will not appear in the message history, whereas an IM back message would. Not all channels support both approaches, but the overall spirit of sending a message to the bot via a button click is widely supported.

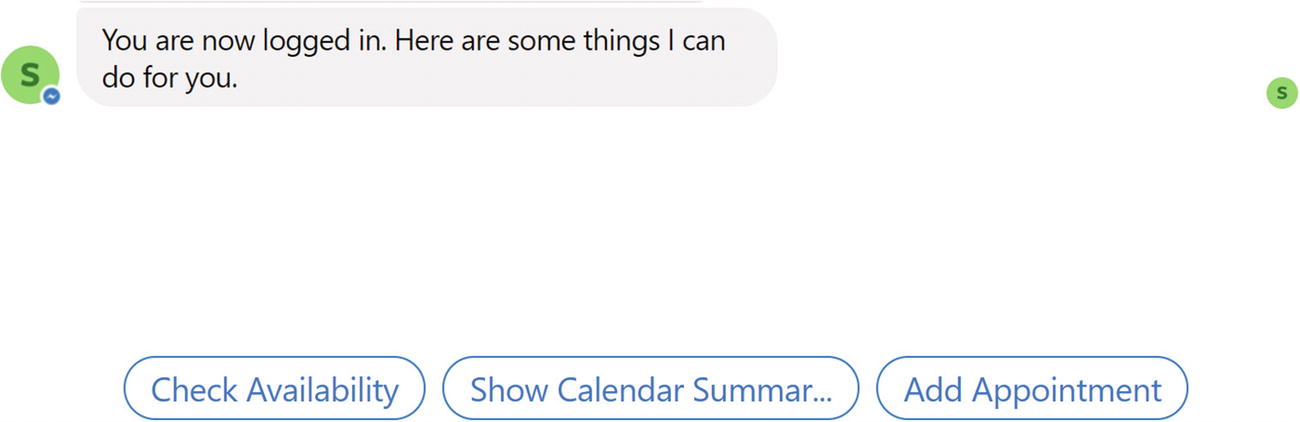

Another type of button is a sign-in button. Sign-in buttons kick off an authentication or authorization flow via a login in a web view. Once the login is completed, the bot receives any necessary access tokens and can proceed with an authenticated session, as shown in Figure 4-13.

All the content described previously is kept within a user’s chat history. The carousels, the cards, the buttons, and, of course, all the text are available for the user to scroll through. There is one form of element that is displayed only in the context of the message that it is included in. That feature is suggested actions, also called quick replies . These buttons are presented on the bottom of the user interface until the user responds. These buttons are clear calls to actions and an indispensable tool for delightful conversational experiences. Figure 4-14 shows an example usage of suggested actions guiding users to video categories available in the TD Ameritrade bot .

Authentication and Authorization in Bots

Let’s be honest, no one is going to be sending a username and password to a bot chat window. This is a security risk. We do not want Facebook or Slack or any other channel to have our users’ login credentials in their message history. At the end of the day, a bot is simply a web service, so using the standard OAuth or OpenID Connect flows is a natural fit.

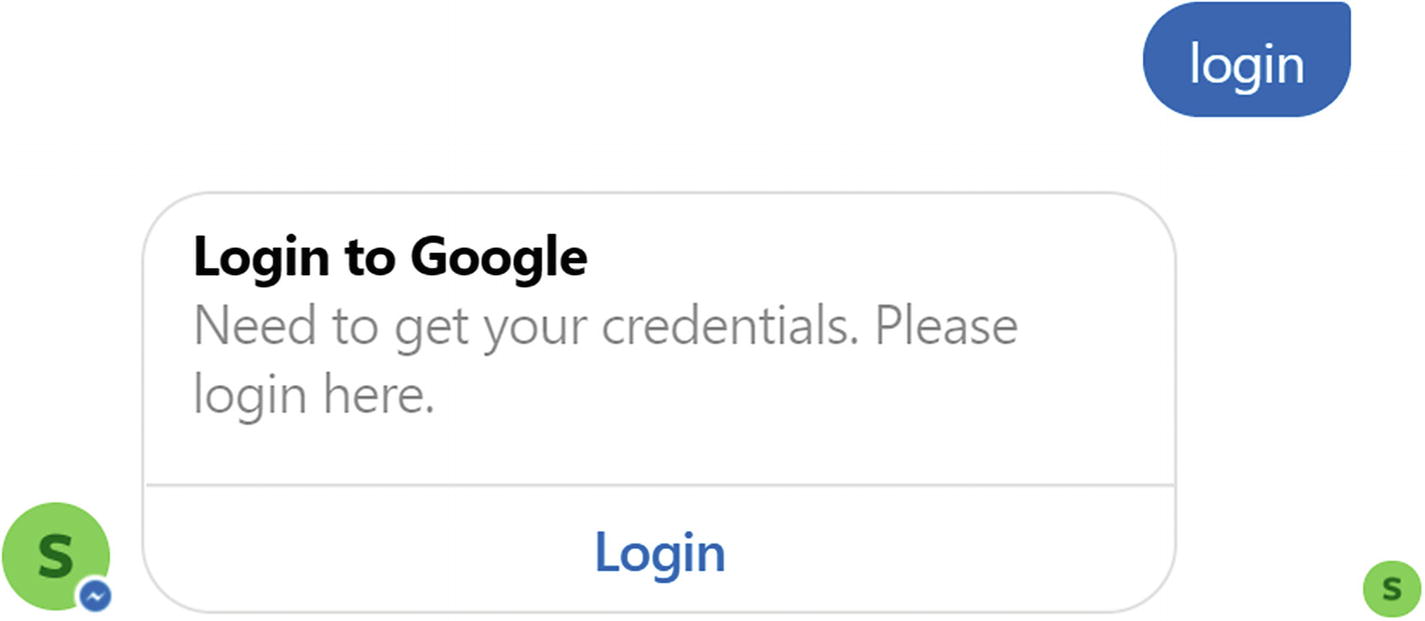

The right approach is to utilize a sign-in card, which is a card that includes a button that opens a login web page for the user to enter their credentials (Figure 4-15).

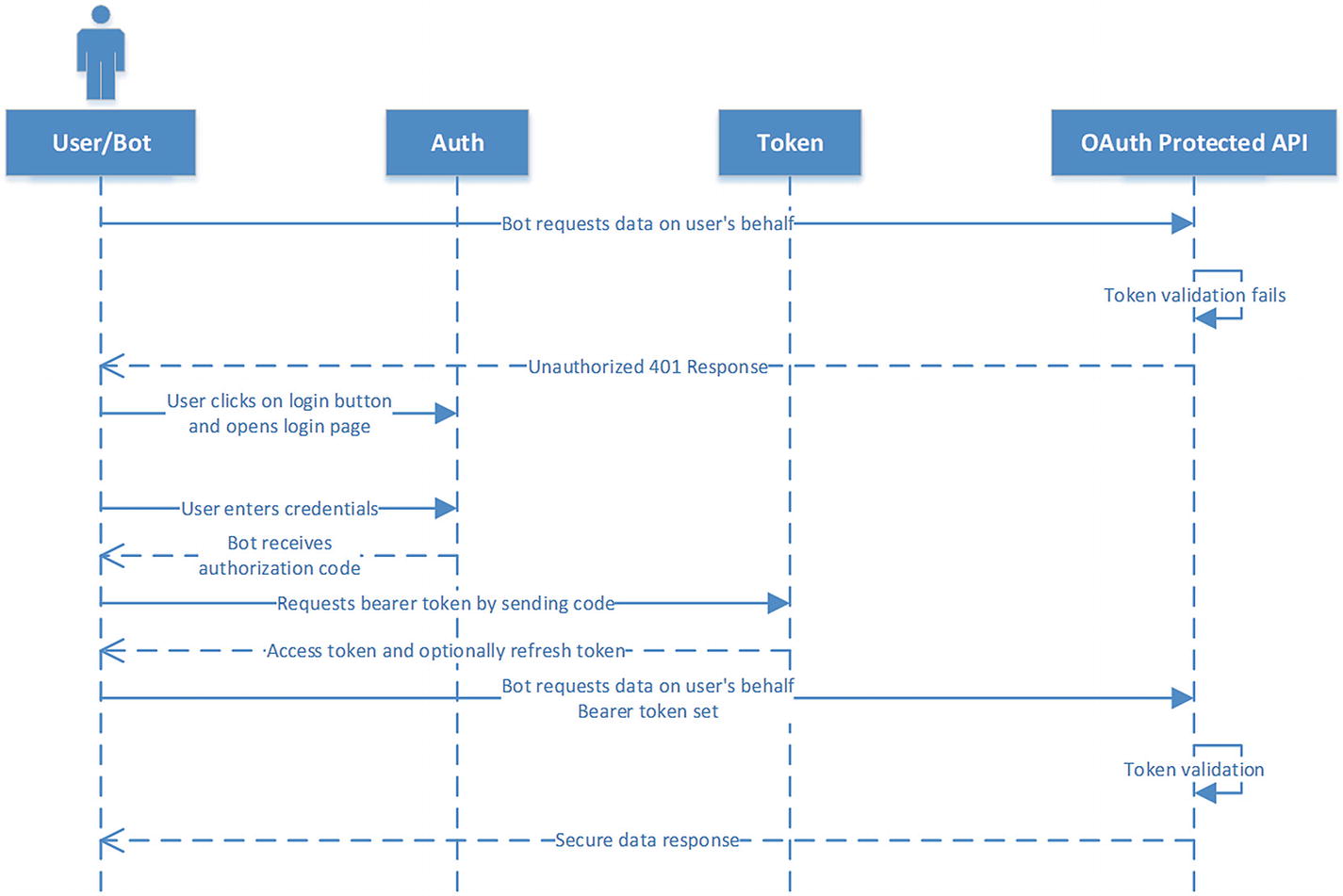

Typically, this login page will be an OAuth page (Figure 4-16).

There is substantial documentation around the specifics of this and other OAuth flows. The RFC is a great starting point.⁸ The key point is that a bot is a web service, and the complete OAuth flows can happen in an integrated manner. The only tricky part from a UX perspective is to ensure that the browser window automatically closes when the login is completed. The various channels approach this in slightly different ways. Although one can implement the entire flow manually, something we show off in Chapter 8, the Bot Framework does provide additional tools to facilitate this process.⁹

Specialized Cards

On platforms that support them, cards are a key component of the user experience. We covered the idea of a generic cards. Some channels provide several specialized cards. For instance, a receipt card (Figure 4-17) can be sent to communicate a purchase receipt with information such as totals, tax, payment confirmation, and so forth.

In addition, Messenger gives developers the ability to utilize four air travel cards such as itinerary, boarding pass (Figure 4-18), check-in, and flight update.

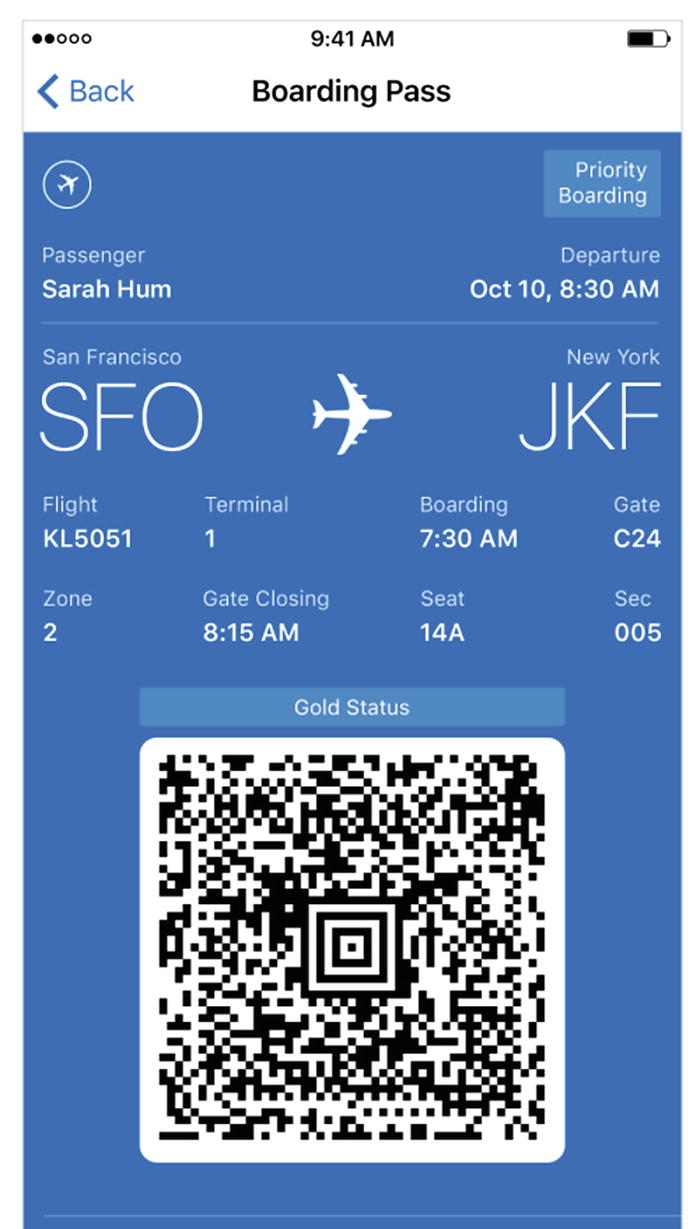

Tapping the boarding pass card shows a full-screen version with a QR code that can be utilized at the airport (Figure 4-19). Depending on which platform we target, there may be other templates for us to use. If they exist and match your use cases, use them. They provide a good, native user experience.

Another form of specialized card is one in which you use custom graphics. A common approach is to generate the custom graphics on a web service as the bot processes user input. In Chapter 11, we will build a simple custom graphics renderer using Headless Chrome to show how easily we can begin building custom graphics using HTML and JavaScript.

Lastly, Microsoft has introduced a new card format called Adaptive Cards.¹⁰ Adaptive cards , which we will explode in Chapter 11, are a platform-agnostic manner to describe layouts of text, images, and input fields using a simple container-based layout engine. The Microsoft Bot channel connectors are then able to render the cards into platform-specific renderings. Adaptive Cards are a specialized version of the custom graphics approach integrated with logic to generate buttons and behavior in a card. It remains to be seen how many channels will end up supporting this format, but many of the Microsoft-owned channels already do.

Figure 4-20 shows an example of an HTML rendering of an Adaptive Card.

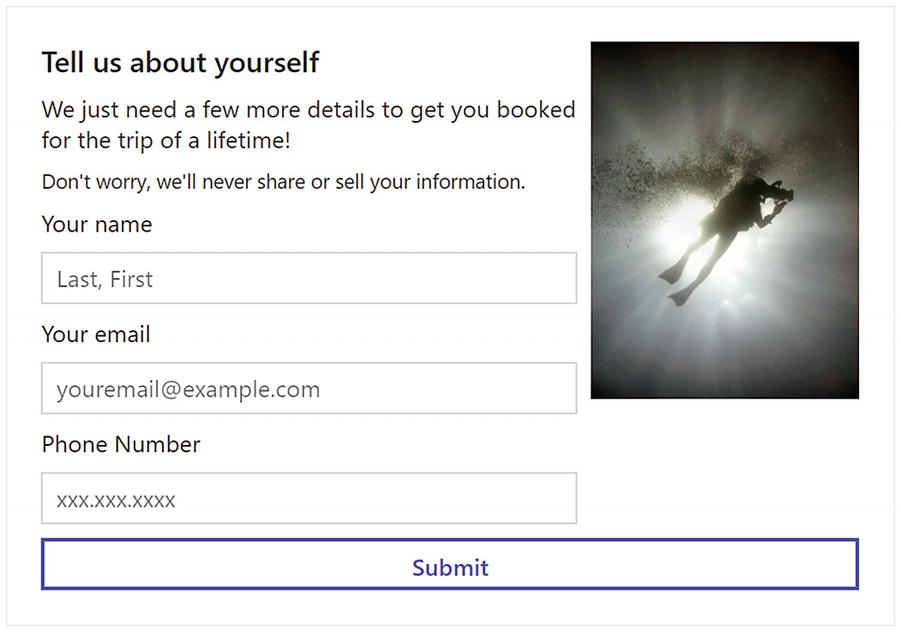

Figure 4-21 shows the rendering of an input form card on Microsoft’s Teams app.

Focus

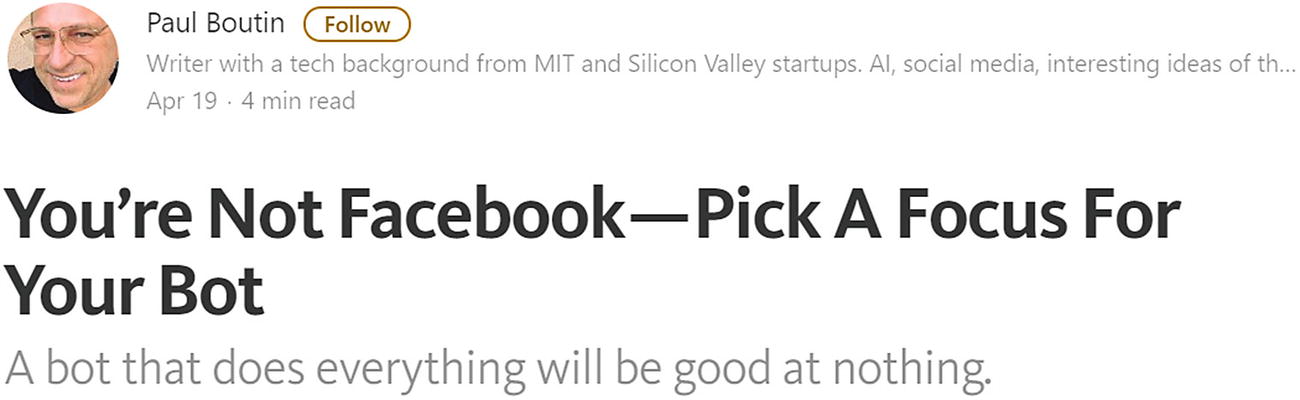

As discussed in Chapters 1 and 2, there are limits to the technology and how intelligent a bot can be. Our bots should not try to get too clever; humans will always be able to break the bot in one way or another. For example, it is quite OK to handle greetings from the user like “hi” or “hello. We do not want to go down the rabbit hole of being handling every different type of greeting. Don’t start creating specialized responses for “what’s up?” versus “hi.” If you are reading this book, you most likely don’t have the budget that Microsoft or Google has (Figure 4-22). We are here to help with tasks, not general AI. It is OK to be honest about our bot’s limitations.

Don’t Pretend the Bot Is a Human

We do not want our bots to end up in the uncanny valley.¹¹ That is, as with most, if not all, human-like objects, real humans will feel that something is not quite right, leading to strange and eerie feelings (Figure 4-23). We do not want our users to get those feelings. This goes hand in hand with representing your bot with human likeness. If you are representing your bot via an avatar, use an icon that clearly suggests a nonhuman entity. Siri and Cortana do this very well.

Do Not Gender Bots

There is plenty of writing around this topic.¹² It is worth noting that even though Siri, Cortana, and Alexa and some of the older virtual assistants have female names, Google and Facebook have opted for Google Assistant and M. This trend of nongendered bots has continued in the industry. Adopting female personas can quickly get weird, as when taken to the extreme with the sexualization of AI in the movie Her.

Always Present the Next Best Action

Our bot should never leave a user hanging without the user knowing what to do next. The bot should have a welcome message introducing itself, its capabilities, and some options to the user about what it is capable of. When the user is confused and asks for help or the bot is unable to recognize the user’s input, the bot should suggest some options as well. The key point is that if at any point of the conversation the user is met by a blank message box with no suggested next steps, it becomes a confusing conversational experience. Facebook Messenger, Skype, and other channels have a contextual quick-reply feature that presents button options of the bottom of the chat interface (Figure 4-24). Presenting such suggestions is a great way to communicate our bot’s capabilities and limitations.

Have a Consistent Tone

Bots typically will end up getting a name and personality. Although I don’t think gendered names make sense, your bot should have a personality and a consistent tone. Remember, these are brands speaking to your customers. Some bots are chatty. Others are less so. Some are formal. Others are more relaxed. Choose one for your bot and keep it consistent. And, although it is interesting technology, we should avoid using natural language generative models (machine learning algorithms that automatically generate responses) if we want to keep a brand-centric voice.

Utilize Rich Content

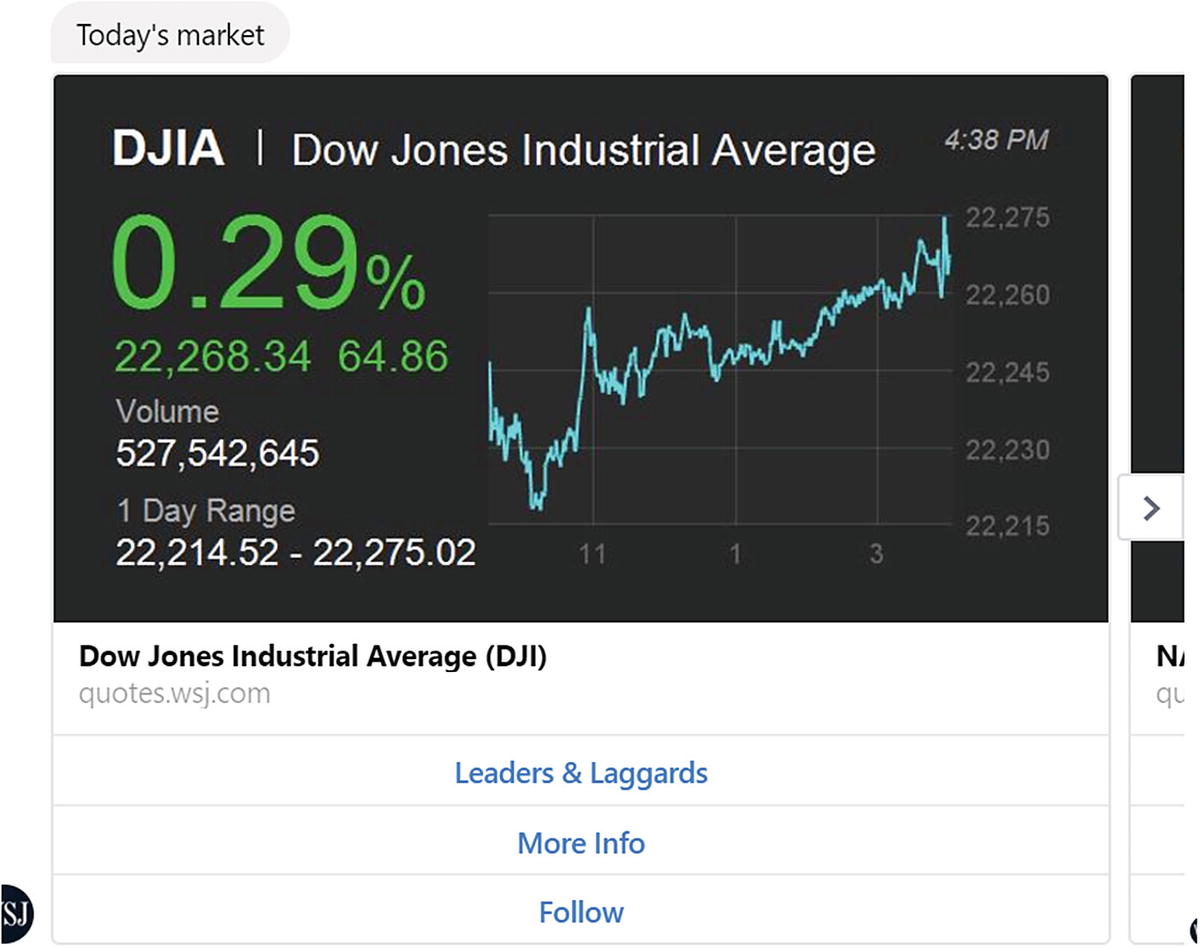

Bots provide us with the opportunity to utilize more than just text. We can format text and include images, videos, and audio files. We can render cards (Figure 4-25) and even create some custom graphics in your cards. We need to utilize those features to their fullest extent

Be Forgiving

Natural language is tricky. Expect user inputs to be vague. Our bots should have conversational paths to confirm information or elicit missing data. If the user is expected to enter a number, we should parse any possible input but also be clear about the bot’s expectations. If possible, provide some suggestions to the user of possible values they could enter by using a quick reply feature. The user will be pleased by such suggestions. There’s nothing more frustrating than not knowing and not being instructed how to communicate to a bot.

Avoid Getting Stuck

At any point in our bot, the user should be able to change the conversation topic. Our bot should try to get stuck in a conversation context, unless absolutely necessary. For example, let’s assume a calendar bot is asking the user for date. Our bot expects a string that resolves to a date. If the user enters “delete tomorrow’s 9am appointment,” our bot should handle the query gracefully instead of saying something like “I’m sorry that is not a date. Please enter a date in the format mm/dd/yyyy.”

Don’t Abuse Proactive Messaging

Bots give us an ability to reach out to user at any time, even without the bot seeing a message from the user. Do not abuse that privilege. In messaging applications, users get a notification any time they receive a message. There isn’t an easier way to get removed from the messaging app than constantly sending reminders or trying to re-engage. Some channels have specific policies around this as well. Be a good citizen within the messaging channels.

Provide a Clear Path to Humans

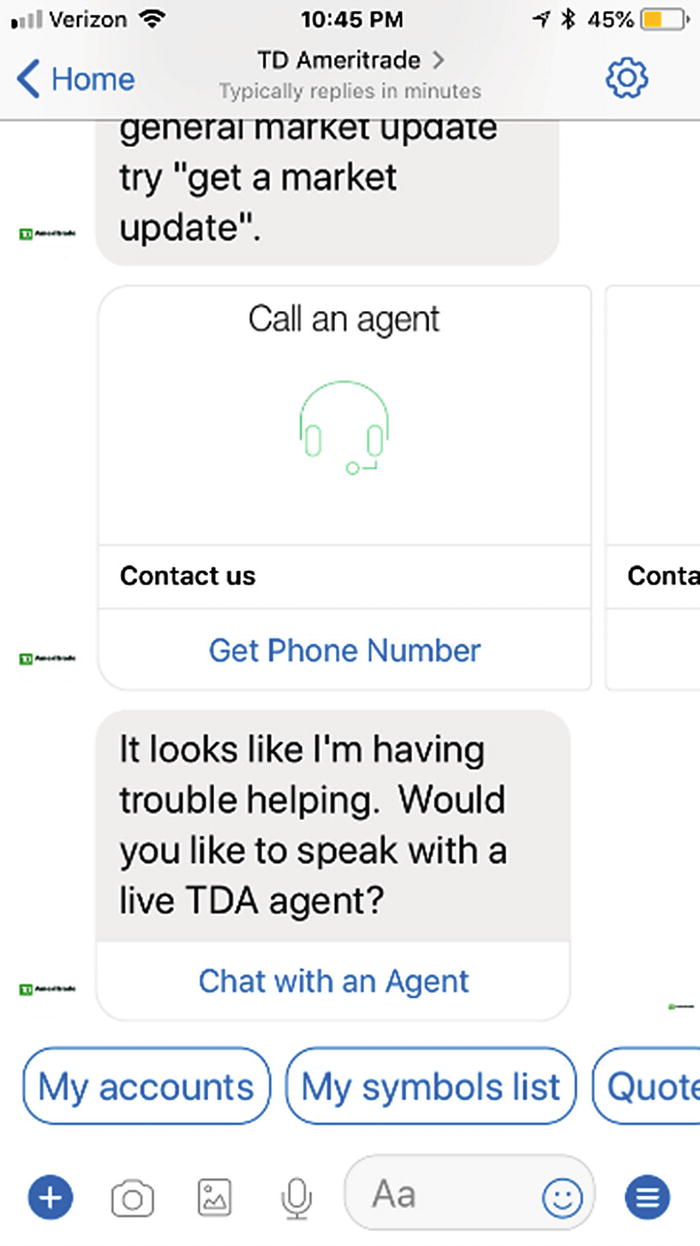

If there is one thing that should be clear by now, it is that bots cannot understand everything. Even with a limited scope of functions, there are going to be questions and issues that the bot will not be able to handle. Our bots should have an ability to somehow connect users to a human agent, if relevant to the use case. Whether it is displaying a phone number with a case number or having seamless integration into a live chat system, our bots should be clear in how our users can speak to humans for help with their issues (Figure 4-26). For example, I once encountered a bot that could answer frequently asked questions. I read a press release about the bot, so I decided to try it. I started the conversation and got a message about clicking a button. There were no buttons. I asked, “What can I do?” I got redirected to a human agent. At this point, I couldn’t do anything until a human dealt with my case. I also had no indication of how long it would take. Was their call center even open? Once the agent came around, I spoke to them and got sent back to the bot. I had total silence, no buttons. I said “Test.” The next message I got was that I was getting transferred again. At this point, I just quit. Don’t make your users quit in frustration.

Learn from Your Users

It is simple to use a conversational experience to collect data from users. It also easy to use user input in resolving conflicting intents from LUIS and then utilizing that data to train LUIS. Of course, the importance given to user input should be very different than the weight given to the utterances provided by a trainer. But if we have the data, we should use it to our advantage. Figure 4-27 shows an example of how we can implement such an approach. In the diagram we store user feedback into an active learning data store, and our active learning process determines how much of the same feedback it should observe before using the data point to train LUIS. Be careful with automated training based on user input. You do not want to go the way of Tay.¹³

There are more rules you may pick up on as you gain experience in this space across different messaging channels, but this list is a good starting point and something I suggest we follow on every chat bot project.
