Chapter 10. Writing layouts and components

This chapter covers

• Writing a custom legend component
• Writing a custom grid layout
• Adding functionality to make layout and component settings customizable
• Adding interactivity to components

Throughout this book, we’ve dealt with D3 components and layouts. In this chapter we’ll write them. After you’ve created your own layout and your own component, you’ll better understand the structure and function of layouts. You’ll be able to use that layout, and other layouts that you create in the same fashion, in the charts and applications that you build with D3 later on.

In this chapter we’ll create a custom layout that places a dataset on a grid. For most of the chapter, we’ll use our people analytics dataset, but the advantage of a layout is that the dataset doesn’t matter. The purpose of this chapter isn’t to create a grid, but rather to help you understand how layouts work. We’ll create a grid layout because it’s simple and allows us to focus on layout structure rather than on the particulars of any data visualization layout. We’ll follow that up by extending the layout so it can have a set size that we can change. You’ll also see how the layout annotates the dataset we send so that individual datapoints can be drawn as circles or rectangles. A grid isn’t the sexiest or most useful layout, but it can teach you the basics of layouts. After that, we’ll build a legend component that tells users the meaning of the color of our elements. We’ll do this by basing the graphical components of the legend on the scale we’ve used to color our chart elements.

10.1. Creating a layout

Recall from chapter 5 that a layout is a function that modifies a dataset for graphical representation. Here, we’ll build that function. Later, we’ll give it the capacity to modify the settings of the layout in the same manner that built-in D3 layouts operate. This layout will allow us to place discrete datapoints on a grid, allowing for easy comparison. You could use this to show a single circle or rectangle, as we have, or you could use these grids to hold individual charts to generate small multiples charts, as some D3 users have since the first edition of this book was released.

You’ll see this in more detail later, but first we need to create a function that processes our data. After we create this function, we’ll use it to implement the calls that a layout needs. In the following listing, you can see the function and a test where we instantiate it and pass it data.

Listing 10.1. d3.gridLayout.js

d3.gridLayout = () => {
   function processGrid(data) {
   console.log(data)
   }
   return processGrid
}
var grid = d3.gridLayout()
grid([1,2,3,4,5])                       1

• 1 Prints [1,2,3,4,5] to the console

That’s not an exciting layout, but it works. We don’t need to name our layout d3.-layoutX or any other particular name, but using a thoughtful name will make it more readable in the future (and you don’t want to be heckled in a book on the subject in coming years, where you’re asked how your treemap is neither a tree nor a map).

10.1.1. Designing your layout

Before we start working on the functions that will create our grid, we have to define what this layout does. We know we want to put the data on a grid, but what else do we want? Here’s a simple spec:

• We want to have a default arrangement of that grid—say, equal numbers of rows and columns.
• We also want to let the user define the number of rows or columns.
• We want the grid to be laid out over a certain size.
• We also need to allow the user to define the size of the grid.

That’s a good start.

10.1.2. Implementing your layout

First, we need to initialize all the variables that this grid needs to access to make it happen. We also need to define getter and setter functions to let the user access those variables, because we want to keep them scoped to the d3.gridLayout function. The first thing we can do is update the processGrid function to look like it does in listing 10.2. It takes an array of objects and updates them with x and y data based on grid positions. We derive the size of the grid from the number of data objects sent to processGrid. It turns out this isn’t a difficult mathematical problem. We take the square root of the number of datapoints and round it up to the nearest whole number to get the right number of rows and columns for our grid. This makes sense when you think about how a grid is a set of rows and columns that allows you to place a cell on one of those rows and columns for each datapoint. The number of rows times columns needs to be at least the number of cells (the number of datapoints). If we decide to have the same number of rows as columns, then it’s that number squared.

Listing 10.2. Updated processGrid function

function processGrid(data) {
   var rows = Math.ceil(Math.sqrt(data.length));                        1
   var columns = rows;
   var cell = 0;                                                        2
   for (var rowNumber = 0; rowNumber < rows; rowNumber++) {
      for (var cellNumber = 0; cellNumber < columns; cellNumber ++) {   3
         if (data[cell]) { cellNumber                                   4
             data[cell].y = rowNumber                                   5
             cell++                                                     6
         }
         else {
           break
         }
      }
   }
   return data
}

• 1 Calculates the number of rows/columns
• 2 Initializes a variable to walk through the dataset
• 3 Loops through the rows and columns
• 4 This assumes the data consists of an array of objects
• 5 Sets the current datapoint to corresponding row and column
• 6 Increments the datapoint variable

To test our nascent grid layout, we can load our people analytics team using nodelist .csv from chapter 7 and then pass that data to the grid. The grid function displays the graphical elements onscreen based on their computed grid position. In the following listing, you can see how we’d pass data from nodelist.csv to our grid layout and size each person by their salary.

Listing 10.3. Using our grid layout

d3.csv("nodelist.csv", makeAGrid)
function makeAGrid(data) {
   var scale =
   d3.scaleLinear().domain([0,5]).range([100,400]);       1
    var salaryScale = d3.scaleLinear().domain([0,300000])
       .range([1,30]).clamp(true)
   var grid = d3.gridLayout();
   var griddedData = grid(data);
   d3.select("svg").selectAll("circle")
      .data(griddedData)
      .enter()
      .append("circle")
      .attr("cx", d => scale(d.x))                        2
      .attr("cy", d => scale(d.y))
          .attr("r", d => salaryScale(d.salary))
      .style("fill", "#93C464");
}

• 1 A scale to fit our grid onto our SVG canvas
• 2 Sets circles to a scaled position based on the layout’s calculated x and y values

The results in figure 10.1 show how the grid function has correctly appended x and y coordinates to draw the employees as circles on a grid.

Figure 10.1. The results of our makeAGrid function that uses our new d3.gridLayout to arrange the data in a grid. In this case, our data consists of employees that are each represented as a green circle laid out on a grid and size by salary.

10.1.3. Testing your layout

The benefit of building this as a layout is that if we add more data to it, it automatically adjusts and allows us to use transitions to animate that adjustment. To do that, we need more data. Listing 10.4 includes a few lines to create a raft of new employees. We also use the .concat() function of an array in native JavaScript that, when given the state shown in figure 10.1, should produce the results in figure 10.2.

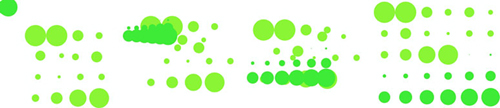

Figure 10.2. The grid layout has automatically adjusted to the size of our new dataset. Notice that our new elements are above the old elements, but our layout has changed in size from a 4 x 4 grid to a 5 x 5 grid, causing the old elements to move to their newly calculated position.

Listing 10.4. Update the grid with more elements

var newEmployees = d3.range(14).map(d => {
   var newPerson = {id: "New Person " + d, salary: d * 20000}      1
   return newPerson
})
var doubledArray = data.concat(newEmployees);                      2
var newGriddedData = grid(doubledArray);
d3.select("svg").selectAll("circle")
   .data(newGriddedData)
   .enter()
   .append("circle")                                               3
   .attr("cx", 0)
   .attr("cy", 0)
      .attr("r", d => salaryScale(d.salary))
   .style("fill", "#41A368");
d3.select("svg").selectAll("circle")
   .transition()                                                   4
   .duration(1000)
   .attr("cx", d => scale(d.x))
   .attr("cy", d => scale(d.y))

• 1 Creates 14 new employees with increasing salaries
• 2 Combines the original dataset with our new dataset
• 3 Adds any new employees at 0,0
• 4 Moves all employees (old and new) to their newly computed positions

The results in figure 10.2 show snapshots of the animation from the old position to the new position of the circles.

10.1.4. Extending your layout

Calculating a scale based on what you know to be the grid size results in an inefficient piece of code. That wouldn’t be useful if someone put in a different dataset. Instead, when designing layouts, you’ll want to provide functionality so that the layout size can be declared, and then any adjustments necessary happen within the code of the layout that processes data. To do this, we need to add a scoped size variable and then add a function to our processGrid function to allow the user to change that size variable. Sending a variable sets the value, and sending no variable returns the value. We achieve this by checking for the presence of arguments using the arguments object in native JavaScript. The updated function is shown in the following listing.

Listing 10.5. d3.gridLayout with size functionality

d3.gridLayout = function() {
var gridSize = [0,10];                                          1
   var gridXScale = d3.scaleLinear();                           2
var gridYScale = d3.scaleLinear();
function processGrid(data) {
        var rows = Math.ceil(Math.sqrt(data.length));
           var columns = rows;
        gridXScale.domain([1,columns]).range([0,gridSize[0]])   3
           gridYScale.domain([1,rows]).range([0,gridSize[1]])
           var cell = 0
        for (var rowNum = 1; rowNum <= rows; rowNum++) {
          for (var cellNum = 1; cellNum <= columns; cellNum++) {
            if (data[cell]) {
              data[cell].x = gridXScale(cellNum)                4
              data[cell].y = gridYScale(rowNum)
              cell++
            }
            else {
              break
            }
          }
        }
      return data;
    }
    processGrid.size = (newSize) => {                           5
            if (!arguments.length) return gridSize
        gridSize = newSize
        return this
    }
    return processGrid
  }

• 1 Initializes the variable with a default value
• 2 Creates two scales but doesn’t define their range or domain
• 3 Defines the range and domain each time the layout is called
• 4 Applies the scaled values as x and y
• 5 Getter/setter function for layout size

You can see the updated grid layout in action by slightly changing our code for calling the layout, as shown in the following listing. We set the size, and when we create our circles, we use the x and y values directly instead of using scaled values.

Listing 10.6. Calling the new grid layout

    var grid = d3.gridLayout();
    grid.size([400,400]);                                  1
    var griddedData = grid(data);
    d3.select("svg")
       .append("g")
       .attr("transform", "translate(50,50)")
       .selectAll("circle").data(griddedData)
       .enter()
       .append("circle")
       .attr("cx", d => d.x)                               2
       .attr("cy", d => d.y)
       .attr("r", d => salaryScale(d.salary))
    var newEmployees = [];
    for (var x = 0;x < 14;x++) {
         var newPerson = {id: "New Person " + x, salary: x * 20000};
         newEmployees.push(newPerson);
    }

    var doubledArray = data.concat(newEmployees)
    var newGriddedData = grid(doubledArray)
    d3.select("g").selectAll("circle").data(newGriddedData)
       .enter()
       .append("circle")
       .attr("cx", 0)
       .attr("cy", 0)
       .attr("r", d => salaryScale(d.salary))
       .style("fill", "#41A368")
    d3.select("g").selectAll("circle")
       .transition()
       .duration(1000)
       .attr("cx", d => d.x)
       .attr("cy", d => d.y)
       .on("end", resizeGrid1)                            3

• 1 Sets layout size
• 2 Position circles with their x/y values
• 3 At the end of the transition, calls resizeGrid1

This code refers to a resizeGrid1() function, shown in the following listing, that’s chained to a resizeGrid2() function. These functions use the ability to update the size setting on our layout to update the graphical display of the elements created by the layout.

Listing 10.7. The resizeGrid1() func

    function resizeGrid1() {
      grid.size([200,400]);                1
      grid(doubledArray);
      d3.select("g").selectAll("circle")
        .transition()
        .duration(1000)
        .attr("cx", d => d.x)
        .attr("cy", d => d.y)
        .on("end", resizeGrid2)
    };
    function resizeGrid2() {
      grid.size([400,200])                 2
      grid(doubledArray)
      d3.select("g").selectAll("circle")
        .transition()
        .duration(1000)
        .attr("cx", d => d.x)
        .attr("cy", d => d.y)
    }

• 1 Changes the size, reapplies the layout, and updates the display
• 2 Again, with a different size

This creates a grid that fits our defined space perfectly, as shown in figure 10.3, and with no need to create a scale to place the elements.

Figure 10.3. The grid layout run with a 400 x 400 size setting

Figure 10.4 shows a pair of animations where the grid changes in size as we adjust the size setting. The grid changes to fit a smaller or an elongated area. This is done using the transition’s end event. It calls a new function that uses our original grid layout but updates its size and reapplies it to our dataset.

Figure 10.4. The grid layout run in a 200 x 200 size (left) and a 400 x 200 size (center), and a 200 x 400 size (right)

Before we move on, it’s important that we extend our layout a bit more so that you can better understand how layouts work. In D3 a layout isn’t meant to create something as specific as a grid full of circles. Rather, it’s supposed to annotate a dataset so you can represent it using different graphical methods.

Let’s say we want our layout to also handle squares, which would be a desired feature when dealing with grids. To handle squares, or more specifically rectangles (because we want them to stretch out if someone uses our layout and sets the height and width to different values), we need the capacity to calculate height and width values. That’s easy to add to our existing layout function, as shown in the following listing.

Listing 10.8. Layout code for calculating height and width of grid cells

      var gridCellWidth = gridSize[0] / columns;
      var gridCellHeight = gridSize[1] / rows;
      //other code
        for (var i = 1; i <= rows; i++) {
          for (var j = 1; j <= columns; j++) {
            if (data[cell]) {
              data[cell].x = gridXScale(j);
              data[cell].y = gridYScale(i);
              data[cell].height = gridCellHeight;       1
              data[cell].width = gridCellWidth;         1
              cell++;
            }
            else {
              break;
            }
          }
        }

• 1 New code to set the height and width of the grid cells so we can use rectangles instead of circles

With that in place, we can call our layout and append <rect> elements instead of circle elements. We can update our code, as in the following listing, to offset the x and y attributes (because <rect> elements are drawn from the top left and not from the center like <circle> elements) and also apply the width and height values that our layout computes.

Listing 10.9. Appending rectangles with our layout

    d3.select("svg")
       .append("g")
       .attr("transform", "translate(50,50)")
       .selectAll("circle").data(griddedData)
       .enter()
       .append("rect")
         .attr("x", d => d.x - (d.width / 2))                 1
         .attr("y", d => d.y - (d.height / 2))                1
         .attr("width", d => d.width)                         1
         .attr("height", d => d.height)                       1
         .style("fill", "#93C464")

...
   d3.select("g").selectAll("rect").data(newGriddedData)
       .enter()
       .append("rect")
       .style("fill", "#41A368")

   d3.select("g").selectAll("rect")
         .transition()
         .duration(1000)
         .attr("x", d => d.x - (d.width / 2))                 2
         .attr("y", d => d.y - (d.height / 2))                2
         .attr("width", d => d.width)                         2
         .attr("height", d => d.height)                       2
         .on("end", resizeGrid1);                             3

function resizeGrid1() {                                      4
      grid.size([200,400]);
      grid(doubledArray);
      d3.select("g").selectAll("rect")
        .transition()
        .duration(1000)
        .attr("x", d => d.x - (d.width / 2))
        .attr("y", d => d.y - (d.height / 2))
        .attr("width", d => d.width)
        .attr("height", d => d.height)
        .on("end", resizeGrid2);
};

    function resizeGrid2() {                                  4
      grid.size([400,200]);
      grid(doubledArray);
      d3.select("g").selectAll("rect")
        .transition()
        .duration(1000)
        .attr("x", d => d.x - (d.width / 2))
        .attr("y", d => d.y - (d.height / 2))
        .attr("width", d => d.width)
        .attr("height", d => d.height)
    };

• 1 The updated grid layout calculates the space each grid cell takes up
• 2 Height and width are used to set the rectangle size and position with an animated transition
• 3 At the end of the animation, trigger another animation to show how the updated settings of the grid size can be used to dynamically update display of the grid
• 4 Each of these gives new rectangle sizes based on the new grid.size settings

If we update the rest of our code accordingly, the result is the same animated transition of our layout between different sizes, but now with rectangles that grow and distort based on those sizes, as shown in figure 10.5.

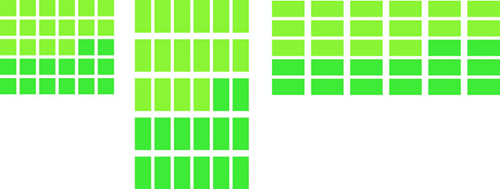

Figure 10.5. The three states of the grid layout using rectangles for the grid cells

This is a simple example of a layout and doesn’t do nearly as much as the kinds of layouts we’ve used throughout this book, but even a simple layout like this provides reusable, animatable content. Now we’ll look at another reusable pattern in D3—the component—which creates graphical elements automatically.

10.2. Writing your own components

You’ve seen components in action, particularly the axis component. You can also think of the brush as a component, because it creates graphical elements. But it tends to be described as a “control” because it also loads with built-in interactivity.

The component that we’ll build is a simple legend. Legends are a necessity when working with data visualization, and they all share some things in common. First, we’ll need a more interesting dataset to consider, though we’ll continue to use our grid layout. The legend component that we’ll create will consist eventually of labeled rectangles, each with a color corresponding to the color assigned to our datapoints by a D3 scale. This way our users can tell at a glance which colors correspond to which values in our data visualization.

10.3. Loading sample data

Instead of the nodelist.csv data, we’ll use world.geojson, except we’ll use the features as datapoints on our custom grid layout from section 10.1 without putting them on a map. Listing 10.10 shows the corresponding code, which produces figure 10.6. You may find it strange to load geodata and represent it not as geographic shapes but in an entirely different way. Presenting data in an untraditional manner can often be a useful technique to draw a user’s attention to the patterns in that data.

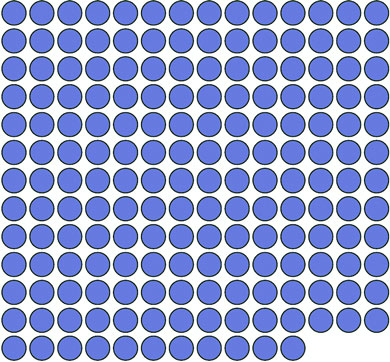

Figure 10.6. The countries of the world as a grid

Listing 10.10. Loading the countries of the world into a grid

  d3.json("world.geojson ", data => {
      makeAGrid(data);
    })
  function makeAGrid(data) {
    var grid = d3.gridLayout();
    grid.size([300,300]);
    var griddedData = grid(data.features);
    griddedData.forEach(country => {
      country.size = d3.geoArea(country);          1
    });
    d3.select("svg")
      .append("g")
      .attr("transform", "translate(50,50)")
      .selectAll("circle")
      .data(griddedData)
      .enter()
      .append("circle")                            2
      .attr("cx", d => d.x)
      .attr("cy", d => d.y)
      .attr("r", 10)
      .style("fill", "#75739F")
      .style("stroke", "#4F442B")
      .style("stroke-width", "1px");
  };

• 1 Calculates the area of each country and appends that to the datapoint
• 2 Appends a circle for each country

We’ll focus on only one attribute of our data: the size of each country. We’ll color the circles according to that size using a quantize scale that puts each country into one of several discrete categories. In our case, we’ll use the colorbrewer.Reds[7] (remember, this means you’ll need to include a link to the colorbrewer.js file) array of light-to-dark reds as our bins. The quantize scale will split the countries into seven different groups. In listing 10.11, you can see how to set that up, and figure 10.7 shows the result of our new color scale.

Figure 10.7. Circles representing countries colored by area

Listing 10.11. Changing the color of our grid

var griddedData = d3.selectAll("circle").data();                1
var sizeExtent = d3.extent(griddedData, d => d.size)
var countryColor = d3.scaleQuantize()
              .domain(sizeExtent).range(colorbrewer.Reds[7])
d3.selectAll("circle").style("fill", d => countryColor(d.size))

• 1 Gets the data array bound to our circles

For a more complete data visualization, we’d want to add labels for the countries or other elements to identify the continent or region of the country. But we’ll focus on explaining what the color indicates. We don’t want to get bogged down with other details from the data that could be explained, for example, using modal windows, as we did for our World Cup example in chapter 4, or using other labeling methods discussed throughout this book. For our legend to be useful, it needs to account for the different categories of coloration and indicate which color is associated with which band of values. But before we get to that, let’s build a component that creates graphical elements when we call it. Remember that the d3.select(#something).call (someFunction) function of a selection is the equivalent of someFunction(d3.select (#something)). With that in mind, we’ll create a function that expects a selection and operates on it, as in the following listing.

Listing 10.12. A simple component

d3.simpleLegend = () => {
    function legend(gSelection) {          1
      var testData = [1,2,3,4,5];
      gSelection.selectAll("rect")         2
         .data(testData)
      .enter()
      .append("rect")
      .attr("height", 20)
      .attr("width", 20)
      .attr("x", (d,i) => i *25)
      .style("fill", "red")
      return this;
    }
    return legend;
  };

• 1 A component is sent a selection with .call()
• 2 Appends to that selection a set of rectangles

We can then append a <g> element to our chart and call this component, with the results shown in figure 10.8:

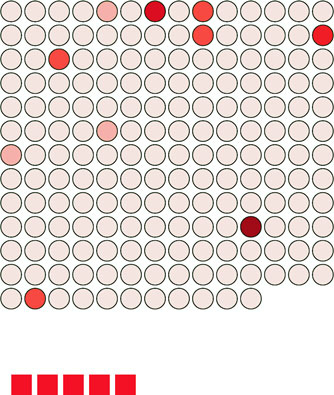

Figure 10.8. The new legend component, when called by a <g> element placed below our grid, creates five red rectangles.

var newLegend = d3.simpleLegend();
d3.select("svg").append("g")
   .attr("id","legend")
   .attr("transform", "translate(50,400)")
   .call(newLegend);

And now that we have the structure of our component, we can add functionality to it, such as allowing the user to define a custom size, as we did with our grid layout. We also need to think about where this legend is going to get its data. Following the pattern of the axis component, it would make the most sense for the legend to refer directly to the scale we’re using and derive, from that scale, the color and values associated with the color of each band in the scale.

10.4. Linking components to scales

To do that, we have to write a new function for our legend that takes a scale and derives the necessary range bands to be useful. The scale we send it will be the same countryColor scale that we use to color our grid circles. Because this is a quantize scale, we’ll make our legend component hardcoded to handle only quantize scales. If we wanted to make this a more robust component, we’d need to make it identify and handle the various scales that D3 uses.

The way all scales have an invert function, they also have the ability to tell you what domain values are mapped to what range values. First, we need to know the range of values of our quantize scale as they appear to the scale. We can easily get that range by using scaleQuantize.range():

countryColor.range()                         1

• 1 [“#fee5d9”, “#fcbba1”, “#fc9272”, “#fb6a4a”, “#ef3b2c”, “#cb181d”, “#99000d”]

We can pass those values to scaleQuantize.invertExtent to get the numerical domain mapped to each color value:

countryColor.invertExtent("#fee5d9")         1

• 1 [0.000006746501002759535, 0.05946855349777645]

Armed with these two functions, all we need to do now is give our legend component the capacity to have a scale assigned to it and then update the legend function itself to derive from that scale the dataset necessary for our legend. Listing 10.13 shows both the new d3.simpleLegend.scale() function that uses a quantize scale to create the necessary dataset, and the updated legend() function that uses that data to draw a more meaningful set of <rect> elements.

Listing 10.13. Updated legend function

d3.simpleLegend = function() {
   var data = [];
   var size = [300,20];                                            1
   var xScale = d3.scaleLinear();                                  2
   var scale;                                                      3
   function legend(gSelection) {
   createLegendData(scale);                                        4
   var xMin = d3.min(data, d => d.domain[0])                       5
   var xMax = d3.max(data, d => d.domain[1])
   xScale.domain([xMin,xMax]).range([0,size[0]])                   6
   gSelection.selectAll("rect")
   .data(data)
   .enter()
   .append("rect")
   .attr("height", size[1])                                        7
   .attr("width", d => xScale(d.domain[1]) -  xScale(d.domain[0]))
   .attr("x", d => xScale(d.domain[0]))
   .style("fill", d => d.color);
   return this;
   };
   function createLegendData(incScale) {                           8
      var rangeArray = incScale.range();
      data = [];
      for (var x in rangeArray) {
        var colorValue = rangeArray[x];
        var domainValues = incScale.invertExtent(colorValue);
        data.push({color: colorValue, domain: domainValues})
      }
   };
   legend.scale = function(newScale) {                            9
      if (!newScale) return scale;
      scale = newScale;
      return this;
   };
   return legend;
};

• 1 Sets a default size
• 2 Initializes an x-axis scale but doesn’t set domain or range
• 3 The scale that will be sent to the component
• 4 Calls the function to process the scale into a data array
• 5 Calculates the min/max of the scale data
• 6 Sets the x-axis scale
• 7 Draws rectangles based on component settings and scale data
• 8 Processes the scale into a data array
• 9 Setter/getter to set the legend’s scale

We call this updated legend and set it up:

var newLegend = d3.simpleLegend().scale(countryColor);
d3.select("svg").append("g")
   .attr("transform","translate(50,400)")
   .attr("id", "legend").call(newLegend);

This new legend now creates a rect for each band in our scale and colors it accordingly, as shown in figure 10.9.

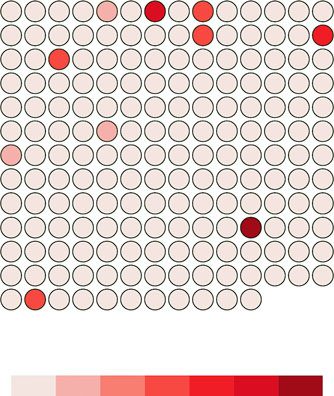

Figure 10.9. The updated legend component is automatically created, with a <rect> element for each band in the quantize scale that’s colored according to that band’s color.

If we want to add interactivity, it’s a simple process because we know that each rect in the legend corresponds to a two-piece array of values from our quantize scale showing the value of the bands in that cell. The following listing shows that function and the call to make the legend interactive.

Listing 10.14. Legend interactivity

d3.select("#legend").selectAll("rect").on("mouseover", legendOver);
function legendOver(d) {
    d3.selectAll("circle")
        .style("opacity", p => {
           if (p.size >= d.domain[0] && p.size <= d.domain[1]) {
                  return 1;
           } else {
                 return .25;
           }
        });
};

Notice that this function isn’t defined inside our legend component. Instead, it’s defined and called after the legend is created, because after it’s created our legend component is a set of SVG elements with data bound to it like any other part of our charts. This interactivity allows us to mouseover the legend and see which circles fall in a particular range of values, as shown in figure 10.10.

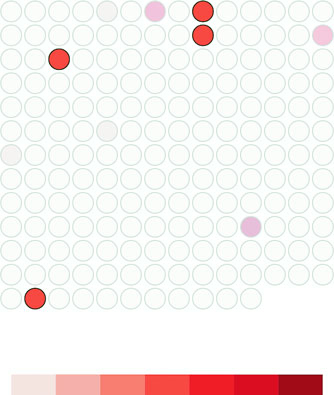

Figure 10.10. The legendOver behavior highlights circles falling in a particular band and deemphasizes the circles not in that band by making them transparent.

Finally, before we can call our legend done, we need to add an indication of what those colored bands mean. We can call an axis component and allow that to label the bands, or we can label the break points by appending text elements for each. In our case, because the numbers provided for d3.geo.area are so small, we’ll also need to rotate and shrink those labels quite a bit for them to fit on the page. To do that, we can add the code in the following listing to our legend function in d3.simpleLegend

Listing 10.15. Text labels for legend

gSelection.selectAll("text")
   .data(data)
   .enter()
   .append("g")                                                       1
   .attr("transform", d => "translate(" + xScale(d.domain[0]) + ","
     + size[1] + ")")
   .append("text")
      .attr("transform", "rotate(90)")
      .text(d => d.domain[0]);

• 1 The text element needs to be placed in a g so that it can be translated and then rotated; otherwise, it’ll be rotated and then translated, which would place it at the translation relative to its new rotation (taking the text off the page)

As shown in figure 10.11, they aren’t the prettiest labels. We could adjust their positioning, font, and style to make them more effective. They also need functions like the grid layout has to define size or other elements of the component.

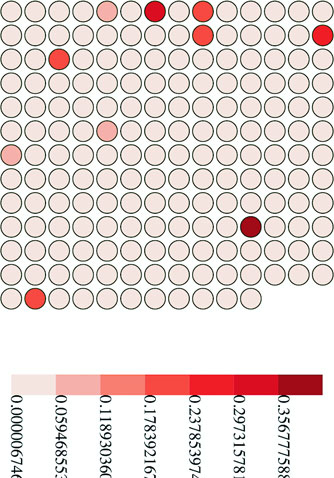

Figure 10.11. Our legend with rudimentary labels

This is usually the point where I say that the purpose of this chapter is to show you that the structure of components and layouts, and that making the most effective layout or component is a long and involved process that we won’t get into. But this is an ugly legend. The break points are hard to read, and it’s missing pieces that the component needs, such as a title and an explanation of units.

10.5. Adding component labels

Let’s add those features to the legend and create ways to access them, as shown in the following listing. We’re using d3.format, which allows us to set a number-formatting rule based on the popular Python number-formatting mini-language (found at https://docs.python.org/release/3.1.3/library/string.html#formatspec).

Listing 10.16. Title and unit attributes of a legend

    var title = "Legend";
    var numberFormat = d3.format(".4n");
    var units = "Units";                             1
    //other code
    legend.title = function(newTitle) {
      if (!arguments.length) return title;
      title = newTitle;
      return this;
    };                                               2
    legend.unitLabel = function(newUnits) {
      if (!arguments.length) return units;
      units = newUnits;
      return this;
    };
    legend.formatter = function(newFormatter) {
      if (!arguments.length) return numberFormat;
      numberFormat = newFormatter;
      return this;
    };

• 1 These are added right after var scale inside the d3.simpleLegend function
• 2 All these functions are added right after legend.scale

We’ll use these new properties in our updated legend drawing code shown in listing 10.17. This new code draws SVG <line> elements at each breakpoint and foregoes the rotated text in favor of more readable, shortened text labels at each breakpoint. It also adds two new <text> elements, one above the legend that corresponds to the value of the title variable and one at the far right of the legend that corresponds to the units variable.

Listing 10.17. Updated legend drawing code

gSelection.selectAll("line")                                   1
   .data(data)
   .enter()
   .append("line")
   .attr("x1", d => xScale(d.domain[0]))                       2
   .attr("x2", d => xScale(d.domain[0]))
   .attr("y1", 0)
   .attr("y2", size[1] + 5)
   .style("stroke", "black")
   .style("stroke-width", "2px");
gSelection.selectAll("text")
   .data(data)
   .enter()
   .append("g")
   .attr("transform",
    d => `translate(${(xScale(d.domain[0]))},${(size[1] + 20)})`)
   .append("text")
   .style("text-anchor", "middle")
   .text(d => numberFormat(d.domain[0]));                      3
gSelection.append("text")
   .attr("transform",
    d => `translate(${(xScale(xMin))},${(size[1] - 30)})`)
   .text(title);                                               4
gSelection.append("text")
   .attr("transform",
    d => `translate(${(xScale(xMax))},${(size[1] + 20)})`)
   .text(units);                                               5

• 1 This follows your existing code to draw the legend <rect> elements, and updates the text
• 2 Each line is drawn at the breakpoint and drawn a little lower to “point” at the breakpoint value
• 3 Anchors your unrotated labels at the midpoint and formats the value according to the set formatter
• 4 Adds a fixed, user-defined title above the legend rectangles and at the minimum value position
• 5 Adds a fixed, user-defined unit label on the same line as the labels but at the maximum value position

This requires that we set these new values using the code in the following listing before we call the legend.

Listing 10.18. Calling the legend with title and unit setting

var newLegend = d3.simpleLegend()
   .scale(countryColor)
   .title("Country Size")
   .formatter(d3.format(".2f"))
   .unitLabel("Steradians");                                          1
d3.select("svg").append("g").attr("transform", "translate(50,400)")
      .attr("id", "legend")
      .call(newLegend);                                               2

• 1 Sets the legend title and unit labels and formats to reflect the data being visualized
• 2 This part is unchanged

And now, as shown in figure 10.12, we have a label that’s eminently more readable, still interactive, and useful in any situation where the data visualization uses a similar scale.

Figure 10.12. Our legend with title, unit labels, appropriate number formatting, and additional graphical elements to highlight the breakpoints

By building components and layouts, you understand better how D3 works, but there’s another reason why they’re so valuable: reusability. You’ve built a chart using a layout and component (no matter how simple) that you wrote yourself. You could use either in tandem with another layout or component, or on its own, with any data visualization charts you use elsewhere.

You may also try your hand at building more responsive components that automatically update when you call them again, like the axis and brushes we dealt with in the last chapter. Or you may try creating controls like d3.brush and behaviors like d3.behavior.drag. Regardless of how extensively you follow this pattern, I recommend that you look for instances when your information visualization can be abstracted into layouts and components and try to create those instead of building another one-off visualization. By doing that, you’ll develop a higher level of skill with D3 and fill your toolbox with your own pieces for later work.

Publishing your plugins

When you’re done building your plugin, you probably want to let other people use it. Mike Bostock wrote an excellent tutorial on how to publish your D3 plugins so that they behave like other D3 plug-ins. You can find the tutorial at https://bost.ocks.org/mike/d3-plugin/.

10.6. Summary

• To make your code more reusable, follow the two patterns that already exist in D3: layouts and components.
• Components create graphical elements, like the axis component.
• Layouts decorate data for the purpose of drawing, like the pie chart layout.
• Plugins follow a getter/setter pattern popular with D3 that allows people to use method-chaining.
• In making our layouts and generators, we learned how to deal with the .call functionality in D3 by passing a <g> element to our simple legend function. This includes querying the D3 scale we send to that function to identify the necessary bands for our legend.

D3.js in the real world

Susie Lu Senior Data Visualization Engineer

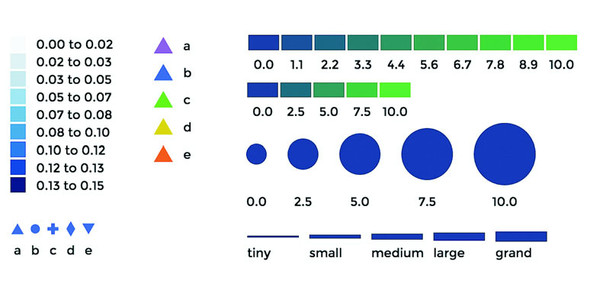

d3-svg-legend

http://d3-legend.susielu.com/

Making legends in D3 was something I had done multiple times and grew tired of implementing in a custom way over and over. After enough repetition, I decided it would be valuable to create a library to solve the use case.

My main priority was to make it as easy to create a legend as possible, something that I’d want to use. The biggest factor to meet this requirement was to provide full documentation including plenty of examples. Using examples was one of the main avenues I used to learn D3 and wanted to also provide those code snippets for users of d3-legend.
