Prior to V8.7 sendmail, rule sets could be identified only by numbers. When a rule set is declared with an integer, that integer is taken to be the numeric identity of the rule set:

S#

Here, # is an integer such as 23. If the # is greater than 100^[260] (the maximum number of numbered rule sets allowed), or is negative, sendmail prints and logs the following error:

configfile: line number: bad ruleset # ( maximum  max)

and each rule following that bad rule set declaration will produce the following error:

configfile: line number:  missing valid ruleset for "Rrule shown here"

Beginning with V8.7 sendmail, rule sets can be declared with numbers (as in the preceding section) or with more meaningful names. The form for a rule set name declaration looks like this:

Sname

The name can contain only ASCII alphanumeric characters and the underscore character. Any bad character causes that character and the characters following it to be silently ignored:

My_rule            ← good
My rule            ← bad, name is "My"

Case is recognized; that is, Myrule and MYRULE are different names. You can use any name that begins with an uppercase letter. Names that begin with a lowercase letter or an underscore character are reserved for internal use by sendmail.

There can be, at most, MAXRWSETS/2 named rule sets (MAX... on page 120). Each rule set that is declared beyond that amount causes sendmail to print the following error and ignore that rule set declaration:

name: too many named rulesets ( #  max)

When you declare a rule set name, sendmail associates a number with it. That number is selected by counting down from MAXRWSETS. That is, the first name is given the number MAXRWSETS-1, the second is given the number MAXRWSETS-2, and so on. Named rule sets can be used anywhere that numbered rule sets can be used.

When associating a named rule set with a number of importance, you can create that association when the name is declared. The form of such a combined declaration looks like this:

Sname=num

Here, the rule set named name is declared. Instead of allowing sendmail to associate a number with it, you create the association yourself by following the name with an = character and then an integer num. Arbitrary whitespace can surround the = character. If the integer is missing or nonnumeric, sendmail prints the following error and skips that rule set declaration:

configfile: line num: bad ruleset definition "bad"  (number required after `=')

Different names should not share the same number:

Sfoo=1
Sfee=1

If they do, the second declaration will produce the following warning:

WARNING: Ruleset fee=1 has multiple definitions

The same name cannot be given a different number. Consider the following example:

SMyrule=1
SMyrule=2

This causes sendmail to print the following error and skip the second declaration:

configfile: line num: Myrule: ruleset changed value (old 1, new 2)

Named rule sets have numbers associated with them when they first appear. If you use a named rule set in an S= equate for a delivery agent and then later attempt to assign it a value, you will get an error such as in the preceding example:

Mprog, P=sh, ...., S=Myrule, ...
...
SMyrule=2

The solution is either to move the rule set declaration (and its rules) so that they reside above the delivery agent declaration, or to declare a numeric association in the delivery agent declaration instead of in the rule set declaration:

Mprog, P=sh, ...., S=Myrule=2, ...
...
SMyrule

You could also place just the S line above the delivery agent declaration and the rules, without the =2, below it:

SMyrule=2
Mprog, P=sh, ...., S=Myrule, ...
...
SMyrule

In general, we recommend that you assign numbers to named rule sets only if there is a genuine need.

Macros can be used in any or all of a part of a rule set declaration. They can be used to declare a name:

D{NAME}myname
S${NAME}

or to declare a number:

D{NUMBER}12
S${NUMBER}

or both a name and a number:

D{NAME}myname
D{NUMBER}12
S${NAME}=${NUMBER}

or even the whole thing:

D{SET}myset=12
S${SET}

You can use single- and multicharacter sendmail macros in any combination. Macros can be used in any rule set declaration, including subroutine calls inside rules:

R $* < $=w > $*       $@ $>${NAME} $2

But they cannot be used in the S= or the R= of delivery agents:

Mprog, P=sh, ..., S=$X, R=$X, ...
                    ↑     ↑
                    neither of these will work

Macros can be used in the command line to modify a configuration file when sendmail is run. Consider the desire to call one rule set when running as a daemon and another when processing the queue. You might declare such rules like this:

R $*            $: $&A
R daemon        $@ $>Daemon_ruleset
R queue         $@ $>Queue_ruleset
R $*            $@ $>UndefinedA_ruleset

The two different runs might look like this:

# /usr/sbin/sendmail -MAdaemon -bd
# /usr/sbin/sendmail -MAqueue -q30m

The first defines the $A sendmail macro to have the value daemon and results in this subroutine call:

R daemon        $@ $>Daemon_ruleset

The second defines the $A sendmail macro to have the value queue and results in this different subroutine call:

R queue         $@ $>Queue_ruleset

Note that any different or missing command-line setting for $A will result in the fallback subroutine call:

R $*            $@ $>UndefinedA_ruleset

Also note that you can also define multicharacter macros from the command line. But to protect such multicharacter names from being interpreted by the shell, you should quote them:

# /usr/sbin/sendmail -M"{RunMode}"daemon -bd
# /usr/sbin/sendmail -M"{RunMode}"queue -q30m

Also note that defining macros from the command line can result in sendmail giving up special privileges.

All rules (R lines) that follow a rule set declaration are added to and become part of that rule set:

S0
R...          ← rules added to rule set 0
SMyset
R...          ← rules added to rule set Myset
S1
R...          ← rules added to rule set 1

Rule sets need not be declared in any particular order. Any order that clarifies the intention of the configuration file as a whole is acceptable. If a rule set appears more than once in a configuration file, V8 sendmail will print a warning:

WARNING: Ruleset name redefined                 ← prior to V8.8
WARNING: Ruleset name has multiple definitions  ← V8.8 and above

and append the new rules to the old:

S0
R...          ← rules added to rule set 0
S2
R...          ← rules added to rule set 2
S0            ← warning issued
R...          ← rules appended to earlier rule set 0

Note that the warning is given in all cases prior to V8.8, but beginning with V8.8, it is issued only in -bt rule-testing mode (Overview on page 299) or if the -d37.1 debugging switch (-d37.1 on page 563) is set.

Other configuration commands can be interspersed among rule definitions without affecting the rule set to which the rules are added:

S0
R...          ← rules added to rule set 0
DUuucphost.our.domain
R...          ← rules added to rule set 0

Prior to V8.10, any rules that appeared before the first S command were added to rule set 0 by default. With V8.10 and above, sendmail rejects any rules that are not preceded with a valid rule set definition.

Arbitrary text that follows a rule set declaration is ignored unless it appears to be part of the declaration:

S11 100 more rule sets     ← rule set 11
S11100 more rule sets      ← rule set 11100 is illegal
SMyset 100 more rule sets  ← rule set Myset

Although the first and last of these examples work, we recommend that you use the # commenting mechanism instead (available with version 3 and higher configuration files):

S11 #100 more rule sets     ← rule set 11
S11#100 more rule sets      ← rule set 11
SMyset #100 more rule sets  ← rule set Myset

A rule set declaration that has no rules associated with it acts like a do-nothing subroutine (one that returns its workspace unaltered):

Stest1           ← rule set test1 without rules does nothing
Stest2
R $*     $@ $1   ← rule set test2 also returns the workspace unaltered

When building a configuration file using the m4 technique (The m4 Preprocessor on page 584) sendmail reserves certain rule set numbers and names for its own use. Using the m4 technique, you can add rules to those rule sets, but you cannot replace those rule sets with your own. A few m4 keywords are available to make adding rules easier. They affect rule sets 0 through 3 (now called parse through canonify) directly, and other rule sets indirectly (see Table 17-2 on page 595).

The configuration file created with the m4 technique uses quite a few rule sets beyond the base group. To avoid name collisions, we recommend that you begin all your own named rules with a leading capital letter.

V8 sendmail allows envelope addresses to be rewritten separately from header addresses. This separation takes place in the delivery agent R= and S= specific rule sets, as illustrated in Figure 19-4.

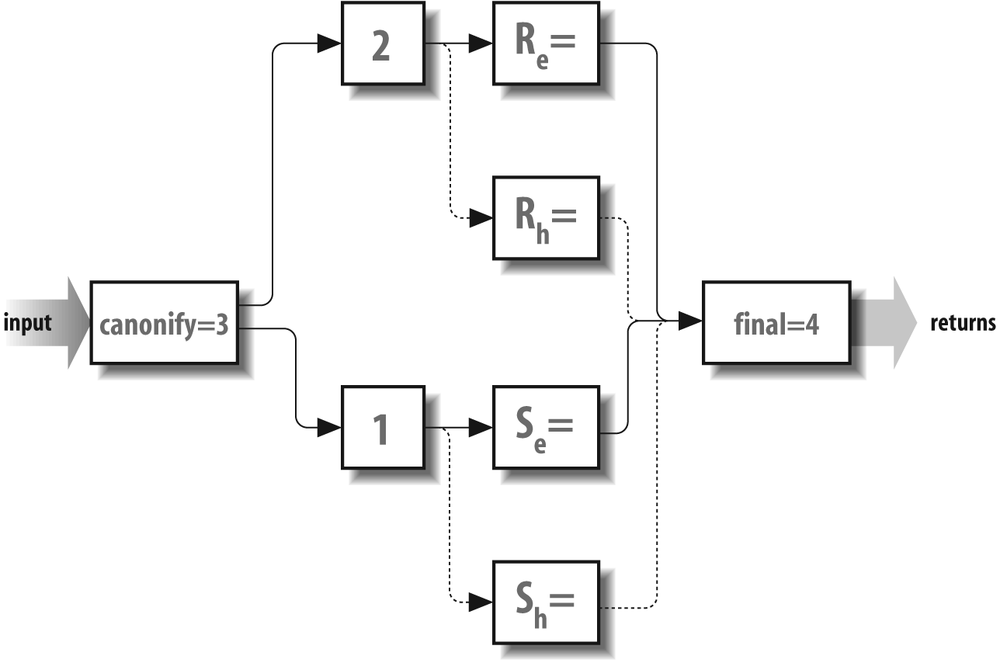

Figure 19-4. V8 splits rewriting: envelope (solid) versus header (dashed)

The method that is used to split rewriting looks like this:

R=eset/hset           ← beginning with V8
S=eset/hset           ← beginning with V8

The envelope-specific rule set is the one to the left of the slash and is represented by a solid line. The header-specific rule set is to the right of the slash (R=eset/hset) and is represented by a dashed line. See R= on page 751 for a complete description of this process.

Among the rules in a typical canonify rule set 3 are those that handle empty addresses. These represent the special case of an empty or nonexistent address. Empty addresses should be turned into the address of the pseudouser that bounces mail, MAILER-DAEMON:

R $@      $@ < @ >       empty becomes special

Here, an empty address is rewritten to be a lone @ surrounded by angle braces. Other rule sets later turn this special token into $n (which contains MAILER-DAEMON as its value).

Addresses can be legally expressed in a variety of formats:

address
address (full name)
<address>
full name <address>
list:members;

When sendmail preprocesses an address that is in the third and forth formats, it needs to find the address inside an arbitrarily deep nesting of angle braces. For example, where is the address in all this?^[261]

Full Name <x12<@zy<alt=bob@r.com<bob@r.net>r.r.net>#5>+>

The rules in a typical canonify rule set 3 will quickly cut through all this and focus on the actual address:

R $*                     $: < $1 >                       housekeeping <>
R $+ < $* >                 < $2 >                       strip excess on left
R < $* > $+                 < $1 >                       strip excess on right

Here, the first rule puts angle braces around everything so that the next two rules will still work, even if the original address had no angle braces. The second rule essentially looks for the leftmost < character and throws away everything to the left of that. Because rules are recursive, it does that until there is only one < left. The third rule completes the process by looking for the rightmost > and discarding everything after that.

You can witness this process by running sendmail in -bt rule-testing mode, using something such as the following. Note that some of the lines that sendmail outputs are wrapped to fit the page:

% /usr/sbin/sendmail -bt
ADDRESS TEST MODE (ruleset 3 NOT automatically invoked)
Enter <ruleset> <address>
> -d21.12
> canonify Full Name <x12<@zy<alt=bob@r.com<bob@r.netr.r.net>#5>+> >
... some other rules here
-----trying rule: $*
-----rule matches: $: < $1 >
rewritten as: < Full Name < x12 < @ zy < alt=bob @ r . com < bob @ your . domain >
relay . domain > #5 > + > >
-----trying rule: $+ < $* >
-----rule matches: < $2 >
rewritten as: < x12 < @ zy < alt=bob @ r . com < bob @ your . domain > relay . domain
> #5 > + > >
-----trying rule: $+ < $* >
-----rule matches: < $2 >
rewritten as: < @ zy < alt=bob @ r . com < bob @ your . domain > relay . domain > #5
> + > >
-----trying rule: $+ < $* >
-----rule matches: < $2 >
rewritten as: < alt=bob @ r . com < bob @ your . domain > relay . domain > #5 > + > >
-----trying rule: $+ < $* >
-----rule matches: < $2 >
rewritten as: < bob @ your . domain > relay . domain > #5 > + > >
-----trying rule: $+ < $* >
----- rule fails
-----trying rule: < $* > $+
-----rule matches: < $1 >
rewritten as: < bob @ your . domain >

Notice that we first put sendmail into debugging mode so that we can watch the rules at work. Then we feed in the canonify rule set 3 followed by the address that was such a mess earlier in this section. The three rules we showed you do their job and isolate the real address from all the other nonaddress pieces of information.

Beginning with V8.10, sendmail removes route addresses by default, unless the DontPruneRoutes option (DontPruneRoutes on page 1024) is set to true.

Route addresses are addresses in the form:

@A,@B:user@C

Here, mail should be sent first to A, then from A to B, and finally from B to C.^[262]

A whole book is dedicated to the myriad forms of addressing that might face a site administrator: !%@:: A Directory of Electronic Mail Addressing & Networks, by Donnalyn Frey and Rick Adams (O’Reilly). We won’t duplicate that work here. Rather, we point out that most such addresses are handled nicely by existing configuration files. Consider the format of a DECnet address:

host::user

The best approach to handling such an address in the canonify rule set 3 is to convert it into the Internet user@host.domain form:

R $+ :: $+        $@ $2 @ $1.decnet

Here, we reverse the host and user and put them into Internet form. The .decnet can later be used by the parse rule set 0 to select an appropriate delivery agent.

This is a simple example of a special address problem from the many that can develop. In addition to DECnet, for example, your site might have to deal with Xerox Grapevine addresses, X.400 addresses, or UUCP addresses. The best way to handle such addresses is to copy what others have done.

The last few rules in our illustration of a typical canonify rule set 3 are used to process the Internet-style user@domain address:

# find focus for @ syntax addresses
R $+ @ $+                $: $1 <@ $2>        focus on domain
R $+ < $+ @ $+ >         $1 $2 <@ $3>        move gaze right
R $+ <@ $+ >             $@ $1 <@ $2>        already focused

For an address such as something@something, the first rule focuses on all the tokens following the first @ as the name of the host. Recall that the $: prefix to the righthand side (RHS) prevents potentially infinite recursion.

Assuming that the workspace started with:

user@host

these rules will rewrite that address to focus on the host part and become:

user<@host>

Any address that has not been handled by the canonify rule set 3 is unchanged and probably not focused. Because the parse rule set 0 expects all addresses to be focused so that it can select appropriate delivery agents, such unfocused addresses can bounce. Many configuration files allow local addresses (just a username) to be unfocused.

Under some versions of sendmail, a successful conversion to a fully qualified domain name leaves an extra dot trailing the result. This rule strips that dot:

# strip trailing dot off possible canonical name
R $* <@ $+. > $*       $1 <@ $2 > $3

Note that this rule recursively removes as many trailing dots as it finds. Also note that the host part remains focused after rewriting.

Recall that the canonify rule set 3 converted the commas of source route addresses into colons (Handling Routing Addresses on page 693). The final rule set 4 now needs to restore those commas:

R $* : $+ :$+ <@ $+>       $1 , $2 : $3 <@ $4>            <route-addr> canonical

This rule recursively changes all but one (the rightmost) colon back into a comma.

As a special note, under V8 sendmail, envelope-sender route addresses are always surrounded by angle brackets when passed to the delivery agent. If this behavior is inappropriate for your site, beginning with V8.7 it is possible to prevent this heuristic by specifying the F=d delivery agent flag (F=d on page 769).

The final rule set 4 also removes angle brackets inserted by the canonify rule set 3 to focus on the host part of the address. This is necessary because they are used only by the internal logic of the configuration file. If they were mistakenly left in place, mail would fail:

# externalize local domain info
R $* <$+> $*         $1 $2 $3                   defocus

After defocusing, the final rule set 4 might need to convert some addresses back to their original forms. For example, consider UUCP addresses at a site that still uses UUCP to transfer mail. They entered the canonify rule set 3 in the form host!host!user. The canonify rule set 3 rewrote them in the more normal user@host form, and added a .uucp to the end of the host. The following rule in the final rule set 4 converts such normalized UUCP addresses back to their original form so that they can be sent using UUCP software:

R $+ @ $-.uucp         $2 ! $1                  u@h.UUCP => h!u

The address part of the triple is intended for use in the command line of the delivery agent and in the RCPT command in an SMTP connection. For either use, that address is rewritten by rule set 2 (if there is one), the R= equate of the delivery agent, and the final rule set 4, as illustrated in Figure 19-5. This means that the address part can be in focused form because the focus is later removed by the final rule set 4. But the address part must be a single username (no host) for some local delivery agents.

The rewritten result is stored for use when a delivery agent’s $u in A= (A= on page 738) argument is expanded. For example, for the local delivery agent, the rewritten result is the username as it will be given to /bin/mail for local delivery.

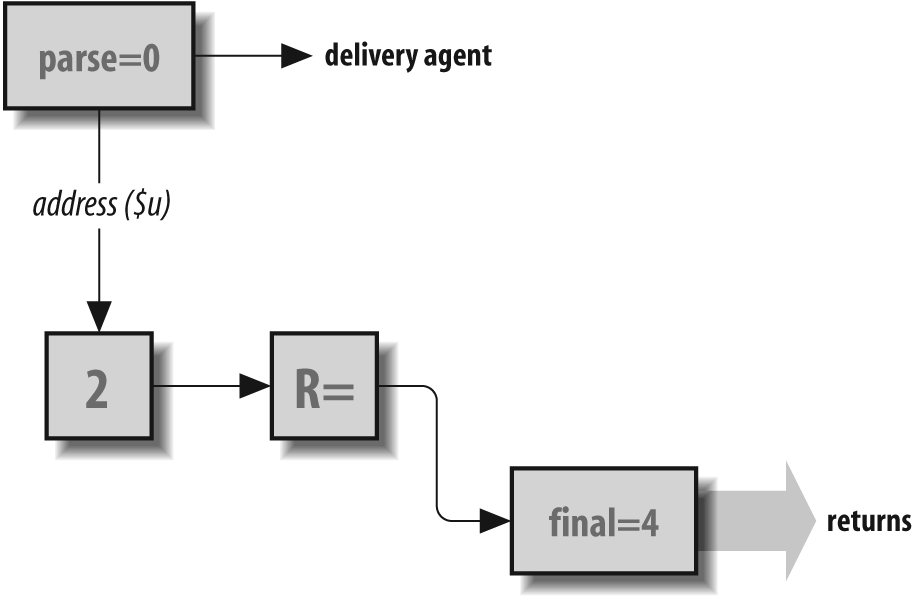

Figure 19-5. The flow of $:address through rule sets

The rewritten result is also given to a remote site during the exchange of mail using the SMTP protocol. The local machine tells the remote machine the name of the recipient by saying RCPT To: followed by the rewritten address portion of the triple.

When it selects a delivery agent, the parse rule set 0, indirectly through that delivery agent, selects the rules that will be used in rewriting sender and recipient addresses. A sender address is rewritten by the rule set specified by the S= equate (S= on page 753). The recipient addresses are rewritten by the rule set specified by the R= equate (R= on page 751). If the R= or S= specifies a zero or if either is undeclared, that portion of rewriting is skipped.

We won’t cover individual R= or S= rule sets here because they depend on the individual needs of delivery agents. Instead, we recommend that you examine how your configuration file uses them. You’ll probably be surprised to find that many R= and S= equates reference nonexistent rules (which means that sendmail will do no rewriting).

Typically, some early rules in the parse rule set 0 are intended to detect addresses that should be delivered locally. A rule that accomplishes that end might look like this:

R $+ <@ $w>          $#local $:$1                 local address

Here, the $w sendmail macro is the name of the local host. Note that the RHS strips the focused host part from the username.

At some sites, the local host can be known by any of several names. A rule to handle such hosts would begin with a class declaration that adds those names to the class w (such as in the first line here):

Cw font-server fax printer3
R $+ <@ $=w>        $#local $:$1                 local address

The class w is special because it is the one to which sendmail automatically appends the alternative name of the local host. This class declaration line adds names that sendmail might not automatically detect. Usually, such a declaration would be near the top of the configuration file rather than in the parse rule set 0, but technically it can appear anywhere in the file. This rule looks to see whether an address contains any of the names in class w. If it does, the $=w in the lefthand side (LHS) matches, and the RHS selects the local delivery agent.

On central mail-server machines, the parse rule set 0 might also have to match from a list of hosts for which the central server is an MX recipient machine (FEATURE(use_cw_file) on page 643).

After handling mail destined for the local host, the parse rule set 0 generally looks for addresses that require a knowledgeable host to forward messages on the local host’s behalf. In the following rule, the $B sendmail macro ($B on page 808) holds as its value the name of a machine that knows how to deliver BITNET mail (Relays on page 602):

R $* <@ $+.BITNET> $*   $#esmtp $@$B $:$1<@$2.BITNET>$3    user@host.BITNET

The tag .BITNET would have been added by users when sending mail. Note that BITNET in the LHS is case-insensitive; a user can specify Bitnet, bitnet, or even BiTNeT, and this rule will still match. A similar scheme can be used for other specialty addresses, such as UUCP and DECnet.

Hosts sometimes deliver mail to a few UUCP connections locally and forward to other UUCP connections through a knowledgeable host. The rules that handle this situation often make use of another class:

R $* <@ $=V . UUCP>     $#uucp $@ $2 $: $1                   user@localuucp
R $* <@ $+ . UUCP>      $#esmtp $@ $Y $: $1<@ $2 . UUCP>     kick upstairs

Here, the class $=V contains a list of local UUCP connections. They are matched by the first rule, which selects the uucp delivery agent. All other UUCP addresses are passed to the knowledgeable host in $Y ($Y on page 852). The user part ($:) that is given to the knowledgeable host is the original address as it appeared to the LHS.

Next, the parse rule set 0 typically sees whether it can send the mail message over the network. In the following example, we assume that the local host is connected to an IP network:

# deal with other remote names
R $* <@ $*> $*         $#esmtp $@ $2 $: $1 < @ $2> $3        user@host.domain

Remember that we have already screened out and handled delivery to the local host, and therefore the focused host (in the <@$* > of the LHS) is on the network. The esmtp delivery agent is selected (to deliver using the SMTP protocol), with connection to be made to $2 (the $* part of the <@$* > in the LHS).

The focus is kept in the user portion of the RHS triple. Remember that the user portion will be rewritten by rule set 2 (if there is one), the R= rule set (if there is one), and the final rule set 4. Also remember that the final rule set 4 will defocus the address. We keep the focus here because rule set 2 and all R= rules (if present) expect the host part of addresses to be focused.

Whatever is left after all preceding rules in the parse rule set 0 have selected delivery agents is probably a local address. Here, we check for a username without a host part:

R $+       $#local $:$1        regular local names

Notice that the user part is not focused; it is unfocused because there is no host part on lone local usernames.

Beginning with V8.10 sendmail, the localaddr rule set 5 begins like this:

SLocal_localaddr
Slocaladdr=5
R$+                     $: $1 $| $>"Local_localaddr" $1
R$+ $| $#$*             $#$2
R$+ $| $*               $: $1

The presence of an empty Local_localaddr rule set gives you a hook into the beginning of the localaddr rule set 5—in other words, it gives you a place where you can insert your own rules. You can insert rules using the LOCAL_RULESETS mc configuration command. For example:

LOCAL_RULESETS
SLocal_localaddr
R $* < $* . test > $*   $#discard $:discard

This rule checks for any address part ending in a .test expression. If any is found, the RHS selects the discard delivery agent (to discard the message). The result of Local_localaddr is passed back to the localaddr rule set 5, which either returns a new delivery agent, if one was selected, or passes the (possibly rewritten) address to subsequent rules.

Note that the process we describe here cannot be used to insert rules into the beginning of the other numbered rule sets. You can use LOCAL_RULESETS to add rules to the end, but you cannot hook them into the beginning, as we have done here.

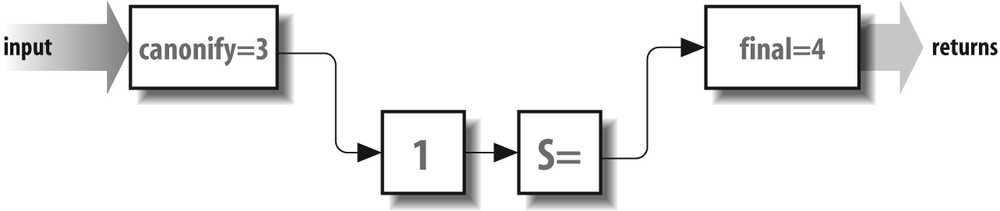

Rule set 1 is intended to process all sender addresses. It is rarely used but can find application at sites where all outgoing mail should appear to come from a central mail server. Rules to handle this host hiding might look like this:

R $* <@ $=w> $*      $@ $1 <@ $M> $3        user@localhost => user@ourdomain

In the LHS, the $=w matches any name from a list of names by which the local host is known. In the RHS, the $M contains the name of the mail server. If the mail is not from the local host, it is unchanged.

Other uses for rule set 1 might include the following:

Needless to say, great care should be exercised in adding schemes such as these to your configuration file.

See LOCAL_RULE_1 (LOCAL_RULE_1 and LOCAL_RULE_2 mc macros on page 596) for a way to add rules to rule set 1.

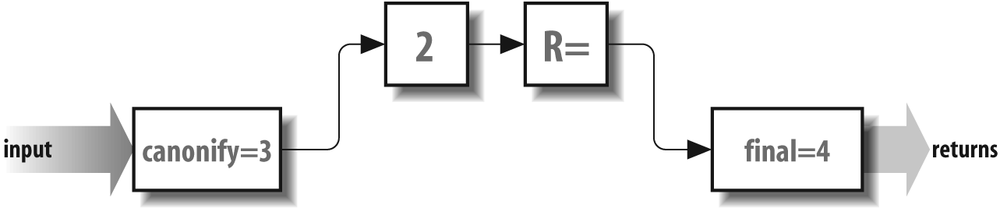

All recipient addresses are rewritten by rule set 2 and the R= of delivery agents. But in almost all configuration files, rule set 2 is unused because no processing is needed:

# Recipient processing: none needed
S2

But note that rule set 2 can be used to debug rules.^[265] Consider the following rule in rule set 2 (that requires V8.9 and above sendmail to work):

R $# $+ $: $+     $:$2    Strip delivery agent and host when debugging

Recall that the parse rule set 0 returns a triple. When testing an address, rule set 2 can be called following the parse rule set 0 to simulate the rewriting of the user portion of the parse rule set 0. Here the LHS matches only a triple, so normal recipient addresses are unaffected. The user part that is returned by the RHS can then be used to test individual R= rules of delivery agents. (Another technique is to use the /try command in -bt rule-testing mode; see Try a Delivery Agent with /try on page 313.)

See LOCAL_RULE_2 (LOCAL_RULE_1 and LOCAL_RULE_2 mc macros on page 596) for a way to add rules to rule set 2.

Check just after DATA Policy rule set

The check_data rule set can be used to validate recipients after all recipients have been declared with SMTP RCPT To: commands. Other uses for the check_data rule set include screening a combination of sender and recipient, and evaluating connection-based information.

The check_data rule set is called from inside sendmail just after the SMTP DATA command is received, but before that command is acknowledged:

RCPT To: <gw@wash.dc.gov>
250 2.1.5 <gw@wash.dc.gov>... Recipient ok
DATA
                                                       ← called here
354 Enter mail, end with "." on a line by itself       ← usually acknowledged here

The workspace passed to the check_data rule set is a count of the number of envelope recipients—that is, the number of accepted SMTP RCPT To: commands. One use for this rule set might be to reject messages that specify too many envelope recipients. Consider the following mc configuration lines:

LOCAL_CONFIG
Kmath arith

LOCAL_RULESETS
Scheck_data
R $-            $: $(math l $@ 19 $@ $1 $)       # reject >=20 envelope recipients
R FALSE         $# error $@ 5.7.1 $: "550 Too many recipients"

Here, we add two new sections to our mc configuration file. The first, under LOCAL_CONFIG, defines a database map of type arith (arith on page 898).

In the second section, following the LOCAL_RULESETS, we declare the check_data rule set. That rule set is followed by two rules. The first rule looks up the workspace (the LHS $-) that contains a count of the envelope recipients. The RHS of that rule looks up that value using the math database map comparing the number of recipients (the $1 in the RHS) to a literal 19. If 19 is less than that count, FALSE is returned, indicating that there are too many recipients. Otherwise, TRUE is returned.

The second rule detects a literal FALSE (too many recipients) and uses the $#error delivery agent (error on page 720) to reject the message.

Note that we used 19 merely as an example. Before you decide on such a limit for your situation, you should consider how many users you have, and how many variations on those users there are in your aliases database. If you decide to limit the number of recipients you will accept, be sure that limit is large enough for all normal and mailing-list mail.

Allow or disallow ETRN Policy rule set

The SMTP ETRN command (Process the queue via ESMTP ETRN on page 433) causes V8.8 and above sendmail to asynchronously process its queue in a manner similar to the -qR command-line switch (Process by identifier/recipient/sender: -q[ISR] on page 431). This command allows dial-on-demand sites to make an SMTP connection and to force the other side to process and send any mail that is queued for them.

The form of this ESMTP command looks like this:

ETRN host
ETRN #queuegroup          ← V8.12 and above

If host or queuegroup is missing, this error message will be returned:

550 5.7.1 Parameter required

Otherwise, the queue will be processed just as though the following command-line argument were given:

-qR@host
-qGqueuegroup                  ← V8.12 and above

If the PrivacyOptions option’s noetrn is set, or if the DaemonPortOptions option’s Modify=E (DaemonPortOptions=Modify= on page 996) is set, the SMTP ETRN command will be disallowed with the following message:

502 5.7.0 Sorry, we do not allow this operation

One use for the check_etrn rule set is to allow the SMTP ETRN command for specific hosts but not others.^[267] When the ETRN command is given, it can provide the domain for which to run the queue. That domain specification is given to the check_etrn rule set in its workspace. To illustrate, consider the following lines in your mc configuration file:

LOCAL_CONFIG
F{EtrnHosts} /etc/mail/etrn_hosts
LOCAL_RULESETS
Scheck_etrn
R $={EtrnHosts}       $# OK
R $*                  $# error $@ 5.7.0 $: "502 We don't ETRN for you."

There are two parts here. The first part, the LOCAL_CONFIG part, uses the F configuration command (The F Class Command on page 857) to load the $={EtrnHosts} class with a list of hosts for which we will perform SMTP ETRN. That list is read from the file /etc/mail/etrn_hosts, which lists the hosts, one per line.

The second part, the LOCAL_RULESETS part, sets up the check_etrn rule set. There are two rules in this rule set. The first rule matches any hosts that are in the {EtrnHosts} class, and accepts them with a $# OK. The second rule disallows ETRN for all other hosts.

For a scheme such as this to work, you should make certain that all possible names for the allowed hosts are included in the list. That is, for example, mx.wash.dc.gov might also require you to list wash.dc.gov.

Validate VRFY and EXPN Policy rule set

The SMTP VRFY command is used to verify an email address. The SMTP EXPN command is used to expand an email address. They are used like this:

VRFY gw@wash.dc.gov
250 2.1.5 George Washington <gw@wash.dc.gov>
VRFY nosuchuser@wash.dc.gov
550 5.1.1 nosuchuser@wash.dc.gov... User unknown
EXPN all@wash.dc.gov
250-2.1.5 George Washington <gw@wash.dc.gov>
250 2.1.5 Andrew Jackson <aj@wash.dc.gov>

If sendmail can deliver to the address specified, it will respond with a 250, a DSN 2.1.5, the full name of the recipient (if known), and the normalized address. If the address is bad, sendmail will reply with a 550, a DSN 5.1.1, and the reason for the rejection of the request. If the request is to EXPN, and if the address expands to another or more addresses, as with an alias or a mailing list, sendmail will print each expanded-to address, one per line.

If your site has set goaway or novrfy for the PrivacyOptions option (PrivacyOptions on page 1065), sendmail will reject all SMTP VRFY commands with the following message:

252 2.5.2 Cannot VRFY user; try RCPT to attempt delivery (or try finger)

If your site has set goaway or noexpn for the PrivacyOptions option (PrivacyOptions on page 1065), sendmail will reject all SMTP EXPN commands with the following message:

502 5.7.0 Sorry, we do not allow this operation

The check_vrfy rule set can serve two useful functions. It can be used to print a different rejection message, and it can be used to allow verification of some but not all addresses. The check_expn rule set can replace check_vrfy in the following two examples, when SMTP EXPN is of concern.

LOCAL_RULESETS
Scheck_vrfy
R $*           $# error $@ 2.5.2 $: "252 VRFY forbidden"

252 2.5.2 VRFY forbidden

LOCAL_RULESETS
Scheck_vrfy
R $*                   $: $>canonify $1       focus on the host
R $* <@ $=w . > $*     $: $1                  isolate the user
R postmaster           $# error $@ 2.5.1 $: "251 <postmaster@$j>"
R abuse                $# error $@ 2.5.1 $: "251 <abuse@$j>"
R $*                   $# error $@ 2.5.2 $: "252 VRFY forbidden"

Alter settings after inbound connect Policy rule set

Immediately after an inbound host connects to the listening sendmail daemon, and before the daemon issues its initial greeting message, sendmail performs the following steps:

The srv_features rule set is declared like this:

LOCAL_SRV_FEATURES
... your rules here

The srv_features rule set must return a $# followed by one or more of the characters defined in Table 19-3. When more than one character is returned, each must be separated from the next by a space. Each character turns a feature on or off. If the character is lowercase, it turns the feature on. Uppercase turns the feature off. One character, the t, is special because it causes sendmail to temporarily fail the connection.

If anything other than the characters shown in the table is returned, that bad character is silently ignored.

The default setting for any of these characters depends on the use of the character. For example, if noetrn is specified for the PrivacyOptions option (PrivacyOptions=noetrn on page 1066), the default is the character E; otherwise, the default is the character e. Whereas if Modify=A is specified for the DaemonPortOptions option (DaemonPortOptions=Modify= on page 996), which sets the daemon’s listening port, the default is A; otherwise, it is a. In general, B, D, E, and X take their defaults from the various PrivacyOptions option settings, whereas L and R take their defaults from the various Modify= settings. But note that P defaults to p if sendmail was compiled with the PIPELINING build-time macro defined; otherwise, it defaults to P, which cannot be overridden.

The srv_feature rule set is passed the connecting client’s hostname in its workspace. Instead, you must base your policy decisions on the various sendmail macro values available. For example, the following rule allows EXPN if the connecting host is the local machine, and denies it otherwise.

LOCAL_SRV_FEATURES
R $*               $: $&{client_addr}
R 127.0.0.1        $# e
R $*               $# E

A special character, the t, is used to force a temporary failure:

LOCAL_SRV_FEATURES
R $*                    $: $&{client_addr}
R $- . $- . $- . $-     $: $1.$2.$3
R 123.45.67             $# temp

Here, the connecting host’s address is found in the $&{client_addr} macro. The second rule strips off the host part of a class-C address. The last rule then checks to see whether that network address is that of the new network, the one that should have no valid hosts on it yet. If it is, the connection is deferred by returning $#t. Note that when the returned character is t, other letters can follow it, and they will be ignored.

In addition to your rules, there are default rules present that can make your job easier. The default rules perform access database lookups for entries in that database that begin with the special prefix:

Srv_Features:

The connecting host’s name, as taken from the $&{client_name} macro, is looked up first. The connecting host’s address, as taken from the $&{client_addr} macro, is looked up second. If neither of those is found, the bare prefix is looked up. The earlier example, then, if implemented in the access database, would look like this:

Srv_Features:127.0.0.1      e
Srv_Features:               E

The character letters that are returned as values by the access database are the same as those returned by your own rules, as shown in the table. Multiple letters can be returned, where each must be separated from the others by a space:

Srv_Features:127.0.0.1      e b

The srv_feature access database decisions can be combined with access database decisions made by other rule sets to create more complex decisions. For example:

Try_TLS:broken-host.domain   NO
Srv_Features:your.domain     v
Srv_Features:                V

Here, we use the Try_TLS: prefix (Disable STARTTLS with the try_tls rule set on page 217) to prevent sending the STARTTLS SMTP command to the host broken-host.domain. The second line (the first Srv_Features: prefix) tells sendmail (the v) to request a client certificate during the TLS handshake only for hosts in your.domain. The last line tells sendmail to not request a client certificate from any other hosts.

Note that you can use the access database (The access Database on page 277) only if you enabled that database with the FEATURE(access_db) in your mc configuration file.
