Creating ConfigMaps

Let’s jump right in and create a ConfigMap. Like many objects in Kubernetes, you can create these in an immediate, imperative way or you can create them from a manifest on disk. We’ll start with the imperative method.

First, suppose we have a file on disk (called my-config.txt) that we want to make available to the Pod in question, as shown in Example 11-1.

# This is a sample config file that I might use to configure an application
parameter1 = value1
parameter2 = value2

Next, let’s create a ConfigMap with that file. We’ll also add a couple of simple key/value pairs here. These are referred to as literal values on the command line:

$ kubectl create configmap my-config \
  --from-file=my-config.txt \
  --from-literal=extra-param=extra-value \
  --from-literal=another-param=another-value

The equivalent YAML for the ConfigMap object we just created is:

$ kubectl get configmaps my-config -o yaml

apiVersion: v1
data:
  another-param: another-value
  extra-param: extra-value
  my-config.txt: |
    # This is a sample config file that I might use to configure an application
    parameter1 = value1
    parameter2 = value2
kind: ConfigMap
metadata:
  creationTimestamp: ...
  name: my-config
  namespace: default
  resourceVersion: "13556"
  selfLink: /api/v1/namespaces/default/configmaps/my-config
  uid: 3641c553-f7de-11e6-98c9-06135271a273

As you can see, the ConfigMap is really just some key/value pairs stored in an object. The interesting stuff happens when you try to use a ConfigMap.

Using a ConfigMap

There are three main ways to use a ConfigMap:

Filesystem

You can mount a ConfigMap into a Pod. A file is created for each entry based on the key name. The contents of that file are set to the value.

Environment variable

A ConfigMap can be used to dynamically set the value of an environment variable.

Command-line argument

Kubernetes supports dynamically creating the command line for a container based on ConfigMap values.

Let’s create a manifest for kuard that pulls all of these together, as shown in Example 11-2.

apiVersion: v1
kind: Pod
metadata:
  name: kuard-config
spec:
  containers:
    - name: test-container
      image: gcr.io/kuar-demo/kuard-amd64:1
      imagePullPolicy: Always
      command:
        - "/kuard"
        - "$(EXTRA_PARAM)"
      env:
        - name: ANOTHER_PARAM
          valueFrom:
            configMapKeyRef:
              name: my-config
              key: another-param
        - name: EXTRA_PARAM
          valueFrom:
            configMapKeyRef:
              name: my-config
              key: extra-param
      volumeMounts:
        - name: config-volume
          mountPath: /config
  volumes:
    - name: config-volume
      configMap:
        name: my-config
  restartPolicy: Never

For the filesystem method, we create a new volume inside the pod and give it the name config-volume. We then define this volume to be a ConfigMap volume and point at the ConfigMap to mount. We have to specify where this gets mounted into the kuard container with a volumeMount. In this case we are mounting it at /config.

Environment variables are specified with a special valueFrom member. This references the ConfigMap and the data key to use within that ConfigMap.

Command-line arguments build on environment variables. Kubernetes will perform the correct substitution with a special $(<env-var-name>) syntax.

Run this Pod and let’s port-forward to examine how the app sees the world:

$ kubectl apply -f kuard-config.yaml
$ kubectl port-forward kuard-config 8080

Now point your browser at http://localhost:8080. We can look at how we’ve injected configuration values into the program in all three ways.

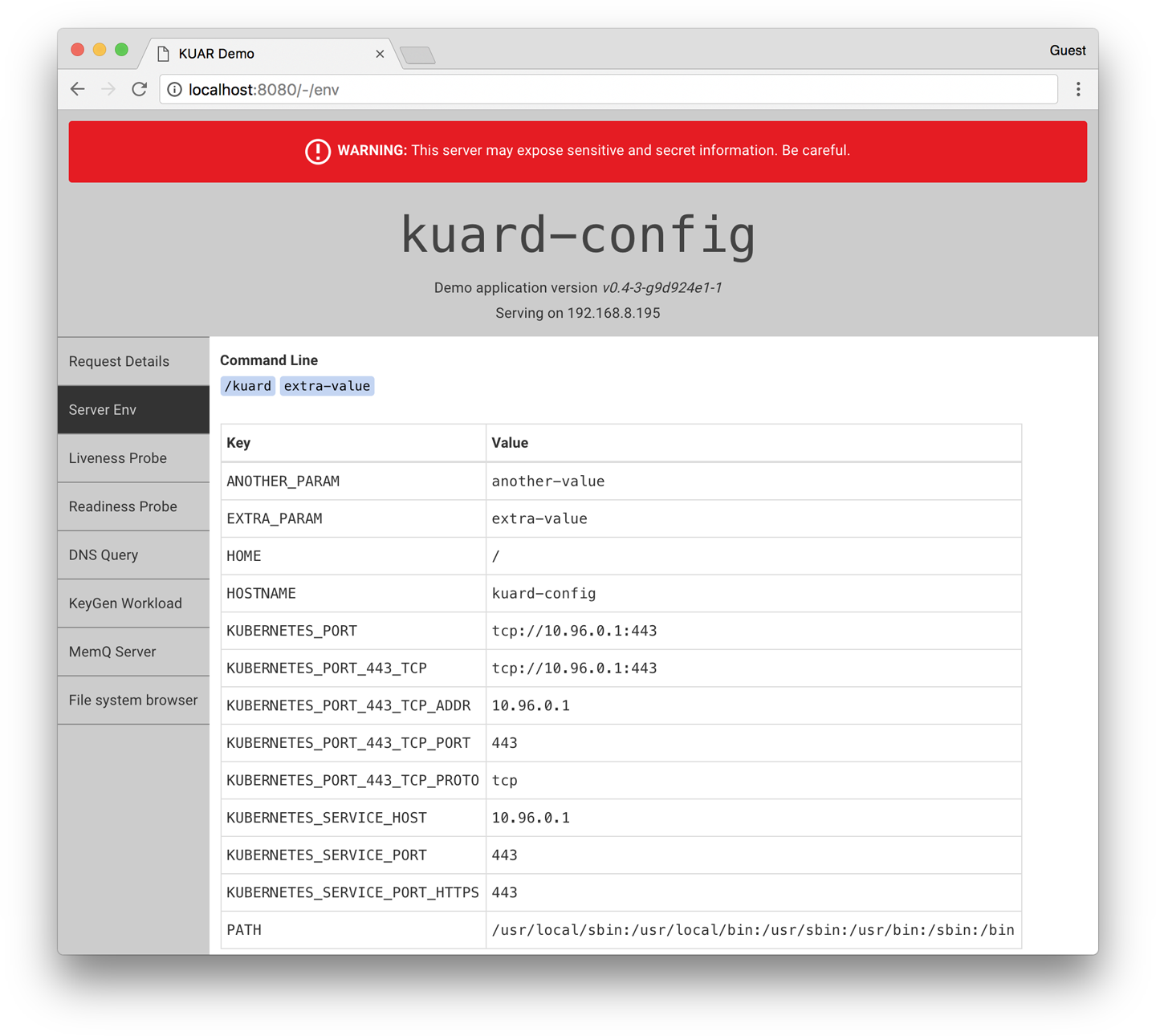

Click on the “Server Env” tab on the left. This will show the command line that the app was launched with along with its environment, as shown in Figure 11-1.

Figure 11-1. kuard showing its environment

Here we can see that we’ve added two environment variables (ANOTHER_PARAM and EXTRA_PARAM) whose values are set via the ConfigMap. Furthermore, we’ve added an argument to the command line of kuard based on the EXTRA_PARAM value.

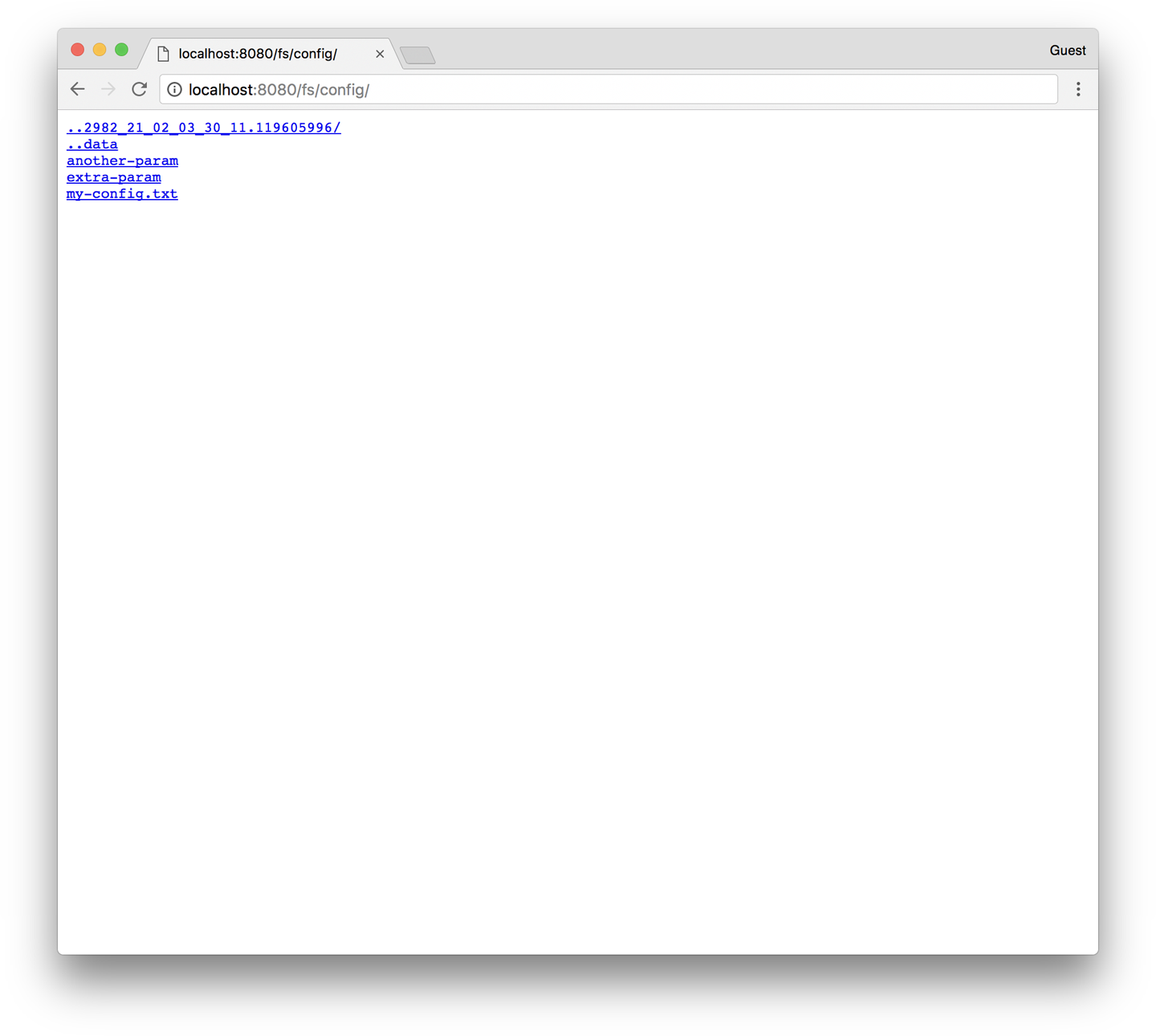

Next, click on the “File system browser” tab (Figure 11-2). This lets you explore the filesystem as the application sees it. You should see an entry called /config. This is a volume created based on our ConfigMap. If you navigate into that, you’ll see that a file has been created for each entry of the ConfigMap. You’ll also see some hidden files (prepended with ..) that are used to do a clean swap of new values when the ConfigMap is updated.

Figure 11-2. The /config directory as seen through kuard

Creating Secrets

Secrets are created using the Kubernetes API or the kubectl command-line tool. Secrets hold one or more data elements as a collection of key/value pairs.

In this section we will create a secret to store a TLS key and certificate for the kuard application that meets the storage requirements listed above.

The first step in creating a secret is to obtain the raw data we want to store. The TLS key and certificate for the kuard application can be downloaded by running the following commands (please don’t use these certificates outside of this example):

$ curl -o kuard.crt  https://storage.googleapis.com/kuar-demo/kuard.crt
$ curl -o kuard.key https://storage.googleapis.com/kuar-demo/kuard.key

With the kuard.crt and kuard.key files stored locally, we are ready to create a secret. Create a secret named kuard-tls using the create secret command:

$ kubectl create secret generic kuard-tls \
  --from-file=kuard.crt \
  --from-file=kuard.key

The kuard-tls secret has been created with two data elements. Run the following command to get details:

$ kubectl describe secrets kuard-tls

Name:         kuard-tls
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:         Opaque

Data
====
kuard.crt:    1050 bytes
kuard.key:    1679 bytes

With the kuard-tls secret in place, we can consume it from a pod by using a secrets volume.

Consuming Secrets

Secrets can be consumed using the Kubernetes REST API by applications that know how to call that API directly. However, our goal is to keep applications portable. Not only should they run well in Kubernetes, but they should run, unmodified, on other platforms.

Instead of accessing secrets through the API server, we can use a secrets volume.

/tls/cert.pem
/tls/key.pem

apiVersion: v1
kind: Pod
metadata:
  name: kuard-tls
spec:
  containers:
    - name: kuard-tls
      image: gcr.io/kuar-demo/kuard-amd64:1
      imagePullPolicy: Always
      volumeMounts:
      - name: tls-certs
        mountPath: "/tls"
        readOnly: true
  volumes:
    - name: tls-certs
      secret:
        secretName: kuard-tls

$ kubectl apply -f kuard-secret.yaml

$ kubectl port-forward kuard-tls 8443:8443

Private Docker Registries

A special use case for secrets is to store access credentials for private Docker registries. Kubernetes supports using images stored on private registries, but access to those images requires credentials. Private images can be stored across one or more private registries. This presents a challenge for managing credentials for each private registry on every possible node in the cluster.

Image pull secrets leverage the secrets API to automate the distribution of private registry credentials. Image pull secrets are stored just like normal secrets but are consumed through the spec.imagePullSecrets Pod specification field.

Use the create secret docker-registry to create this special kind of secret:

$ kubectl create secret docker-registry my-image-pull-secret \
  --docker-username=<username> \
  --docker-password=<password> \
  --docker-email=<email-address>

Enable access to the private repository by referencing the image pull secret in the pod manifest file, as shown in Example 11-4.

apiVersion: v1
kind: Pod
metadata:
  name: kuard-tls
spec:
  containers:
    - name: kuard-tls
      image: gcr.io/kuar-demo/kuard-amd64:1
      imagePullPolicy: Always
      volumeMounts:
      - name: tls-certs
        mountPath: "/tls"
        readOnly: true
  imagePullSecrets:
  - name:  my-image-pull-secret
  volumes:
    - name: tls-certs
      secret:
        secretName: kuard-tls

Listing

You can use the kubectl get secrets command to list all secrets in the current namespace:

$ kubectl get secrets

NAME                  TYPE                                  DATA      AGE
default-token-f5jq2   kubernetes.io/service-account-token   3         1h
kuard-tls             Opaque                                2         20m

Similarly, you can list all of the ConfigMaps in a namespace:

$ kubectl get configmaps

NAME        DATA      AGE
my-config   3         1m

kubectl describe can be used to get more details on a single object:

$ kubectl describe configmap my-config

Name:           my-config
Namespace:      default
Labels:         <none>
Annotations:    <none>

Data
====
another-param:  13 bytes
extra-param:    11 bytes
my-config.txt:  116 bytes

Finally, you can see the raw data (including values in secrets!) with something like kubectl get configmap my-config -o yaml or kubectl get secret kuard-tls -o yaml.

Creating

The easiest way to create a secret or a ConfigMap is via kubectl create secret generic or kubectl create configmap. There are a variety of ways to specify the data items that go into the secret or ConfigMap. These can be combined in a single command:

--from-file=<filename>

Load from the file with the secret data key the same as the filename.

--from-file=<key>=<filename>

Load from the file with the secret data key explicitly specified.

--from-file=<directory>

Load all the files in the specified directory where the filename is an acceptable key name.

--from-literal=<key>=<value>

Use the specified key/value pair directly.

Updating

You can update a ConfigMap or secret and have it reflected in running programs. There is no need to restart if the application is configured to reread configuration values. This is a rare feature but might be something you put in your own applications.

The following are three ways to update ConfigMaps or secrets.

$ kubectl create secret generic kuard-tls \
  --from-file=kuard.crt --from-file=kuard.key \
  --dry-run -o yaml | kubectl replace -f -

$ kubectl edit configmap my-config
