Let’s start by clearing up some “cloud computing” acronyms that people like to throw around.

Infrastructure as a Service (IaaS) is when a provider spins up computers for you on demand with certain predefined virtual hardware configurations. It is mainly targeted at system administrators and DevOps staff who used to rack and stack hardware. Probably the most famous of these services is Amazon EC2, but there is also Rackspace, Microsoft Azure, and Google Compute Engine, among others. The idea is that you specify the amount of RAM, CPU, and disk space you want in your “machine” and the provider spins it up for you in a matter of minutes.

This service is great since you no longer have to go through a long procurement process or fixed investment to obtain machines for your work. The drawback to this solution is that you are still responsible for installing and maintaining the operating system and server packages, configuring the network, and doing all the basic system administration. If you are reading this book, then system administration is probably not your area of expertise and you would likely rather spend your time writing code.

Software as a Service (SaaS) requires the least amount of maintenance and administration on your part. With SaaS you just sign up for the service and start using it. You may be able to make some customizations, but you’re limited to what the service provider allows you to do. Common examples of SaaS are Gmail, Salesforce, and QuickBooks Online. While these services are useful because you can start working right away with little to configure or deploy, they are of limited use to programmers. They offer the least amount of customization of the three cloud services mentioned here. As Steve’s kids’ physical education teacher says: “You get what you get and you don’t get upset.”

Platform as a Service (PaaS) is the middle ground between IaaS and SaaS. It is primarily targeted at application developers and programmers. With PaaS, you issue a few commands (which could be in a web console) and the platform spins up the development environment along with all the “server” pieces you need to run your application. For example, in this book we are going to make a Python web application with a PostgreSQL database. To get all this spun up, you issue one command and OpenShift does all the networking and server installs, and creates a Git repository for you. The OpenShift administrators will keep the operating system up-to-date, manage the network, and do all the sys admin work—leaving the developer to focus on writing code.

OpenShift is Red Hat’s PaaS, and there are three different versions: OpenShift Origin, OpenShift Online, and OpenShift Enterprise (see Figure 1-1). OpenShift Origin, the free and open source version of OpenShift, is the upstream project for the other two versions. It is on GitHub and released under an Apache 2 license. All changes to the code base go through the public repository, for both Red Hat and external developers. If you want to use this version you will have to install it on your own infrastructure. We are not going to cover the installation of the OpenShift PaaS in this book.

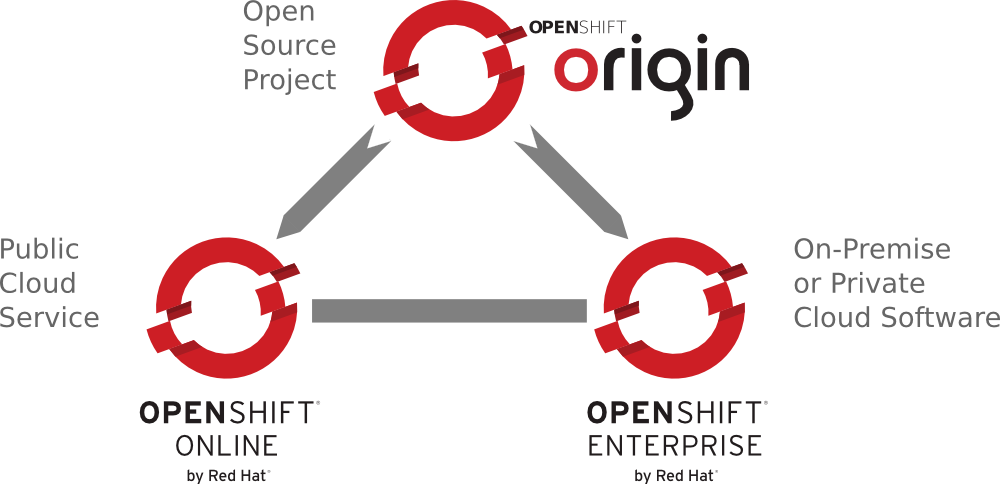

Figure 1-1. The relationship between the three versions of OpenShift

Approximately once every three weeks (the length of a sprint), Origin is packaged up and released as a new version of OpenShift Online. We are going to be using this version of OpenShift in the book. With Online, Red Hat takes care of hosting the PaaS on Amazon Web Services (AWS) and you just create an account for it. All the server work, such as updating the OS and managing networks, is covered by the OpenShift operations team. You are free to focus on your application and its code.

The final version is OpenShift Enterprise, which is currently released about once a quarter. This version of OpenShift allows you to take the PaaS and run it anywhere you want, from bare metal in your data center to Rackspace or AWS. It is a complete package with Red Hat Enterprise Linux and all the OpenShift bits on top of it. It is also fully supported by Red Hat and is intended for customers who want stability and a production-ready install out of the box. Since stability is paramount, some of the features found in Origin or Online may not be in Enterprise for a release or two. The great part about having Enterprise in-house is that it allows sys admins and DevOps staff to have control over “standard architecture” while still allowing developers to self-provision. Developers get all the speed and agility they want, without the usual wait for “machine” provisioning. It actually helps the sys admins and developers get along.

You can move applications between any of these versions of OpenShift, as long as the cartridges used are available on the versions between which you are migrating. This gives developers and companies a very nice hybrid cloud option. Developers and small teams can work on Online, perhaps using Online for some of the applications that allow for data in the public cloud. However, if they start developing an application that has more stringent data requirements, they can bring it back behind the company firewall, keeping the same development pattern they used for the Online platform. The Online version can also be used to try out a new technology, for example Node.js at a Java shop, with minimal risk and learning investment for the sys admins. Then, if the development team likes the new technology, they can demo the application to the decision makers and sys admins to show the value in bringing the technology in-house. The sys admins can use Red Hat’s expertise in configuring the new technology on OpenShift to provide it internally. Since they have it in-house and it is standard Node.js, they can then tweak and tune it in a way that allows for rapid deployment to all internal projects using the new technology.

As always with these questions, the optimal solution depends on the specifics of your use case. Maybe the decision has already been made for you—for example, if you work at a corporation that has already chosen OpenShift Enterprise and that is what you will be using. If you want the fewest management concerns, then you should look to OpenShift Online. Everything will be managed by the OpenShift Operations team. The trade-off is that you have less control over how the system is set up, what cartridges are available, and how the network is configured.

If you want to be on the cutting edge of PaaS, you feel comfortable supporting yourself on Linux-based machines, and you want to provide your own “hardware,” then running OpenShift Origin with Fedora or CentOS could be an option. On the other hand, if you want a more stable and supported version of OpenShift running Red Hat Enterprise Linux, then you are going to be interested in OpenShift Enterprise.

Given the state of developers, corporations, and the cloud, some good use cases for Online are hackathons, prototype projects, consulting houses, startups, smaller divisions in larger corporations, and students. OpenShift Origin might be good for a corporation trialing the notion of running its own PaaS, a hosting provider, or a university that wants to set up student experimentation. Please be aware that, given the trajectory of PaaS, there will probably be large corporations using public PaaS instances for production workloads within a year of the publication of this book. Steve is willing to bet a beer or a lemonade on it.

With that brief introduction, we are done talking about broad concepts and will now move into the discussion of concepts particular to OpenShift and how to get started.

We know you are impatient and want to get started, but it is important for us to get some definitions cleared up first. It is also important to introduce some technology that you’ll use throughout your development workflow. If you are comfortable with the technology feel free to skip right over that next section, but please make sure you understand the definitions.

Before you get started, you’ll need to do two things:

In the next section, we will explain the rhc setup command.

Once you have installed the client tools, you need to configure them to work with your OpenShift Online account. To do this, use the following command:

$ rhc setup

Executing this command sets up your command-line tools to talk to the OpenShift servers. When you run this command, the following things will happen:

With our RHC setup complete, we are ready to create our first application. For the purposes of this book, we are going to create a Python application. In actuality you could use any of the supported web cartridges to make an application. The list of cartridges grows pretty rapidly, so if you want to see the full list of cartridges on OpenShift, please execute the following command:

$ rhc cartridge list

You can also create your own cartridges. We are not going to cover how to create a cartridge in this book, since we consider that topic to be an advanced use case. Besides, if we talked about it here, how could you write about it when you write your OpenShift book? We cover much more about cartridges in Finding Cartridges and QuickStarts.

Before you make an application, use the command line to create or navigate into the directory where you would like your application code to be created. At the end of application creation, the command-line tools will clone the application’s Git repository to your local machine in the same directory where you executed the command.

Let’s create an app!

Here’s the syntax for creating an OpenShift application:

$ rhc app create app_name web_language

or:

rhc app create app_name web_language other cartridges

And here is how we use this command to create an application named insultapp using the Python 2.7 cartridge:

[me@localhost ~]$ rhc app create insultapp python-2.7
Application Options
--------------------
Domain:     osbeginnerbook
Cartridges: python-2.7
Gear Size:  default
Scaling:    no

Creating application 'insultapp' ... done

Waiting for your DNS name to be available ... done

Cloning into 'insultapp'...
The authenticity of host 'insultapp-osbeginnerbook.rhcloud.com (19.66.2.6)'
can't be established.
RSA key fingerprint is 4e:65:76:72:47:6f:6e:6e:61:47:69:76:65:55:55:70.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'insultapp-osbeginnerbook.rhcloud.com' (RSA) to the
list of known hosts.

Your application 'insultapp' is now available.

  URL:        http://insultapp-osbeginnerbook.rhcloud.com/
  SSH to:     6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Git remote: ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.
  rhcloud.com/~/git/insultapp.git/
  Cloned to:  /home/me/insultapp

Run 'rhc show-app insultapp' for more details about your app.

That’s it! When the command finishes executing you will have an Apache HTTP server with mod_wsgi running in the cloud. It will have a public URL, which will have the form http://insultapp-<namespace>.rhcloud.com. It will also have a private Git repository that has been cloned to your local machine, in a directory with the same name as your application.

We could have made our app a scalable application (meaning each cartridge goes on its own gear) by passing in the -s flag. You would do this if you wanted to make sure your cartridges were not sharing resources or you wanted to enable the application server tier to scale (manually or automatically) from the database tier. We will discuss this further in the next section.

We could also pass in the -g flag to use gear sizes other than the default (small) size. On OpenShift Online’s free tier you only have access to the small gears, but if you move into the paid tiers you can get a medium or large gear, which has more RAM. Please see Reasons to Move to the Paid Tier to understand other reasons to move into the paid tier.

Finally, we could use the --from-code option to point to a publicly accessible Git repository to serve as the template for our application. We could have done that in this example, but we are going to build the example application by hand instead. One caveat with this flag is that when OpenShift tries to create the gear, the application has to download and build the Git repository within a particular time period. If the rhc create command times out before the build and deploy occurs, then OpenShift will roll back the entire application and you will be left with nothing except the bitter taste of disappointment. Use this feature with caution for now.

Go ahead and look at your web page. What you should see is the template page created for all OpenShift applications (Figure 2-1). This page is pretty generic. In the next chapter, we will modify the application and deploy the code changes. Take a step back and marvel at what you just did. With one command you spun up Apache with mod_wsgi, allocated disk space, configured logging, configured Linux permissions, registered an IP address with a DNS server, and made both a remote and a local Git repository. With that little bit of typing you have a fully functional application development hosting environment. This is the magic of OpenShift, and your development process may never be the same again.

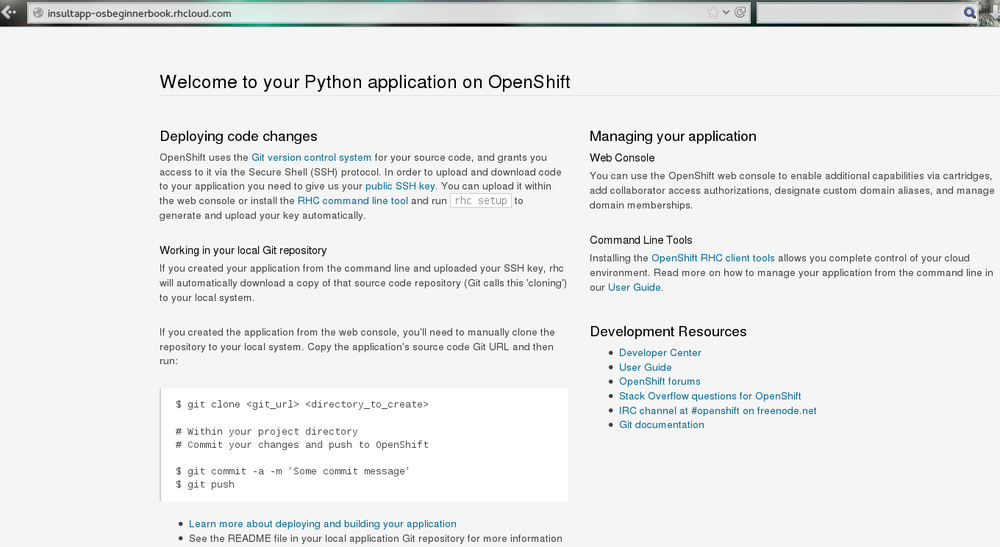

Figure 2-1. What your first application looks like

OpenShift is the only PaaS on the market that provides autoscaling at the application tier. We have not used it here for the sake of simplicity, but if we were going to run an app in the “real world,” we would make it scalable. When you make an application scalable, a software-based load balancer called HAProxy will be added to the same gear as the application server. All web traffic to the application will then be routed through HAProxy. Currently, if the number of active connections goes above 16—whether they are regular HTTP or WebSocket connections—HAProxy will trigger the creation of another application gear. OpenShift will spin up another app server gear, rsync the code over to the new gear, plug the gear into HAProxy, and then start using it to serve connections. If the connections later drop back below the threshold for long enough for it not to be considered random noise, HAProxy will trigger the draining of connections and OpenShift will spin down the gear.

All of this happens without any human intervention, so you do not have to wake up in the middle of the night or take time out from sailing around the world on your yacht (wouldn’t that be nice). Of course, OpenShift lets you set a maximum number of gears for application server use so you are not surprised by some large bill at the end of the month, thereby ending your yacht trip.

As we have taught more and more classes and seen more and more people using OpenShift, we have arrived at the conclusion that almost all apps should be created as scalable applications. There are several reasons for this:

You are given enough resources in the free tier to make your application scalable, so there is really no reason why you shouldn’t do this by default.

Everything we do in this book can be carried out using the free tier of OpenShift, but there are strong reasons why you might want to move into one of the paid tiers as your application becomes more serious. We will call out some of the benefits as we discuss topics in the following chapters, such as the ability to use your own SSL certificates. However, for the sake of gathering them in one place, we have included a short list here:

There is certainly no requirement to use the paid tier, but there are numerous reasons you may find yourself wanting to take advantage of what it has to offer.

When you create an OpenShift application with the RHC command-line tools, by default the new Git repository created on the OpenShift gear will be cloned to your local machine. The contents will end up in a new directory with the same name as the application, created inside the directory in which you ran the rhc app create command. If you would like the repository to be cloned to a different location, specify this by adding the --repo repo_dir_path option to your rhc app create command; the repository contents will be cloned into the directory specified, which should either be empty or not yet exist. If you do not wish to clone the Git repository as part of the app creation process, you can add the --no-git flag.

If you choose not to clone the OpenShift application repository when you create the app, or something goes wrong and the clone fails, you can clone it later using the command rhc git-clone. This is a wrapper for the standard git clone command that provides some extra benefits: you can specify what to clone by using the application’s name, rather than its full Git URL, and it adds some RHC configuration data to the Git repository config. This means that you can run RHC commands from within the cloned directory without having to specify the application to which you wish them to apply with -a appname. Where RHC commands shown in this book omit the -a appname option, it is because they are being run within an app repository cloned via RHC, either with rhc app create or rhc git-clone.

To view the Git URL for your OpenShift application, run the command rhc app show -a appname.

Once you have a local copy of the OpenShift application repository you can modify the code using whatever tool you prefer: a command-line text editor, a graphical editor, or an IDE. For our example application, we will start by making a few changes to add and utilize the Python Flask microframework. Writing raw Web Server Gateway Interface (WSGI) apps is not much fun. Flask is a lightweight alternative that will give us just enough support to fulfill our app’s main aim: insulting people. To learn more about Flask, see its website.

First up, we need to add Flask as a dependency. To do this, we navigate to the local cloned insultapp repository and open the setup.py file with our chosen editor (long live the Vim, though some of us believe Nano rules). In this file we can set the application name and other details; the most significant change to make, though, is uncommenting the install_requires line and replacing Django with Flask 0.10.1. Our resulting setup section looks like this:

setup(name='Insult App',
      version='1.0',
      description='Insults you',
      author='Katie and Steve',
      author_email='example@example.com',
      url='http://www.python.org/sigs/distutils-sig/',
      install_requires=['Flask==0.10.1'],
     )

The next file we need to edit is wsgi/application. It contains the HTML for the “Welcome to your Python application on OpenShift” page we saw in Chapter 2. We do not need any of the template code, so we delete everything beneath the comment lines marked as IMPORTANT. Beneath the comment, we add the line from routes import app as application, referencing the application code we are about to add next. Here is the source of the resulting application file:

#!/usr/bin/python
import os

virtenv = os.environ['OPENSHIFT_PYTHON_DIR'] + '/virtenv/'
virtualenv = os.path.join(virtenv, 'bin/activate_this.py')
try:
    execfile(virtualenv, dict(__file__=virtualenv))
except IOError:
    pass
#
# IMPORTANT: Put any additional includes below this line.  If placed above this
# line, it's possible required libraries won't be in your searchable path.
#
from routes import app as application

Finally, we add a new file in the wsgi directory called routes.py. This contains a single route for the application’s root directory, which maps to an insult function that returns the mildly irritating string, “Hello, code monkey!” Here is the code:

import os
from flask import Flask

app = Flask(__name__)
# Keeps Flask from swallowing error messages
app.config['PROPAGATE_EXCEPTIONS'] = True

@app.route("/")
def insult():
    return "Hello, code monkey!"

if __name__ == "__main__":
    app.run()

In routes.py we create a Flask application type called app. From there we use annotations to define that HTTP requests to the root URL get handled by the function insult. The application file loads the Python virtual environment (a mechanism for having different Python libraries on the same machine) and imports the app from the routes module defined in routes.py.

Now that we have made some changes to the application code base, we should commit them to the local Git repository. We can do that with the following Git commands: add to add the changes to the repository index, and commit to record the new contents of the index. It is good practice to use the git status command before each one to make sure you are clear on what is happening, although for brevity this is not shown here:

[me@localhost ~/insultapp]$ git add -A
[me@localhost ~/insultapp]$ git commit -m "Added Flask microframework"
[master b1d87e3] Added Flask microframework
 3 files changed, 32 insertions(+), 315 deletions(-)
 rewrite wsgi/application (99%)
 create mode 100644 wsgi/routes.py

The code changes are now committed on our local machine, but our OpenShift app remains unaffected. In the next section, we will push our modifications to the cloud.

Once you have committed your code changes, you can deploy them to OpenShift with just one command: git push. There is no special binary or secret sauce involved; it is just pure Git and SSH. If we run the command git status, we can see that we have modifications ready and raring to go. The git push command sends them on their merry way up into the cloud:

[me@localhost ~/insultapp]$ git status
# On branch master
# Your branch is ahead of 'origin/master' by 1 commit.
#   (use "git push" to publish your local commits)
#
nothing to commit, working directory clean
[me@localhost ~/insultapp]$ git push

We have not included the full output of the push command here as it was quite lengthy, but here are some choice snippets:

remote: Stopping PYTHON cart
...
remote: Building git ref 'master', commit b1d87e3
...
remote: Installed /var/lib/openshift/6e7672676e61676976757570/app-root/runtime
/repo
remote: Processing dependencies for Insult-App==1.0
...
remote: Processing Flask-0.10.1.tar.gz
...
remote: Preparing build for deployment
...
remote: Activating deployment
...
remote: Starting PYTHON cart
remote: Result: success
remote: Activation status: success
remote: Deployment completed with status: success

Note that each time new code is deployed, the directory on the gear containing the current copy of the Git repository is blown away and then replaced with an updated copy, so anything stored there between deployments will be lost. We explain where you can store files persistently in Chapter 8.

As we can see from the console output, when code is pushed to OpenShift it kicks off a build lifecycle, which has build and deployment phases. This lifecycle will differ slightly depending on the application cartridge in use, whether or not the app is scalable, and whether or not a builder cartridge such as Jenkins is included. In the case of our example app, the Python cartridge is stopped, the Git repository is cloned, a series of Python-specific processes occur to fetch dependencies and prepare the app, the resulting build is deployed, and the cartridge is restarted. You will learn more about most of these other pieces of application deployment in later chapters. In the next section we will talk about how you can write scripts to hook into various phases of the build.

Once this cycle is complete, we can visit our application URL in a browser and are now greeted with “Hello, code monkey!” (see Figure 3-1).

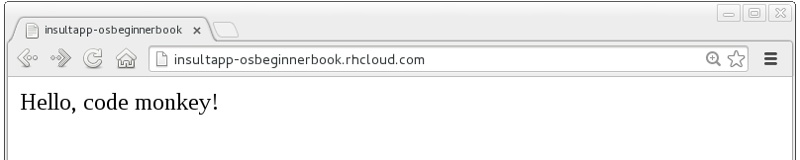

Figure 3-1. The Flask application in action

OpenShift cartridges are designed to take care of the major tasks required to build and deploy a web application. If there are actions you want to perform as part of the build lifecycle that go beyond the basics, you can include these in action hook scripts.

Action hook scripts are included as part of your application Git repository, in the .openshift/action_hooks directory. Different cartridges may support different hooks, depending on their build lifecycles; however, they should all include pre_build, build, deploy, and post_deploy, as well as pre and post hooks for the start, stop, restart, reload, and tidy actions.

To run code at a particular time in the lifecycle, place a script in the action_hooks directory with the same name as the phase when you want it to be executed. The script can be written in Shell, Python, PHP, Ruby, or any other scripting language installed in the OpenShift environment that you can reference. It does not matter what language you chose for your web application; all of these scripting environments are still available to run on your gear. The script should be executable; run the chmod x scriptname command to ensure this.

Action hook scripts need to be added and committed in Git just like any other repository file. When they are pushed to the cloud, you will see any effects as the build lifecycle runs. For example, if you delete files in the /tmp directory as part of an action hook, the git push output will echo the result of that command unless you tell your script to swallow output.

When we pushed our code changes to the example application, we saw that the Python cartridge was stopped while the app was built and deployed, and then started back up again. If there had been a database cartridge installed in our application, it would have been stopped as well. This meant our application was unavailable for that time; if we had hit the URL at that moment, we would have received a 503 Service Unavailable message. In addition, for many of OpenShift’s programming languages, you do not need to stop the server to deploy new code on the server. Going through a start/stop cycle for the application server significantly slows down the deployment experience.

We want to properly insult people rather than scaring them away with server error status codes, so our next code change will be to add a marker file to tell the platform to hot deploy the code. This signals that OpenShift should deploy new application versions without restarting the server. The hot deployment option is available on most of the core OpenShift application cartridges; the JBoss, Tomcat, PHP, Zend, Perl, Ruby, and Python cartridges all support this. (See Using Marker Files for more information about marker files.) Enabling hot deployment is as simple as creating an empty file named hot_deploy in the .openshift/markers directory, adding it to the local repository with git add, doing a git commit, and then finally executing a git push:

[me@localhost ~/insultapp]$ touch .openshift/markers/hot_deploy
[me@localhost ~/insultapp]$ git add .openshift/markers/hot_deploy
[me@localhost ~/insultapp]$ git commit -m "Changing application to hot deploy"

Our app is looking pretty good now, but a single canned insult will get old fast. We will make things more entertaining by adding some randomization, Elizabethan style. There is a list of insulting Shakespearean words that has been floating around the Internet practically since it was a twinkle in someone’s eye (no, not Al Gore). There are two columns of adjectives and one column of nouns; the idea is to combine one word from each column. Our next step is to gather a few insulting words and add a wsgi/insulter.py file to encapsulate the serious business logic of contempt:

from random import choice

def insult():
    return "Thou " + generate_insult() + "!"

def named_insult(name):
    return name + ", thou " + generate_insult() + "!"

def generate_insult():
    first_adjs = ["artless", "bawdy", "beslubbering", "bootless", "churlish"]
    second_adjs = ["base-court", "bat-fowling", "beef-witted", "beetle-headed",
     "boil-brained"]
    nouns = ["apple-john", "baggage", "barnacle", "bladder", "boar-pig"]

    return choice(first_adjs) + " " + choice(second_adjs) + " " + choice(nouns)

We use the choice function in the random module to select a random element in the Python lists, such as first_adjs. Next, we change the code in wsgi/routes.py to make use of our new functions:

import os
from flask import Flask
import insulter

app = Flask(__name__)
# Keeps Flask from swallowing error messages
app.config['PROPAGATE_EXCEPTIONS'] = True

@app.route("/")
def insult():
    return insulter.insult()

@app.route("/<name>")
def insult_name(name):
    return insulter.named_insult(name)

if __name__ == "__main__":
    app.run()

Notice we import the insulter module (the file named insulter.py) and then use the two insult-constructing functions to generate our insults. You can also see that in the second @app.route we are grabbing any text after the / and making it available to the function insult_name as a parameter called name. We added this function for cases when only a personalized insult will do.

We add and commit those changes to the Git repository, and then the final step is to git push our latest two commits. The output from OpenShift shows that the server has not been stopped and restarted because hot deployment is enabled:

remote: Not stopping cartridge python because hot deploy is enabled
...
remote: Not starting cartridge python because hot deploy is enabled

Once the new code has hit the cloud, we can refresh the app for some random Shakespearean insult fun (see Figure 3-2).

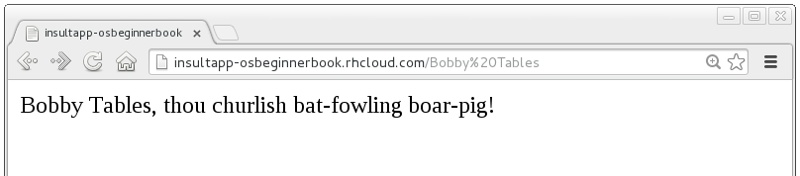

Figure 3-2. A random insult from the hot-deployed app

In this chapter we showed how to modify OpenShift application starter code, spicing up our Python demo app with logic to insult its users. We achieved this with Git commands including add, status, commit, push, and, with the help of RHC, clone. We also explained how we can add custom scripts to the application lifecycle with action hooks, and how to use a marker file to configure an app to hot deploy.

The cartridges most commonly added to OpenShift applications after creation are database cartridges, such as PostgreSQL, MySQL, and MongoDB. If the application is not scalable, the database cartridge will be installed on the same gear as the primary application cartridge. If the application is scalable, the database cartridge will be added on its own gear. This enables the gear hosting the application cartridge to be replicated, without affecting the database. It also prevents the application server and the database from sharing the memory and disk space of a single gear.

Cartridges can be added with the command rhc cartridge add, and removed with rhc cartridge remove. Other RHC cartridge management commands include list, status, start, restart, stop, and storage; rhc cartridge --help will display the full list of options.

Here we add a PostgreSQL 9.2 cartridge to our running example, Insult App:

[me@localhost ~/insultapp]$ rhc cartridge add postgresql-9.2

Adding postgresql-9.2 to application 'insultapp' ... done

postgresql-9.2 (PostgreSQL 9.2)
--------------------------------
  Gears:          Located with python-2.7
  Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
  $OPENSHIFT_POSTGRESQL_DB_PORT
  Database Name:  insultapp
  Password:       SLat4aTfsSt1
  Username:       adminm4rvN42

PostgreSQL 9.2 database added.  Please make note of these credentials:

   Root User: adminm4rvN42
   Root Password: SLat4aTfsSt1
   Database Name: insultapp

Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
$OPENSHIFT_POSTGRESQL_DB_PORT

We can see from the output that the PostgreSQL cartridge has been added and is located on the same gear as the Python cartridge; this is because our demo application is not scalable. RHC has also displayed some useful information about the database set-up, including the database root user’s username and password.

There are multiple ways to connect to your OpenShift database. Spoiler alert: we will show you how to connect to a DB in your application code in Chapter 6; there are some other topics we need to cover first before we get there. We will demonstrate how to connect to the gear hosting the database via SSH and how to view the environment variables related to database (and other) cartridges in Chapter 5. To find out how to use port forwarding to connect to an OpenShift database, see Chapter 7.

Our discussion so far has been focused on OpenShift cartridges that provide programming language runtimes, application servers, web frameworks, and databases. These are the major building blocks of OpenShift applications, but the platform can also provide complementary functionality. At the end of the previous section, we briefly mentioned some of the cartridges available to assist with database administration and management. In this section, we will examine some of the other cartridges you may like to add to your app to facilitate tasks such as job scheduling, continuous integration, and metrics collection.

[me@localhost ~/insultapp]$ rhc cartridge add cron
Using cron-1.4 (Cron 1.4) for 'cron'
Adding cron-1.4 to application 'insultapp' ... done

cron-1.4 (Cron 1.4)
--------------------
  Gears: Located with python-2.7, postgresql-9.2

To schedule your scripts to run on a periodic basis, add the scripts to
your application's .openshift/cron/{minutely,hourly,daily,weekly,monthly}/
directories (and commit and redeploy your application).

Example: A script .openshift/cron/hourly/crony added to your application
         will be executed once every hour.
         Similarly, a script .openshift/cron/weekly/chronograph added
         to your application will be executed once every week.

[me@localhost ~/insultapp]$ rhc app show
insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
------------------------------------------------------------------------------
  Domain:     osbeginnerbook
  Created:    Mar 14  1:59 PM
  Gears:      1 (defaults to small)
  Git URL:    ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud
  .com/~/git/insultapp.git/
  SSH:        6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Deployment: auto (on git push)

  python-2.7 (Python 2.7)
  -----------------------
    Gears: Located with postgresql-9.2, cron-1.4

  postgresql-9.2 (PostgreSQL 9.2)
  -------------------------------
    Gears:          Located with python-2.7, cron-1.4
    Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
    $OPENSHIFT_POSTGRESQL_DB_PORT
    Database Name:  insultapp
    Password:       SLat4aTfsSt1
    Username:       adminm4rvN42

  cron-1.4 (Cron 1.4)
  -------------------
    Gears: Located with python-2.7, postgresql-9.2

#!/bin/bash
# .openshift/cron/minutely/ricktock

MIN=$(date '+%M')
LOG=${OPENSHIFT_PYTHON_LOG_DIR}/ricktock.log
MSG1="Never gonna give you up\nNever gonna let you down\nNever gonna run around
and desert you"
MSG2="Never gonna make you cry\nNever gonna say goodbye\nNever gonna tell a lie
and hurt you"

if [ $MIN == 15 ]; then
  echo -e `date` $MSG1 >> $LOG
fi

if [ $MIN == 45 ]; then
  echo -e `date` $MSG2 >> $LOG
fi

exit

[me@localhost ~/insultapp]$ chmod +x .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git add .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git commit -m "Adding ricktock minutely Cron script"
[master 2548477] Adding ricktock minutely Cron script
 1 file changed, 18 insertions(+)
 create mode 100755 .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git push

[me@localhost ~/insultapp]$ rhc tail
==> python/logs/ricktock.log <==
Fri Mar 14 14:15:44 EST 2014 Never gonna give you up
Never gonna let you down
Never gonna run around and desert you

[me@localhost ~/insultapp]$ cd ..
[me@localhost ~]$ rhc app create jenkins jenkins-1
Application Options
-------------------
  Domain:     osbeginnerbook
  Cartridges: jenkins-1
  Gear Size:  default
  Scaling:    no

Creating application 'jenkins' ... done

  Jenkins created successfully.  Please make note of these credentials:

   User: admin
   Password: iYddhaBUvg2m

Note:  You can change your password at: https://jenkins-osbeginnerbook.rhcloud
.com/me/configure

Waiting for your DNS name to be available ... done

Cloning into 'jenkins'...
The authenticity of host 'jenkins-osbeginnerbook.rhcloud.com (19.77.5.25)' can't
be established.
RSA key fingerprint is 54:68:65:46:6f:72:63:65:69:73:73:74:72:6f:6e:67.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'jenkins-osbeginnerbook.rhcloud.com,19.77.5.25' (RSA)
to the list of known hosts.

Your application 'jenkins' is now available.

  URL:        http://jenkins-osbeginnerbook.rhcloud.com/
  SSH to:     4e6f72726973206265617264@jenkins-osbeginnerbook.rhcloud.com
  Git remote: ssh://4e6f72726973206265617264@jenkins-osbeginnerbook.rhcloud.com/
  ~/git/jenkins.git/
  Cloned to:  /home/codemiller/code/book/jenkins

Run 'rhc show-app jenkins' for more details about your app.

[me@localhost ~]$ cd insultapp
[me@localhost ~/insultapp]$ rhc cartridge add jenkins-client-1
Adding jenkins-client-1 to application 'insultapp' ... done

jenkins-client-1 (Jenkins Client)
---------------------------------
  Gears:   Located with python-2.7, postgresql-9.2, cron-1.4
  Job URL: https://jenkins-osbeginnerbook.rhcloud.com/job/insultapp-build/

Associated with job 'insultapp-build' in Jenkins server.

Metrics and Monitoring

Another category of cartridges you may wish to add to support your application is cartidges for metrics collection and monitoring.

At the time of writing, the OpenShift Metrics cartridge was at version 0.1 and still under development. It is designed to be able to be embedded with any primary application cartridge type. To add it to your application, use the command rhc cartridge add metrics-0.1 -a appname. Once it is installed, you can access real-time statistics about your application’s resource usage at http://appname-domain.rhcloud.com/metrics, as shown in Figure 4-1. The cartridge gives visibility to some key information, including the amount of CPU and RAM use (and how that relates to the gear limit), how much swap space is being utilized, application process IDs, and whether or not your application is in an idle state.

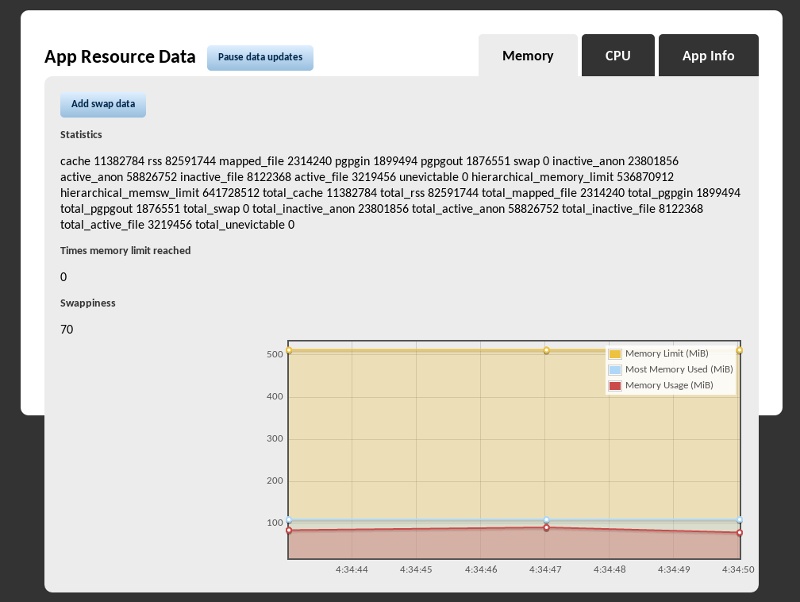

Figure 4-1. The OpenShift Metrics cartridge interface

Another monitoring option is the Monit cartridge, which uses the open source Monit process supervision tool. The cartridge comes with some predefined rules for checking OpenShift application availability, storage, and memory use. It will send email notifications when significant events occur, such as your gear reaching 80 percent of its quota or your app becoming unavailable. Additional rules can be added to check different application metrics and to take actions based on the results, such as restarting a cartridge. See Adding Third-Party Cartridges to learn how to install Monit and other community cartridges.

If your OpenShift application is scalable, it will include the HAProxy cartridge for load balancing. Although its primary function is not monitoring, it is worth noting that HAProxy includes a page that allows you to view some useful data about your application, available at http://appname-domain.rhcloud.com/haproxy-status. This status page shows how many application gears you have running, if all the gears are online, how many users are connecting to your app, and how much data the app is streaming.

Tip

For those using MongoDB, another monitoring cartridge that may come in handy is the MongoDB Monitoring Service (MMS) cartridge.

Given that OpenShift is open source, new cartridges are being developed by the community all the time; the next section offers tips on finding them and shows how to utilize third-party cartridges.

Tip

OpenShift partner organization New Relic offers a mature application monitoring solution, with free standard accounts available. There was no New Relic OpenShift cartridge at the time of writing, but there are instructions on how to add New Relic to your Java/JBoss application. Another OpenShift partner, AppDynamics, has created an OpenShift QuickStart for its monitoring software.

One of the joyous consequences of having an open source platform is that the community is always creating exciting new things for it. When you run the command rhc cartridge list, the result shows supported cartridges (Table 4-1 shows the list as of March 2014); these are the components that are maintained by Red Hat and receive updates such as security patches. However, this is not the extent of the cartridges available. There are many more OpenShift cartridges that have been created by the community and partner organizations. There are also many QuickStarts, which combine one or more cartridges with preconfigured code and libraries to enable you to quickly and easily launch a given application on OpenShift.

(*) denotes a cartridge with additional usage costs.

There are several places you can go to look for OpenShift cartridges and QuickStarts. A decent place to start is OpenShift.com; some downloadable cartridges and many QuickStarts are listed there. You can browse the OpenShift-maintained offerings and some partner and community offerings in the OpenShift Web Console.

Another good website to help you find ready-made applications and app components is the OO-Index. Its sole purpose is to index OpenShift cartridges and QuickStarts.It was in active development at the time of this writing and the production URL was not yet known, but you should be able to find the link at OpenShift’s website.

Given that a lot of cartridge code is hosted on GitHub, another way of finding a cartridge or QuickStart for a particular technology is to search for OpenShift and the technology name on the GitHub website. Search engine results may also help you to unearth treasures, especially if the programmers have written blog posts about their work.

Popular downloadable cartridges and QuickStarts include:

[me@localhost ~/insultapp]$ rhc cartridge add https://raw2.github.com/mfojtik/
openshift-origin-cartridge-monit/master/metadata/manifest.yml
The cartridge 'https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/
master/metadata/manifest.yml' will be downloaded and installed
Adding https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/master/
metadata/manifest.yml to application 'insultapp' ... done

mfojtik-monit-5.6 (monit 5.6)
-----------------------------
  From:  https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/master/
  metadata/manifest.yml
  Gears: Located with python-2.7, postgresql-9.2, cron-1.4

Please set the email you want to receive monit alerts:

$ rhc env set MONIT_ALERT_EMAIL=email@address.com -a insultapp
$ rhc cartridge restart monit -a insultapp

Monit Server Manager is running at: https://insultapp-osbeginnerbook.rhcloud.com/
monit-status
Username: admin
Password: Ny4nc=pt

You can add custom monitoring rules by editing ~/.monitrc file

[me@localhost ~/insultapp]$ rhc cartridge remove mfojtik-monit-5.6
Removing a cartridge is a destructive operation that may result in loss of data
associated with the cartridge.

Are you sure you wish to remove mfojtik-monit-5.6 from 'insultapp'? (yes|no):
yes

Removing mfojtik-monit-5.6 from 'insultapp' ... removed

Your application’s remote container, called a gear, can be accessed using the Secure Shell (SSH) protocol in the same way as you access regular machines. To communicate with OpenShift securely, your OpenShift account must first contain an SSH public key belonging to the machine from which you wish to connect. This key is uploaded to OpenShift when you first run the terminal command rhc setup (see Chapter 2 for more on this); you can also add keys manually via the OpenShift Web Console’s Settings section.

The simplest way to connect to an application gear is to go to the command line, change into the directory where your app was cloned locally, and enter the command rhc ssh. This will start an SSH session with your main application gear. If the local clone of your application repository is not linked to your OpenShift app in RHC (in which case you will receive an error message), or you wish to SSH from another directory, you should add the -a appname option, replacing appname with the name of your app.

If you would prefer to use an alternative tool for creating an SSH connection, you can view the SSH URL you will need for your main application gear with the command rhc app show -a appname.

If your app is scalable and you would like to SSH into the other gears, you can use the command rhc app show --gears -a appname to view their SSH URLs and the ssh command-line tool to connect (e.g., ssh user@host).

Once you have connected to the gear via SSH, you will see a “Welcome to OpenShift console” message and a warning about making destructive modifications to your application; you should always take care when making changes on the gear directly as it is possible to make persistent, unversioned changes to your app and its environment. By default, you will find yourself in the home directory of the OpenShift user for your application, which will have a UUID username that doesn’t quite roll off the tongue. If you list the contents of the directory, you will see subdirectories for the cartridges on your gear, as well as Git, your app’s deployment history, and the app itself.

Here is the output from a sample SSH session with our Python demo application. We connect to the application gear, then use the ls command to list the contents of some of the key directories, starting with our OpenShift application user’s home directory:

[me@localhost ~/insultapp]$ rhc ssh
Connecting to 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com ...

    *********************************************************************

    You are accessing a service that is for use only by authorized users.
    If you do not have authorization, discontinue use at once.
    Any use of the services is subject to the applicable terms of the
    agreement which can be found at:
    https://www.openshift.com/legal

    *********************************************************************

    Welcome to OpenShift console

    This console will assist you in managing OpenShift applications.

    !!! IMPORTANT !!! IMPORTANT !!! IMPORTANT !!!
    Shell access is quite powerful and it is possible for you to
    accidentally damage your application.  Proceed with care!
    If worse comes to worst, destroy your application with "rhc app delete"
    and recreate it
    !!! IMPORTANT !!! IMPORTANT !!! IMPORTANT !!!

    Type "help" for more info.


[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls
app-deployments  app-root  cron  git  postgresql  python
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls app-root
build-dependencies  data  dependencies  repo  runtime
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls app-root
/repo
app.py.disabled  data  Insult_App.egg-info  libs  README.md  setup.py  setup.pyc
setup.pyo  wsgi

The demo application uses a Python cartridge, so there is a Python directory in the application’s home directory. The app-root directory contains several important application subdirectories, notably repo, containing the current clone of the application’s Git repository, and data, which is a persistent directory you will read more about later in the book (see Chapter 8).

When accessing an application gear via SSH, you can run the usual Linux commands you might execute on a local machine. However, there are some restrictions. Your app runs within a container secured with SELinux, and you do not have root access. As you would expect, you cannot access other applications running on the same remote machine. If you receive “Permission Denied” errors, it is likely because you have attempted to overstep your bounds. Remember, you are a developer, not an administrator on your gear.

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> psql
psql (9.2.4)
Type "help" for help.

insultapp=# help
You are using psql, the command-line interface to PostgreSQL.
Type:  \copyright for distribution terms
       \h for help with SQL commands
       \? for help with psql commands
       \g or terminate with semicolon to execute query
       \q to quit
insultapp=# \q
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\>

[me@localhost ~/insultapp]$ scp import.sql 6e7672676e61676976757570@insultapp
-osbeginnerbook.rhcloud.com:~/app-root/data
import.sql                                      100% 5360     8.2KB/s   00:00

DROP TABLE IF EXISTS short_adjective;
DROP TABLE IF EXISTS long_adjective;
DROP TABLE IF EXISTS noun;

BEGIN;

CREATE TABLE short_adjective (id serial PRIMARY KEY, string varchar);
CREATE TABLE long_adjective (id serial PRIMARY KEY, string varchar);
CREATE TABLE noun (id serial PRIMARY KEY, string varchar);

INSERT INTO short_adjective (string) VALUES ('artless');
INSERT INTO short_adjective (string) VALUES ('bawdy');
INSERT INTO short_adjective (string) VALUES ('beslubbering');

INSERT INTO long_adjective (string) VALUES ('base-court');
INSERT INTO long_adjective (string) VALUES ('bat-fowling');
INSERT INTO long_adjective (string) VALUES ('beef-witted');

INSERT INTO noun (string) VALUES ('apple-john');
INSERT INTO noun (string) VALUES ('baggage');
INSERT INTO noun (string) VALUES ('barnacle');

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> cd app-root
/repo/
[insultapp-osbeginnerbook.rhcloud.com repo]\> psql -f import.sql

Only masochistic developers hardcode database connection strings or server ports; we have environment variables to save us from the pain of marrying code to a particular environment. OpenShift and its standard cartridges have a bunch of useful environment variables available out of the box that you can reference in your applications. It is also possible to set custom environment variables.

You can view the values of some of the essential environment variables, such as your database details, in the output of the command rhc app show -a appname. To view all of the environment variables and their values, SSH into your application gear and execute the command env. To view only the environment variables with names including the word “OPENSHIFT,” use the command env | grep OPENSHIFT.

[me@localhost ~]$ rhc env set API_USERNAME=admin API_PASSWORD=secret -a
insultapp
Setting environment variable(s) ... done
[me@localhost ~]$ rhc env list -a insultapp
API_PASSWORD=secret
API_USERNAME=admin
[me@localhost ~]$ rhc unset API_PASSWORD -a insultapp
Removing environment variables is a destructive operation that may result in
loss of data.
API_PASSWORD

Are you sure you wish to remove the environment variable(s) above from
application 'insultapp'? (yes|no): yes

Removing environment variable(s) ... removed
[me@localhost ~]$ rhc env show API_USERNAME API_PASSWORD -a insultapp
API_USERNAME=admin

[me@localhost ~/insultapp]$ rhc env set OPENSHIFT_SECRET_TOKEN=new_token
Setting environment variable(s) ... done

To ensure your application is working correctly, or troubleshoot when it is not, you may want to view the log files. You can do this by connecting to the application gear via SSH and navigating to the relevant locations, which you can find by checking the environment variables as described in the previous section. In general, you will find the log directories for web cartridges can be referenced with $OPENSHIFT_<cartridge>_LOG_DIR and databases with $OPENSHIFT_<database>_DB_LOG_DIR. For example, our demo application’s logs are directed to $OPENSHIFT_PYTHON_LOG_DIR and $OPENSHIFT_POSTGRESQL_DB_LOG_DIR.

A simpler method for checking the logs is to use RHC’s tail command. By default, rhc tail -a appname will tail the log files within the cartridges’ log directories; in the case of our Python application, this means the files stored in $OPENSHIFT_HOMEDIR/python/logs and $OPENSHIFT_HOMEDIR_postgresql/log. However, you can specify a different or more specific set of files, relative to $OPENSHIFT_HOMEDIR, with the -f option. You can also set various Linux tail command options by adding -o.

The following command tails the insultapp application’s database logs only, outputting the last 50 lines rather than the default of the last 10:

[me@localhost ~]$ rhc tail -f postgresql/log/* -o '-n 50' -a insultapp

Application and database cartridges will be configured to output their logs to the directories referenced by the aforementioned environment variables by default. If you produce application-specific logs, you should direct these to your web cartridge’s log directory as well, e.g., $OPENSHIFT_PYTHON_LOG_DIR. Files in this directory will automatically be included in the output of the rhc tail command.

To learn how to manage disk usage and back up your remote files, including log files, see Chapters 8 and 9.

One of the advantages of using a Platform as a Service is that you do not have to tinker with dozens of configuration files just to get an app running in the cloud. That said, you may well want to alter the out-of-the-box config, and many cartridges facilitate that.

Many basic OpenShift cartridge configuration options are controlled with marker files. If a particular marker file is present, the option is enabled; otherwise, the default behavior prevails. Marker files are added in an OpenShift application’s Git repository, in the .openshift/markers directory. The contents of marker files are irrelevant; they are empty files. They do not have any file extension.

One of the most common marker files used is hot_deploy—as mentioned in Hot-Deploying Code—which tells OpenShift to deploy new builds without restarting the cartridge server. Other marker files you may be interested in include force_clean_build (instructs OpenShift to remove previously built artifacts before building the app), disable_auto_scaling (prevents scalable applications from scaling according to load), and java7 (if this is removed, Java cartridges will use Java 6).

The marker files must be committed and pushed with Git. Here is an example of adding the force_clean_build marker to our example app:

[me@localhost ~/insultapp]$ touch .openshift/markers/force_clean_build
[me@localhost ~/insultapp]$ git add .openshift/markers/force_clean_build
[me@localhost ~/insultapp]$ git commit -m "Adding marker to force clean build"
[me@localhost ~/insultapp]$ git push

This will cause OpenShift to re-create the app’s virtual environment and reinstall the required Python eggs (these are code bundles, like JARs in Java). We do not want this to happen on every build as it takes time to download those dependencies, so once we are satisfied that the environment is clean we would remove the marker file.

It’s time to take a deep breath; we have learned a lot in this chapter. We showed how to use SSH to connect to your application’s gears and interact with databases hosted on OpenShift. We know that application configuration is easier to maintain when we use environment variables rather than hardcoded values; in this chapter we learned how to access the values of OpenShift’s environment vars and how to define our own. We discussed OpenShift application log access with rhc tail and where to direct app log output. Finally, we explained how to make application server and database configuration changes and how to control app config switches with marker files.

In the next chapter, we will dive into application dependencies and show how to connect to a database from your OpenShift app code.

All modern programming languages have a “build” process; OpenShift takes advantage of this to build your application dependencies. At the time of this writing we are using the processes listed in Table 6-1 to pull in dependencies for external libraries.

We have tried to make the process as close to development on your local machine as possible. So, for example, with Python if you wanted to download the “default” PostgreSQL drivers (psycopg2) to your local machine you would use Pip:

$ pip install psycopg2

This would install the Psycopg2 drivers to a location where Python can see them on your local machine. The way to reproduce this functionality on OpenShift is to include the dependency in the appropriate “application metadata” file. When you include your dependencies in this file, OpenShift will notice the dependencies during the build process and then download the files and put them where your language runtime can see them. Table 6-2 presents a listing of all the files for a variety of languages.

Let’s go ahead and add Psycopg2 to our project so we can use the library to connect to our database of insults. Go into your local Git repository and edit the setup.py file. We already have a dependency declaration for Flask (see Modifying Application Code), and now we are going to add one for Psycopg2. Your install dependencies section should look like this now:

install_requires=['Flask==0.10.1', 'psycopg2==2.5.2'],

The first time you git push with this new dependency, the build will take longer because of the download and build of the new dependency. After that OpenShift will use the cached version. This is particularly noticeable for Java developers with Maven builds, since the default pom.xml requires the full JEE dependency.

When you do your git push, you should see something like the following in the output:

...
remote: Processing dependencies for Insult-App==1.0
remote: Searching for psycopg2==2.5.2
remote: Best match: psycopg2 2.5.2
remote: Processing psycopg2-2.5.2-py2.7-linux-x86_64.egg
...

These are the lines where the OpenShift build process is adding the Psycopg2 library to the virtual environment for your application.

For each programming language, there is a designated location in the Git repository where you can place your own binaries for your application and have the build pick them up (Table 6-3). For example, you would do this if you have a binary library that you use within your company that you do not want to put in a public repository or in the code base. This way you can reuse the library without exposing the code.

Placing your libraries in these locations means you can use your own libraries, ensure a certain version of a library is used, or include nonpublic libraries.

Some of these languages also have the ability to point to a library in a different Git repository or in other places “on disk.” For example, in your Ruby application you can specify the location to your Gem in your Gemfile.lock file. This is a much more flexible method than using the location specified earlier. The same holds with setup.py or requirements.txt for Python; your metadata file can point to a GitHub repository or other publicly accessible locations.

Now that we know how to pull in dependencies, let’s go ahead and modify our code to take advantage of the database. We are going to design the application so that our insult propagation crew can search out new insults, add them to the database, and have them appear without any code changes. We designed the database tables so we could pick from each adjective type and noun separately and add to each group separately.

We did such a nice job with the separation of concerns between our classes in our original application that we only have to modify insulter.py. We are going to replace the static lists of adjectives and nouns with calls to the database, but nothing else in the application has to change. Even within insulter.py we only have to modify one method. Hooray for clean code!

One quick note before we dig in: as much as we would like to believe Insult App will be hugely successful and allow us to retire early, this app will probably have only one or two users at a time (if we are lucky). Therefore, we are not going to add the overhead of having a connection pool for the database connections. Given that database connections take a relatively long time to establish, in any real production application you would want to use a connection pool for your database connections.

All right, on to the code!

import psycopg2
...

def get_cursor():
    #open a connection
    conn = psycopg2.connect(database=os.environ['OPENSHIFT_APP_NAME'],
                      user=os.environ['OPENSHIFT_POSTGRESQL_DB_USERNAME'],
                      password=os.environ['OPENSHIFT_POSTGRESQL_DB_PASSWORD'],
                      host=os.environ['OPENSHIFT_POSTGRESQL_DB_HOST'],
                      port=os.environ['OPENSHIFT_POSTGRESQL_DB_PORT'] )
    #get a cursor from the connection
    cursor = conn.cursor()
    return cursor

def close_cursor(cursor):
    conn = cursor.connection
    cursor.close()
    conn.close()

def get_word(cursor, table):
    sql = "select string from " + table + " offset random()*
     (select count(*) from " +  table + ") limit 1;"
    cursor.execute(sql)
    result = cursor.fetchone()
    return result[0]

def generate_insult():
    local_cursor = get_cursor()
    final_insult = get_word(local_cursor, "short_adjective") + " " +
     get_word(local_cursor, "long_adjective") + " " +
     get_word(local_cursor, "noun")
    close_cursor(local_cursor)
    return final_insult

One of the hot new technologies in web applications is the WebSocket protocol. WebSockets allow the client to open a persistent connection to the server. In this way, the server can push information to the client, rather than always having the client pull information from the server. This has a whole host of interesting applications and is much more efficient than using long polling, an alternative technique that simulates two-way communication. Examples of applications this could be used for include:

The prerequisites to using WebSockets are:

From there, the basic flow of using WebSockets in your application is:

Of course this is a simplification, but you get the basic idea. If you want to read a more complete tutorial of how it works there are plenty of good examples; Matt West has written a blog post covering the basics.

At the time of writing, OpenShift provided support for WebSockets but only at a beta level. This means that it works but you have to use alternative ports to 80 to make your WebSocket connections. Specifically, the URL you use to open a WebSocket connection has to go to port 8000 for WS (standard WebSocket) or 8443 for WSS (secure WebSocket). What this means in practice is that you cannot make your connection from the client like this:

//Standard WebSocket
var socket = new WebSocket('ws://insultapp-osbeginnerbook.rhcloud.com');

//Secure WebSocket
var socket = new WebSocket('wss://insultapp-osbeginnerbook.rhcloud.com');

Rather, you need to specify the port number:

//Standard WebSocket
var socket = new WebSocket('ws://insultapp-osbeginnerbook.rhcloud.com:8000');

//Secure WebSocket
var socket = new WebSocket('wss://insultapp-osbeginnerbook.rhcloud.com:8443');

Finally, each WebSocket connection you make to the server counts as a connection for the purposes of autoscaling of your application. Currently on OpenShift, when a scalable app has more than 16 connections on the gear it will trigger a scale-up event, causing OpenShift to spin up a new gear, install the application code on it, and plug it into the load balancer. That threshold includes any combination of HTTP and WebSocket connections.

As explained in Chapter 1, all communication with your gear occurs over the Secure Shell (SSH) protocol. One of the great features of SSH is port forwarding, which allows you to securely communicate with your gear and make it appear as if the services on the gear are running on your own machine. The basic idea is that SSH takes ports on your local machines and tunnels them over a secure connection to a port on the remote machine. For example, you can use SSH to take port 9999 on your local machine and have it attach to port 5432 on your gear, which is the port that PostgreSQL listens on. Now when you connect to port 9999 on your local machine, all your traffic to that port will be sent directly to port 5432 on your gear.

Some potential uses of SSH port fowarding are:

To give an example, we are going to port forward for all the running servers on our gear and then connect from the local laptop to our PostgreSQL instance on the gear using the psql command-line tool. Even though psql will be running on our local machine, with access to local SQL files, it will actually be talking to the PostgreSQL instance on OpenShift. You could use this same technique to have a development web application on your local machine talking to your OpenShift PostgreSQL instance before you deploy the web application to OpenShift.

Before we begin, you are going to need your username and password for your OpenShift database. If you don’t have this information written down, you can retrieve it with the rhc show command:

[me@localhost insultapp]$ rhc app show
insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
-------------------------------------------------------------------------------
  Domain:     osbeginnerbook
  Created:    Mar 14  1:59 PM
  Gears:      1 (defaults to small)
  Git URL:    ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud
  .com/~/git/insultapp.git/
  SSH:        6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Deployment: auto (on git push)

  python-2.7 (Python 2.7)
  -----------------------
    Gears: Located with postgresql-9.2, cron-1.4

  postgresql-9.2 (PostgreSQL 9.2)
  -------------------------------
    Gears:          Located with python-2.7, cron-1.4
    Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
    $OPENSHIFT_POSTGRESQL_DB_PORT
    Database Name:  insultapp
->  Password:       SLat4aTfsSt1
->  Username:       adminm4rvN42

  cron-1.4 (Cron 1.4)
  -------------------
    Gears: Located with python-2.7, postgresql-9.2

We marked the two lines containing the username and password with a ->. Make note of these because you will need to use them when you connect to your database.

Next we use the rhc port-forward command to have the command-line tools port forward all listening ports over SSH:

[me@localhost insultapp]$ rhc port-forward
Forwarding ports ...
Address already in use - bind(2) while forwarding port 5432. Trying
local port 5433

To connect to a service running on OpenShift, use the Local address

Service    Local               OpenShift
---------- -------------- ---- ----------------
httpd      127.0.0.1:8080  =>  19.66.2.6:8080
postgresql 127.0.0.1:5433  =>  19.66.2.7:5432

Press CTRL-C to terminate port forwarding

You can see from this output that there is a local PostgreSQL server running bound to port 5432, forcing the port-forward command to bind to 5433. Now on a local machine, when we connect to the local loopback address (127.0.0.1) on port 5433 we will actually be connecting to PostgreSQL on the gear. Let’s go ahead and connect:

[me@localhost insultapp]$ psql -h 127.0.0.1 -p 5433 -U adminm4rvN42 insultapp
Password for user adminm4rvN42:
psql (9.3.2, server 9.2.4)
Type "help" for help.

insultapp=# \dt
                List of relations
 Schema |      Name       | Type  |    Owner
--------+-----------------+-------+--------------
 public | long_adjective  | table | adminm4rvN42
 public | noun            | table | adminm4rvN42
 public | short_adjective | table | adminm4rvN42
(3 rows)

insultapp=#

There is no option to enter the password with the command, but it did prompt for one on the second line. We entered SLat4aTfsSt1, and then we were at the PostgreSQL command prompt talking to our server. We executed the \dt command, which lists all the tables in the database, just to show that we are actually talking to the database running on our gear.

While it is convenient that OpenShift gives you a predefined URL that works out of the box, you may want to use your own URL. This is actually quite easy to accomplish on OpenShift. Before we get to that, though we need to understand a little about DNS names. There are at least two types of DNS records that deal with URLs—A records and CNAME records. An A record can reference any URL, such as insultapp.com or www.insultapp.com, and can take this name and point it at an IP address, like Red Hat does with redhat.com, which points to 10.4.127.150. You have to have an IP address to be able to use an A record. The benefit of an A record is that you can use the root or apex name for your web application, such as http://insultapp.com.

CNAME records are used to take one name, such as www.insultapp.com, and point it to a canonical (authoritative) name, such as insultapp-osbeginnerbook.rhcloud.com. For all your OpenShift applications, the URL provided by default when you create your application is the canonical URL. You would use CNAME records where a provider doesn’t actually give you an IP address; this usually occurs with a content delivery network (CDN) such as Akamai or Edgenet, or with a PaaS such as OpenShift. The drawback to CNAME records is that they can never map a root record to another name. For example, you cannot take insultapp.com and point it to insultapp-osbeginnerbook.rhcloud.com. This has nothing to do with the limitations of OpenShift or your CDN—this is per Internet Engineering Task Force (IETF) specifications.

One of the most frequent questions we get, given this restriction, is, “How do I get insultapp.com to point to insultapp-osbeginnerbook.rhcloud.com?” There are several ways to do this, each with its own trade-offs, but we are going to cover the most common method—using an HTTP redirect to handle getting the user to your web application. With some DNS providers this is called “naked domain hosting.” Let’s cover the basic idea with Insult App:

To finish up the whole custom URL process you need to go to your command-line tools or the Web Console and define what URLs you have pointed to the canonical URL on OpenShift. The process is as simple as:

$ rhc alias add <application> <alias>

For our example, you would enter:

$ rhc alias add insultapp www.insultapp.com

Since this is a very frequently asked question, we are going to list the steps one more time for the whole process:

Another common request from developers is to use HTTPS with their applications. By default, all applications on OpenShift can piggyback off the certificate provided for free. OpenShift Online provides a valid certificate for all *.rhcloud.com URLs. This means that if we wanted to point users to https://insultapp-osbeginnerbook.rhcloud.com, the SSL certificate would be valid and the browser would show the connection as SSL secured.

However, as we discussed earlier, you may want to use your own domain name on OpenShift. In this case, the browser would see the URL as https://www.insultapp.com but the certificate would only be valid for *.rhcloud.com URLs, causing the browser to alert the user that there was something wrong with the HTTPS session. The traffic would still be encrypted and the data secure, but the user would see an error with the HTTPS session.

OpenShift provides the ability for you to add your own SSL certs that match the custom domain names. This capability is provided when you enter the paid tier. At that level of service, you can add your own certificates and private key files for any aliases you have.

We are going to assume you have already obtained a Base64 PEM-encoded certificate file (it usually has a .crt or .pem extension). Be sure to obtain a file from a legitimate certificate provider with a signature recognized by most browsers, to avoid warning pop-ups. The private keys to go with the certificate must be in a separate file. If the private key is encrypted you will also need to have the password available.

Once you have all that in hand you can use the RHC command-line tools to upload the certificates. The general form of the command is:

rhc alias update-cert application alias --certificate mycert.pem
--private-key myprivatekey

The reason you have to give both the application and the alias is that an application may have multiple aliases, each of which would require its own cert. From then on, whenever a user hits your web application with an HTTPS URL and one of your aliases, there will be no error in the browser.

Please note that at the time of writing, the custom certificates will not work with the OpenShift secure WebSocket solution. In this situation, the browser will show an error for a secure WebSocket and the user will have to manually accept the certificate.

While there are a lot of services provided out of the box with OpenShift, it also has a robust partner ecosystem for adding even more functionality to your application. You can add things such as caching solutions, monitoring solutions, Mobile Backend as a Service (MBaaS), or Big Data as a Service (BDaaS). One of the services most commonly used with OpenShift is an email service such as SendGrid. Given that the Online servers are hosted on Amazon Web Services, any email sent from the servers will be coming from an Amazon IP, which are blacklisted by most SMTP servers. For this reason, quite a few OpenShift users use SendGrid to send email in their applications.

For example, if we wanted to send insults to people through our app (which would probably break a whole bunch of spam laws), we could do it using this service. Since we like our freedom, we will only talk you through how you would use the service in our application. Since it is so simple, there is actually not much to say: you would just add code like the example SendGrid Python snippet. In that snippet, you are using the SendGrid SMTP servers just like you would use any other SMTP server. There are also examples on that page showing how to use the SendGrid Python library and the SendGrid web APIs to send emails.

We could also use a service for in-application analytics such as Keen IO. It basically lets you send arbitrary JSON to its service, store it, and use an API to analyze it, and then gives you a nice JavaScript API to make visualizations using your data. It has a full set of docs and a simple Python API. By using a partner like this with OpenShift, you can quickly add new functionality without having to learn it all from scratch. This gives you more time to focus on making your application usable and awesome. Don’t forget to see Environment Variables for the preferred method for storing your API key or username and password using the rhc env command.

Some OpenShift partner services, other services you might want to use, or other external servers you want to connect to may not talk over HTTP or another standard port like 25 (for SMTP). In these cases, such as when talking to an IRC server, you need to make sure you can connect from your OpenShift gear on an outbound port to your desired external endpoint. OpenShift uses SELinux to control the ability of your app to make outbound connections.

SELinux uses a whitelist policy for allowable ports, meaning everything is denied except for explicitly permitted ports. Fortunately, SELinux deals with labels (such as smtp_port) rather than port numbers, so OpenShift operators are able to use, for example, generic_port, which then opens quite a few ports.

At the time of writing, the SELinux policy on OpenShift Online allowed the following named SELinux labels for outbound connections:

mssql_port
mysqld_port
postgresql_port
git_port
oracle_port
flash_port
http_port
ftp_port
virt_migration_port
ssh_port
jacorb_port
jboss_management_port
jboss_debug_port
jboss_messaging_port
memcache_port
http_cache_port
amqp_port
generic_port
mongod_port
munin_port
pop_port
pulseaudio_port
smtp_port
whois_port
jabber_client_port
ircd_port
soundd_port
pki_ca_port
pki_ra_port
commplex_port

If you ever want to test if a port is available for an outbound connection, you can use the telnet command. We will combine it with the timeout command so we are not stuck if it connects to a service and we don’t know how to exit out of the session. We are going to use timeout with the following syntax:

$ timeout -s 9 1 command

This tells timeout to run the following command for up to one second and then run kill 9 on the command if it hasn’t returned back to the console.

Here is an example of running the full command we want over some common ports:

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 6667
Trying 127.0.0.1...
telnet: connect to address 127.0.0.1: Connection refused
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 10
Trying 127.0.0.1...
telnet: connect to address 127.0.0.1: Permission denied
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 80
Trying 127.0.0.1...
Connected to 127.0.0.1.
Escape character is '^]'.
Killed

The first command is trying to connect to the localhost IP, which is different from the IP of our gear, over port 6667 (commonly used for IRC). At the end it says “Connection refused,” which means the outbound connection was allowed but the server didn’t accept the connection. This means on OpenShift Online you can go out over port 6667. The next attempt tries to go out over port 10 and gets a “Permission denied” error, which indicates you cannot go out on port 10. Finally, we try to go out on port 80; it is allowed, and we connect to something running that accepts the connection. After one second the Telnet process is killed by timeout.

In the end you can see that while OpenShift restricts some of the networking functionality to protect your application and other users, there is still quite a bit you can do with the network on the platform. Most of the functionality allowed either lets you add new capabilities to your application or enhance your development experience.

As an OpenShift application developer, you are given specific locations on “disk” where you are allowed to create or modify files and directories. We use disk in quotes because, as a developer, you are not actually sure what the space is located on—it could be disk drives, solid state drives, a network-attached storage (NAS) device, or any other storage location. As a developer, there are only two locations you should write files: /tmp and the gear’s data directory.

As on all Linux systems, you have read, write, and execute permissions for the /tmp directory. However, unlike a typical Linux machine, where everyone on the machine shares those permissions on /tmp, OpenShift uses pluggable authentication module (PAM) namespaces to give you your very own /tmp. This means nobody else on the machine can see or use the /tmp that you use. The problem with putting files here is that the space is ephemeral, meaning there is no guarantee how long a file or directory will remain there. Furthermore, any data in /tmp will not survive an application restart.

The other directory available to you is the OpenShift data directory, which is currently at $OPENSHIFT_HOMEDIR/app-root/data. We use the environment variable OPENSHIFT_DATA_DIR to point to this location. By using the environment variable you increase the portability and maintainability of your application, so we highly recommend using it in your code and configuration (see Chapter 5 for more on environment variables). In this private data directory, you also have full read, write, and execute permissions. However, this directory is persistent, allowing it to survive application stops and starts.

The data directory is where your application should store its files and put configuration settings, download themes, or generally anything you want to survive restarts and Git pushes. You can’t store anything in your Git directory unless you use the Git tools. Anything written there outside of the Git lifecycle will be overwritten on the next Git push.

To clarify, the you we have been talking about here is actually the user ID of your application, which is a 24-character hexadecimal number. The permissions are granted to this user ID, which is the same user you identify yourself as when you SSH into or use secure FTP (SFTP) with the gear. It is also the user who owns the processes for your application servers, databases, or any other binaries you execute on the gear.

At the time of writing, each gear in the OpenShift free plan was given 1 GB of disk space. If you moved into the paid tier, your gear could be up to 6 GB. The locations that count against that quota are:

The easiest way to check your disk usage is by using the RHC command-line tools:

rhc app show appname --gears quota

If you are executing the command from within the Git repository for your application, then you can omit the ``appname`` from the command. This will give you output that shows one line per gear in your application.

Here is an example:

Gear                     Cartridges                 Used Limit
------------------------ ------------------------ ------ -----
6861736b656c6c72756c6573 postgresql-9.2           75 MB  1 GB
6c616d626461733465766572 jbossews-2.0 haproxy-1.4 363 MB 1 GB

Here you can see we have two gears in this application. The gear with PostgreSQL on it is using 75 MB and the gear with JBoss is using 363 MB.

If you want to see how much disk space is used and you are comfortable with the Linux quota command, you can always SSH into a gear and use it to check your space.

To see all your gears and their SSH URLs, you can execute the command rhc app show appname --gears and then SSH into each gear to run quota.

OpenShift will also start to warn you both on git push and when you SSH into your gears if you exceed 90% of your quota.

Since OpenShift uses SSH for all communication with the server, the two main ways to transfer files up to your gears are SFTP (secure FTP) and SCP (secure copy). SCP is only for moving files back and forth, while SFTP lets you do things like listing directories and removing files. You can also use any tool that can use SSH, such as rsync, but we are just going to cover SFTP and SCP here.

For people who prefer using a GUI for their file transfers, we highly recommend FileZilla, a FOSS file transfer tool that can communicate over SFTP. Please be aware, though, that FileZilla uses PuTTY-based SSH keys while OpenShift uses OpenSSH keys. You will need to convert your public SSH key to a PuTTY public key. There is a blog post on the OpenShift website covering the details on how to convert your key and use FileZilla.

The syntax for using scp to copy to your gear is fairly straightforward:

$scp localFile 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.
com:/app-root/data/

The file localFile can also be replaced with a directory, and you can use -r to copy directories recursively. Please remember that due to file permissions, you can’t write to your home directory and instead need to write to $OPENSHIFT_DATA_DIR or /tmp.

The syntax to copy a file down to your machine is just as straightforward:

$ scp 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.
com:/tmp/dbbackup.tgz /data/databaseBackups/

Finally, you can also move files between two gears in the same application:

# Assumes you are in the /tmp directory on a gear
$ scp dbBackup.tgz 6e7672676e61676976757570@6e7672676e61676976757570-
osbeginnerbook.rhcloud.com:/tmp

The final way to create storage space for your OpenShift application is to use an external storage service such as S3 or Dropbox. You can utilize these services using the same processes as you would on your local machine—you can access them programmatically but not directly as a backup service. You could also create a Cron job (see Writing a Cron Script) to copy contents from your gears to one of these services.

No matter how you look at it, there are a lot of different options for storage on OpenShift, including putting assets in your database.

When you create a new OpenShift application, it is configured out of the box to automatically deploy any changes pushed to the application Git repository. By default, only the latest version of your code is kept on your OpenShift gear. Both of these behaviors can be altered to give you more control over your deployments.

[me@localhost ~/insultapp]$ rhc app-configure --no-auto-deploy
Configuring application 'insultapp' ... done

insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
---------------------------------------------------------------------------
  Deployment:        manual (use 'rhc deploy')
  Keep Deployments:  1
  Deployment Type:   git
  Deployment Branch: master

Your application 'insultapp' is now configured as listed above.

Use 'rhc show-app insultapp --configuration' to check your configuration values
any time.
[me@localhost ~/insultapp]$ git status
# On branch master
# Your branch is ahead of 'origin/master' by 1 commit.
#   (use "git push" to publish your local commits)
#
nothing to commit, working directory clean
[me@localhost ~/insultapp]$ git push
Counting objects: 5, done.
Delta compression using up to 4 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 290 bytes | 0 bytes/s, done.
Total 3 (delta 2), reused 0 (delta 0)
To ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com/~/git/
insultapp.git/
   a38c5e3..c100ed9 master -> master
[me@localhost ~/insultapp]$ rhc app deploy c100ed9
Deployment of git ref 'c100ed9' in progress for application insultapp ...

[me@localhost ~/insultapp]$ rhc app-configure --keep-deployments 3
Configuring application 'insultapp' ... done

insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
---------------------------------------------------------------------------
  Deployment:        auto (on git push)
  Keep Deployments:  3
  Deployment Type:   git
  Deployment Branch: master

Your application 'insultapp' is now configured as listed above.

Use 'rhc show-app insultapp --configuration' to check your configuration values
any time.

[me@localhost ~/insultapp]$ deployment list
3:14 PM, deployment 70692b2b
6:28 PM, deployment 7461752d
[me@localhost ~/insultapp]$ rhc deployment activate 70692b2b
Activating deployment '70692b2b' on application insultapp ...

While it is useful to be able to keep a record of your OpenShift deployments with RHC, this mechanism only keeps track of repository code and its dependencies. If you wish to take a snapshot of the entire application and its state, you should use the rhc snapshot command. This command exports the current state of your application, including the repository code, SQL dumps of any database cartridges, $OPENSHIFT_DATA_DIR files, and anything else the cartridges used are configured to export. The gzipped TAR file created can be used to later restore the state of the application.

To take a snapshot of your application, use the command rhc snapshot save. You can add the --filepath path option to specify the location and filename of the archive file. Add the --deployment option if you wish to save the snapshot as a deployable file suitable for use with the rhc deploy command. To restore the application from the archive file, use the command rhc snapshot restore --filepath /path/to/tarball. Note that not everything included in the archive is necessarily re-created; log files are not restored.

Here is an example of saving our Insult App application:

[me@localhost ~/insultapp]$ rhc snapshot save
Pulling down a snapshot to insultapp.tar.gz...
Creating and sending tar.gz

RESULT:
Success
[me@localhost ~/insultapp]$ ls
app.py.disabled  data  import.sql  insultapp.tar.gz  libs  README.md  setup.py
setup.pyc  setup.pyo  wsgi

The command produced a tarball called insultapp.tar.gz. Now we can make some changes, pushing a new commit and connecting to the application via SSH to delete files from the persistent data directory and add content to the database. We then decide we want to restore the previous state, which we accomplish as shown here:

[me@localhost ~/insultapp]$ rhc snapshot restore
Restoring from snapshot insultapp.tar.gz...
Removing old git repo: ~/git/insultapp.git/
Removing old data dir: ~/app-root/data/*
Restoring ~/git/insultapp.git and ~/app-root/data
Activation status: success

RESULT:
Success

The Git repository, database, and data directory are now as they were when we took the snapshot.

You can also use the rhc snapshot command to create a clone of an OpenShift application. To do this, create a new application of the same type (scalable/nonscalable) with the same cartridges and run the restore command, supplying the location of the archive file.

In addition to keeping deployment history and taking application snapshots with RHC, you may well want to make backups of your database. These do not require application downtime and can be performed regularly with the aid of the Cron utility. We discussed how to connect to your database using SSH in Chapter 5 and showed how to use port forwarding to interact with your database in Chapter 7. We demonstrated how to add the Cron cartridge to your application in Cron. In this section, we will give an example of a Cron script to create regular data dumps on the database gear and then show two approaches to moving those backups off the gear. You could write similar Cron scripts to back up other files, such as anything your application persists in $OPENSHIFT_DATA_DIR.

#!/bin/bash

DATE=`date +"%Y-%m-%d"`
FILE="$OPENSHIFT_APP_NAME-$DATE.sql.gz"
INIT_PATH=$OPENSHIFT_DATA_DIR/$FILE
BACKUP_DIR=$OPENSHIFT_DATA_DIR/sqlbackup

if [ ! -d "$BACKUP_DIR" ]; then
  mkdir $BACKUP_DIR
fi
pg_dump $OPENSHIFT_APP_NAME | gzip > $INIT_PATH
mv $INIT_PATH $BACKUP_DIR/$FILE

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> dropdb
$OPENSHIFT_APP_NAME
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> createdb
$OPENSHIFT_APP_NAME
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> gunzip -c
$OPENSHIFT_DATA_DIR/insultapp-sqlbackup-2014-03-14.gz | psql $OPENSHIFT_APP_NAME

#!/bin/bash
rsync -avz --remove-source-files -e ssh 6e7672676e61676976757570@insultapp-
osbeginnerbook.rhcloud.com:~/app-root/data/sqlbackup /backup

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> mkdir
$OPENSHIFT_DATA_DIR/.ssh
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ssh-keygen -f
$OPENSHIFT_DATA_DIR/.ssh/id_rsa
Generating public/private rsa key pair.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in ...openshift/var/lib/openshift/
6e7672676e61676976757570/app-root/data//.ssh/id_rsa.
Your public key has been saved in /var/lib/openshift/6e7672676e61676976757570/
app-root/data//.ssh/id_rsa.pub.
The key fingerprint is:
4e:79:61:6e:79:61:6e:79:61:6e:79:61:6e:79:61:21 6e7672676e61676976757570@ex-std-
node710.prod.rhcloud.com
The key's randomart image is:
+--[ RSA 2048]----+
|            . ==@|
|             *oXo|
|            +.+.=|
|           +...  |
|        S = +    |
|         + .     |
|        E        |
|                 |
|                 |
+-----------------+
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls
$OPENSHIFT_DATA_DIR/.ssh
id_rsa  id_rsa.pub

#!/bin/bash

DATE=`date +"%Y-%m-%d"`
FILEPATH="$OPENSHIFT_DATA_DIR/$OPENSHIFT_APP_NAME-$DATE.sql.gz"

pg_dump $OPENSHIFT_APP_NAME | gzip > $FILEPATH
scp -i $OPENSHIFT_DATA_DIR/.ssh/id_rsa -o StrictHostKeyChecking=no $FILEPATH
user@mybackupserver.com:~/backup && rm $FILEPATH

One way of enabling another person to make changes to your OpenShift application code is to add her machine’s public SSH key to your OpenShift account. This will enable your collaborator to access the Git repositories of any of your OpenShift applications using standard Git commands. It will not grant that person access to your OpenShift Online account, or enable her to log in to RHC.

This method for code sharing is best suited to situations where the person you wish to grant access to does not have an OpenShift account. If she’s willing to create an OpenShift account or has one already, a better way to give access is to add her to your application’s domain, as explained in the next section.

You can manage the SSH keys for your OpenShift account from the command line with the rhc sshkey command. You can list all your SSH keys with rhc sshkey list, add a key with rhc sshkey add, and remove a key with rhc sshkey remove. To add your collaborator, have her supply you with her public SSH key; typically, this would be her ~/.ssh/id_rsa.pub file (this is the public part of the key pair; the corresponding private key file, id_rsa, should never be shared). Here is an example of adding a new key to an OpenShift account:

[me@localhost ~]$ rhc sshkey add myfriend ~/Downloads/id_rsa.pub
RESULT:
SSH key id_rsa.pub has been added as 'myfriend'

Once the key has been added, give your collaborator the Git URL of the OpenShift application repository you want her to edit (you can view this with rhc apps). She can use this URL with the regular git clone command, and will also be able to access the application gear via ssh. If you want to add more collaborators, simply add more SSH keys.

Adding SSH keys to your OpenShift account is one way of enabling collaboration on application code, but it has limitations; it will not allow your team members to use RHC commands with the shared apps, and it gives everyone you add full access to make changes. A more flexible approach is to add members to your OpenShift domain.

All OpenShift applications must belong to a domain, sometimes referred to as a namespace. This becomes part of the OpenShift Online application URL, which has the form appname-domain.rhcloud.com—this should look familiar by now. Depending on your OpenShift account, you may be able to create multiple domains; users on the free tier of OpenShift Online are limited to one domain.

OpenShift domains can be managed from the command line with the rhc domain command. Use rhc domain list to see which domains you have access to and rhc domain show to display the details of applications in a domain. If you have access to do so, you can create new domains with rhc domain create name.

Domain membership can also be managed from the command line, using the rhc member command. When you add a member to a domain, you can give that member one of three possible roles:

These member permissions apply to all applications within a domain. If you wish to give the same user a different level of access to different applications, you should place them in separate domains.

Here is an example of adding and then removing a member in Insult App’s domain, osbeginnerbook. OpenShift users are referenced by their username, which is usually their email address; rhc account will display the details of the logged-in user:

[me@localhost ~]$ rhc member add phb@redhat.com -n osbeginnerbook --role view
Adding 1 viewer to domain ... done
[me@localhost ~]$ rhc member list -n osbeginnerbook
Login                   Role
----------------------- -------------
TheSteve0@redhat.com    admin (owner)
codemiller@redhat.com   admin
phb@redhat.com          view
[me@localhost ~]$ rhc member remove phb@redhat.com -n osbeginnerbook
Removing 1 member from domain ... done

A domain member can use the command rhc domain leave -n domain if she wishes to remove herself from a domain.

If you have read to this point, you should now have a good idea of how the OpenShift platform works and what features it offers. However, you may still be wondering how to adapt your current team processes to use OpenShift. Every team is different, so we cannot offer a magic formula for this, but here are some points you may want to consider:

Taking into account these items, here are the details of a possible team workflow utilizing OpenShift:

This workflow is not going to suit everyone and does not cover all aspects of the development process, but we hope it sparks some ideas of how OpenShift could become part of your team.

To quickly recap, we covered:

That is a lot of territory covered in a relatively short number of pages. We also used a Python application to illustrate the pattern of development on OpenShift.

To learn about other people using OpenShift and their projects, check out the OpenShift Developer Spotlight. The OpenShift team also loves to show off the great applications built by users in the Application Gallery. Now that we have taught you how to do all this great stuff, we expect your cool application or biography any minute now.

If you want a more in-depth explanation of development on OpenShift, we highly recommend the OpenShift Online User Guide. This guide is also short, but covers some different topics from our book. It is well worth a read.

While we are great authors, in the highly unlikely scenario where you might need other help than this book, there are also great resources on the OpenShift website, such as the Knowledge Base and FAQs. OpenShift Online has moved to Stack Overflow for Q&A, type resources.

There is also a Developer Center on the OpenShift site. It has information on how to use the Web Console or Eclipse IDE integration. You can also find information there on how to create your own QuickStarts for your favorite applications. The site also covers how to add your own preferred server technology using a custom cartridge. Most importantly, the resource center has links to other languages and databases OpenShift supports, so you can dig in to more specific material for your programming language of choice.

If you want to dive deeper into OpenShift itself, you would like to learn how to run it on your own infrastructure so you can tweak it to your liking, or you love Ruby and want to be part of an open source project, we highly recommend you visit the OpenShift Origin site. Origin is the upstream project for the other two products and it has a friendly and active community. There are many ways to get involved in the community. Here are some links to get you started:

There are also at least two other published books on OpenShift, with several more books at various stages of writing or publication. If you are interested in running OpenShift Origin, then we recommend our colleague Adam Miller’s book, Implementing OpenShift (Packt). For a book like ours, aimed at developers using OpenShift, but with a focus on JBoss technologies, look to our colleague Eric Schabell’s book, OpenShift Primer (Developer.Press).

Always check the OpenShift website and blog for the latest and greatest features. PaaS is a rapidly evolving area, and the OpenShift team has made a commitment to pushing the state of the art forward. The team is also committed to listening to the users—if you have suggestions for the service you can always write to Steve or Katie, or to openshift@redhat.com. One of the things we love about working with OpenShift is that the more you use it, the more possibilities emerge—so the most important thing at this point is for you to get coding!

Let’s start by clearing up some “cloud computing” acronyms that people like to throw around.

Infrastructure as a Service (IaaS) is when a provider spins up computers for you on demand with certain predefined virtual hardware configurations. It is mainly targeted at system administrators and DevOps staff who used to rack and stack hardware. Probably the most famous of these services is Amazon EC2, but there is also Rackspace, Microsoft Azure, and Google Compute Engine, among others. The idea is that you specify the amount of RAM, CPU, and disk space you want in your “machine” and the provider spins it up for you in a matter of minutes.

This service is great since you no longer have to go through a long procurement process or fixed investment to obtain machines for your work. The drawback to this solution is that you are still responsible for installing and maintaining the operating system and server packages, configuring the network, and doing all the basic system administration. If you are reading this book, then system administration is probably not your area of expertise and you would likely rather spend your time writing code.

Software as a Service (SaaS) requires the least amount of maintenance and administration on your part. With SaaS you just sign up for the service and start using it. You may be able to make some customizations, but you’re limited to what the service provider allows you to do. Common examples of SaaS are Gmail, Salesforce, and QuickBooks Online. While these services are useful because you can start working right away with little to configure or deploy, they are of limited use to programmers. They offer the least amount of customization of the three cloud services mentioned here. As Steve’s kids’ physical education teacher says: “You get what you get and you don’t get upset.”

Platform as a Service (PaaS) is the middle ground between IaaS and SaaS. It is primarily targeted at application developers and programmers. With PaaS, you issue a few commands (which could be in a web console) and the platform spins up the development environment along with all the “server” pieces you need to run your application. For example, in this book we are going to make a Python web application with a PostgreSQL database. To get all this spun up, you issue one command and OpenShift does all the networking and server installs, and creates a Git repository for you. The OpenShift administrators will keep the operating system up-to-date, manage the network, and do all the sys admin work—leaving the developer to focus on writing code.

OpenShift is Red Hat’s PaaS, and there are three different versions: OpenShift Origin, OpenShift Online, and OpenShift Enterprise (see Figure 1-1). OpenShift Origin, the free and open source version of OpenShift, is the upstream project for the other two versions. It is on GitHub and released under an Apache 2 license. All changes to the code base go through the public repository, for both Red Hat and external developers. If you want to use this version you will have to install it on your own infrastructure. We are not going to cover the installation of the OpenShift PaaS in this book.

Figure 1-1. The relationship between the three versions of OpenShift

Approximately once every three weeks (the length of a sprint), Origin is packaged up and released as a new version of OpenShift Online. We are going to be using this version of OpenShift in the book. With Online, Red Hat takes care of hosting the PaaS on Amazon Web Services (AWS) and you just create an account for it. All the server work, such as updating the OS and managing networks, is covered by the OpenShift operations team. You are free to focus on your application and its code.

The final version is OpenShift Enterprise, which is currently released about once a quarter. This version of OpenShift allows you to take the PaaS and run it anywhere you want, from bare metal in your data center to Rackspace or AWS. It is a complete package with Red Hat Enterprise Linux and all the OpenShift bits on top of it. It is also fully supported by Red Hat and is intended for customers who want stability and a production-ready install out of the box. Since stability is paramount, some of the features found in Origin or Online may not be in Enterprise for a release or two. The great part about having Enterprise in-house is that it allows sys admins and DevOps staff to have control over “standard architecture” while still allowing developers to self-provision. Developers get all the speed and agility they want, without the usual wait for “machine” provisioning. It actually helps the sys admins and developers get along.

You can move applications between any of these versions of OpenShift, as long as the cartridges used are available on the versions between which you are migrating. This gives developers and companies a very nice hybrid cloud option. Developers and small teams can work on Online, perhaps using Online for some of the applications that allow for data in the public cloud. However, if they start developing an application that has more stringent data requirements, they can bring it back behind the company firewall, keeping the same development pattern they used for the Online platform. The Online version can also be used to try out a new technology, for example Node.js at a Java shop, with minimal risk and learning investment for the sys admins. Then, if the development team likes the new technology, they can demo the application to the decision makers and sys admins to show the value in bringing the technology in-house. The sys admins can use Red Hat’s expertise in configuring the new technology on OpenShift to provide it internally. Since they have it in-house and it is standard Node.js, they can then tweak and tune it in a way that allows for rapid deployment to all internal projects using the new technology.

As always with these questions, the optimal solution depends on the specifics of your use case. Maybe the decision has already been made for you—for example, if you work at a corporation that has already chosen OpenShift Enterprise and that is what you will be using. If you want the fewest management concerns, then you should look to OpenShift Online. Everything will be managed by the OpenShift Operations team. The trade-off is that you have less control over how the system is set up, what cartridges are available, and how the network is configured.

If you want to be on the cutting edge of PaaS, you feel comfortable supporting yourself on Linux-based machines, and you want to provide your own “hardware,” then running OpenShift Origin with Fedora or CentOS could be an option. On the other hand, if you want a more stable and supported version of OpenShift running Red Hat Enterprise Linux, then you are going to be interested in OpenShift Enterprise.

Given the state of developers, corporations, and the cloud, some good use cases for Online are hackathons, prototype projects, consulting houses, startups, smaller divisions in larger corporations, and students. OpenShift Origin might be good for a corporation trialing the notion of running its own PaaS, a hosting provider, or a university that wants to set up student experimentation. Please be aware that, given the trajectory of PaaS, there will probably be large corporations using public PaaS instances for production workloads within a year of the publication of this book. Steve is willing to bet a beer or a lemonade on it.

With that brief introduction, we are done talking about broad concepts and will now move into the discussion of concepts particular to OpenShift and how to get started.

We know you are impatient and want to get started, but it is important for us to get some definitions cleared up first. It is also important to introduce some technology that you’ll use throughout your development workflow. If you are comfortable with the technology feel free to skip right over that next section, but please make sure you understand the definitions.

Before you get started, you’ll need to do two things:

In the next section, we will explain the rhc setup command.

Once you have installed the client tools, you need to configure them to work with your OpenShift Online account. To do this, use the following command:

$ rhc setup

Executing this command sets up your command-line tools to talk to the OpenShift servers. When you run this command, the following things will happen:

With our RHC setup complete, we are ready to create our first application. For the purposes of this book, we are going to create a Python application. In actuality you could use any of the supported web cartridges to make an application. The list of cartridges grows pretty rapidly, so if you want to see the full list of cartridges on OpenShift, please execute the following command:

$ rhc cartridge list

You can also create your own cartridges. We are not going to cover how to create a cartridge in this book, since we consider that topic to be an advanced use case. Besides, if we talked about it here, how could you write about it when you write your OpenShift book? We cover much more about cartridges in Finding Cartridges and QuickStarts.

Before you make an application, use the command line to create or navigate into the directory where you would like your application code to be created. At the end of application creation, the command-line tools will clone the application’s Git repository to your local machine in the same directory where you executed the command.

Let’s create an app!

Here’s the syntax for creating an OpenShift application:

$ rhc app create app_name web_language

or:

rhc app create app_name web_language other cartridges

And here is how we use this command to create an application named insultapp using the Python 2.7 cartridge:

[me@localhost ~]$ rhc app create insultapp python-2.7
Application Options
--------------------
Domain:     osbeginnerbook
Cartridges: python-2.7
Gear Size:  default
Scaling:    no

Creating application 'insultapp' ... done

Waiting for your DNS name to be available ... done

Cloning into 'insultapp'...
The authenticity of host 'insultapp-osbeginnerbook.rhcloud.com (19.66.2.6)'
can't be established.
RSA key fingerprint is 4e:65:76:72:47:6f:6e:6e:61:47:69:76:65:55:55:70.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'insultapp-osbeginnerbook.rhcloud.com' (RSA) to the
list of known hosts.

Your application 'insultapp' is now available.

  URL:        http://insultapp-osbeginnerbook.rhcloud.com/
  SSH to:     6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Git remote: ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.
  rhcloud.com/~/git/insultapp.git/
  Cloned to:  /home/me/insultapp

Run 'rhc show-app insultapp' for more details about your app.

That’s it! When the command finishes executing you will have an Apache HTTP server with mod_wsgi running in the cloud. It will have a public URL, which will have the form http://insultapp-<namespace>.rhcloud.com. It will also have a private Git repository that has been cloned to your local machine, in a directory with the same name as your application.

We could have made our app a scalable application (meaning each cartridge goes on its own gear) by passing in the -s flag. You would do this if you wanted to make sure your cartridges were not sharing resources or you wanted to enable the application server tier to scale (manually or automatically) from the database tier. We will discuss this further in the next section.

We could also pass in the -g flag to use gear sizes other than the default (small) size. On OpenShift Online’s free tier you only have access to the small gears, but if you move into the paid tiers you can get a medium or large gear, which has more RAM. Please see Reasons to Move to the Paid Tier to understand other reasons to move into the paid tier.

Finally, we could use the --from-code option to point to a publicly accessible Git repository to serve as the template for our application. We could have done that in this example, but we are going to build the example application by hand instead. One caveat with this flag is that when OpenShift tries to create the gear, the application has to download and build the Git repository within a particular time period. If the rhc create command times out before the build and deploy occurs, then OpenShift will roll back the entire application and you will be left with nothing except the bitter taste of disappointment. Use this feature with caution for now.

Go ahead and look at your web page. What you should see is the template page created for all OpenShift applications (Figure 2-1). This page is pretty generic. In the next chapter, we will modify the application and deploy the code changes. Take a step back and marvel at what you just did. With one command you spun up Apache with mod_wsgi, allocated disk space, configured logging, configured Linux permissions, registered an IP address with a DNS server, and made both a remote and a local Git repository. With that little bit of typing you have a fully functional application development hosting environment. This is the magic of OpenShift, and your development process may never be the same again.

Figure 2-1. What your first application looks like

OpenShift is the only PaaS on the market that provides autoscaling at the application tier. We have not used it here for the sake of simplicity, but if we were going to run an app in the “real world,” we would make it scalable. When you make an application scalable, a software-based load balancer called HAProxy will be added to the same gear as the application server. All web traffic to the application will then be routed through HAProxy. Currently, if the number of active connections goes above 16—whether they are regular HTTP or WebSocket connections—HAProxy will trigger the creation of another application gear. OpenShift will spin up another app server gear, rsync the code over to the new gear, plug the gear into HAProxy, and then start using it to serve connections. If the connections later drop back below the threshold for long enough for it not to be considered random noise, HAProxy will trigger the draining of connections and OpenShift will spin down the gear.

All of this happens without any human intervention, so you do not have to wake up in the middle of the night or take time out from sailing around the world on your yacht (wouldn’t that be nice). Of course, OpenShift lets you set a maximum number of gears for application server use so you are not surprised by some large bill at the end of the month, thereby ending your yacht trip.

As we have taught more and more classes and seen more and more people using OpenShift, we have arrived at the conclusion that almost all apps should be created as scalable applications. There are several reasons for this:

You are given enough resources in the free tier to make your application scalable, so there is really no reason why you shouldn’t do this by default.

Everything we do in this book can be carried out using the free tier of OpenShift, but there are strong reasons why you might want to move into one of the paid tiers as your application becomes more serious. We will call out some of the benefits as we discuss topics in the following chapters, such as the ability to use your own SSL certificates. However, for the sake of gathering them in one place, we have included a short list here:

There is certainly no requirement to use the paid tier, but there are numerous reasons you may find yourself wanting to take advantage of what it has to offer.

When you create an OpenShift application with the RHC command-line tools, by default the new Git repository created on the OpenShift gear will be cloned to your local machine. The contents will end up in a new directory with the same name as the application, created inside the directory in which you ran the rhc app create command. If you would like the repository to be cloned to a different location, specify this by adding the --repo repo_dir_path option to your rhc app create command; the repository contents will be cloned into the directory specified, which should either be empty or not yet exist. If you do not wish to clone the Git repository as part of the app creation process, you can add the --no-git flag.

If you choose not to clone the OpenShift application repository when you create the app, or something goes wrong and the clone fails, you can clone it later using the command rhc git-clone. This is a wrapper for the standard git clone command that provides some extra benefits: you can specify what to clone by using the application’s name, rather than its full Git URL, and it adds some RHC configuration data to the Git repository config. This means that you can run RHC commands from within the cloned directory without having to specify the application to which you wish them to apply with -a appname. Where RHC commands shown in this book omit the -a appname option, it is because they are being run within an app repository cloned via RHC, either with rhc app create or rhc git-clone.

To view the Git URL for your OpenShift application, run the command rhc app show -a appname.

Once you have a local copy of the OpenShift application repository you can modify the code using whatever tool you prefer: a command-line text editor, a graphical editor, or an IDE. For our example application, we will start by making a few changes to add and utilize the Python Flask microframework. Writing raw Web Server Gateway Interface (WSGI) apps is not much fun. Flask is a lightweight alternative that will give us just enough support to fulfill our app’s main aim: insulting people. To learn more about Flask, see its website.

First up, we need to add Flask as a dependency. To do this, we navigate to the local cloned insultapp repository and open the setup.py file with our chosen editor (long live the Vim, though some of us believe Nano rules). In this file we can set the application name and other details; the most significant change to make, though, is uncommenting the install_requires line and replacing Django with Flask 0.10.1. Our resulting setup section looks like this:

setup(name='Insult App',
      version='1.0',
      description='Insults you',
      author='Katie and Steve',
      author_email='example@example.com',
      url='http://www.python.org/sigs/distutils-sig/',
      install_requires=['Flask==0.10.1'],
     )

The next file we need to edit is wsgi/application. It contains the HTML for the “Welcome to your Python application on OpenShift” page we saw in Chapter 2. We do not need any of the template code, so we delete everything beneath the comment lines marked as IMPORTANT. Beneath the comment, we add the line from routes import app as application, referencing the application code we are about to add next. Here is the source of the resulting application file:

#!/usr/bin/python
import os

virtenv = os.environ['OPENSHIFT_PYTHON_DIR'] + '/virtenv/'
virtualenv = os.path.join(virtenv, 'bin/activate_this.py')
try:
    execfile(virtualenv, dict(__file__=virtualenv))
except IOError:
    pass
#
# IMPORTANT: Put any additional includes below this line.  If placed above this
# line, it's possible required libraries won't be in your searchable path.
#
from routes import app as application

Finally, we add a new file in the wsgi directory called routes.py. This contains a single route for the application’s root directory, which maps to an insult function that returns the mildly irritating string, “Hello, code monkey!” Here is the code:

import os
from flask import Flask

app = Flask(__name__)
# Keeps Flask from swallowing error messages
app.config['PROPAGATE_EXCEPTIONS'] = True

@app.route("/")
def insult():
    return "Hello, code monkey!"

if __name__ == "__main__":
    app.run()

In routes.py we create a Flask application type called app. From there we use annotations to define that HTTP requests to the root URL get handled by the function insult. The application file loads the Python virtual environment (a mechanism for having different Python libraries on the same machine) and imports the app from the routes module defined in routes.py.

Now that we have made some changes to the application code base, we should commit them to the local Git repository. We can do that with the following Git commands: add to add the changes to the repository index, and commit to record the new contents of the index. It is good practice to use the git status command before each one to make sure you are clear on what is happening, although for brevity this is not shown here:

[me@localhost ~/insultapp]$ git add -A
[me@localhost ~/insultapp]$ git commit -m "Added Flask microframework"
[master b1d87e3] Added Flask microframework
 3 files changed, 32 insertions(+), 315 deletions(-)
 rewrite wsgi/application (99%)
 create mode 100644 wsgi/routes.py

The code changes are now committed on our local machine, but our OpenShift app remains unaffected. In the next section, we will push our modifications to the cloud.

Once you have committed your code changes, you can deploy them to OpenShift with just one command: git push. There is no special binary or secret sauce involved; it is just pure Git and SSH. If we run the command git status, we can see that we have modifications ready and raring to go. The git push command sends them on their merry way up into the cloud:

[me@localhost ~/insultapp]$ git status
# On branch master
# Your branch is ahead of 'origin/master' by 1 commit.
#   (use "git push" to publish your local commits)
#
nothing to commit, working directory clean
[me@localhost ~/insultapp]$ git push

We have not included the full output of the push command here as it was quite lengthy, but here are some choice snippets:

remote: Stopping PYTHON cart
...
remote: Building git ref 'master', commit b1d87e3
...
remote: Installed /var/lib/openshift/6e7672676e61676976757570/app-root/runtime
/repo
remote: Processing dependencies for Insult-App==1.0
...
remote: Processing Flask-0.10.1.tar.gz
...
remote: Preparing build for deployment
...
remote: Activating deployment
...
remote: Starting PYTHON cart
remote: Result: success
remote: Activation status: success
remote: Deployment completed with status: success

Note that each time new code is deployed, the directory on the gear containing the current copy of the Git repository is blown away and then replaced with an updated copy, so anything stored there between deployments will be lost. We explain where you can store files persistently in Chapter 8.

As we can see from the console output, when code is pushed to OpenShift it kicks off a build lifecycle, which has build and deployment phases. This lifecycle will differ slightly depending on the application cartridge in use, whether or not the app is scalable, and whether or not a builder cartridge such as Jenkins is included. In the case of our example app, the Python cartridge is stopped, the Git repository is cloned, a series of Python-specific processes occur to fetch dependencies and prepare the app, the resulting build is deployed, and the cartridge is restarted. You will learn more about most of these other pieces of application deployment in later chapters. In the next section we will talk about how you can write scripts to hook into various phases of the build.

Once this cycle is complete, we can visit our application URL in a browser and are now greeted with “Hello, code monkey!” (see Figure 3-1).

Figure 3-1. The Flask application in action

OpenShift cartridges are designed to take care of the major tasks required to build and deploy a web application. If there are actions you want to perform as part of the build lifecycle that go beyond the basics, you can include these in action hook scripts.

Action hook scripts are included as part of your application Git repository, in the .openshift/action_hooks directory. Different cartridges may support different hooks, depending on their build lifecycles; however, they should all include pre_build, build, deploy, and post_deploy, as well as pre and post hooks for the start, stop, restart, reload, and tidy actions.

To run code at a particular time in the lifecycle, place a script in the action_hooks directory with the same name as the phase when you want it to be executed. The script can be written in Shell, Python, PHP, Ruby, or any other scripting language installed in the OpenShift environment that you can reference. It does not matter what language you chose for your web application; all of these scripting environments are still available to run on your gear. The script should be executable; run the chmod x scriptname command to ensure this.

Action hook scripts need to be added and committed in Git just like any other repository file. When they are pushed to the cloud, you will see any effects as the build lifecycle runs. For example, if you delete files in the /tmp directory as part of an action hook, the git push output will echo the result of that command unless you tell your script to swallow output.

When we pushed our code changes to the example application, we saw that the Python cartridge was stopped while the app was built and deployed, and then started back up again. If there had been a database cartridge installed in our application, it would have been stopped as well. This meant our application was unavailable for that time; if we had hit the URL at that moment, we would have received a 503 Service Unavailable message. In addition, for many of OpenShift’s programming languages, you do not need to stop the server to deploy new code on the server. Going through a start/stop cycle for the application server significantly slows down the deployment experience.

We want to properly insult people rather than scaring them away with server error status codes, so our next code change will be to add a marker file to tell the platform to hot deploy the code. This signals that OpenShift should deploy new application versions without restarting the server. The hot deployment option is available on most of the core OpenShift application cartridges; the JBoss, Tomcat, PHP, Zend, Perl, Ruby, and Python cartridges all support this. (See Using Marker Files for more information about marker files.) Enabling hot deployment is as simple as creating an empty file named hot_deploy in the .openshift/markers directory, adding it to the local repository with git add, doing a git commit, and then finally executing a git push:

[me@localhost ~/insultapp]$ touch .openshift/markers/hot_deploy
[me@localhost ~/insultapp]$ git add .openshift/markers/hot_deploy
[me@localhost ~/insultapp]$ git commit -m "Changing application to hot deploy"

Our app is looking pretty good now, but a single canned insult will get old fast. We will make things more entertaining by adding some randomization, Elizabethan style. There is a list of insulting Shakespearean words that has been floating around the Internet practically since it was a twinkle in someone’s eye (no, not Al Gore). There are two columns of adjectives and one column of nouns; the idea is to combine one word from each column. Our next step is to gather a few insulting words and add a wsgi/insulter.py file to encapsulate the serious business logic of contempt:

from random import choice

def insult():
    return "Thou " + generate_insult() + "!"

def named_insult(name):
    return name + ", thou " + generate_insult() + "!"

def generate_insult():
    first_adjs = ["artless", "bawdy", "beslubbering", "bootless", "churlish"]
    second_adjs = ["base-court", "bat-fowling", "beef-witted", "beetle-headed",
     "boil-brained"]
    nouns = ["apple-john", "baggage", "barnacle", "bladder", "boar-pig"]

    return choice(first_adjs) + " " + choice(second_adjs) + " " + choice(nouns)

We use the choice function in the random module to select a random element in the Python lists, such as first_adjs. Next, we change the code in wsgi/routes.py to make use of our new functions:

import os
from flask import Flask
import insulter

app = Flask(__name__)
# Keeps Flask from swallowing error messages
app.config['PROPAGATE_EXCEPTIONS'] = True

@app.route("/")
def insult():
    return insulter.insult()

@app.route("/<name>")
def insult_name(name):
    return insulter.named_insult(name)

if __name__ == "__main__":
    app.run()

Notice we import the insulter module (the file named insulter.py) and then use the two insult-constructing functions to generate our insults. You can also see that in the second @app.route we are grabbing any text after the / and making it available to the function insult_name as a parameter called name. We added this function for cases when only a personalized insult will do.

We add and commit those changes to the Git repository, and then the final step is to git push our latest two commits. The output from OpenShift shows that the server has not been stopped and restarted because hot deployment is enabled:

remote: Not stopping cartridge python because hot deploy is enabled
...
remote: Not starting cartridge python because hot deploy is enabled

Once the new code has hit the cloud, we can refresh the app for some random Shakespearean insult fun (see Figure 3-2).

Figure 3-2. A random insult from the hot-deployed app

In this chapter we showed how to modify OpenShift application starter code, spicing up our Python demo app with logic to insult its users. We achieved this with Git commands including add, status, commit, push, and, with the help of RHC, clone. We also explained how we can add custom scripts to the application lifecycle with action hooks, and how to use a marker file to configure an app to hot deploy.

The cartridges most commonly added to OpenShift applications after creation are database cartridges, such as PostgreSQL, MySQL, and MongoDB. If the application is not scalable, the database cartridge will be installed on the same gear as the primary application cartridge. If the application is scalable, the database cartridge will be added on its own gear. This enables the gear hosting the application cartridge to be replicated, without affecting the database. It also prevents the application server and the database from sharing the memory and disk space of a single gear.

Cartridges can be added with the command rhc cartridge add, and removed with rhc cartridge remove. Other RHC cartridge management commands include list, status, start, restart, stop, and storage; rhc cartridge --help will display the full list of options.

Here we add a PostgreSQL 9.2 cartridge to our running example, Insult App:

[me@localhost ~/insultapp]$ rhc cartridge add postgresql-9.2

Adding postgresql-9.2 to application 'insultapp' ... done

postgresql-9.2 (PostgreSQL 9.2)
--------------------------------
  Gears:          Located with python-2.7
  Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
  $OPENSHIFT_POSTGRESQL_DB_PORT
  Database Name:  insultapp
  Password:       SLat4aTfsSt1
  Username:       adminm4rvN42

PostgreSQL 9.2 database added.  Please make note of these credentials:

   Root User: adminm4rvN42
   Root Password: SLat4aTfsSt1
   Database Name: insultapp

Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
$OPENSHIFT_POSTGRESQL_DB_PORT

We can see from the output that the PostgreSQL cartridge has been added and is located on the same gear as the Python cartridge; this is because our demo application is not scalable. RHC has also displayed some useful information about the database set-up, including the database root user’s username and password.

There are multiple ways to connect to your OpenShift database. Spoiler alert: we will show you how to connect to a DB in your application code in Chapter 6; there are some other topics we need to cover first before we get there. We will demonstrate how to connect to the gear hosting the database via SSH and how to view the environment variables related to database (and other) cartridges in Chapter 5. To find out how to use port forwarding to connect to an OpenShift database, see Chapter 7.

Our discussion so far has been focused on OpenShift cartridges that provide programming language runtimes, application servers, web frameworks, and databases. These are the major building blocks of OpenShift applications, but the platform can also provide complementary functionality. At the end of the previous section, we briefly mentioned some of the cartridges available to assist with database administration and management. In this section, we will examine some of the other cartridges you may like to add to your app to facilitate tasks such as job scheduling, continuous integration, and metrics collection.

[me@localhost ~/insultapp]$ rhc cartridge add cron
Using cron-1.4 (Cron 1.4) for 'cron'
Adding cron-1.4 to application 'insultapp' ... done

cron-1.4 (Cron 1.4)
--------------------
  Gears: Located with python-2.7, postgresql-9.2

To schedule your scripts to run on a periodic basis, add the scripts to
your application's .openshift/cron/{minutely,hourly,daily,weekly,monthly}/
directories (and commit and redeploy your application).

Example: A script .openshift/cron/hourly/crony added to your application
         will be executed once every hour.
         Similarly, a script .openshift/cron/weekly/chronograph added
         to your application will be executed once every week.

[me@localhost ~/insultapp]$ rhc app show
insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
------------------------------------------------------------------------------
  Domain:     osbeginnerbook
  Created:    Mar 14  1:59 PM
  Gears:      1 (defaults to small)
  Git URL:    ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud
  .com/~/git/insultapp.git/
  SSH:        6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Deployment: auto (on git push)

  python-2.7 (Python 2.7)
  -----------------------
    Gears: Located with postgresql-9.2, cron-1.4

  postgresql-9.2 (PostgreSQL 9.2)
  -------------------------------
    Gears:          Located with python-2.7, cron-1.4
    Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
    $OPENSHIFT_POSTGRESQL_DB_PORT
    Database Name:  insultapp
    Password:       SLat4aTfsSt1
    Username:       adminm4rvN42

  cron-1.4 (Cron 1.4)
  -------------------
    Gears: Located with python-2.7, postgresql-9.2

#!/bin/bash
# .openshift/cron/minutely/ricktock

MIN=$(date '+%M')
LOG=${OPENSHIFT_PYTHON_LOG_DIR}/ricktock.log
MSG1="Never gonna give you up\nNever gonna let you down\nNever gonna run around
and desert you"
MSG2="Never gonna make you cry\nNever gonna say goodbye\nNever gonna tell a lie
and hurt you"

if [ $MIN == 15 ]; then
  echo -e `date` $MSG1 >> $LOG
fi

if [ $MIN == 45 ]; then
  echo -e `date` $MSG2 >> $LOG
fi

exit

[me@localhost ~/insultapp]$ chmod +x .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git add .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git commit -m "Adding ricktock minutely Cron script"
[master 2548477] Adding ricktock minutely Cron script
 1 file changed, 18 insertions(+)
 create mode 100755 .openshift/cron/minutely/ricktock
[me@localhost ~/insultapp]$ git push

[me@localhost ~/insultapp]$ rhc tail
==> python/logs/ricktock.log <==
Fri Mar 14 14:15:44 EST 2014 Never gonna give you up
Never gonna let you down
Never gonna run around and desert you

[me@localhost ~/insultapp]$ cd ..
[me@localhost ~]$ rhc app create jenkins jenkins-1
Application Options
-------------------
  Domain:     osbeginnerbook
  Cartridges: jenkins-1
  Gear Size:  default
  Scaling:    no

Creating application 'jenkins' ... done

  Jenkins created successfully.  Please make note of these credentials:

   User: admin
   Password: iYddhaBUvg2m

Note:  You can change your password at: https://jenkins-osbeginnerbook.rhcloud
.com/me/configure

Waiting for your DNS name to be available ... done

Cloning into 'jenkins'...
The authenticity of host 'jenkins-osbeginnerbook.rhcloud.com (19.77.5.25)' can't
be established.
RSA key fingerprint is 54:68:65:46:6f:72:63:65:69:73:73:74:72:6f:6e:67.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'jenkins-osbeginnerbook.rhcloud.com,19.77.5.25' (RSA)
to the list of known hosts.

Your application 'jenkins' is now available.

  URL:        http://jenkins-osbeginnerbook.rhcloud.com/
  SSH to:     4e6f72726973206265617264@jenkins-osbeginnerbook.rhcloud.com
  Git remote: ssh://4e6f72726973206265617264@jenkins-osbeginnerbook.rhcloud.com/
  ~/git/jenkins.git/
  Cloned to:  /home/codemiller/code/book/jenkins

Run 'rhc show-app jenkins' for more details about your app.

[me@localhost ~]$ cd insultapp
[me@localhost ~/insultapp]$ rhc cartridge add jenkins-client-1
Adding jenkins-client-1 to application 'insultapp' ... done

jenkins-client-1 (Jenkins Client)
---------------------------------
  Gears:   Located with python-2.7, postgresql-9.2, cron-1.4
  Job URL: https://jenkins-osbeginnerbook.rhcloud.com/job/insultapp-build/

Associated with job 'insultapp-build' in Jenkins server.

Metrics and Monitoring

Another category of cartridges you may wish to add to support your application is cartidges for metrics collection and monitoring.

At the time of writing, the OpenShift Metrics cartridge was at version 0.1 and still under development. It is designed to be able to be embedded with any primary application cartridge type. To add it to your application, use the command rhc cartridge add metrics-0.1 -a appname. Once it is installed, you can access real-time statistics about your application’s resource usage at http://appname-domain.rhcloud.com/metrics, as shown in Figure 4-1. The cartridge gives visibility to some key information, including the amount of CPU and RAM use (and how that relates to the gear limit), how much swap space is being utilized, application process IDs, and whether or not your application is in an idle state.

Figure 4-1. The OpenShift Metrics cartridge interface

Another monitoring option is the Monit cartridge, which uses the open source Monit process supervision tool. The cartridge comes with some predefined rules for checking OpenShift application availability, storage, and memory use. It will send email notifications when significant events occur, such as your gear reaching 80 percent of its quota or your app becoming unavailable. Additional rules can be added to check different application metrics and to take actions based on the results, such as restarting a cartridge. See Adding Third-Party Cartridges to learn how to install Monit and other community cartridges.

If your OpenShift application is scalable, it will include the HAProxy cartridge for load balancing. Although its primary function is not monitoring, it is worth noting that HAProxy includes a page that allows you to view some useful data about your application, available at http://appname-domain.rhcloud.com/haproxy-status. This status page shows how many application gears you have running, if all the gears are online, how many users are connecting to your app, and how much data the app is streaming.

Tip

For those using MongoDB, another monitoring cartridge that may come in handy is the MongoDB Monitoring Service (MMS) cartridge.

Given that OpenShift is open source, new cartridges are being developed by the community all the time; the next section offers tips on finding them and shows how to utilize third-party cartridges.

Tip

OpenShift partner organization New Relic offers a mature application monitoring solution, with free standard accounts available. There was no New Relic OpenShift cartridge at the time of writing, but there are instructions on how to add New Relic to your Java/JBoss application. Another OpenShift partner, AppDynamics, has created an OpenShift QuickStart for its monitoring software.

One of the joyous consequences of having an open source platform is that the community is always creating exciting new things for it. When you run the command rhc cartridge list, the result shows supported cartridges (Table 4-1 shows the list as of March 2014); these are the components that are maintained by Red Hat and receive updates such as security patches. However, this is not the extent of the cartridges available. There are many more OpenShift cartridges that have been created by the community and partner organizations. There are also many QuickStarts, which combine one or more cartridges with preconfigured code and libraries to enable you to quickly and easily launch a given application on OpenShift.

(*) denotes a cartridge with additional usage costs.

There are several places you can go to look for OpenShift cartridges and QuickStarts. A decent place to start is OpenShift.com; some downloadable cartridges and many QuickStarts are listed there. You can browse the OpenShift-maintained offerings and some partner and community offerings in the OpenShift Web Console.

Another good website to help you find ready-made applications and app components is the OO-Index. Its sole purpose is to index OpenShift cartridges and QuickStarts.It was in active development at the time of this writing and the production URL was not yet known, but you should be able to find the link at OpenShift’s website.

Given that a lot of cartridge code is hosted on GitHub, another way of finding a cartridge or QuickStart for a particular technology is to search for OpenShift and the technology name on the GitHub website. Search engine results may also help you to unearth treasures, especially if the programmers have written blog posts about their work.

Popular downloadable cartridges and QuickStarts include:

[me@localhost ~/insultapp]$ rhc cartridge add https://raw2.github.com/mfojtik/
openshift-origin-cartridge-monit/master/metadata/manifest.yml
The cartridge 'https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/
master/metadata/manifest.yml' will be downloaded and installed
Adding https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/master/
metadata/manifest.yml to application 'insultapp' ... done

mfojtik-monit-5.6 (monit 5.6)
-----------------------------
  From:  https://raw2.github.com/mfojtik/openshift-origin-cartridge-monit/master/
  metadata/manifest.yml
  Gears: Located with python-2.7, postgresql-9.2, cron-1.4

Please set the email you want to receive monit alerts:

$ rhc env set MONIT_ALERT_EMAIL=email@address.com -a insultapp
$ rhc cartridge restart monit -a insultapp

Monit Server Manager is running at: https://insultapp-osbeginnerbook.rhcloud.com/
monit-status
Username: admin
Password: Ny4nc=pt

You can add custom monitoring rules by editing ~/.monitrc file

[me@localhost ~/insultapp]$ rhc cartridge remove mfojtik-monit-5.6
Removing a cartridge is a destructive operation that may result in loss of data
associated with the cartridge.

Are you sure you wish to remove mfojtik-monit-5.6 from 'insultapp'? (yes|no):
yes

Removing mfojtik-monit-5.6 from 'insultapp' ... removed

Your application’s remote container, called a gear, can be accessed using the Secure Shell (SSH) protocol in the same way as you access regular machines. To communicate with OpenShift securely, your OpenShift account must first contain an SSH public key belonging to the machine from which you wish to connect. This key is uploaded to OpenShift when you first run the terminal command rhc setup (see Chapter 2 for more on this); you can also add keys manually via the OpenShift Web Console’s Settings section.

The simplest way to connect to an application gear is to go to the command line, change into the directory where your app was cloned locally, and enter the command rhc ssh. This will start an SSH session with your main application gear. If the local clone of your application repository is not linked to your OpenShift app in RHC (in which case you will receive an error message), or you wish to SSH from another directory, you should add the -a appname option, replacing appname with the name of your app.

If you would prefer to use an alternative tool for creating an SSH connection, you can view the SSH URL you will need for your main application gear with the command rhc app show -a appname.

If your app is scalable and you would like to SSH into the other gears, you can use the command rhc app show --gears -a appname to view their SSH URLs and the ssh command-line tool to connect (e.g., ssh user@host).

Once you have connected to the gear via SSH, you will see a “Welcome to OpenShift console” message and a warning about making destructive modifications to your application; you should always take care when making changes on the gear directly as it is possible to make persistent, unversioned changes to your app and its environment. By default, you will find yourself in the home directory of the OpenShift user for your application, which will have a UUID username that doesn’t quite roll off the tongue. If you list the contents of the directory, you will see subdirectories for the cartridges on your gear, as well as Git, your app’s deployment history, and the app itself.

Here is the output from a sample SSH session with our Python demo application. We connect to the application gear, then use the ls command to list the contents of some of the key directories, starting with our OpenShift application user’s home directory:

[me@localhost ~/insultapp]$ rhc ssh
Connecting to 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com ...

    *********************************************************************

    You are accessing a service that is for use only by authorized users.
    If you do not have authorization, discontinue use at once.
    Any use of the services is subject to the applicable terms of the
    agreement which can be found at:
    https://www.openshift.com/legal

    *********************************************************************

    Welcome to OpenShift console

    This console will assist you in managing OpenShift applications.

    !!! IMPORTANT !!! IMPORTANT !!! IMPORTANT !!!
    Shell access is quite powerful and it is possible for you to
    accidentally damage your application.  Proceed with care!
    If worse comes to worst, destroy your application with "rhc app delete"
    and recreate it
    !!! IMPORTANT !!! IMPORTANT !!! IMPORTANT !!!

    Type "help" for more info.


[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls
app-deployments  app-root  cron  git  postgresql  python
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls app-root
build-dependencies  data  dependencies  repo  runtime
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls app-root
/repo
app.py.disabled  data  Insult_App.egg-info  libs  README.md  setup.py  setup.pyc
setup.pyo  wsgi

The demo application uses a Python cartridge, so there is a Python directory in the application’s home directory. The app-root directory contains several important application subdirectories, notably repo, containing the current clone of the application’s Git repository, and data, which is a persistent directory you will read more about later in the book (see Chapter 8).

When accessing an application gear via SSH, you can run the usual Linux commands you might execute on a local machine. However, there are some restrictions. Your app runs within a container secured with SELinux, and you do not have root access. As you would expect, you cannot access other applications running on the same remote machine. If you receive “Permission Denied” errors, it is likely because you have attempted to overstep your bounds. Remember, you are a developer, not an administrator on your gear.

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> psql
psql (9.2.4)
Type "help" for help.

insultapp=# help
You are using psql, the command-line interface to PostgreSQL.
Type:  \copyright for distribution terms
       \h for help with SQL commands
       \? for help with psql commands
       \g or terminate with semicolon to execute query
       \q to quit
insultapp=# \q
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\>

[me@localhost ~/insultapp]$ scp import.sql 6e7672676e61676976757570@insultapp
-osbeginnerbook.rhcloud.com:~/app-root/data
import.sql                                      100% 5360     8.2KB/s   00:00

DROP TABLE IF EXISTS short_adjective;
DROP TABLE IF EXISTS long_adjective;
DROP TABLE IF EXISTS noun;

BEGIN;

CREATE TABLE short_adjective (id serial PRIMARY KEY, string varchar);
CREATE TABLE long_adjective (id serial PRIMARY KEY, string varchar);
CREATE TABLE noun (id serial PRIMARY KEY, string varchar);

INSERT INTO short_adjective (string) VALUES ('artless');
INSERT INTO short_adjective (string) VALUES ('bawdy');
INSERT INTO short_adjective (string) VALUES ('beslubbering');

INSERT INTO long_adjective (string) VALUES ('base-court');
INSERT INTO long_adjective (string) VALUES ('bat-fowling');
INSERT INTO long_adjective (string) VALUES ('beef-witted');

INSERT INTO noun (string) VALUES ('apple-john');
INSERT INTO noun (string) VALUES ('baggage');
INSERT INTO noun (string) VALUES ('barnacle');

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> cd app-root
/repo/
[insultapp-osbeginnerbook.rhcloud.com repo]\> psql -f import.sql

Only masochistic developers hardcode database connection strings or server ports; we have environment variables to save us from the pain of marrying code to a particular environment. OpenShift and its standard cartridges have a bunch of useful environment variables available out of the box that you can reference in your applications. It is also possible to set custom environment variables.

You can view the values of some of the essential environment variables, such as your database details, in the output of the command rhc app show -a appname. To view all of the environment variables and their values, SSH into your application gear and execute the command env. To view only the environment variables with names including the word “OPENSHIFT,” use the command env | grep OPENSHIFT.

[me@localhost ~]$ rhc env set API_USERNAME=admin API_PASSWORD=secret -a
insultapp
Setting environment variable(s) ... done
[me@localhost ~]$ rhc env list -a insultapp
API_PASSWORD=secret
API_USERNAME=admin
[me@localhost ~]$ rhc unset API_PASSWORD -a insultapp
Removing environment variables is a destructive operation that may result in
loss of data.
API_PASSWORD

Are you sure you wish to remove the environment variable(s) above from
application 'insultapp'? (yes|no): yes

Removing environment variable(s) ... removed
[me@localhost ~]$ rhc env show API_USERNAME API_PASSWORD -a insultapp
API_USERNAME=admin

[me@localhost ~/insultapp]$ rhc env set OPENSHIFT_SECRET_TOKEN=new_token
Setting environment variable(s) ... done

To ensure your application is working correctly, or troubleshoot when it is not, you may want to view the log files. You can do this by connecting to the application gear via SSH and navigating to the relevant locations, which you can find by checking the environment variables as described in the previous section. In general, you will find the log directories for web cartridges can be referenced with $OPENSHIFT_<cartridge>_LOG_DIR and databases with $OPENSHIFT_<database>_DB_LOG_DIR. For example, our demo application’s logs are directed to $OPENSHIFT_PYTHON_LOG_DIR and $OPENSHIFT_POSTGRESQL_DB_LOG_DIR.

A simpler method for checking the logs is to use RHC’s tail command. By default, rhc tail -a appname will tail the log files within the cartridges’ log directories; in the case of our Python application, this means the files stored in $OPENSHIFT_HOMEDIR/python/logs and $OPENSHIFT_HOMEDIR_postgresql/log. However, you can specify a different or more specific set of files, relative to $OPENSHIFT_HOMEDIR, with the -f option. You can also set various Linux tail command options by adding -o.

The following command tails the insultapp application’s database logs only, outputting the last 50 lines rather than the default of the last 10:

[me@localhost ~]$ rhc tail -f postgresql/log/* -o '-n 50' -a insultapp

Application and database cartridges will be configured to output their logs to the directories referenced by the aforementioned environment variables by default. If you produce application-specific logs, you should direct these to your web cartridge’s log directory as well, e.g., $OPENSHIFT_PYTHON_LOG_DIR. Files in this directory will automatically be included in the output of the rhc tail command.

To learn how to manage disk usage and back up your remote files, including log files, see Chapters 8 and 9.

One of the advantages of using a Platform as a Service is that you do not have to tinker with dozens of configuration files just to get an app running in the cloud. That said, you may well want to alter the out-of-the-box config, and many cartridges facilitate that.

Many basic OpenShift cartridge configuration options are controlled with marker files. If a particular marker file is present, the option is enabled; otherwise, the default behavior prevails. Marker files are added in an OpenShift application’s Git repository, in the .openshift/markers directory. The contents of marker files are irrelevant; they are empty files. They do not have any file extension.

One of the most common marker files used is hot_deploy—as mentioned in Hot-Deploying Code—which tells OpenShift to deploy new builds without restarting the cartridge server. Other marker files you may be interested in include force_clean_build (instructs OpenShift to remove previously built artifacts before building the app), disable_auto_scaling (prevents scalable applications from scaling according to load), and java7 (if this is removed, Java cartridges will use Java 6).

The marker files must be committed and pushed with Git. Here is an example of adding the force_clean_build marker to our example app:

[me@localhost ~/insultapp]$ touch .openshift/markers/force_clean_build
[me@localhost ~/insultapp]$ git add .openshift/markers/force_clean_build
[me@localhost ~/insultapp]$ git commit -m "Adding marker to force clean build"
[me@localhost ~/insultapp]$ git push

This will cause OpenShift to re-create the app’s virtual environment and reinstall the required Python eggs (these are code bundles, like JARs in Java). We do not want this to happen on every build as it takes time to download those dependencies, so once we are satisfied that the environment is clean we would remove the marker file.

It’s time to take a deep breath; we have learned a lot in this chapter. We showed how to use SSH to connect to your application’s gears and interact with databases hosted on OpenShift. We know that application configuration is easier to maintain when we use environment variables rather than hardcoded values; in this chapter we learned how to access the values of OpenShift’s environment vars and how to define our own. We discussed OpenShift application log access with rhc tail and where to direct app log output. Finally, we explained how to make application server and database configuration changes and how to control app config switches with marker files.

In the next chapter, we will dive into application dependencies and show how to connect to a database from your OpenShift app code.

All modern programming languages have a “build” process; OpenShift takes advantage of this to build your application dependencies. At the time of this writing we are using the processes listed in Table 6-1 to pull in dependencies for external libraries.

We have tried to make the process as close to development on your local machine as possible. So, for example, with Python if you wanted to download the “default” PostgreSQL drivers (psycopg2) to your local machine you would use Pip:

$ pip install psycopg2

This would install the Psycopg2 drivers to a location where Python can see them on your local machine. The way to reproduce this functionality on OpenShift is to include the dependency in the appropriate “application metadata” file. When you include your dependencies in this file, OpenShift will notice the dependencies during the build process and then download the files and put them where your language runtime can see them. Table 6-2 presents a listing of all the files for a variety of languages.

Let’s go ahead and add Psycopg2 to our project so we can use the library to connect to our database of insults. Go into your local Git repository and edit the setup.py file. We already have a dependency declaration for Flask (see Modifying Application Code), and now we are going to add one for Psycopg2. Your install dependencies section should look like this now:

install_requires=['Flask==0.10.1', 'psycopg2==2.5.2'],

The first time you git push with this new dependency, the build will take longer because of the download and build of the new dependency. After that OpenShift will use the cached version. This is particularly noticeable for Java developers with Maven builds, since the default pom.xml requires the full JEE dependency.

When you do your git push, you should see something like the following in the output:

...
remote: Processing dependencies for Insult-App==1.0
remote: Searching for psycopg2==2.5.2
remote: Best match: psycopg2 2.5.2
remote: Processing psycopg2-2.5.2-py2.7-linux-x86_64.egg
...

These are the lines where the OpenShift build process is adding the Psycopg2 library to the virtual environment for your application.

For each programming language, there is a designated location in the Git repository where you can place your own binaries for your application and have the build pick them up (Table 6-3). For example, you would do this if you have a binary library that you use within your company that you do not want to put in a public repository or in the code base. This way you can reuse the library without exposing the code.

Placing your libraries in these locations means you can use your own libraries, ensure a certain version of a library is used, or include nonpublic libraries.

Some of these languages also have the ability to point to a library in a different Git repository or in other places “on disk.” For example, in your Ruby application you can specify the location to your Gem in your Gemfile.lock file. This is a much more flexible method than using the location specified earlier. The same holds with setup.py or requirements.txt for Python; your metadata file can point to a GitHub repository or other publicly accessible locations.

Now that we know how to pull in dependencies, let’s go ahead and modify our code to take advantage of the database. We are going to design the application so that our insult propagation crew can search out new insults, add them to the database, and have them appear without any code changes. We designed the database tables so we could pick from each adjective type and noun separately and add to each group separately.

We did such a nice job with the separation of concerns between our classes in our original application that we only have to modify insulter.py. We are going to replace the static lists of adjectives and nouns with calls to the database, but nothing else in the application has to change. Even within insulter.py we only have to modify one method. Hooray for clean code!

One quick note before we dig in: as much as we would like to believe Insult App will be hugely successful and allow us to retire early, this app will probably have only one or two users at a time (if we are lucky). Therefore, we are not going to add the overhead of having a connection pool for the database connections. Given that database connections take a relatively long time to establish, in any real production application you would want to use a connection pool for your database connections.

All right, on to the code!

import psycopg2
...

def get_cursor():
    #open a connection
    conn = psycopg2.connect(database=os.environ['OPENSHIFT_APP_NAME'],
                      user=os.environ['OPENSHIFT_POSTGRESQL_DB_USERNAME'],
                      password=os.environ['OPENSHIFT_POSTGRESQL_DB_PASSWORD'],
                      host=os.environ['OPENSHIFT_POSTGRESQL_DB_HOST'],
                      port=os.environ['OPENSHIFT_POSTGRESQL_DB_PORT'] )
    #get a cursor from the connection
    cursor = conn.cursor()
    return cursor

def close_cursor(cursor):
    conn = cursor.connection
    cursor.close()
    conn.close()

def get_word(cursor, table):
    sql = "select string from " + table + " offset random()*
     (select count(*) from " +  table + ") limit 1;"
    cursor.execute(sql)
    result = cursor.fetchone()
    return result[0]

def generate_insult():
    local_cursor = get_cursor()
    final_insult = get_word(local_cursor, "short_adjective") + " " +
     get_word(local_cursor, "long_adjective") + " " +
     get_word(local_cursor, "noun")
    close_cursor(local_cursor)
    return final_insult

One of the hot new technologies in web applications is the WebSocket protocol. WebSockets allow the client to open a persistent connection to the server. In this way, the server can push information to the client, rather than always having the client pull information from the server. This has a whole host of interesting applications and is much more efficient than using long polling, an alternative technique that simulates two-way communication. Examples of applications this could be used for include:

The prerequisites to using WebSockets are:

From there, the basic flow of using WebSockets in your application is:

Of course this is a simplification, but you get the basic idea. If you want to read a more complete tutorial of how it works there are plenty of good examples; Matt West has written a blog post covering the basics.

At the time of writing, OpenShift provided support for WebSockets but only at a beta level. This means that it works but you have to use alternative ports to 80 to make your WebSocket connections. Specifically, the URL you use to open a WebSocket connection has to go to port 8000 for WS (standard WebSocket) or 8443 for WSS (secure WebSocket). What this means in practice is that you cannot make your connection from the client like this:

//Standard WebSocket
var socket = new WebSocket('ws://insultapp-osbeginnerbook.rhcloud.com');

//Secure WebSocket
var socket = new WebSocket('wss://insultapp-osbeginnerbook.rhcloud.com');

Rather, you need to specify the port number:

//Standard WebSocket
var socket = new WebSocket('ws://insultapp-osbeginnerbook.rhcloud.com:8000');

//Secure WebSocket
var socket = new WebSocket('wss://insultapp-osbeginnerbook.rhcloud.com:8443');

Finally, each WebSocket connection you make to the server counts as a connection for the purposes of autoscaling of your application. Currently on OpenShift, when a scalable app has more than 16 connections on the gear it will trigger a scale-up event, causing OpenShift to spin up a new gear, install the application code on it, and plug it into the load balancer. That threshold includes any combination of HTTP and WebSocket connections.

As explained in Chapter 1, all communication with your gear occurs over the Secure Shell (SSH) protocol. One of the great features of SSH is port forwarding, which allows you to securely communicate with your gear and make it appear as if the services on the gear are running on your own machine. The basic idea is that SSH takes ports on your local machines and tunnels them over a secure connection to a port on the remote machine. For example, you can use SSH to take port 9999 on your local machine and have it attach to port 5432 on your gear, which is the port that PostgreSQL listens on. Now when you connect to port 9999 on your local machine, all your traffic to that port will be sent directly to port 5432 on your gear.

Some potential uses of SSH port fowarding are:

To give an example, we are going to port forward for all the running servers on our gear and then connect from the local laptop to our PostgreSQL instance on the gear using the psql command-line tool. Even though psql will be running on our local machine, with access to local SQL files, it will actually be talking to the PostgreSQL instance on OpenShift. You could use this same technique to have a development web application on your local machine talking to your OpenShift PostgreSQL instance before you deploy the web application to OpenShift.

Before we begin, you are going to need your username and password for your OpenShift database. If you don’t have this information written down, you can retrieve it with the rhc show command:

[me@localhost insultapp]$ rhc app show
insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
-------------------------------------------------------------------------------
  Domain:     osbeginnerbook
  Created:    Mar 14  1:59 PM
  Gears:      1 (defaults to small)
  Git URL:    ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud
  .com/~/git/insultapp.git/
  SSH:        6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com
  Deployment: auto (on git push)

  python-2.7 (Python 2.7)
  -----------------------
    Gears: Located with postgresql-9.2, cron-1.4

  postgresql-9.2 (PostgreSQL 9.2)
  -------------------------------
    Gears:          Located with python-2.7, cron-1.4
    Connection URL: postgresql://$OPENSHIFT_POSTGRESQL_DB_HOST:
    $OPENSHIFT_POSTGRESQL_DB_PORT
    Database Name:  insultapp
->  Password:       SLat4aTfsSt1
->  Username:       adminm4rvN42

  cron-1.4 (Cron 1.4)
  -------------------
    Gears: Located with python-2.7, postgresql-9.2

We marked the two lines containing the username and password with a ->. Make note of these because you will need to use them when you connect to your database.

Next we use the rhc port-forward command to have the command-line tools port forward all listening ports over SSH:

[me@localhost insultapp]$ rhc port-forward
Forwarding ports ...
Address already in use - bind(2) while forwarding port 5432. Trying
local port 5433

To connect to a service running on OpenShift, use the Local address

Service    Local               OpenShift
---------- -------------- ---- ----------------
httpd      127.0.0.1:8080  =>  19.66.2.6:8080
postgresql 127.0.0.1:5433  =>  19.66.2.7:5432

Press CTRL-C to terminate port forwarding

You can see from this output that there is a local PostgreSQL server running bound to port 5432, forcing the port-forward command to bind to 5433. Now on a local machine, when we connect to the local loopback address (127.0.0.1) on port 5433 we will actually be connecting to PostgreSQL on the gear. Let’s go ahead and connect:

[me@localhost insultapp]$ psql -h 127.0.0.1 -p 5433 -U adminm4rvN42 insultapp
Password for user adminm4rvN42:
psql (9.3.2, server 9.2.4)
Type "help" for help.

insultapp=# \dt
                List of relations
 Schema |      Name       | Type  |    Owner
--------+-----------------+-------+--------------
 public | long_adjective  | table | adminm4rvN42
 public | noun            | table | adminm4rvN42
 public | short_adjective | table | adminm4rvN42
(3 rows)

insultapp=#

There is no option to enter the password with the command, but it did prompt for one on the second line. We entered SLat4aTfsSt1, and then we were at the PostgreSQL command prompt talking to our server. We executed the \dt command, which lists all the tables in the database, just to show that we are actually talking to the database running on our gear.

While it is convenient that OpenShift gives you a predefined URL that works out of the box, you may want to use your own URL. This is actually quite easy to accomplish on OpenShift. Before we get to that, though we need to understand a little about DNS names. There are at least two types of DNS records that deal with URLs—A records and CNAME records. An A record can reference any URL, such as insultapp.com or www.insultapp.com, and can take this name and point it at an IP address, like Red Hat does with redhat.com, which points to 10.4.127.150. You have to have an IP address to be able to use an A record. The benefit of an A record is that you can use the root or apex name for your web application, such as http://insultapp.com.

CNAME records are used to take one name, such as www.insultapp.com, and point it to a canonical (authoritative) name, such as insultapp-osbeginnerbook.rhcloud.com. For all your OpenShift applications, the URL provided by default when you create your application is the canonical URL. You would use CNAME records where a provider doesn’t actually give you an IP address; this usually occurs with a content delivery network (CDN) such as Akamai or Edgenet, or with a PaaS such as OpenShift. The drawback to CNAME records is that they can never map a root record to another name. For example, you cannot take insultapp.com and point it to insultapp-osbeginnerbook.rhcloud.com. This has nothing to do with the limitations of OpenShift or your CDN—this is per Internet Engineering Task Force (IETF) specifications.

One of the most frequent questions we get, given this restriction, is, “How do I get insultapp.com to point to insultapp-osbeginnerbook.rhcloud.com?” There are several ways to do this, each with its own trade-offs, but we are going to cover the most common method—using an HTTP redirect to handle getting the user to your web application. With some DNS providers this is called “naked domain hosting.” Let’s cover the basic idea with Insult App:

To finish up the whole custom URL process you need to go to your command-line tools or the Web Console and define what URLs you have pointed to the canonical URL on OpenShift. The process is as simple as:

$ rhc alias add <application> <alias>

For our example, you would enter:

$ rhc alias add insultapp www.insultapp.com

Since this is a very frequently asked question, we are going to list the steps one more time for the whole process:

Another common request from developers is to use HTTPS with their applications. By default, all applications on OpenShift can piggyback off the certificate provided for free. OpenShift Online provides a valid certificate for all *.rhcloud.com URLs. This means that if we wanted to point users to https://insultapp-osbeginnerbook.rhcloud.com, the SSL certificate would be valid and the browser would show the connection as SSL secured.

However, as we discussed earlier, you may want to use your own domain name on OpenShift. In this case, the browser would see the URL as https://www.insultapp.com but the certificate would only be valid for *.rhcloud.com URLs, causing the browser to alert the user that there was something wrong with the HTTPS session. The traffic would still be encrypted and the data secure, but the user would see an error with the HTTPS session.

OpenShift provides the ability for you to add your own SSL certs that match the custom domain names. This capability is provided when you enter the paid tier. At that level of service, you can add your own certificates and private key files for any aliases you have.

We are going to assume you have already obtained a Base64 PEM-encoded certificate file (it usually has a .crt or .pem extension). Be sure to obtain a file from a legitimate certificate provider with a signature recognized by most browsers, to avoid warning pop-ups. The private keys to go with the certificate must be in a separate file. If the private key is encrypted you will also need to have the password available.

Once you have all that in hand you can use the RHC command-line tools to upload the certificates. The general form of the command is:

rhc alias update-cert application alias --certificate mycert.pem
--private-key myprivatekey

The reason you have to give both the application and the alias is that an application may have multiple aliases, each of which would require its own cert. From then on, whenever a user hits your web application with an HTTPS URL and one of your aliases, there will be no error in the browser.

Please note that at the time of writing, the custom certificates will not work with the OpenShift secure WebSocket solution. In this situation, the browser will show an error for a secure WebSocket and the user will have to manually accept the certificate.

While there are a lot of services provided out of the box with OpenShift, it also has a robust partner ecosystem for adding even more functionality to your application. You can add things such as caching solutions, monitoring solutions, Mobile Backend as a Service (MBaaS), or Big Data as a Service (BDaaS). One of the services most commonly used with OpenShift is an email service such as SendGrid. Given that the Online servers are hosted on Amazon Web Services, any email sent from the servers will be coming from an Amazon IP, which are blacklisted by most SMTP servers. For this reason, quite a few OpenShift users use SendGrid to send email in their applications.

For example, if we wanted to send insults to people through our app (which would probably break a whole bunch of spam laws), we could do it using this service. Since we like our freedom, we will only talk you through how you would use the service in our application. Since it is so simple, there is actually not much to say: you would just add code like the example SendGrid Python snippet. In that snippet, you are using the SendGrid SMTP servers just like you would use any other SMTP server. There are also examples on that page showing how to use the SendGrid Python library and the SendGrid web APIs to send emails.

We could also use a service for in-application analytics such as Keen IO. It basically lets you send arbitrary JSON to its service, store it, and use an API to analyze it, and then gives you a nice JavaScript API to make visualizations using your data. It has a full set of docs and a simple Python API. By using a partner like this with OpenShift, you can quickly add new functionality without having to learn it all from scratch. This gives you more time to focus on making your application usable and awesome. Don’t forget to see Environment Variables for the preferred method for storing your API key or username and password using the rhc env command.

Some OpenShift partner services, other services you might want to use, or other external servers you want to connect to may not talk over HTTP or another standard port like 25 (for SMTP). In these cases, such as when talking to an IRC server, you need to make sure you can connect from your OpenShift gear on an outbound port to your desired external endpoint. OpenShift uses SELinux to control the ability of your app to make outbound connections.

SELinux uses a whitelist policy for allowable ports, meaning everything is denied except for explicitly permitted ports. Fortunately, SELinux deals with labels (such as smtp_port) rather than port numbers, so OpenShift operators are able to use, for example, generic_port, which then opens quite a few ports.

At the time of writing, the SELinux policy on OpenShift Online allowed the following named SELinux labels for outbound connections:

mssql_port
mysqld_port
postgresql_port
git_port
oracle_port
flash_port
http_port
ftp_port
virt_migration_port
ssh_port
jacorb_port
jboss_management_port
jboss_debug_port
jboss_messaging_port
memcache_port
http_cache_port
amqp_port
generic_port
mongod_port
munin_port
pop_port
pulseaudio_port
smtp_port
whois_port
jabber_client_port
ircd_port
soundd_port
pki_ca_port
pki_ra_port
commplex_port

If you ever want to test if a port is available for an outbound connection, you can use the telnet command. We will combine it with the timeout command so we are not stuck if it connects to a service and we don’t know how to exit out of the session. We are going to use timeout with the following syntax:

$ timeout -s 9 1 command

This tells timeout to run the following command for up to one second and then run kill 9 on the command if it hasn’t returned back to the console.

Here is an example of running the full command we want over some common ports:

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 6667
Trying 127.0.0.1...
telnet: connect to address 127.0.0.1: Connection refused
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 10
Trying 127.0.0.1...
telnet: connect to address 127.0.0.1: Permission denied
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> timeout -s
9 1 telnet 127.0.0.1 80
Trying 127.0.0.1...
Connected to 127.0.0.1.
Escape character is '^]'.
Killed

The first command is trying to connect to the localhost IP, which is different from the IP of our gear, over port 6667 (commonly used for IRC). At the end it says “Connection refused,” which means the outbound connection was allowed but the server didn’t accept the connection. This means on OpenShift Online you can go out over port 6667. The next attempt tries to go out over port 10 and gets a “Permission denied” error, which indicates you cannot go out on port 10. Finally, we try to go out on port 80; it is allowed, and we connect to something running that accepts the connection. After one second the Telnet process is killed by timeout.

In the end you can see that while OpenShift restricts some of the networking functionality to protect your application and other users, there is still quite a bit you can do with the network on the platform. Most of the functionality allowed either lets you add new capabilities to your application or enhance your development experience.

As an OpenShift application developer, you are given specific locations on “disk” where you are allowed to create or modify files and directories. We use disk in quotes because, as a developer, you are not actually sure what the space is located on—it could be disk drives, solid state drives, a network-attached storage (NAS) device, or any other storage location. As a developer, there are only two locations you should write files: /tmp and the gear’s data directory.

As on all Linux systems, you have read, write, and execute permissions for the /tmp directory. However, unlike a typical Linux machine, where everyone on the machine shares those permissions on /tmp, OpenShift uses pluggable authentication module (PAM) namespaces to give you your very own /tmp. This means nobody else on the machine can see or use the /tmp that you use. The problem with putting files here is that the space is ephemeral, meaning there is no guarantee how long a file or directory will remain there. Furthermore, any data in /tmp will not survive an application restart.

The other directory available to you is the OpenShift data directory, which is currently at $OPENSHIFT_HOMEDIR/app-root/data. We use the environment variable OPENSHIFT_DATA_DIR to point to this location. By using the environment variable you increase the portability and maintainability of your application, so we highly recommend using it in your code and configuration (see Chapter 5 for more on environment variables). In this private data directory, you also have full read, write, and execute permissions. However, this directory is persistent, allowing it to survive application stops and starts.

The data directory is where your application should store its files and put configuration settings, download themes, or generally anything you want to survive restarts and Git pushes. You can’t store anything in your Git directory unless you use the Git tools. Anything written there outside of the Git lifecycle will be overwritten on the next Git push.

To clarify, the you we have been talking about here is actually the user ID of your application, which is a 24-character hexadecimal number. The permissions are granted to this user ID, which is the same user you identify yourself as when you SSH into or use secure FTP (SFTP) with the gear. It is also the user who owns the processes for your application servers, databases, or any other binaries you execute on the gear.

At the time of writing, each gear in the OpenShift free plan was given 1 GB of disk space. If you moved into the paid tier, your gear could be up to 6 GB. The locations that count against that quota are:

The easiest way to check your disk usage is by using the RHC command-line tools:

rhc app show appname --gears quota

If you are executing the command from within the Git repository for your application, then you can omit the ``appname`` from the command. This will give you output that shows one line per gear in your application.

Here is an example:

Gear                     Cartridges                 Used Limit
------------------------ ------------------------ ------ -----
6861736b656c6c72756c6573 postgresql-9.2           75 MB  1 GB
6c616d626461733465766572 jbossews-2.0 haproxy-1.4 363 MB 1 GB

Here you can see we have two gears in this application. The gear with PostgreSQL on it is using 75 MB and the gear with JBoss is using 363 MB.

If you want to see how much disk space is used and you are comfortable with the Linux quota command, you can always SSH into a gear and use it to check your space.

To see all your gears and their SSH URLs, you can execute the command rhc app show appname --gears and then SSH into each gear to run quota.

OpenShift will also start to warn you both on git push and when you SSH into your gears if you exceed 90% of your quota.

Since OpenShift uses SSH for all communication with the server, the two main ways to transfer files up to your gears are SFTP (secure FTP) and SCP (secure copy). SCP is only for moving files back and forth, while SFTP lets you do things like listing directories and removing files. You can also use any tool that can use SSH, such as rsync, but we are just going to cover SFTP and SCP here.

For people who prefer using a GUI for their file transfers, we highly recommend FileZilla, a FOSS file transfer tool that can communicate over SFTP. Please be aware, though, that FileZilla uses PuTTY-based SSH keys while OpenShift uses OpenSSH keys. You will need to convert your public SSH key to a PuTTY public key. There is a blog post on the OpenShift website covering the details on how to convert your key and use FileZilla.

The syntax for using scp to copy to your gear is fairly straightforward:

$scp localFile 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.
com:/app-root/data/

The file localFile can also be replaced with a directory, and you can use -r to copy directories recursively. Please remember that due to file permissions, you can’t write to your home directory and instead need to write to $OPENSHIFT_DATA_DIR or /tmp.

The syntax to copy a file down to your machine is just as straightforward:

$ scp 6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.
com:/tmp/dbbackup.tgz /data/databaseBackups/

Finally, you can also move files between two gears in the same application:

# Assumes you are in the /tmp directory on a gear
$ scp dbBackup.tgz 6e7672676e61676976757570@6e7672676e61676976757570-
osbeginnerbook.rhcloud.com:/tmp

The final way to create storage space for your OpenShift application is to use an external storage service such as S3 or Dropbox. You can utilize these services using the same processes as you would on your local machine—you can access them programmatically but not directly as a backup service. You could also create a Cron job (see Writing a Cron Script) to copy contents from your gears to one of these services.

No matter how you look at it, there are a lot of different options for storage on OpenShift, including putting assets in your database.

When you create a new OpenShift application, it is configured out of the box to automatically deploy any changes pushed to the application Git repository. By default, only the latest version of your code is kept on your OpenShift gear. Both of these behaviors can be altered to give you more control over your deployments.

[me@localhost ~/insultapp]$ rhc app-configure --no-auto-deploy
Configuring application 'insultapp' ... done

insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
---------------------------------------------------------------------------
  Deployment:        manual (use 'rhc deploy')
  Keep Deployments:  1
  Deployment Type:   git
  Deployment Branch: master

Your application 'insultapp' is now configured as listed above.

Use 'rhc show-app insultapp --configuration' to check your configuration values
any time.
[me@localhost ~/insultapp]$ git status
# On branch master
# Your branch is ahead of 'origin/master' by 1 commit.
#   (use "git push" to publish your local commits)
#
nothing to commit, working directory clean
[me@localhost ~/insultapp]$ git push
Counting objects: 5, done.
Delta compression using up to 4 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 290 bytes | 0 bytes/s, done.
Total 3 (delta 2), reused 0 (delta 0)
To ssh://6e7672676e61676976757570@insultapp-osbeginnerbook.rhcloud.com/~/git/
insultapp.git/
   a38c5e3..c100ed9 master -> master
[me@localhost ~/insultapp]$ rhc app deploy c100ed9
Deployment of git ref 'c100ed9' in progress for application insultapp ...

[me@localhost ~/insultapp]$ rhc app-configure --keep-deployments 3
Configuring application 'insultapp' ... done

insultapp @ http://insultapp-osbeginnerbook.rhcloud.com/
(uuid: 6e7672676e61676976757570)
---------------------------------------------------------------------------
  Deployment:        auto (on git push)
  Keep Deployments:  3
  Deployment Type:   git
  Deployment Branch: master

Your application 'insultapp' is now configured as listed above.

Use 'rhc show-app insultapp --configuration' to check your configuration values
any time.

[me@localhost ~/insultapp]$ deployment list
3:14 PM, deployment 70692b2b
6:28 PM, deployment 7461752d
[me@localhost ~/insultapp]$ rhc deployment activate 70692b2b
Activating deployment '70692b2b' on application insultapp ...

While it is useful to be able to keep a record of your OpenShift deployments with RHC, this mechanism only keeps track of repository code and its dependencies. If you wish to take a snapshot of the entire application and its state, you should use the rhc snapshot command. This command exports the current state of your application, including the repository code, SQL dumps of any database cartridges, $OPENSHIFT_DATA_DIR files, and anything else the cartridges used are configured to export. The gzipped TAR file created can be used to later restore the state of the application.

To take a snapshot of your application, use the command rhc snapshot save. You can add the --filepath path option to specify the location and filename of the archive file. Add the --deployment option if you wish to save the snapshot as a deployable file suitable for use with the rhc deploy command. To restore the application from the archive file, use the command rhc snapshot restore --filepath /path/to/tarball. Note that not everything included in the archive is necessarily re-created; log files are not restored.

Here is an example of saving our Insult App application:

[me@localhost ~/insultapp]$ rhc snapshot save
Pulling down a snapshot to insultapp.tar.gz...
Creating and sending tar.gz

RESULT:
Success
[me@localhost ~/insultapp]$ ls
app.py.disabled  data  import.sql  insultapp.tar.gz  libs  README.md  setup.py
setup.pyc  setup.pyo  wsgi

The command produced a tarball called insultapp.tar.gz. Now we can make some changes, pushing a new commit and connecting to the application via SSH to delete files from the persistent data directory and add content to the database. We then decide we want to restore the previous state, which we accomplish as shown here:

[me@localhost ~/insultapp]$ rhc snapshot restore
Restoring from snapshot insultapp.tar.gz...
Removing old git repo: ~/git/insultapp.git/
Removing old data dir: ~/app-root/data/*
Restoring ~/git/insultapp.git and ~/app-root/data
Activation status: success

RESULT:
Success

The Git repository, database, and data directory are now as they were when we took the snapshot.

You can also use the rhc snapshot command to create a clone of an OpenShift application. To do this, create a new application of the same type (scalable/nonscalable) with the same cartridges and run the restore command, supplying the location of the archive file.

In addition to keeping deployment history and taking application snapshots with RHC, you may well want to make backups of your database. These do not require application downtime and can be performed regularly with the aid of the Cron utility. We discussed how to connect to your database using SSH in Chapter 5 and showed how to use port forwarding to interact with your database in Chapter 7. We demonstrated how to add the Cron cartridge to your application in Cron. In this section, we will give an example of a Cron script to create regular data dumps on the database gear and then show two approaches to moving those backups off the gear. You could write similar Cron scripts to back up other files, such as anything your application persists in $OPENSHIFT_DATA_DIR.

#!/bin/bash

DATE=`date +"%Y-%m-%d"`
FILE="$OPENSHIFT_APP_NAME-$DATE.sql.gz"
INIT_PATH=$OPENSHIFT_DATA_DIR/$FILE
BACKUP_DIR=$OPENSHIFT_DATA_DIR/sqlbackup

if [ ! -d "$BACKUP_DIR" ]; then
  mkdir $BACKUP_DIR
fi
pg_dump $OPENSHIFT_APP_NAME | gzip > $INIT_PATH
mv $INIT_PATH $BACKUP_DIR/$FILE

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> dropdb
$OPENSHIFT_APP_NAME
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> createdb
$OPENSHIFT_APP_NAME
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> gunzip -c
$OPENSHIFT_DATA_DIR/insultapp-sqlbackup-2014-03-14.gz | psql $OPENSHIFT_APP_NAME

#!/bin/bash
rsync -avz --remove-source-files -e ssh 6e7672676e61676976757570@insultapp-
osbeginnerbook.rhcloud.com:~/app-root/data/sqlbackup /backup

[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> mkdir
$OPENSHIFT_DATA_DIR/.ssh
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ssh-keygen -f
$OPENSHIFT_DATA_DIR/.ssh/id_rsa
Generating public/private rsa key pair.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in ...openshift/var/lib/openshift/
6e7672676e61676976757570/app-root/data//.ssh/id_rsa.
Your public key has been saved in /var/lib/openshift/6e7672676e61676976757570/
app-root/data//.ssh/id_rsa.pub.
The key fingerprint is:
4e:79:61:6e:79:61:6e:79:61:6e:79:61:6e:79:61:21 6e7672676e61676976757570@ex-std-
node710.prod.rhcloud.com
The key's randomart image is:
+--[ RSA 2048]----+
|            . ==@|
|             *oXo|
|            +.+.=|
|           +...  |
|        S = +    |
|         + .     |
|        E        |
|                 |
|                 |
+-----------------+
[insultapp-osbeginnerbook.rhcloud.com 6e7672676e61676976757570]\> ls
$OPENSHIFT_DATA_DIR/.ssh
id_rsa  id_rsa.pub

#!/bin/bash

DATE=`date +"%Y-%m-%d"`
FILEPATH="$OPENSHIFT_DATA_DIR/$OPENSHIFT_APP_NAME-$DATE.sql.gz"

pg_dump $OPENSHIFT_APP_NAME | gzip > $FILEPATH
scp -i $OPENSHIFT_DATA_DIR/.ssh/id_rsa -o StrictHostKeyChecking=no $FILEPATH
user@mybackupserver.com:~/backup && rm $FILEPATH

One way of enabling another person to make changes to your OpenShift application code is to add her machine’s public SSH key to your OpenShift account. This will enable your collaborator to access the Git repositories of any of your OpenShift applications using standard Git commands. It will not grant that person access to your OpenShift Online account, or enable her to log in to RHC.

This method for code sharing is best suited to situations where the person you wish to grant access to does not have an OpenShift account. If she’s willing to create an OpenShift account or has one already, a better way to give access is to add her to your application’s domain, as explained in the next section.

You can manage the SSH keys for your OpenShift account from the command line with the rhc sshkey command. You can list all your SSH keys with rhc sshkey list, add a key with rhc sshkey add, and remove a key with rhc sshkey remove. To add your collaborator, have her supply you with her public SSH key; typically, this would be her ~/.ssh/id_rsa.pub file (this is the public part of the key pair; the corresponding private key file, id_rsa, should never be shared). Here is an example of adding a new key to an OpenShift account:

[me@localhost ~]$ rhc sshkey add myfriend ~/Downloads/id_rsa.pub
RESULT:
SSH key id_rsa.pub has been added as 'myfriend'

Once the key has been added, give your collaborator the Git URL of the OpenShift application repository you want her to edit (you can view this with rhc apps). She can use this URL with the regular git clone command, and will also be able to access the application gear via ssh. If you want to add more collaborators, simply add more SSH keys.

Adding SSH keys to your OpenShift account is one way of enabling collaboration on application code, but it has limitations; it will not allow your team members to use RHC commands with the shared apps, and it gives everyone you add full access to make changes. A more flexible approach is to add members to your OpenShift domain.

All OpenShift applications must belong to a domain, sometimes referred to as a namespace. This becomes part of the OpenShift Online application URL, which has the form appname-domain.rhcloud.com—this should look familiar by now. Depending on your OpenShift account, you may be able to create multiple domains; users on the free tier of OpenShift Online are limited to one domain.

OpenShift domains can be managed from the command line with the rhc domain command. Use rhc domain list to see which domains you have access to and rhc domain show to display the details of applications in a domain. If you have access to do so, you can create new domains with rhc domain create name.

Domain membership can also be managed from the command line, using the rhc member command. When you add a member to a domain, you can give that member one of three possible roles:

These member permissions apply to all applications within a domain. If you wish to give the same user a different level of access to different applications, you should place them in separate domains.

Here is an example of adding and then removing a member in Insult App’s domain, osbeginnerbook. OpenShift users are referenced by their username, which is usually their email address; rhc account will display the details of the logged-in user:

[me@localhost ~]$ rhc member add phb@redhat.com -n osbeginnerbook --role view
Adding 1 viewer to domain ... done
[me@localhost ~]$ rhc member list -n osbeginnerbook
Login                   Role
----------------------- -------------
TheSteve0@redhat.com    admin (owner)
codemiller@redhat.com   admin
phb@redhat.com          view
[me@localhost ~]$ rhc member remove phb@redhat.com -n osbeginnerbook
Removing 1 member from domain ... done

A domain member can use the command rhc domain leave -n domain if she wishes to remove herself from a domain.

If you have read to this point, you should now have a good idea of how the OpenShift platform works and what features it offers. However, you may still be wondering how to adapt your current team processes to use OpenShift. Every team is different, so we cannot offer a magic formula for this, but here are some points you may want to consider:

Taking into account these items, here are the details of a possible team workflow utilizing OpenShift:

This workflow is not going to suit everyone and does not cover all aspects of the development process, but we hope it sparks some ideas of how OpenShift could become part of your team.

To quickly recap, we covered:

That is a lot of territory covered in a relatively short number of pages. We also used a Python application to illustrate the pattern of development on OpenShift.

To learn about other people using OpenShift and their projects, check out the OpenShift Developer Spotlight. The OpenShift team also loves to show off the great applications built by users in the Application Gallery. Now that we have taught you how to do all this great stuff, we expect your cool application or biography any minute now.

If you want a more in-depth explanation of development on OpenShift, we highly recommend the OpenShift Online User Guide. This guide is also short, but covers some different topics from our book. It is well worth a read.

While we are great authors, in the highly unlikely scenario where you might need other help than this book, there are also great resources on the OpenShift website, such as the Knowledge Base and FAQs. OpenShift Online has moved to Stack Overflow for Q&A, type resources.

There is also a Developer Center on the OpenShift site. It has information on how to use the Web Console or Eclipse IDE integration. You can also find information there on how to create your own QuickStarts for your favorite applications. The site also covers how to add your own preferred server technology using a custom cartridge. Most importantly, the resource center has links to other languages and databases OpenShift supports, so you can dig in to more specific material for your programming language of choice.

If you want to dive deeper into OpenShift itself, you would like to learn how to run it on your own infrastructure so you can tweak it to your liking, or you love Ruby and want to be part of an open source project, we highly recommend you visit the OpenShift Origin site. Origin is the upstream project for the other two products and it has a friendly and active community. There are many ways to get involved in the community. Here are some links to get you started:

There are also at least two other published books on OpenShift, with several more books at various stages of writing or publication. If you are interested in running OpenShift Origin, then we recommend our colleague Adam Miller’s book, Implementing OpenShift (Packt). For a book like ours, aimed at developers using OpenShift, but with a focus on JBoss technologies, look to our colleague Eric Schabell’s book, OpenShift Primer (Developer.Press).

Always check the OpenShift website and blog for the latest and greatest features. PaaS is a rapidly evolving area, and the OpenShift team has made a commitment to pushing the state of the art forward. The team is also committed to listening to the users—if you have suggestions for the service you can always write to Steve or Katie, or to openshift@redhat.com. One of the things we love about working with OpenShift is that the more you use it, the more possibilities emerge—so the most important thing at this point is for you to get coding!
