Choosing Vantage

When instrumenting a network, determining vantage is a three-step process: acquiring a network map, determining the potential vantage points, and then determining the optimal coverage.

The first step involves acquiring a map of the network and how it’s connected, together as well as a list of potential instrumentation points. Figure 1-1 is a simplified version of such a map.

The second step, determining the vantage of each point, involves identifying every potentially instrumentable location on the network and then determining what that location can see. This value can be expressed as a range of IP address/port combinations. Table 1-2 provides an example of such an inventory for Figure 1-1. A graph can be used to make a first guess at what vantage points will see, but a truly accurate model requires more in-depth information about the routing and networking hardware. For example, when dealing with routers it is possible to find points where the vantage is asymmetric (note that the traffic in Table 1-2 is all symmetric). Refer to “The Basics of Network Layering” for more information.

The final step is to pick the optimal vantage points shown by the worksheet. The goal is to choose a set of points that provide monitoring with minimal redundancy. For example, sensor E provides a superset of the data provided by sensor F, meaning that there is no reason to include both. Choosing vantage points almost always involves dealing with some redundancy, which can sometimes be limited by using filtering rules. For example, in order to instrument traffic between the hosts 128.1.1.3–32, point H must be instrumented, and that traffic will pop up again and again at points E, F, B, and A. If the sensors at those points are configured to not report traffic from 128.1.1.3–32, the redundancy problem is moot.

Internal Validity

The internal validity of an argument refers to the cause/effect relationship in an experiment. An experiment has strong internal validity if it is reasonable to believe that the effect was caused by the experimenter’s hypothesized cause. In the case of internal validity, the security analyst should particularly consider the following issues:

Timing

Timing, in this case, refers to the process of data collection and how it relates to the observed phenomenon. Correlating security and event data requires a clear understanding of how and when the data is collected. This is particularly problematic when comparing data such as NetFlow (where the timing of a flow is impacted by cache management issues for the flow collector), or sampled data such as system state. Addressing these issues of timing begins with record-keeping—not only understanding how the data is collected, but ensuring that timing information is coordinated and consistent across the entire system.

Instrumentation

Proper analysis requires validating that the data collection systems are collecting useful data (which is to say, data that can be meaningfully correlated with other data), and that they’re collecting data at all. Regularly testing and auditing your collection systems is necessary to differentiate actual attacks from glitches in data collection.

Selection

Problems of selection refer to the impact that choosing the target of a test can have on the entire test. For security analysts, this involves questions of the mission of a system (is it for research? marketing?), the placement of the system on the network (before a DMZ, outward facing, inward facing?), and questions of mobility (desktop? laptop? embedded?).

History

Problems of history refer to events that affect an analysis while that analysis is taking place. For example, if an analyst is studying the impact of spam filtering when, at the same time, a major spam provider is taken down, then she has to consider whether her results are due to the filter or a global effect.

Maturation

Maturation refers to the long-term effects a test has on the test subject. In particular, when dealing with long-running analyses, the analyst has to consider the impact that dynamic allocation has on identity—if you are analyzing data on a DHCP network, you can expect IP addresses to change their relationship to assets when leases expire. Round robin DNS allocation or content distribution networks (CDNs) will result in different relationships between individual HTTP requests.

External Validity

External validity is concerned with the ability to draw general conclusions from the results of an analysis. If a result has strong external validity, then the result is generalizable to broader classes than the sample group. For security analysis, external validity is particularly problematic because we lack a good understanding of general network behavior—a problem that has been ongoing for decades.

The basic mechanism for addressing external validity is to ensure that the data selected is representative of the target population as a whole, and that the treatments are consistent across the set (e.g., if you’re running a study on students, you have to account for income, background, education, etc., and deliver the same test). However, until the science of network traffic advances to develop quality models for describing normal network behavior,² determining whether models represent a realistic sample is infeasible. The best mechanism for accommodating this right now is to rely on additional corpora. There’s a long tradition in computer science of collecting datasets for analyses; while they’re not necessarily representative, they’re better than nothing.

All of this is predicated on the assumption that you need a general result. If the results can be constrained only to one network (e.g., the one you’re watching), then external validity is much less problematic.

Construct Validity

When you conduct an analysis, you develop some formal structure to describe what you’re looking for. That formal structure might be a survey (“Tell me on a scale of 1–10 how messed up your system is”), or it might be a measurement (bytes/second going to http://www.evilland.com). This formal structure, the construct, is how you evaluate your analysis.

Clear and well-defined constructs are critical for communicating the meaning of your results. While this might seem simple, it’s amazing how quickly construct disagreements can turn into significant scientific or business decisions. For example, consider the question of “how big is a botnet?” A network security person might decide that a botnet consists of everything that communicates with a particular command and control (C&C) server. A forensics person may argue that a botnet is characterized by the same malware hash present on different machines. A law enforcement person would say it’s all run by the same crime syndicate.

Statistical Validity

Statistical conclusion validity is about using statistical tools correctly. This will be covered in depth in Chapter 11.

Attacker and Attack Issues

Finally, we have to consider the unique impact of security experimentation. Security experimentation and analysis has a distinct headache in that the subject of our analysis hates us and wants us to fail. To that end, we should consider challenges to the validity of the system that come from the attacker. These include issues of currency, resources and timing, and the detection system:

Currency

When evaluating a defensive system, you should be aware of whether the defense is a reasonable defense against current or foreseeable attacker strategies. There are an enormous number of vulnerabilities in the Common Vulnerability Enumeration (CVE; see Chapter 7), but the majority of exploits in the wild draw from a very small pool of those vulnerabilities. By maintaining a solid awareness of the current threat environment (see Chapter 17), you can focus on the more germane strategies.

Resources and timing

Questions of resources and timing are focused on whether or not a detection system or test can be evaded if the attacker slows down, speeds up, or otherwise splits the attack among multiple hosts. For example, if your defensive system assumes that the attacker communicates with one outside address, what happens if the attacker rotates among a pool of addresses? If your defense assumes that the attacker transfers a file quickly, what happens if the attacker takes his time—hours, or maybe days?

Detection

Finally, questions about the detection system involve asking how an attacker can attack or manipulate your detection system itself. For example, if you are using a training set to calibrate a detector, have you accounted for attacks within the training set? If your system is relying on some kind of trust (IP address, passwords, credential files), what are the implications of that trust being compromised? Can the attacker launch a DDoS attack or otherwise overload your detection system, and what are the implications if he does?

Network Layers and Vantage

Network vantage is best described by considering how traffic travels at three different layers of the OSI model. These layers are across a shared bus or collision domain (layer 1), over network switches (layer 2), or using routing hardware (layer 3). Each layer provides different forms of vantage and mechanisms for implementing the same.

The most basic form of networking is across a collision domain. A collision domain is a shared resource used by one or more networking interfaces to transmit data. Examples of collision domains include a network hub or the channel used by a wireless router. A collision domain is called such because the individual elements can potentially send data at the same time, resulting in a collision; layer 2 protocols include mechanisms to compensate for or prevent collisions.

The net result is that layer 2 datagrams are broadcast across a common source, as seen in Figure 2-2. Network interfaces on the same collision domain all see the same datagrams; they elect to only interpret datagrams that are addressed to them. Network capture tools like tcpdump can be placed in promiscuous mode and will then record all the datagrams observed within the collision domain.

Figure 2-2 shows the vantage across collision domains. As seen in this figure, the initial frame (A to B) is broadcast across the hub, which operates as a shared bus. Every host connected to the hub can receive and react to the frames, but only B should do so. C, a compliant host, ignores and drops the frame. D, a host operating in promiscuous mode, records the frame. The vantage of a hub is consequently all the addresses connected to that hub.

Figure 2-2. Vantage across collision domains

Shared collision domains are inefficient, especially with asynchronous protocols such as Ethernet. Consequently, layer 2 hardware such as Ethernet switches are commonly used to ensure that each host connected to the network has its own dedicated Ethernet port. This is shown in Figure 2-3.

Figure 2-3. Vantage across a switch

A capture tool operating in promiscuous mode will copy every frame that is received at the interface, but the layer 2 switch ensures that the only frames an interface receives are the ones explicitly addressed to it. Consequently, as seen in Figure 2-3, the A to B frame is received by B, while C and D receive nothing.

There is a hardware-based solution to this problem. Most switches implement some form of port mirroring. Port mirroring configurations copy the frames sent between different ports to common mirrored ports in addition to their original destination. Using mirroring, you can configure the switch to send a copy of every frame received by the switch to a common interface. Port mirroring can be an expensive operation, however, and most switches limit the amount of interfaces or VLANs monitored.

Switch vantage is a function of the port and the configuration of the switch. By default, the vantage of any individual port will be exclusively traffic originating from or going to the interface connected to the port. A mirrored port will have the vantage of the ports it is configured to mirror.

Layer 3, when routing becomes a concern, is when vantage becomes messy. Routing is a semiautonomous process that administrators can configure, but is designed to provide some degree of localized automation in order to provide reliability. In addition, routing has performance and reliability features, such as the TTL (described shortly), which can also impact monitoring.

Layer 3 vantage at its simplest operates like layer 2 vantage. Like switches, routers send traffic across specific ports. Routers can be configured with mirroring-like functionality, although the exact terminology differs based on the router manufacturer. The primary difference is that while layer 2 is concerned with individual Ethernet addresses, at layer 3 the interfaces are generally concerned with blocks of IP addresses because the router interfaces are usually connected via switches or hubs to dozens of hosts.

Layer 3 vantage becomes more complex when dealing with multihomed interfaces, such as the example shown in Figure 2-4. Up until this point, all vantages discussed in this book have been symmetric—if instrumenting a point enables you to see traffic from A to B, it also enables you to see traffic from B to A. A multihomed host like a router has multiple interfaces that traffic can enter or exit.

Figure 2-4 shows an example of multiple interfaces and their potential impact on vantage at layer 3. In this example, A and B are communicating with each other: A sends the packet {A→B} to B, B sends the packet {B→A} to A. C and D are monitoring at the routers: the top router is configured so that the shortest path from A to B is through it. The bottom router is configured so that shortest path from B to A is through it. The net effect of this configuration is that the vantages at C and D are asymmetric. C will see traffic from A to B, and D will see traffic from B to A, but neither of them will see both sides of the interaction. While this example is contrived, this kind of configuration can appear due to business relationships and network instabilities. It’s especially problematic when dealing with networks that have multiple interfaces to the internet.

Figure 2-4. Vantage when dealing with multiple interfaces

IP packets have a built-in expiration function: a field called the time-to-live (TTL) value. The TTL is decremented every time a packet crosses a router (not a layer 2 facility like a switch), until the TTL reaches 0 and the packet is dropped. In most cases, the TTL should not be a problem—most modern stacks set the TTL to at least 64, which is considerably longer than the number of hops required to cross the entire internet. However, the TTL is manually modifiable and there exist attacks that can use the TTL for evasion purposes. Table 2-1 lists default TTLs by operating system.¹

Figure 2-5 shows how the TTL operates. Assume that hosts C and D are operating on monitoring ports and the packet is going from A to B. Furthermore, the TTL of the packet is set to 2 initially. The first router receives the packet and passes it to the second router. The second router drops the packet; otherwise, it would decrement the TTL to 0. TTL does not directly impact vantage, but instead introduces an erratic type of blind spot—packets can be seen by one sensor, but not by another several routers later as the TTL decrements.

Figure 2-5. Hopping and router vantage

The net result of this is that the packet is observed by C, never received by B, and possibly (depending on the router configuration) observed at D.

MAC Addresses

A media access control (MAC) address is what the majority of layer 2 protocols, including Ethernet, FDDI, Token Ring, 802.11, Bluetooth, and ATM, use to identify a host. MAC addresses are sometimes called “hardware addresses,” as they are usually assigned as fixed values by hardware manufacturers.

IPv4 Format and Addresses

An IPv4 address is a 32-bit integer value assigned to every routable host, with exceptions made for reserved dynamic address spaces (see Chapter 10 for more information on these addresses). IPv4 addresses are most commonly represented in dotted quad format: four integers between 0 and 255 separated by periods (e.g., 128.1.11.3).

Historically, addresses were grouped into four classes: A, B, C, and D. A class A address (0.0.0.0–127.255.255.255) had the high order (leftmost) bit set to zero, the next 7 assigned to an entity, and the remaining 24 bits under the owner’s control. This gave the owner 2²⁴ addresses to work with. A class B address (128.0.0.0–191.255.255.255) assigned 16 bits to the owner, and class C (192.0.0.0–223.255.255.255) assigned 8 bits. This approach led rapidly to address exhaustion, and in 1993, Classless Inter-Domain Routing (CIDR) was developed to replace the naive class system.

Under the CIDR scheme, users are assigned a netblock via an address and a netmask. The netmask indicates which bits in the address the user can manipulate, and by convention, those bits are set to zero. For example, a user who owns the addresses 192.28.3.0–192.28.3.255 will be given the block 192.28.3.0/24. The suffix /24 here indicates that the high 24 bits are fixed, while the last 8 are open. /24s will contain 256 addresses, /27s 32, /16s 65,536, and so on.

A number of important IPv4 address blocks are reserved for special use. The IANA IPv4 Address Register contains a list of the most important /8s and their ownership. More important for administration and management purposes are the addresses listed in RFC 1918.² The RFC 1918 local addresses define a set of IP addresses for local use, meaning that they can be used for internal networks (such as DHCP or NATed networks) that are not routed to the broader internet.³

IPv6 Format and Addresses

An IPv6 address is a 128-bit integer, solving the IPv4 address exhaustion problem by increasing the space by a factor of about 4 billion. By default, these addresses are described as a set of 16-bit hexadecimal groups separated by colons (e.g., 00AA:2134:0000:0000:A13F:2099:0ABE:FAAF). Given their length, IPv6 addresses use a number of conventions to shorten the representation. In particular:

• Initial zeros are trimmed (e.g., AA:2134:0:0:A13F:2099:ABE:FAAF).

• A sequence of zero-value groups can be replaced by empty colons (e.g., AA:2134:::A13F:2099:ABE:FAAF).

• Multiple colons are reduced to a single pair (e.g., AA:2134::A13F:2099:ABE:FAAF).

As with IPv4, IPv6 blocks are grouped using CIDR notation. The IPv6 CIDR prefixes can be up to the full length of an IPv6 address (i.e., up to /128).

All of these relationships are dynamic, and multiple addresses at one layer can be associated with one address at another layer. As discussed earlier, a single DNS name can be associated with multiple IP addresses through the agency of the DNS service. Similarly, a single MAC address can support multiple IP addresses through the agency of the ARP protocol. This type of dynamism can be used constructively (like for tunneling) and destructively (like for spoofing).

Validity Challenges from Middlebox Network Data

Security analysts evaluating a network’s suitability for traffic analysis must consider not just whether they can see an address, but if they can trust it. Network engineers rely on a variety of tools and techniques to manage traffic, and the tools chosen can also affect vantage in a number of different ways.

We can categorize the general problems these tools introduce by how they impact analytics. In this section, I will discuss these effects and then relate them, in general and kind of loosely, to different common networking tools. Challenges to the validity of network data include threats to identity, causality, aggregation, consistency, and encryption. Table 2-2 shows how these are associated with the technologies we’ll discuss in the following subsections.

These technologies will impact vantage, and consequently analysis, in a number of ways. Before we dig into the technologies themselves, let’s take a look at the different ways analytic results can be challenged by them:

Identity

In some situations, the identity of individuals is not discernible because the information used to identify them has been remapped across boundaries—for example, a network address translator (NAT) changing address X to address Y. Identity problems are a significant challenge to internal validity, as it is difficult to determine whether or not the same individual is using the same address. Addressing identity problems generally requires collecting logs from the appliance implementing the identity mapping.

Causality

Information after the middlebox boundary does not necessarily follow the sequence before the middlebox boundary. This is particularly a problem with caching or load balancing, where multiple redundant requests before the middlebox may be converted into a single request managed by the middlebox. This affects internal validity across the middlebox, as it is difficult to associate activity between the events before and after the boundary. The best solution in most cases is to attempt to collect data before the boundary.

Aggregation

The same identity may be used for multiple individuals simultaneously. Aggregation problems are a particular problem for construct validity, as they affect volume and traffic measurements (for example, one user may account for most of the traffic).

Consistency

The same identity can change over the duration of the investigation. For example, we may see address A do something malicious on Monday, but on Tuesday it’s innocent due to DHCP reallocation. This is a long-term problem for internal validity.

Encryption

When traffic is contained within an encrypted envelope, deep packet inspection and other tools that rely on payload examination will not work.

NAT

NATing (network address translation) converts an IP address behind a NAT into an external IP address/port combination outside the NAT. This results in a single IP address serving the interests of multiple addresses simultaneously. There are a number of different NATing techniques, which vary based on the number of addresses assigned to the NAT, among other things. In this case, we are going to focus on Port Address Translation (PAT), which is the most common form and the one that causes the most significant problems.

NATed systems both shuffle addresses (meaning that there is no realistic relationship between an IP address and a user) and multiplex them (meaning that the same address:port combination will rapidly serve multiple hosts). The latter badly affects any metrics or analyses depending on individual hosts, while the former confuses user identity. For this reason, the most effective solution for NATing is instrumentation behind the NAT.

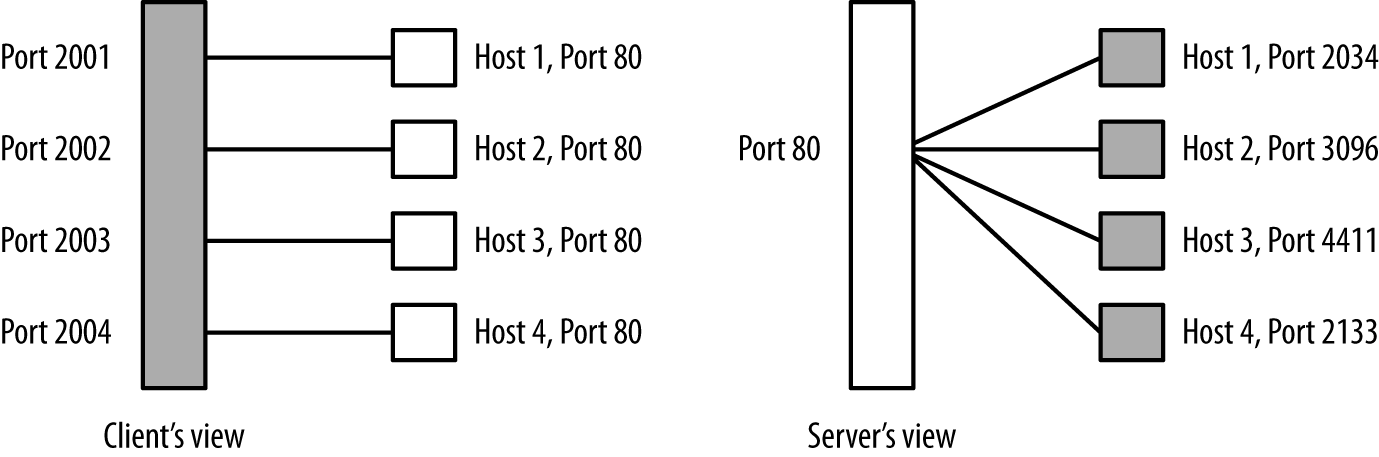

Figure 2-6 shows this multiplexing in action. In this figure, you can see flow data as recorded from two vantage points: before and after translation. As the figure shows, traffic before the NAT has its own distinct IP addresses, while traffic after the NAT has been remapped to the NAT’s address with different port assignments.

Figure 2-6. NATing and proxies

Note that correlating NATing activity across both sides of the NAT requires the NAT itself to log that translation; this is discussed in more depth in Chapter 3.

Rolling Buffers

A rolling buffer is a location in memory where data is dumped cyclically: information is dropped linearly, and when the buffer is filled up, data is dumped at the beginning of the buffer, and the process repeats. Example 3-1 gives an example of using a rolling buffer with tcpdump: in this example, the process writes approximately 128 MB to disk (specified by the -C switch), and then rotates to a new file. After 32 files are filled (specified by the -W switch), the process restarts.

$ tcpdump -i en1 -s 0 -w result -C 128 -W 32

Rolling buffers implement a time horizon on traffic analysis: data is available only as long as it’s in the buffer. For that reason, working with smaller file sizes is recommended, because when you find something aberrant, it needs to be pulled out of the buffers quickly. If you want a more controlled relationship for the total time recorded in a buffer, you can use the -G switch to specify that a file should be dumped at a fixed interval (specified by -G) rather than a fixed size.

Limiting the Data Captured from Each Packet

An alternative to capturing the complete packet is to capture a limited subset of the payload, controlled in tcpdump by the snaplen (-s) argument. Snaplen constrains packets to the frame size specified in the argument. If you specify a frame size of at least 68 bytes, you will record the TCP or UDP headers.¹ That said, this solution is a poor alternative to NetFlow, which is discussed later in this chapter.

Filtering Specific Types of Packets

An alternative to filtering at the switch is to filter after collecting the traffic at the spanning port. With tcpdump and other tools, this can be easily done using BPF. BPF allows an operator to specify arbitrarily complex filters, and consequently the possibilities are fairly extensive. Some useful options are described in this section, along with examples. Figure 3-1 provides a breakdown of the headers for Ethernet frames, IP, UDP, ICMP, and TCP.

As we walk through the major fields, I’ll identify BPF macros that describe and can be used to filter on these fields. On most Unix-style systems, the pcap-filter manpage provides a summary of BPF syntax. Available commands are also summarized in the FreeBSD manpage for BPF.

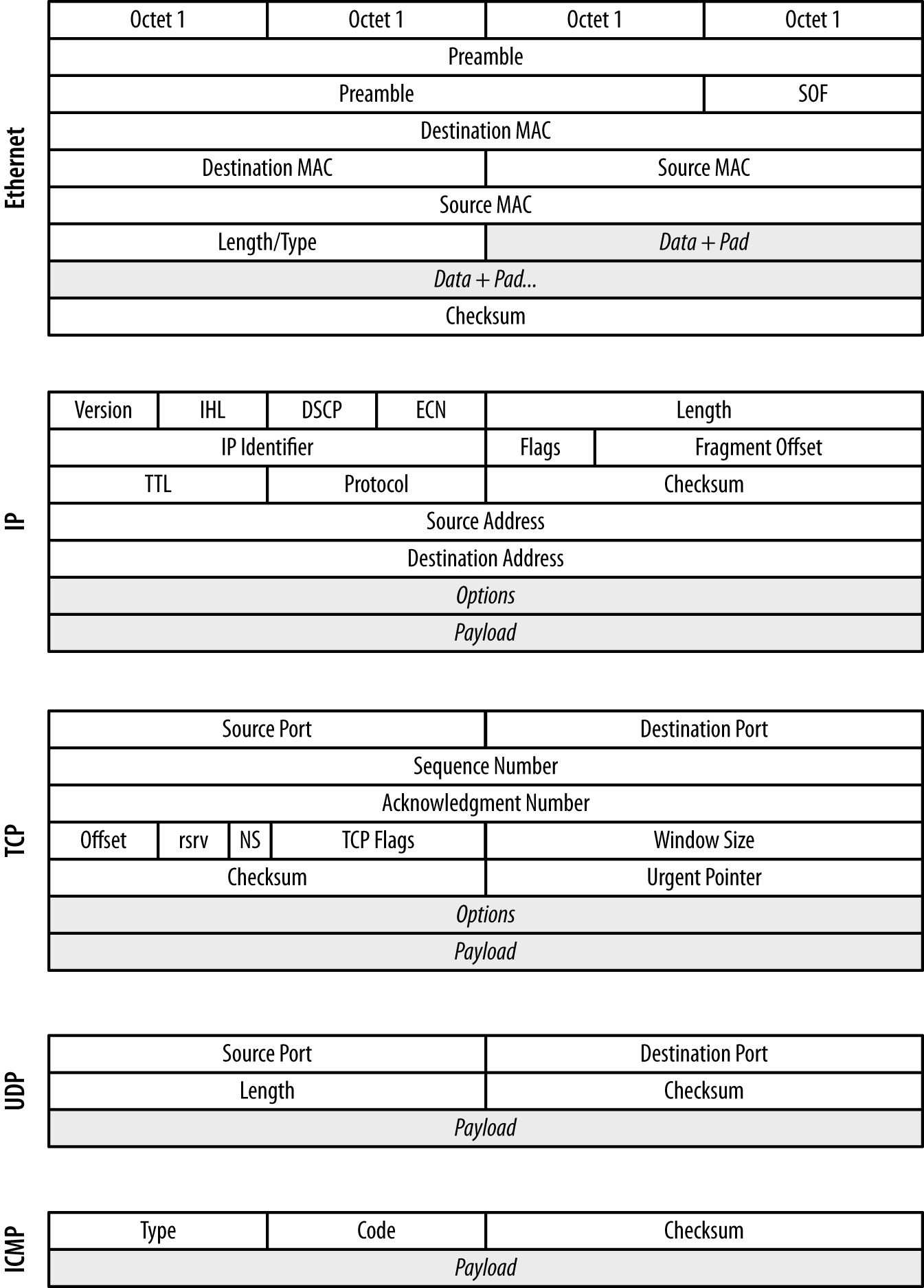

Figure 3-1. Frame and packet formats for Ethernet, IP, TCP, UDP, and ICMP

In an Ethernet frame, the most critical fields are the two MAC addresses: destination MAC and source MAC. These 48-bit fields are used to identify the hardware addresses of the interfaces that sent and will receive the traffic. MAC addresses are restricted to a single collision domain, and will be modified as a packet traverses multiple networks (see Figure 2-5 for an example). MAC addresses are accessed using the ether src and ether dst predicates in BPF.²

Within an IP header, the fields you are usually most interested in are the IP addresses, the length, the TTL, and the protocol. The IP identifier, flags, and fragment offset are used for attacks involving packet reassembly—however, they are also largely a historical artifact from before Ethernet was a nearly universal transport protocol. You can get access to the IP addresses using the src host and dst host predicates, which also allow filtering on netmasks.

To filter on protocols, use the ip proto predicate. BPF also provides a variety of protocol-specific predicates, such as tcp, udp, and icmp. Packet length can be filtered using the less and greater predicates, while filtering on the TTL requires more advanced bit manipulation, which is discussed later.

The following snippet filters out all traffic except that coming within this block (hosts with the netmask /24):

host$ tcpdump -i en1 -s 0 -w result src net 192.168.2.0/24

Example 3-2 demonstrates filtering with tcpdump.

# Filtering out everything but internal traffic
host$ tcpdump -i en1 -s 0 -w result src net 192.168.2.0/24 && dst net \
      192.168.0.0/16
# Filtering out everything but web traffic, identified by port
host$ tcpdump -i en1 -s 0 -w result ((src port 80 || src port 443) && \
      (src net 192.168.2.0))

In TCP, the port number and flags are the most critical for investigation, analysis, and control. TCP flags are used to maintain the TCP state machine, while the port numbers are used to distinguish sessions and for service identification. Port numbers can be filtered using the src port and dst port switches, as well as the src portrange and dst portrange switches, which filter across a range of port values. BPF supports a variety of predicates for TCP flags, including tcp-fin, tcp-syn, tcp-rst, tcp-push, tcp-ack, and tcp-urg.

As with TCP, the UDP port numbers are the most important information for analyzing and controlling the traffic. They are accessible using the same port and portrange switches as TCP.

Because ICMP is the internet’s error message–passing protocol, ICMP messages tend to contain extremely rich data. The ICMP type and code are the most useful for analysis because they define the syntax for whatever payload (if any) follows. BPF provides a variety of type- and code-specific filters, including icmp-echoreply, icmp-unreach, icmp-tstamp, and icmp-redirect.

What If It’s Not Ethernet?

For the sake of brevity, this book focuses exclusively on IP over Ethernet, but you may well encounter a number of other transport and data protocols. The majority of these protocols are highly specialized and may require additional capture software besides the tools built on libpcap. A few of the more common ones are:

ATM

Asynchronous Transfer Mode, the great IP slayer of the ’90s. ATM is now largely used for ISDN and PSTN transport, and some legacy installations.

Fibre Channel

Primarily used for high-speed storage, Fibre Channel is the backbone for a variety of SAN implementations.

CAN

Controller area network. Primarily associated with embedded systems such as vehicular networks, CAN is a bus protocol used to send messages in small isolated networks.

These protocols are scratching the surface. In particular, if you’re dealing with industrial control systems, you can expect to find a maze of proprietary protocols. When dealing with industrial systems, find their manuals first—it’s likely to be the only way you can do anything akin to packet capture.

Any form of filtering imposes performance costs. Implementing a spanning port on a switch or a router sacrifices performance that the switch or router could be using for traffic. The more complicated a filter is, the more overhead is added by the filtering software. At nontrivial bandwidths, this will be a problem.

NetFlow v5 Formats and Fields

NetFlow v5 is the earliest common NetFlow standard, and it’s worth covering the values in its fields before discussing alternatives. NetFlow v5’s fields (listed in Table 3-1) fall into three broad categories: fields copied straight from IP packets, fields summarizing the results of IP packets, and fields related to routing.

The srcaddr, dstaddr, srcport, dstport, prot, and tos fields of a NetFlow record are copied directly from the corresponding fields in IP packets. Flows are generated for every protocol in the IP suite, however, and that means that the srcport and dstport fields, which strictly speaking are TCP/UDP phenomena, don’t necessarily always mean something. In the case of ICMP, NetFlow records the type and code in the dstport field. In the case of other protocols, the value is meaningless; depending on the collection system you may end up with a previously allocated value, zeros, or other data.

The packets, dOctets, first, last, and tcp_flags fields all summarize traffic from one or more packets. packets and dOctets are simple totals, with the caveat that the dOctets value is the layer 3 total of octets, meaning that IP and protocol headers are added in (e.g., a one-packet TCP flow with no payload will be recorded as 40 bytes, and a one-packet UDP flow with no payload as 28 bytes). The first and last values are, respectively, the first and last times observed for a packet in the flow.

tcp_flags is a special case. In NetFlow v5, the tcp_flags field consists of an OR of all the flags that appear in the flow. In well-formed flows, this means that the SYN, FIN, and ACK flags will always be high for any valid TCP session.

The final set of fields—nexthop, input, output, src_as, dst_as, src_mask, and dst_mask—are all routing-related. These values can be collected only at a router.

NetFlow Generation and Collection

NetFlow records are generated directly by networking hardware appliances (e.g., a router or a switch), or by using software to convert packets into flows. Each approach has different trade-offs.

Appliance-based generation means using whatever NetFlow facility is offered by the hardware manufacturer. Different manufacturers use similar-sounding but different names than Cisco, such as JFlow by Juniper Networks and NetStream by Huawei. Because NetFlow is offered by so many different manufacturers with a variety of different rules, it’s impossible to provide a technical discussion about the necessary configurations in the space provided by this book. However, the following rules of thumb are worth noting:

• NetFlow generation can cause performance problems on routers, especially older models. Different companies address this problem in different ways, ranging from reducing the priority of the process (and dropping records) to offloading the NetFlow generation task to optional (and expensive) hardware.

• Most NetFlow configurations default to some form of sampling in order to reduce the performance load. For security analysis, NetFlow should be configured to provide unsampled records.

• Many NetFlow configurations offer a number of aggregation and reporting formats. You should collect raw NetFlow, not aggregations.

The alternative to router-based collection is to use an application that generates NetFlow from pcap data, such as CERT’s Yet Another Flowmeter (YAF) tool, softflowd, or the extensive flow monitoring tools provided by QoSient’s Argus tool. These applications take pcap as files or directly off a network interface and aggregate the packets as flows. These sensors lack a router’s vantage, but are able to devote more processing resources to analyzing the packets and can produce richer NetFlow output, incorporating features such as deep packet inspection.

Classifying IDSs

We can divide IDSs along two primary axes: the IDS domain, and the decision-making process. On the first axis, IDSs are broken into network-based IDSs (NIDSs) and host-based IDS (HIDSs). On the second axis, IDSs are split between signature-based systems and anomaly-based systems. Relating these terms back to our earlier taxonomy, NIDSs operate in the network domain, HIDSs in the host domain. The classic IDS is an event sensor; there are controller systems, IPSs, which will control traffic in response to aberrant phenomena. This section focuses on NIDSs—network-domain event-action sensors.

A NIDS is effectively any IDS that begins with pcap data. For open source IDSs, this includes systems such as Snort, Bro, and Suricata. NIDSs operate under the constraints discussed for network sensors in Chapter 2, such as the need to receive traffic through port mirroring or direct connection to the network and an inability to read encrypted traffic.

For the purposes of simplicity, in this section we will treat all IDSs as signature-based. A signature-based system uses a set of rules that are derived independently from the target in order to identify malicious behavior.

IDS as Classifier

All IDS are applied exercises in classification, a standard problem in AI and statistics. A classifier is a process that takes in input data and classifies the data into one of at least two categories. In the case of IDS, the categories are usually “attack” and “normal.”

Signature and anomaly-based IDSs view attacks in fundamentally different ways, and this impacts the types of errors they make. A signature-based IDS is calibrated to look for specific weird behaviors such as malware signatures or unusual login attempts. Anomaly-based IDSs are trained on normal behavior and then look for anything that steps outside the norm. Signature-based IDSs have high false negative rates, meaning that they miss a lot of attacks. Anomaly-based IDSs have high false positive rates, which means that they consider a lot of perfectly normal activity to be an attack.

IDSs are generally binary classifiers, meaning that they break data into two categories. Binary classifiers have two failure modes:

False positives

Also called a Type I error, this occurs when something that doesn’t have the property you’re searching for is classified as having the property—for instance, when email from the president of your company informing you about a promotion is classified as spam.

False negatives

Also called a Type II error, this occurs when something that has the property you’re searching for is classified as not having the property. This happens, for instance, when spam mail appears in your inbox.

Sensitivity refers to the percentage of positive classifications that are correct, and specificity refers to the percentage of negative classifications that are correct. A perfect detection has perfect sensitivity and specificity. In the worst case, neither rate is above 50%: the same as flipping a coin.

Most systems require some degree of trade-off; generally, increasing the sensitivity means also accepting a lower specificity. A reduction in false negatives will be accompanied by an increase in false positives, and vice versa.

To describe this trade-off, we can use a visualization called a receiver operating characteristic (ROC) curve (discussed in more depth in Chapter 11). A ROC curve plots the specificity against the false positive rates, using a third characteristic (the operating characteristic) as a control. Figure 3-2 shows an example of a ROC curve.

In this case, the operating characteristic is the number of packets in a session and is shown on the horizontal lines in the plot. At this site, HTTP traffic (falling at the very left edge) has a good ratio of true to false positives, whereas SMTP is harder to classify correctly, and FTP even harder.

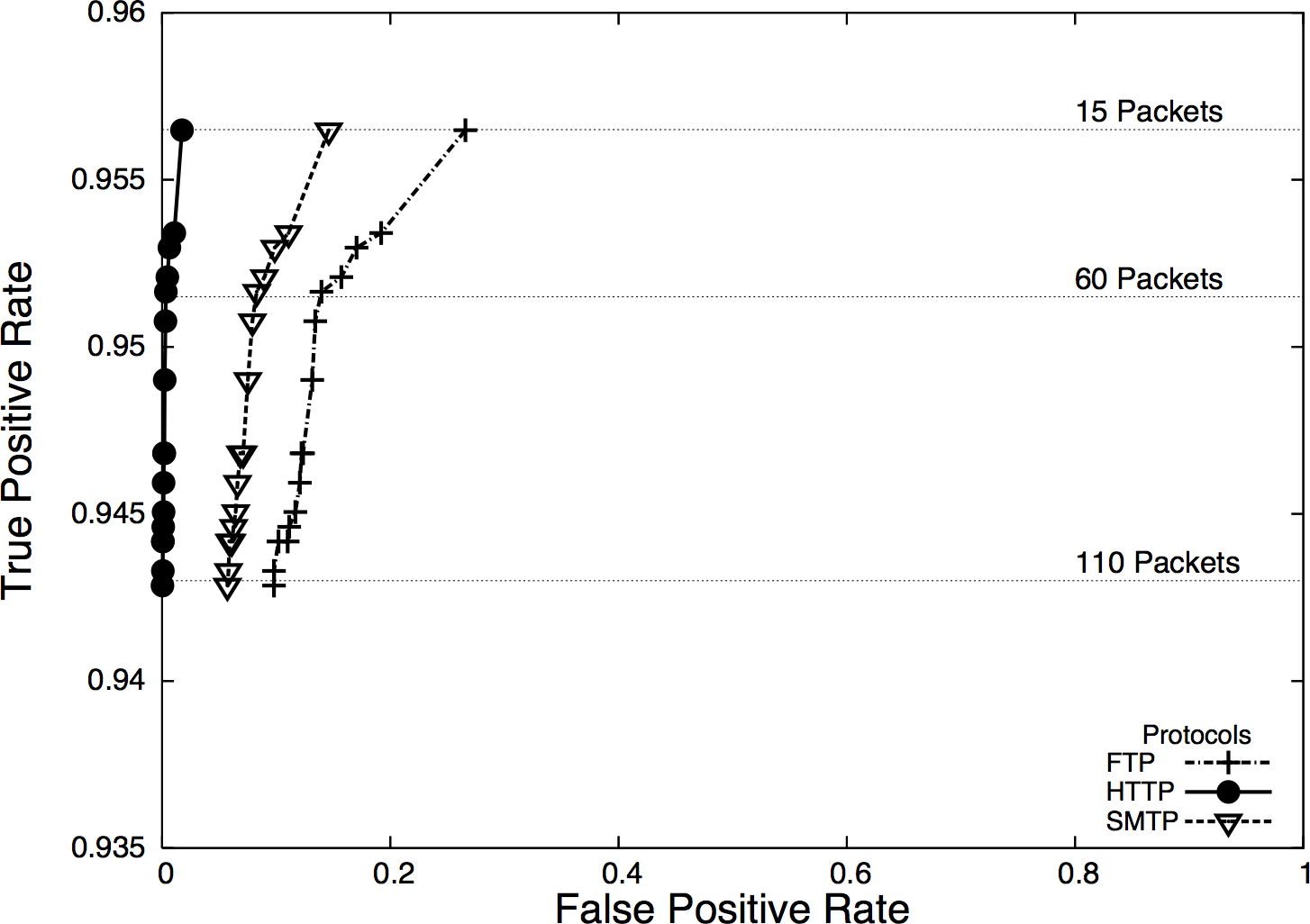

Figure 3-2. ROC curve showing packet size of messages sent for BitTorrent detection

Now, let’s ask a question. Suppose we have an ROC curve and we calibrate a detector so it has a 99% true positive rate and a 1% false positive rate. We receive an alert. What is the probability that the alert is a true positive? It isn’t 99%; the true positive rate is the probability that if an attack took place, the IDS would raise an alarm.

Let’s define a test as the process that an IDS uses to make a judgment call about data. For example, a test might consist of collecting 30 seconds’ worth of network traffic and comparing it against a predicted volume, or examining the first two packets of a session for a suspicious string.

Now assume that the probability of an actual attack taking place during a test is 0.01%. This means that out of every 10,000 tests the IDS conducts, one of them will be an attack. So out of every 10,000 tests, we raise one alarm due to an attack—after all, we have a 99% true positive rate. However, the false positive rate is 1%, which means that 1% of the tests raise an alarm even though nothing happened. This means that for 10,000 tests, we can expect roughly 101 alarms: 100 false positives and 1 true positive, meaning that the probability that an alarm is raised because of an attack is 1/101 or slightly less than 1%.

This base-rate fallacy explains why doctors don’t run every test on every patient. When the probability of an actual attack is remote, the false positives will easily overwhelm the true positives. This problem is exacerbated because nobody in their right mind trusts an IDS to do the job alone.

Consider the data flow in Figure 3-3, which is a simple representation of how an IDS is normally used in defense.

Figure 3-3. Simple detection workflow

Figure 3-3 breaks alert processing into three steps: IDS receives data, raises an alert, and that alert is then passed to analysts either directly or through a security information and event manager (SIEM) console.

Once an IDS generates an alert, that alert must be forwarded to an analyst for further action. Analysts begin by examining it and figuring out what it means. This may be a relatively simple process, but often it becomes wider-ranging and may involve a number of queries. Simple queries will include looking at the geolocation, ownership, and past history of the address the attack originates from (see Chapter 10), by examining the payload of the event using tcpdump or Wireshark. With more complex attacks, analysts will have to reach out to Google, news, blogs, and message boards to identify similar attacks or real-world events precipitating the attack.

With the exception of IPSs, which work on very crude and obvious attacks (such as DDoS attacks), there is always an interim analytical step between alert and action. At this point, analysts have to determine if the alert is a threat, if the threat is relevant to them, and whether or not there’s anything they can do about it. This is a nontrivial problem. Consider the following scenarios:

• The IDS reports that an attacker is exploiting a particular Internet Information Services (IIS) vulnerability. Are there any IIS servers on the network? Have they been patched so they’re not subject to the exploit? Is there evidence from other sources that the attacker succeeded?

• The IDS reports that an attacker is scanning the network. Can we stop the scan? Should we bother given that there are another hundred scans going on right now?

• The IDS reports that a host is systematically picking through a web server and copying every file. Is the host a Google spider, and would stopping it mean that our company’s primary website would no longer be visible on Google?

Note that these are not actually failures on the part of detection. The first two scenarios represent actual potential threats, but those threats may not matter, and that decision can only be made through a combination of context and policy decisions.

Verifying alerts takes time. An analyst might be able to seriously process approximately one alert an hour, and complex events will take days to investigate. Consider how that time is spent given the false positive rates discussed earlier.

Enhancing IDS Detection

Improving an IDS as a classifier involves reducing the false positive and false negative rates. This is generally best done by reducing the scope of the traffic the IDS examines. In the same way that a doctor doesn’t run a test until he has a symptom to work with, we try to run the IDS only when we have an initial suspicion that something odd is going on. A number of different mechanisms are available based on whether you’re using a signature- or an anomaly-based IDS.

One mechanism common to both signature- and anomaly-based IDSs is using inventory to create whitelists. Pure whitelists, meaning that you implicitly trust all traffic from a host, are always a risk. I don’t recommend simply whitelisting a host and never checking it. A better approach, and one that is going to appear in various forms throughout this discussion, is to use whitelisting as a guide for less or more extensive instrumentation.

For example, I create an inventory of all the web servers on my network. A host that is not a web server is suspicious if I see it serving HTTP traffic. In that case, I want to capture a representative cut of traffic and figure out why it’s now a web server. At the same time, for actual web servers, I will use my standard signatures.

In signature-based IDSs, the signature base can usually be refined so that the rule triggers only for specific protocols or in tandem with other indicators. For example, a rule to detect the payload string “herbal supplement” on port 25 will track spam emails with that title, but also internal mail containing comments such as “we’re getting a lot of herbal supplement spam lately.” Reducing the false positive rate in this case involves adding more constraints to the match, such as tracking only mail from outside the network (filtering on addresses). By refining the rule to use more selective expressions, an operator can reduce the false positive rate.

Configuring Snort

For a Snort system, these signatures are literally handcrafted and user-maintained rules. For example:

    alert tcp 192.4.1.0/24 any -> $HOME_NET 80 (flow:to_server,established; \
        content:"admin";)

This alert is raised when traffic from a suspicious network (192.4.1.0/24) attempts to contact any host on the internal network and tries to connect using an admin account. Ruleset creation and management is a significant issue for signature-based IDSs, and well-crafted rules are often the secret sauce that differentiates various commercial packages.

A signature-based IDS will only raise alerts when it has a rule specifying to do so. This limitation means that signature-based IDSs usually have a high false negative rate, meaning that a large number of attacks go unreported by them. The most extreme version of this problem is associated with vulnerabilities. AV systems primarily, but also NIDSs and HIDSs, rely on specific binary signatures in order to identify malware (see “On Code Red and Malware Evasiveness” for a more extensive discussion on this). These signatures require that some expert have access to an exploit; these days, exploits are commonly “zero-day,” meaning that they’re released and in the wild before anyone has the opportunity to write a signature. Good IDS signature development will focus on the vulnerability rather than the exploit—a signature that depends on a transient feature of the exploit will quickly become obsolete.⁶

As an example, consider the following (oversimplified for clarity) rule to determine whether or not someone is logging on as root to an SSH server:

alert tcp any any -> any 22 (flow:to_server, established;)

A Snort rule consists of two logical sections: the header and the options. The header consists of the rule’s action and addressing information (protocol, source address, source port, destination address, destination port). Options consist of a number of specific keywords separated by semicolons.

In the example rule, the action is alert, indicating that Snort generates an alert and logs the packet. Alternative actions include log (log the packet without alerting), pass (ignore the packet), and drop (block the packet). Following the action is a string naming the protocol: tcp in this case, with udp, icmp, and ip being other options. The action is followed by source-to-destination information separated by the arrow (->) digraph. Source information can be expressed as an address (e.g., 128.1.11.3), a netblock (118.2.0.0/16) as in the example, or any to indicate all addresses. Snort can also define various collections of addresses with macros (e.g., $HOME_NET to indicate the home network for an IDS). You can use these macros to define inventories of hosts within the network, and use that information for more finely tuned whitelisting or blacklisting.

This rule raises an alert when anyone successfully connects to an SSH server, which is far too vague. In order to refine the rule, we have to add additional constraints. For example, we can constrain it to only raise an alert if the traffic comes from a specific network, and if someone tries to log on specifically as root:

alert tcp 118.2.0.0/16 any -> any 21
    (flow:to_server,established; \ content:"root";
    pcre:"/user\s_root/i";)

Following the addressing information are one or more rule options. Options can be used to refine a rule, fine-tuning the information the rule looks for in order to reduce the false positive rate. Options can also be used to add additional information to an alert, to trigger another rule, or to complete a variety of other actions.

Snort defines well over 70 options for various forms of analysis. A brief survey of the more useful rules:

content

content is Snort’s bread-and-butter pattern matching rule; it does an exact match of the data passed in the content option against the packet payload. content can use binary and text data, enclosing the binary data in pipes. For example, content:|05 11|H|02 23| matches the byte with contents 5, then 11, then the letter H, then the byte 2, then the byte 23. A number of other options directly impact content, such as depth (specifying where in the payload to stop searching) and offset (specifying where in the payload to start searching).

HTTP options

A number of HTTP options (http_client_body, http_cookie, http_header) will extract the relevant information from an HTTP packet for analysis by content.

pcre

The pcre option uses a PCRE (Perl-Compatible Regular Expressions) regular expression to match against a packet. Regular expressions are expensive; make sure to use content to prefilter traffic and skip applying the regular expression against every packet.

flags

This checks to see whether or not specific TCP flags are present.

flow

The flow keyword specifies the direction traffic is flowing in, such as from a client, to a client, from a server, or to a server. The flow keyword also describes certain characteristics of the session, such as whether or not it was actually established.

Snort’s rule language is used by several other IDSs, notably Suricata. Other systems may differentiate themselves with additional options (for example, Suricata has an iprep option for looking at IP address reputation).

Unlike signature-based systems, where you can’t really go wrong by discussing Snort rules, anomaly-detection systems are more likely to be built by hand. Consequently, when discussing how to make an anomaly detector more effective, we have to operate at a more basic level. Throughout Part III, we discuss a number of different numerical and behavioral techniques for implementing anomaly-detection systems, as well as cases for false positives. However, this is an appropriate place to discuss general criteria for building good anomaly-detection systems.

In their simplest forms, anomaly-detection systems raise alarms via thresholds. For example, I might decide to build anomaly detection for a file server by counting the number of bytes downloaded from the server every minute. I can do so using rwfilter to filter the data and rwcount to count it over time. I can then use R to generate a histogram showing the probability that the value is above x. The nice thing about histograms and statistical anomaly detection is that I control this nominal false positive rate. A test every minute and a 95% threshold before raising alarms means that I create three alarms an hour; a 99% threshold means one alarm every two hours.

The problem lies in picking a threshold that is actually useful. For example, if an attacker is aware that I’ll raise an alarm if he’s too busy, he can reduce his activity below the threshold. This type of evasiveness is really the same kind we saw with Code Red in “On Code Red and Malware Evasiveness”. The attacker in that case could change the contents of the buffer without impacting the worm’s performance. When you identify phenomena for anomaly detection, you should keep in mind how it impacts the attacker’s goals; detection is simply the first step.

I have four of rules of thumb I apply when evaluating phenomena for an anomaly-detection system: predictability, manageable false positives, disruptibility, and impact on attacker behavior.

Predictability is the most basic quality to look for in a phenomenon. A predictable phenomenon is one whose value effectively converges over time. “Convergence” is something that I have to be a bit hand-wavy about. You may find that 9 days out of 10, a threshold is x, and then on the tenth day it rises to 10x because of some unexplained weirdness. Expect unexplained weirdness; if you can identify and describe outliers behaviorally and whatever remains has an upper limit you can express, then you’ve got something predictable. False positives will happen during investigation, and true positives will happen during training!

The second rule is manageable false positives. Look at a week of traffic for any publicly available host and you will see something weird happen. Can you explain this weirdness? Is it the same address over and over again? Is it a common service, such as a crawler visiting a web server? During the initial training process for any anomaly detector, you should log how much time you spend identifying and explaining outliers, and whether you can manage those outliers through whitelisting or other behavioral filters. The less you have to explain, the lower a burden you impose on busy operational analysts.

A disruptible phenomenon is one that the attacker must affect in order to achieve his goals. The simpler, the better. For example, to download traffic from a web server, the attacker must contact the web server. He may not need to do so from the same address, and he may not need authentication, but he needs to pull down data.

Finally, there’s the impact of a phenomenon on attacker behavior. The best alarms are the ones that the attacker has to trigger. Over time, if a detector impacts an attacker, the attacker will learn to evade or confuse it. We see this in antispam efforts and the various tools used to trick Bayesian filtering, and we see it consistently in insider threats. When considering an alarm, consider how the attacker can evade it, such as:

By moving slower

Can an attacker impact the alarm if she reduces her activity? If so, what’s the impact on the attacker’s goal? If a scanner slows her probes, how long does it take to scan your network? If a file leech copies your site, how long does it take to copy the whole site?

By moving faster

Can an attacker confuse the system if he moves faster? If he risks detection, can he move faster than your capability to block him by moving as fast as possible?

By distributing the attack

If an attacker works from multiple IP addresses, can the individual addresses slip under the threshold?

By alternating behaviors

Can an attacker swap between suspicious and innocent behavior, and confuse the IDS that way?

Many of the techniques discussed previously imply a degree of heterogeneity in your detection system. For example, anomaly-detection systems might have to be configured individually for different hosts. I have found it useful to push that idea toward a subscription model, where analysts choose which hosts to monitor, decide on the thresholds, and provide whitelisting and blacklisting facilities for every host they decide to monitor. Subscriptions ensure that the analyst can treat each host individually, and eventually build up an intuition for normal behavior on that host (for example, knowing that traffic to the payroll server goes bonkers every two weeks).

The subscription model acknowledges that you can’t monitor everything, and consequently the next question about any subscription-based approach is precisely what to monitor. Chapter 15 and Chapter 19 discuss this issue in more depth.

Enhancing IDS Response

IDSs, particularly NIDSs, were conceived of as real-time detection systems—the assumption was that there would be enough of a gap between the time the attack began and the final exploit that, armed with the IDS alerts, the defenders could stop the attack before it caused significant damage. This concept was developed in a time when attackers might use two computers, when attacks were handcrafted by experts, and when malware was far more primitive. Now, IDSs are too often a recipe for annoyance. It’s not simply a case of misclassified attacks; it’s a case of attackers attacking hosts that aren’t there in the hopes that they’ll find something to take over.

At some point, you will make an IDS as effective a detector as you can, and you’ll still get false positives because there are normal behaviors that look like attacks—and the only way you’ll figure this out is by investigating them. Once you reach that point, you’re left with the alerting problem: IDSs generate simple alerts in real time, and analysts have to puzzle them out. Reducing the workload on analysts means aggregating, grouping, and manipulating alerts so that the process of verification and response is faster and conducted more effectively.

When considering how to manipulate an alert, first ask what the response to that alert will be. Most Computer Security Incident Response Teams (CSIRTs) have a limited set of actions they can take in response to an alert, such as modifying a firewall or IPS rules, removing a host from the network for further analysis, or issuing policy changes. These responses rarely take place in real time, and it’s not uncommon for certain attacks to not merit any response at all. The classic example of the latter case is scanning: it’s omnipresent, it’s almost impossible to block, and there’s very little chance of catching the culprit.

If a real-time response isn’t necessary, it’s often useful to roll up alerts, particularly by attacker IP address or exploit type. It’s not uncommon for IDSs to generate multiple alerts for the same attacker. These behaviors, which are not apparent with single real-time alerts, become more obvious when the behavior is aggregated.

Prefetching Data

After receiving an alert, analysts have to validate and examine the information around the alert. This usually involves tasks such as determining the country of origin, the targets, and any past activity by this address. Prefetching this information helps enormously to reduce the burden on analysts.

In particular with anomaly-detection systems, it helps to present options. As we’ve discussed, anomaly detections are often threshold-based, raising an alert after a phenomenon exceeds a threshold. Instead of simply presenting an aberrant event, configure the reporting system to return an ordered list of the most aberrant events at a fixed interval, and explanations for why these events are the most concerning.

Providing summary data in visualizations such as time series plots helps reduce the cognitive burden on the analyst. Instead of just producing a straight text dump of query information, generate relevant plots. Chapter 11 discusses this issue in more depth.

Most importantly, consider monitoring assets rather than simply monitoring attacks. Most detection systems are focused on attacker behavior, such as raising an alert when a specific attack signature is detected. Instead of focusing on attacker behavior, assign your analysts specific hosts on the network to watch and analyze the traffic to and from those assets for anomalies. Lower-priority targets should be protected using more restrictive techniques, such as aggressive firewalls. With hypervisors and virtualization, it’s worth creating low-priority assets entirely virtually from fixed images, then destroying and reinstantiating them on a regular basis to limit the time any attacker can control those assets.

Assigning analysts to assets rather than simply having them react to alerts has another advantage: analysts can develop expertise about the systems they’re watching. False positives often a rise out of common processes that aren’t easily described to the IDS, such as a rise in activity to file servers because a project is reaching crunch time, regular requests to payroll, or a service that’s popular with a specific demographic. Expertise reduces the time analysts need to sift through data, and helps them throw out the trivia to focus on more significant threats.

VPN Logs

Always get the VPN logs. VPN traffic is incomprehensible without the VPN logs—it is encrypted, and the traffic is processed at concentrators, before reaching its actual destination. The VPN logs should, at the minimum, provide you with the identity, credentials, and a local mapping of IP addresses after the concentrator.

VPN logs are session-oriented, and usually multiline behemoths containing multiple interstitial events. Developing a log shim to summarize the events (see Chapter 4) will cut down on the pain. When looking at VPN logs, check for the following data:

Credentials

VPNs are authenticated, so check to see the identities that are being used. Linking this information with user identity and geolocation are handy anomaly-detection tricks.

Logon and logoff times

Check when the sessions initiate and end. Enterprise users, in particular, are likely to have predictable session times (such as the workday).

External IP address

The external IP address, in particular its geolocation, is a useful anomaly hook.

Assigned internal IP address

Keeping track of the address the VPN assigns is critical for cross-correlation.⁸

Proxy Logs

Proxies are application-specific, replace the server address with their own, and often contain caching or other load balancing hacks that will result in causality problems. After VPNs, keeping track of proxies and collecting their logs is the next best bang for the buck.

In addition to the need to acquire proxy logs because proxies mess with traffic so creatively, proxy logs are generally very informative. Because proxies are application-specific, the log data may contain service information—HTTP proxy logs will usually include the URL and domain name of the request.

While proxy log data will vary by the type of proxy, it’s generally safe to assume you are working with event-driven service log data. Squid, for example, can be configured to produce Common Log Format (CLF) log messages (see “HTTP: CLF and ELF” for more information on this).

NAT Logs

You can partially manage NATing validity by placing a sensor between the clients and the NAT. This will provide the internal addresses, and the external addresses should remain the same. That said, you will not be able to coordinate the communications between internal and external addresses—theoretically you should be able to map by looking at port numbers, but NATs are usually sitting in front of clients talking to servers. The end result is that the server address/port combinations are static and you will end up with multiple flows moving to the same servers. So, expect that in either case you will want the NAT logs.

Whether NAT logging is available is largely a question of the type of device performing the NATing. Enterprise routers such as Cisco and Juniper boxes provide flow log formats for reporting NAT events. These will be IPFIX messages with the NAT address contained as an additional field.⁹ Cheaper embedded routers, such as ones for home networks, are less likely to include this capability.

As for the data to consider, make sure to record both the IP addresses and the ports: source IP, source port, destination IP, destination port, NAT IP, NAT port.

The Characteristics of a Good Log Message

Before discussing how to convert a log message, and before complaining about how bad most log messages are, it behooves us to describe what a good security message should look like. A good security log should be descriptive, it should be relatable to other data, and it should be complete.

A descriptive message is one that contains enough information for an analyst to identify all necessary accessible resources for the event described by the message. For example, if a host log records that a user attempted to illegally access a file, it should contain the user’s ID and the file accessed. A host log recording a change in group permissions for a user needs to record the user and the group. A log recording a failed remote login attempt should include the ID that attempted the login and the address that attempted the login.

For example, consider a log message about a failed login attempt on host 192.168.2.2, local name myhost. A nondescriptive message would look like this:

Mar 29 11:22:45.221 myhost sshd[213]: Failed login attempt

This message doesn’t tell me anything about why the failure occurred and doesn’t provide any information to differentiate between this and any other failed login attempts. I have no information on the target of the attack; is it against the admin account or some user? Analysts with only this information will have to reconstruct the attempt solely from timing data, and they can’t even be sure what host was contacted because the name of the host is nondescriptive and there is no addressing information.

A more descriptive message would look like this:

Mar 29 11:22:45.221 myhost (192.168.2.2) sshd[213]: Failed
    login attempt from host 192.168.3.1 as 'admin',
    incorrect password

A good mental exercise for building a descriptive message is to fall back to the “five Ws and one H” approach from investigation and journalism: who, what, when, where, why, and how. The nondescriptive log message provides the what (failed login) and when, and a partial answer to where (myhost). The descriptive log message provides the who (192.168.3.1 as admin), why, and how (incorrect password), and a better where.

A relatable message is one where the event is easily related to information from other sources. For host-based events this requires IP address and timing information, including whether an event was remote or physically local, the IP address and port of the event if it was remote, and the IP address and port of the host. Relatability is a particular headache when dealing with service logs, as these types of logs often introduce additional addressing schemes on top of IP. For example, here’s an unrelatable mail log message:

Mar 29 11:22:45.221 myhost (192.168.2.2) myspamapp[213]:
    Message <21394.283845@spam.com> title 'Herbal Remedies and Tiny Cars'
    from 'spammer@spam.com' rejected due to unsolicited commercial content

The message has a lot of information, but there’s no way to relate the message sent back to the particular IP address that sent the message. When looking at log messages, consider how you will relate this information to other sources, particularly network traffic. A more relatable message would be as follows:

Mar 29 11:22:45.221 myhost (192.168.2.2) myspamapp[213]:
    Message <21394.283845@spam.com> title 'Herbal Remedies and Tiny Cars'
    from 'spammer@spam.com' at SMTP host 192.168.3.1:2034 rejected due
    to unsolicited commercial content

This example includes client port and addressing information, so we can now relate it to network traffic.

A complete log message is one that contains all the information about a particular event within that single log message. Completeness reduces the number of records an analyst has to search through and provides the analyst with a clear indicator that there is no further information to acquire from this process. Incomplete messages are usually a function of complicated process. For example, an antispam tool might run several different filters on a message, with each filter and the final decision being a separate log line:

Mar 29 11:22:45.221 myhost (192.168.2.2) myspamapp[213]:
    Received Message <21394.283845@spam.com> title
    'Herbal Remedies and Tiny Cars' from 'spammer@spam.com' at
    SMTP host 192.168.3.1:2034
Mar 29 11:22:45.321 myhost (192.168.2.2) myspamapp[213]:
    Message <21394.283845@spam.com> passed reputation filter
Mar 29 11:22:45.421 myhost (192.168.2.2) myspamapp[213]:
    Message <21394.283845@spam.com> FAILED Bayesian filter
Mar 29 11:22:45.521 myhost (192.168.2.2) myspamapp[213]:
    Message <21394.283845@spam.com> Dropped

With incomplete messages, you have to track state across multiple messages, each of which gives a snippet of information and which you’re going to have to group together to do any useful analysis. Consequently, I prefer the message to be aggregated at the start, like this:

Mar 29 11:22:45.521 myhost (192.168.2.2) myspamapp[213]:
    Received Message <21394.283845@spam.com> title
    'Herbal Remedies and Tiny Cars' from 'spammer@spam.com' at
    SMTP host 192.168.3.1:2034 reputation=pass Bayesian=FAIL decision=DROP

Log messages are often only minimally modifiable directly. Instead, to build an effective message you might have to write some kind of logging shim. For example, if the log system outputs syslog messages, you can receive and parse those messages, convert them to a friendlier format, and then forward them on. When considering converting logfiles, in addition to the rules just mentioned, consider the following:

Convert time to epoch time

Almost all record correlation involves identifying the same phenomenon from different sensors, meaning that you need to look for records that are close in time. Converting all time values to epoch time reduces parsing complexity, throws out the nightmare of time zones and daylight saving time, and ensures a consistent treatment for a consistent value.

Make sure sensors are synchronized

A corollary to the first note, make sure that when sensors report the same event, they are reporting the same time. Trying to correct for this after the fact is terribly difficult, so make sure that all the sensors are coordinated, that they all report the same time, and that the clocks are corrected and resynchronized regularly.

Include addressing information

Wherever possible, include the flow five-tuple (source IP, destination IP, source port, destination port, protocol). If some of the values can be inferred from the record (e.g., HTTP servers are running TCP), they can be dropped.

Ensure that delimiters are understood by the logger

On several occasions, I have encountered helpful administrators reconfiguring HTTP logs to use pipes rather than spaces as delimiters. A worthy sentiment, except when the logging module doesn’t know to escape the pipe when it occurs in text. If the logger can change its delimiter and understands that the change requires escaping the character, let the logger do it.

Use error codes rather than text if possible

Text doesn’t scale well—it’s bulky, difficult to parse, and often repetitive. Logging systems that generate template messages can also include an error code of some kind as a compact representation of the message. Use this rather than text to save space.

Existing Logfiles and How to Manipulate Them

We can break logfiles into three major categories: columnar, templated, or stateful. Columnar logs record records in discrete columns that are distinguishable by delimiters or fixed text width. Templated logfiles look like English text, but the text comes from a set of document templates and is enumerable. Stateful logfiles use multiple text records to describe a single event.

Columnar data, such as NCSA HTTPd’s CLF format, records one message per event. This message is a summary of the entire event, and consists of a fixed set of fields in columnar format. Columnar logs are relatively easy to deal with as the fields are cleanly delineated and the format is rigid; every message has the same columns and the same information.

When dealing with columnar data, keep in mind the following:

• Is the data delimited or fixed-width? If it’s fixed-width, are there fields that could conceivably exceed that width, and if so, are the results truncated or is the column expanded?

• If the data is delimited, is the delimiter escaped when used in the fields? Customizable formats (such as HTTP logs) may use a default delimiter and automatically escape it; if you decide to use your own delimiter, it probably won’t be automatically escaped.

• Is there a maximum record length? If there is a maximum record length, you may encounter truncated messages with missing fields.

ELF and CLF logfiles, discussed in the next chapter, are good examples of columnar formats.

Templated text messages record one message per event, but the events are recorded as unformatted English text. The messages are templated in the sense that they come from a fixed and enumerable set of templates. Where possible, it’s best to convert templated text messages into some kind of indexed numeric format. In the best case, this is at least partly done. For example, the Windows event log shown in Figure 4-2 has an event ID that describes the type of event and can be used to determine the other arguments that will be provided.

When dealing with templated text, keep in mind the following:

• Can you get a complete list of the log messages? As an example, consider the Windows logfile in Figure 4-2. Each of these messages is text, but it has a unique integer ID for the message. Check the documentation for a list of all potential log messages.

Stateful Logfiles

In a stateful logfile, a single transaction is split across multiple messages.¹ Stateful logfiles are extremely frustrating for operational analysis—you spend time and cycles reconstructing the event that happened.

Again, some kind of shim is the usual solution here. In general, a shim for a stateful logfile will be some kind of cache holding partially formed records. As it receives signals that a new transaction is happening, it pushes a new record into the cache. When it receives a signal that the transaction completed, or it times out (a critical step), it removes the relevant records from the cache. In between, it will fill each record with the appropriate messages, and by doing so converts the logfiles into a stateless format. In practice, building these shims requires managing a number of different failure modes based around when the message terminates.

This is the kind of work where, to generate a quality logfile, you’re going to have to run the system through its paces and see whether there are hidden errors. To help prep for these errors, consider stateful logs in three categories: stateful with delimiters, stateful with identifiers, and interleaved.

If a logfile is stateful with identifiers, then the messages have individual ID numbers that link together the transaction. The following truncated IronPort example is a good example of a stateful message with IDs:

Thu Mar 24 16:58:31 2016 Info: Start MID 452 ICID 98
Thu Mar 24 16:58:31 2016 Info: MID 452 ICID 98 From: <alerts@fakecompany.org>
Thu Mar 24 16:58:31 2016 Info: MID 452 ICID 98 RID 0 To: \
    <elvis.presley@graceland.int>
Thu Mar 24 16:58:31 2016 Info: MID 452 Subject 'Sent to elvis presley to test \
    regexps in filtering'
Thu Mar 24 16:58:31 2016 Info: MID 452 ready 665 bytes from \
    <alerts@fakecompany.org>
Thu Mar 24 16:58:31 2016 Info: MID 452 matched all recipients for per-recipient \
    policy DEFAULT in the inbound table
Thu Mar 24 16:58:31 2016 Info: Delivery start DCID 151 MID 452 to RID [0]
Thu Mar 24 16:58:31 2016 Info: Message done DCID 151 MID 452 to RID [0] \
    [('x-customheader', '192.168.1.1')]
Thu Mar 24 16:58:31 2016 Info: MID 452 RID [0] Response 'Ok'
Thu Mar 24 16:58:31 2016 Info: Message finished MID 452 done
Thu Mar 24 16:58:33 2016 Info: Start MID 453 ICID 98

When working with these types of logs, check for the following pitfalls:

• Determine the format of the identifiers, and how they are assigned. If identifiers are assigned linearly, (e.g., ID 1, ID 2, ID 3), be prepared for gaps in ID numbers and have contingencies ready, such as a secondary alert.

• Determine messages for creating and destroying the identifiers. Expect to have a timeout or other mechanism for dealing with messages that don’t close.

• When creating a shim, fill in all the fields you will report on with a default unreported value, then update those fields as you encounter their values in the logfile. This way you can ship the record even if you don’t have all the fields, and it will be clear which fields were omitted.

A logfile is stateful with delimiters if it uses some kind of discrete begin/end messages to indicate the beginning and ending of a transaction, and the entire transaction is contained within those begin and end messages. Example 4-2 shows a representative format; as this example shows, each individual event is prefaced with a timestamp, and then there are a variable number of fields. Also of note is that there is no explicit delimiter for ending the message—the Request-Authenticator field may be a delimiter, but given the differences in the fields shown in both entries, it can’t be verified.

Fri Dec 15 18:00:24 2000
        Acct-Session-Id = "2193976896017"
        User-Name = "e2"
        Acct-Status-Type = Start
        Acct-Authentic = RADIUS
        Service-Type = Framed-User
        Framed-Protocol = PPP
        Framed-IP-Address = 11.10.10.125
        Calling-Station-Id = "+15678023561"
        NAS-IP-Address = 11.10.10.11
        NAS-Port-Id = 8
        Acct-Delay-Time = 0
        Timestamp = 976896024
        Request-Authenticator = Unverified

Fri Dec 15 18:32:09 2000
        Acct-Session-Id = "2193976896017"
        User-Name = "e2"
        Acct-Status-Type = Stop
        Acct-Authentic = RADIUS
        Acct-Output-Octets = 5382
        Acct-Input-Octets = 7761
        Service-Type = Framed-User
        Framed-Protocol = PPP
        Framed-IP-Address = 11.10.10.125
        Acct-Session-Time = 1905
        NAS-IP-Address = 11.10.10.11
        NAS-Port-Id = 8
        Acct-Delay-Time = 0
        Timestamp = 976897929
        Request-Authenticator = Unverified

When working with log data, expect to run into common problems, in particular with how log messages are delimited. From experience, I recommend checking the following:

• Verify that logs have both start and end delimiters. It’s not uncommon for these log formats to explicitly start a log message, and then never end it.

• Verify that a single transaction happens between delimiters. If at all possible, test this empirically by running a long transaction and, while that is running, running a simultaneous short transaction. If messages overlap, you have an interleaved log.

• Determine the format of starting and ending messages, and be prepared to deal with incomplete messages.

The most problematic cases are stateful interleaved logfiles; these are logfiles where events take multiple lines, and multiple events happen simultaneously. In an interleaved logfile, you will see messages from event A, messages from event B, and then more messages from event A.

Stateful interleaved logfiles have serious internal validity problems and should, when encountered, be considered a secondary source of data—acceptable for debugging, terrible for forensics. Your best solution when encountering this type of message is to keep it in the original format, since you can’t trust that you’re seeing events in sequence

HTTP: CLF and ELF

HTTP is the modern internet’s reason for existence, and since its development in 1991, it has metamorphosed from a simple library protocol into the internet’s glue. Applications where formerly a developer would have implemented a new service are now routinely offloaded to HTTP and REST APIs.

HTTP is a challenging service to nail down. The core is incredibly simple, but any modern web browsing session involves combining HTTP, HTML, and JavaScript to create ad hoc clients of immense complexity. In this section, we briefly discuss the core components of HTTP with a focus on the analytical aspects.

HTTP is fundamentally a very simple file access service. To understand how simple it is today, try the exercise in Example 5-1 using netcat. netcat (which can also be invoked as nc, perhaps because administrators found it so useful that they wanted to make it easy to invoke) is a flexible network port access tool that can be used to directly send information to ports. It is an ideal tool for quickly bashing together clients with minimal scripting.

host$ echo 'GET /' | nc www.google.com 80 > google.html

Executing the command in this example should produce a valid HTML file. In its simplest, most unadorned form, an HTTP session consists of opening up a connection, passing a method and a URI, and receiving a file in return.

HTTP is simple enough to be run at the command line by hand if need be—however, that also means that an enormous amount of functionality is handed over to optional headers. When dealing with HTTP logs, the primary challenge is deciding which headers to include and which to ignore. If you try the very simple command in Example 5-1 on other servers, you’ll find it tends to hang—without additional information such as the Host or User-Agent, the server will wait.

There are two standards for HTTP log data: Common Log Format (CLF) and Extended Log Format (ELF). Most HTTP log generators (such as Apache’s mod_log) provide extensive configuration options.

CLF is a single-line logging format developed by the National Center for Supercomputing Applications (NCSA) for the original HTTP server; the W3C provides a minimal definition of the standard. A CLF event is defined as a seven-value single-line record in the following format:

remotehost rfc931 authuser [date] "request" status bytes

Where remotehost is the IP name or address of the remote host, rfc931 is the remote login account name of the user, authuser is the user’s authenticated name, date is the date and time of the request, request is the request, status is the HTTP status code, and bytes is the number of bytes.

Pure CLF has several eccentricities that can make parsing problematic. The rfc931 and authuser fields are effectively artifacts; in the vast majority of CLF records, these fields will be set to –. The actual format of the date value is unspecified and can vary between different HTTP server implementations.

A common modification of CLF is Combined Log Format. The Combined Log Format adds two additional fields to CLF: the HTTP Referer field and the User-Agent string.

ELF is an expandable columnar format that has largely been confined to Microsoft’s Internet Information Server (IIS), although tools such as Bluecoat also use it for logging. As with CLF, the W3C maintains the standard on its website.

An ELF file consists of a sequence of directives followed by a sequence of entries. Directives are used to define attributes common to the entries, such as the date of all entries (the Date directive), and the fields in the entry (the Fields directive). Each entry in ELF is a single HTTP request, and the fields that are defined by the directive are included in that entry.

ELF fields come in one of three forms: identifier, prefix-identifier, or prefix(header). The prefix is a one- or two-character string that defines the direction the information took (c for client, s for server, r for remote). The identifier describes the contents of the field, and the prefix(header) value includes the corresponding HTTP header. For example, cs-method is in the prefix-identifier format and describes the method sent from client to server, while time is a plain identifier denoting the time at which the session ended.

Example 5-2 shows simple outputs from CLF, Combined Log Format, and ELF. Each event is a single line.

#CLF
192.168.1.1 - - [2012/Oct/11 12:03:45 -0700] "GET /index.html" 200
1294

# Combined Log Format
192.168.1.1 - - [2012/Oct/11 12:03:45 -0700] "GET /index.html" 200 1294
"http://www.example.com/link.html" "Mozilla/4.08 [en] (Win98; I ;Nav)"

#ELF
#Version: 1.0
#Date: 2012/Oct/11 00:00:00
#Fields: time c-ip cs-method cs-uri
12:03:45 192.168.1.1 GET /index.html

Most HTTP logs are some form of CLF output. Although ELF is an expandable format, I find the need to carry the header around problematic in that I don’t expect to change formats that much, and would rather that individual log records be interpretable without this information. Based on principles I discussed earlier, here is how I modify CLF records:

1. Remove the rfc931 and authuser fields. These fields are artifacts and waste space.

2. Convert the date to epoch time and represent it as a numeric string. In addition to my general disdain for text over numeric representations, time representations have never been standardized in HTTP logfiles. You’re better off moving to a numeric format to ignore the whims of the server.

3. Incorporate the server IP address, the source port, and the destination port. I expect to move the logfiles to a central location for analysis, so I need the server address to differentiate them. This gets me closer to a five-tuple that I can correlate with other data.

4. Add the duration of the event, again to help with timing correlation.

5. Add the host header. In case I’m dealing with virtual hosts, this also helps me identify systems that contact the server without using DNS as a moderator.

Sendmail

Sendmail moderates mail exchange through syslog, and consequently is capable of sending an enormous number of informational messages besides the actual email transaction. For our purposes, we are concerned with two classes of log messages: messages describing connections to and from the mail server, and messages describing actual mail delivery.

By default, sendmail will send messages to /var/maillog, although the logging information it sends is controlled by sendmail’s internal logging level. The logging level ranges from 1 to 96; a log level of n logs all messages of severity 1 to n. Notable log levels include 9 (all message deliveries logged), 10 (inbound connections logged), 12 (outbound connections logged), and 14 (connection refusals logged). Of note is that anything above log level 8 is considered an informational log in syslog, and anything above 11 a debug log message.

A sendmail log line consists of five fixed values, followed by a list of one or more equates:

<date> <host> sendmail[<pid>]: <qid>: <equates>

where <date> is the date, <host> is the name of the host, sendmail is a literal string, <pid> is the sendmail process ID, and <qid> is an internal queue ID used to uniquely identify messages. Sendmail sends at least two log messages when sending an email message, and the only way to group those messages together is through the qid. Equates are descriptive parameters given in the form <key>=<value>. Sendmail can send a number of potential equates, listed in Table 5-1 for messages.

For every email message received, sendmail generates at least two log lines. The first line is the receipt line, and describes the message’s point of origin. The final line, the sender line, describes the disposition of the mail, such as whether it was sent, quarantined, rejected, or bounced.

Sendmail will take one of four basic actions with a message: reject it, quarantine it, bounce it, or send it. Rejection is implemented by message filtering and is used for spam filtering; a rejected message is dropped. Quarantined messages are moved off the queue to a separate area for further review. A bounce means the mail was not sent to the target, and results in a nondelivery report being sent back to the origin.

Microsoft Exchange: Message Tracking Logs

Exchange has one master log format for handling messages, the Message Tracking Log (MTL). Table 5-2 describes the fields.

Staged Logging

Turning on all the logging mentioned here is going to drown analysts in a lot of data, which is primarily going to be used for rare, high-risk events. Consequently, when developing a logging plan, you should consider policies and processes for increasing or decreasing targeted logging as needed.

The process of staging up or staging down logging will be a function of events or a criticality. In the former case, you may increase logging because a particular event or trigger has raised concerns—for example, if a new exploit is in the wild, you may stage up logging for services vulnerable to that exploit. In the latter case, you may always keep high-information logging for critical services—monitoring fileshares for your IP, for example.

LDAP and Directory Services

If you have any form of active directory or other user management (Microsoft Active Directory, OpenLDAP), this information should be available. Directory services will generally consist of a database of users, events that update the database itself (addition, removal, or updates of users), as well as login and logoff events.

Consider collecting a complete, periodic dump of the directory and keeping it somewhere where the ops and analysis teams can get their hands on it quickly, such as storing it in Redis. You can expect that analysts will regularly access this data for context.

Logon and logoff data should be sent as a low-priority stream directly to your main console. It is useful for annotating where users are in the system at any time, and will often be cross-referenced with other actions.

File Transfer, Storage, and Databases

Besides HTTP, file transfer and file storage includes services such as SharePoint, NFS Mounts, FTP, anything using SMB, any code repositories (Git, GitHub, GitLab, SourceSafe, CVS, SVN), as well as web-based services such as Confluence. In the case of these services, you are most interested in monitoring users and times—who accessed the system, when they accessed the system, and how much they accessed.

Volumes are a good, if coarse, indicator of file transfer. A good companion metric is to check for locality anomalies (see Chapter 14). Fileshares inside of an enterprise are accessed by people who have a job—the majority of them are going to visit the same files over and repeatedly, working with a limited subset.¹

Databases, including SQL servers such as Oracle, Postgres, and MySQL and NoSQL systems such as HDFS, should be tracked for data loss prevention and bulk transfer, just as with the file transfer systems. In addition, if possible, log the queries and check for anomalous query strings. In an enterprise environment, you should expect to see users rarely interacting with the console; rather, they should be using predictable sequences of SQL statements run through a form. Distance metrics (see Chapter 12 for more information) can be used to match these strings to look for anomalous queries such as a SELECT *.

Transfer and Logfile Rotation

Most logging applications write to a rotating logfile (see, for example, the rotated system logs in “Accessing and Manipulating Logfiles”). In these cases, the logfile will be closed and archived after a fixed period and a new file will be started. Once the file is closed, it can be copied over to a different location to support analytics.

File transfer is simple. It can be implemented using SSH or any other copying protocol. The major headache is ensuring that the files are actually complete when copied; the rotation period for the file effectively dictates your response time. For example, if a file is rotated every 24 hours, then you will, on average, have to wait a day to get hold of the latest events.

Syslog

The grandfather of systematic system logging utilities is syslog, a standard approach to logging originally developed for Unix systems that now comprises a standard, a protocol, and a general framework for discussing logging messages. Syslog defines a fixed message format and enables messages to be sent to logger daemons that might reside on the host or be remotely located.

All syslog messages contain a time, a facility, a severity, and a text message. Tables 5-3 and 5-4 describe the facilities and priorities encoded in the syslog protocol. As Table 5-3 shows, the facilities referred to by syslog comprise a variety of fundamental systems (some of them largely obsolete). Of more concern is what facilities are not covered—DNS and HTTP, for example. The priorities (in Table 5-4) are generally more germane, as the vocabulary for their severity has entered into common parlance.

Syslog’s reference implementations are UDP-based, and the UDP standard results in several constraints. Most importantly, UDP datagram length is constrained by the MTU of the layer 2 protocol carrying the datagram, effectively imposing a hard limit of about 1,450 characters on any syslog message. The syslog protocol itself specifies that messages should be less than 1,024 characters, but this is erratically enforced, while the UDP cutoff will affect long messages. In addition, syslog runs on top of UDP, which means that when messages are dropped, they are lost forever.

The easiest way to solve this problem is to use TCP-based syslog, which is implemented in the open source domain with tools such as syslog-ng and rsyslog. Both of these tools provide TCP transport, as well as a number of other capabilities such as database interfaces, the ability to rewrite messages en route, and selective transport of syslog messages to different receivers. Windows does not support syslog natively, but there exist a number of commercial applications that provide similar functionality.

Structure

On Unix and Windows systems (considering macOS to be a Unix variant), processes are organized in a tree descending from a root processes. Every process posseses a unique process ID (PID), a numeric ID identifying the process during the time of execution. PIDs are assigned sequentially, beginning with an ID of 0 (for the system idle process in Windows) or 1 (for most Unixes). Every process except the root process has a parent process ID (PPID), which is the PID of the process that spawned it. By using the PID/PPID relationships, you can plot out processes as a tree and trace each back to its origin at the root process.

On Unix systems, the basic application for checking process status is ps. ps is a command-line utility that prints a list of current processes controlled by the invoking user’s UID at the time of invocation. This is, on any system, the smallest and least interesting set of processes to look at.²

An example ps dump for a macOS system is shown here (formatted to fit the page):

$ ps -faxcel | head -10
  UID   PID  PPID   C STIME   TTY           TIME CMD
    0     1     0   0 16Feb17 ??        46:46.47 launchd
    0    51     1   0 16Feb17 ??         1:01.35 syslogd
    0    52     1   0 16Feb17 ??         2:18.75 UserEventAgent
    0    54     1   0 16Feb17 ??         0:56.90 uninstalld
    0    55     1   0 16Feb17 ??         0:08.61 kextd
    0    56     1   0 16Feb17 ??         2:04.08 fseventsd
   55    61     1   0 16Feb17 ??         0:03.61 appleeventsd
    0    62     1   0 16Feb17 ??         0:07.72 configd
    0    63     1   0 16Feb17 ??         0:17.60 powerd

        F PRI NI       SZ    RSS WCHAN     S             ADDR                  0
     4004  37  0  2537628  13372 -      Ss
     4004   4  0  2517212   1232 -      Ss                  0                  0
     4004  37  0  2547704  40188 -      Ss                  0
     4004  20  0  2506256   5256 -      Ss                  0
     4004  37  0  2546132  13244 -      Ss                  0
  1004004  50  0  2520544   6244 -      Ss                  0
     4004   4  0  2542188  11320 -      Ss                  0
     400c  37  0  2545392  13288 -      Ss                  0
     4004  37  0  2540644   8016 -      Ss

Table 6-2 summarizes the type of information that I generally find useful when monitoring processes.

Because the default ps invocation is so limited, you will invariably invoke it with a number of switches. The major switches are listed in Table 6-2, but be wary that ps options are platform-specific. For that reason, I’ll talk about the provided options in more depth, and the corresponding fields.

Checking Connectivity: Using ping to Connect to an Address

Given an IP address, the most basic command-line tool for determining something is present is ping. ping works by using ICMP (see “Packet and Frame Formats”) messages. ping sends an ICMP echo request (type 8, code 0) to the target. On receiving an echo request message, the target should respond with an echo reply (type 0, code 0). Example 7-1 shows sample output of ping and a pcap of the contents.

$ ping -c 1 nytimes.com
PING nytimes.com (170.149.168.130): 56 data bytes
64 bytes from 170.149.168.130: icmp_seq=0 ttl=252 time=29.388 ms

$ tcpdump -Xnr ping.pcap
reading from file ping.pcap, link-type EN10MB (Ethernet)
20:38:09.074960 IP 192.168.1.12 > 170.149.168.130:
        ICMP echo request, id 44854, seq 0, length 64
    0x0000:  4500 0054 0942 0000 4001 5c9b c0a8 010c  E..T.B..@.\.....
    0x0010:  aa95 a882 0800 0fb8 af36 0000 5175 d7f1  .........6..Qu..
    0x0020:  0001 24a6 0809 0a0b 0c0d 0e0f 1011 1213  ..$.............
    0x0030:  1415 1617 1819 1a1b 1c1d 1e1f 2021 2223  .............!"#
    0x0040:  2425 2627 2829 2a2b 2c2d 2e2f 3031 3233  $%&'()*+,-./0123
    0x0050:  3435 3637                                4567
20:38:09.104250 IP 170.149.168.130 > 192.168.1.12:
        ICMP echo reply, id 44854, seq 0, length 64
    0x0000:  4500 0054 0942 0000 fc01 a09a aa95 a882  E..T.B..........
    0x0010:  c0a8 010c 0000 17b8 af36 0000 5175 d7f1  .........6..Qu..
    0x0020:  0001 24a6 0809 0a0b 0c0d 0e0f 1011 1213  ..$.............
    0x0030:  1415 1617 1819 1a1b 1c1d 1e1f 2021 2223  .............!"#
    0x0040:  2425 2627 2829 2a2b 2c2d 2e2f 3031 3233  $%&'()*+,-./0123
    0x0050:  3435 3637                                4567

Note first the size of the packet and the ttl value. These values are usually set by default by the TCP stack. In the case of macOS, the ICMP packet has a 56-byte payload, which results in an 84-byte packet (20 bytes of IP header, 8 bytes of ICMP header, and 56 bytes of payload). The type and code are at 0x0014–0x0015 (08 for the request, 00 for the response). After the ICMP header, note that the contents of the packet are echoed. ICMP has a concept of a session, and in many cases, messages are sent in response to packets from entirely different protocols. Different ICMP messages use different techniques to indicate their point of origin; in the case of ping, this is done by echoing the packet’s original contents.

ping is a simple application: it sends an echo request with an embedded sequence identifier. The application then waits until a specified timeout (usually on the order of 4,000 ms); if the response is received in that time, the response is printed and the next packet is sent. ping is a diagnostic tool, and any serious implementation will provide a number of command-line switches for manipulating packet composition.

Tracerouting

traceroute is a tool and technique to identify the routers that forward packets from point A to point B. traceroute produces a sequential list of routers by manipulating packet TTLs.

The TTL (time-to-live) field of an IP packet is a mechanism developed to prevent packets from bouncing through the internet forever. Every time a packet is forwarded by a router, its TTL value decreases by one. When the TTL reaches zero, the forwarding router drops the packet and sends an ICMP time exceeded (type 11) message to the source IP address of the dropped packet.

Here is an example of a traceroute command in action:

$ traceroute www.nytimes.com
traceroute to www.nytimes.com (170.149.168.130), 64 hops max, 52 byte packets
 1  wireless_broadband_router (192.168.1.1)  1.189 ms  0.544 ms  0.802 ms
 2  l100.washdc-vfttp-47.verizon-gni.net (96.255.98.1)  2.157 ms  1.401 ms
    1.451 ms
 3  g0-13-2-7.washdc-lcr-22.verizon-gni.net (130.81.59.154)  3.768 ms  3.751 ms
    3.985 ms
 4  ae5-0.res-bb-rtr1.verizon-gni.net (130.81.209.222)  2.029 ms  2.314 ms
    2.314 ms
 5  0.xe-3-1-1.br1.iad8.alter.net (152.63.37.141)  2.731 ms  2.759 ms  2.781 ms
 6  xe-2-1-0.er2.iad10.us.above.net (64.125.13.173)  3.313 ms  3.706 ms  3.970 ms
 7  xe-4-1-0.cr2.dca2.us.above.net (64.125.29.214)  3.741 ms  3.668 ms
    xe-3-0-0.cr2.dca2.us.above.net (64.125.26.241)  4.638 ms
 8  xe-1-0-0.cr1.dca2.us.above.net (64.125.28.249)  3.677 ms
    xe-7-2-0.cr1.dca2.us.above.net (64.125.26.41)  3.744 ms
    xe-1-0-0.cr1.dca2.us.above.net (64.125.28.249)  4.496 ms
 9  xe-3-2-0.cr1.lga5.us.above.net (64.125.26.102)  24.637 ms
    xe-2-2-0.cr1.lga5.us.above.net (64.125.26.98)  10.293 ms  9.679 ms
10  xe-2-2-0.mpr1.ewr1.us.above.net (64.125.27.133)  20.660 ms  10.043 ms
    10.004 ms
11  xe-0-0-0.mpr1.ewr4.us.above.net (64.125.25.246)  15.881 ms  16.848 ms
    16.070 ms
12  64.125.173.70.t01646-03.above.net (64.125.173.70)  30.177 ms  29.339 ms
    31.793 ms

As the next code block shows, traceroute sends an initial 52-byte message, and then proceeds to receive sequential information about each address it contacts en route to 170.149.168.130. Let’s look at the payload in more depth:

$ tcpdump -nXr traceroute.pcap  | more
21:06:51.202439 IP 192.168.1.12.46950 > 170.149.168.130.33435: UDP, length 24
        0x0000:  4500 0034 b767 0000 0111 ed85 c0a8 010c  E..4.g..........
        0x0010:  aa95 a882 b766 829b 0020 b0df 0000 0000  .....f..........
        0x0020:  0000 0000 0000 0000 0000 0000 0000 0000  ................
        0x0030:  0000 0000                                ....
21:06:51.203481 IP 192.168.1.1 > 192.168.1.12: ICMP time exceeded in-transit,
        length 60
        0x0000:  45c0 0050 a201 0000 4001 548e c0a8 0101  E..P....@.T.....
        0x0010:  c0a8 010c 0b00 09fe 0000 0000 4500 0034  ............E..4
        0x0020:  b767 0000 0111 ed85 c0a8 010c aa95 a882  .g..............
        0x0030:  b766 829b 0020 b0df 0000 0000 0000 0000  .f..............
        0x0040:  0000 0000 0000 0000 0000 0000 0000 0000  ................
21:06:51.203691 IP 192.168.1.12.46950 > 170.149.168.130.33436: UDP, length 24
        0x0000:  4500 0034 b768 0000 0111 ed84 c0a8 010c  E..4.h..........
        0x0010:  aa95 a882 b766 829c 0020 b0de 0000 0000  .....f..........
        0x0020:  0000 0000 0000 0000 0000 0000 0000 0000  ................
        0x0030:  0000 0000                                ....
21:06:51.204191 IP 192.168.1.1 > 192.168.1.12: ICMP time exceeded in-transit,
        length 60
        0x0000:  45c0 0050 a202 0000 4001 548d c0a8 0101  E..P....@.T.....
        0x0010:  c0a8 010c 0b00 09fe 0000 0000 4500 0034  ............E..4
        0x0020:  b768 0000 0111 ed84 c0a8 010c aa95 a882  .h..............
        0x0030:  b766 829c 0020 b0de 0000 0000 0000 0000  .f..............
        0x0040:  0000 0000 0000 0000 0000 0000 0000 0000  ................

Note that traceroute sends out UDP messages, starting at port 33435 and incrementing the port number by one with each additional message. The port number is incremented so that it’s possible later to reconstruct the order in which the packets are sent. Note that the ICMP packet from offset 0x001C onward contains the original UDP packet. As noted earlier, ICMP messages need to use a number of different techniques to provide context—error messages such as “TTL exceeded” include the IP header and the first 8 bytes of the original packet. This includes the UDP source port number. traceroute uses the included UDP source port to reconstruct the order in which these ICMP messages were sent.

While traceroute uses UDP by default, the same technique can be used by TCP or any other protocol where there is a controllable value (such as an ephemeral port number) in the first 8 bytes of the IP payload.

ping and traceroute are more useful if you can use them from different locations. To that end, a number of internet service providers and other organizations provide looking-glass servers. A looking-glass server is a publicly accessible (generally via the web) interface to any of a number of common internet applications. Most looking glasses are managed by NOCs or ISPs, and provide access to multiple routers. There is no standard for implementation, and different looking glasses will provide different services. A comprehensive list is available at www.traceroute.org.

Using nc as a Swiss Army Multitool

ping and traceroute represent traffic on the network proper; if you want to communicate with a specific service, you have to have a service client available to you. Alternatively, you can use netcat. In Chapter 5, I touched briefly on this tool: let’s talk about what it can do in more depth.

Basic netcat invocation is simply netcat (or nc) with the destination address and port. If this connects to an open port, then netcat will operate like the cat command. If you know what the targeted service operates like, you can then send a request and get a response. For example, you can run an HTTP request by hand:

$ echo "GET /" | nc www.google.com 80 | head -4
HTTP/1.0 200 OK
Date: Mon, 20 Feb 2017 16:51:48 GMT
Expires: -1
Cache-Control: private, max-age=0

You can quickly implement a fast horizontal scan by using netcat’s zero I/O mode (-z). Zero I/O simply tries to open a port and, if it succeeds, immediately closes the session. On its own, this results in netcat providing zero information, so you need to up the output using netcat’s verbose option (-v):

$ netcat -vz localhost 8000
localhost [127.0.0.1] 8000 (irdmi) open
$ netcat -vz localhost 122
localhost [127.0.0.1] 122 (smakynet): Connection refused

In the absence of other tools, netcat can be used to scan horizontally or vertically. The short and sour way to do this is just to iterate at the command line, possibly using the -w option to slow down consecutive invocations. For example, if I want to scan a local /24, I can do:

i=0; while [ ${i} -le 256 ];
do
   netcat -vz -w 2 192.168.1.${i} 8000
   i=$[ ${i} + 1 ]
done

Which results in:

192.168.1.1 8000 (irdmi): Connection refused
192.168.1.2 8000 (irdmi) open
192.168.1.3 8000 (irdmi): Operation timed out

and so on. Note the refusals and timeouts—a refusal means a host was present and the port was closed, while a timeout means that no successful communication took place (which is usually a good indicator that there is nothing on the other side). You can swap in a vertical scan by changing the IP address to the port number. netcat will take ranges:

$ netcat -vz 192.168.1.13 7990-8080
192.168.1.13 7990-8080 192.168.1.13 8000 (irdmi) open

Note that netcat will only provide output for open ports.

nmap Scanning for Discovery

nc is versatile, but not specialized. nmap integrates both discovery and assessment roles into an open source package.

Let’s start our nmap exercises by doing some simple horizontal scanning for discovery (we’ll get to assessment in the next section). These nmap commands are equivalent to the scans we did by hand with nc. Let’s start with a horizontal scan on a /24; this is done using -p to specify a port, and then an address range. nmap can take CIDR notation (as seen here) as well as using a dash, so I could express this as 192.168.1.0-255:¹

# Scanning a /24 with nmap; some addresses removed for brevity
$ nmap -p 8000 192.168.1.0/24

Starting Nmap 7.40 ( https://nmap.org ) at 2017-02-13 12:08 EST
Nmap scan report for 192.168.1.1
Host is up (0.0024s latency).
PORT     STATE  SERVICE
8000/tcp closed http-alt

Nmap scan report for 192.168.1.2
Host is up (0.015s latency).
PORT     STATE  SERVICE
8000/tcp closed http-alt

Nmap scan report for 192.168.1.13
Host is up (0.00021s latency).
PORT     STATE SERVICE
8000/tcp open  http-alt

Nmap done: 256 IP addresses (8 hosts up) scanned in 2.89 seconds

By default, nmap scans privileged TCP ports (1–1024), and reports anything open. For example:

$ nmap 192.168.1.13

Starting Nmap 7.40 ( https://nmap.org ) at 2017-02-13 12:17 EST
Nmap scan report for 192.168.1.13
Host is up (0.00046s latency).
Not shown: 813 closed ports, 182 filtered ports
PORT     STATE SERVICE
53/tcp   open  domain
445/tcp  open  microsoft-ds
548/tcp  open  afp
631/tcp  open  ipp
8000/tcp open  http-alt

You can specify ports using the -p option, as shown here:

$ nmap -p 53,445,546-550  192.168.1.13

Starting Nmap 7.40 ( https://nmap.org ) at 2017-02-13 12:25 EST
Nmap scan report for 192.168.1.13
Host is up (0.00050s latency).
PORT    STATE  SERVICE
53/tcp  open   domain
445/tcp open   microsoft-ds
546/tcp closed dhcpv6-client
547/tcp closed dhcpv6-server
548/tcp open   afp
549/tcp closed idfp
550/tcp closed new-rwho

Note that when you specify the ports, the output will include only open ports. The default scan and nmap’s fast scan (-F, it only scans the 100 most commonly used ports) both only show open ports.

That’s the basics of horizontal and vertical TCP scanning with nmap. At this point, simple discovery scanning mostly involves knowing a couple of other options: in particular, -sU (scan UDP), -n (drop DNS resolution), and -sn (simple ping, akin to the netcat zero I/O mode).

Basic Assessment with nmap

The basic command-line arguments for assessment are -O (check the operating system) and -sV (check the service and version on open ports). These options are frontends to what is, effectively, an expert system: a decision tree that passes different combinations of packets and flags in order to determine how your system responds and what that implies.

Running -O will provide you with an OS profile. If nmap knows the OS (and it knows a lot), you’ll get a simple output like this one:

$ nmap -O
Nmap scan report for 192.168.1.13
Host is up (0.000070s latency).
Not shown: 995 closed ports
PORT     STATE SERVICE
53/tcp   open  domain
445/tcp  open  microsoft-ds
548/tcp  open  afp
631/tcp  open  ipp
8000/tcp open  http-alt
Device type: general purpose
Running: Apple OS X 10.10.X|10.11.X
OS CPE: cpe:/o:apple:mac_os_x:10.10 cpe:/o:apple:mac_os_x:10.11
OS details: Apple OS X 10.10 (Yosemite) - 10.11 (El Capitan) (Darwin 14.0.0 -
    15.4.0)

Most of the report was discussed earlier—the new fields are “Device type,” “Running,” and the OS information. The device type refers to what type of device nmap thinks it is; “general purpose” indicates that it’s a general-purpose computing machine (i.e., a laptop or desktop), while other types include terminals, networking hardware (routers and switches), and various types of enterprise hardware.² “Running” simply refers to nmap’s guess as to what type of operating system is running; nmap makes this guess with an ordered table of probabilities.

The next line of note is the CPE (Common Platform Enumeration). The OS information includes the Common Platform Enumeration (CPE), discussed in “The NVD and MITRE Standards”, and details on the operating system in use.

Vulnerability assessment involves taking a very specific inventory (down to platform and version numbers), consulting intelligence sources such as the NVD to determine which vulnerabilities exist, and then determining the response—patching, blocking, taking systems down, or whatever other action is deemed appropriate.

The most advanced assessment tool that nmap provides is a full Lua-based flexible scripting capability, the Nmap Scripting Engine (NSE). The NSE commands nmap’s capabilities using Lua scripts that can write complex, sequential analyses of particular hosts and enable authors to identify vulnerabilities and traffic features that are outside the capabilities of vanilla nmap. The NMAP project maintains a constantly updated list of NSE scripts; it’s worth checking on a regular basis for specific and current vulnerabilities.

What’s important to recognize about all of these tools is that the mechanical components are less important than the expertise. It’s critical to pay attention to what features and scripts appear that are relevant to your particular organization. Similarly, if you buy a vulnerability scanner, you’re paying for the company to keep up-to-date on current vulnerabilities. In Chapter 17 we discuss these issues in more detail.

The Sensor Network

The sensor network consists of all the data-gathering devices inside your observed network. This includes network sensing (e.g., IDS, firewall, flow sensing), host-based sensing (e.g., AV, HIDS, DLP), and service sensing (syslog, HTTP logs, and the like). Active sensing, being done on an ad hoc basis, is not embedded within the sensor network.

When designing a sensor network, consider the following questions and issues:

• Will the data be transported in band or out of band? If you are generating a large amount of sensor data, consider setting up dedicated VLANs for transporting this information so it is not reported within the sensor network.

• Will you store data on the sensors and fetch on demand, or will you forward all data? Summary data (such as NetFlow or constructed events) may be best stored centrally, while raw data is recorded at the sensors proper and pulled as needed.

• How will you measure the sensors themselves? The integrity of the sensor network will be an ongoing concern. Make sure that you have analytics available to verify that a sensor is correctly installed, to onboard new sensors, and to identify when a sensor has dropped off the network.

The Repository

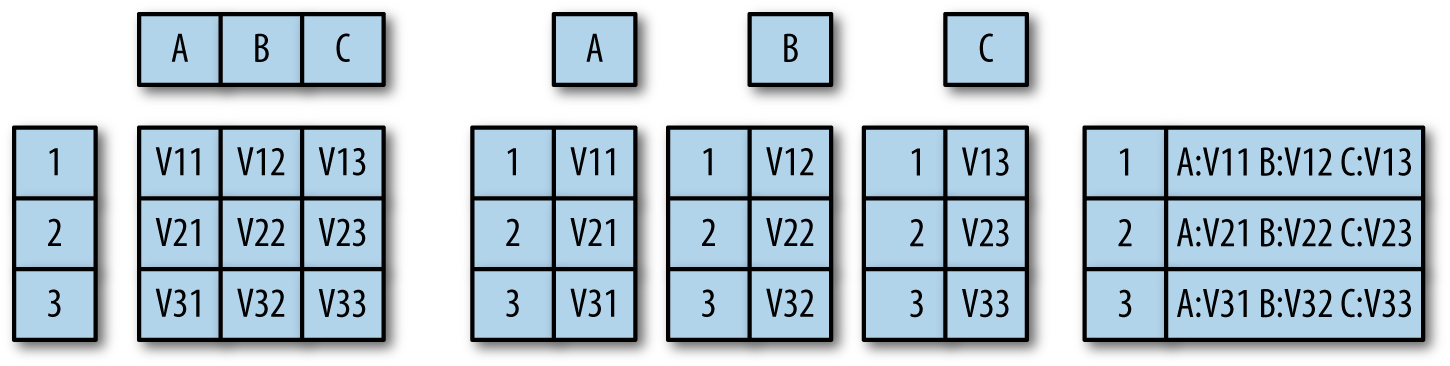

The repository is a location for any nonstreaming data. As Figure 8-1 shows, this is subdivided into three components: an archive, annotation data, and the knowledge base.

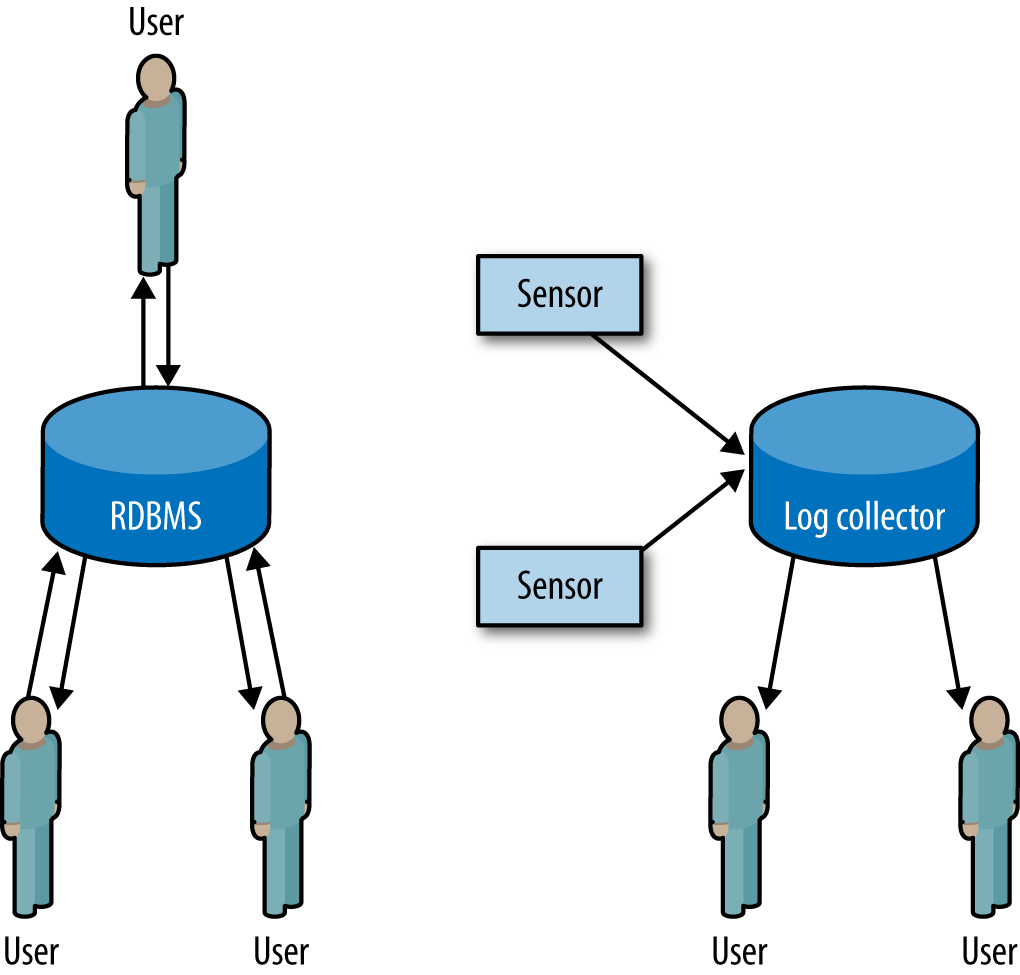

The repository is the component of the system that is accessed most often and most randomly. As such, performance issues hit the repository more than any other part of the system. When building the repository, consider the following issues:

• How much information do you expect to maintain? This question may be determined by regulation within your sector. In the absence of that, I like being able to go back at least 90 days (a quarter), and longer if at all possible.

• How will you access immediate (say, the last two weeks) versus longer-term information? Longer queries will be rarer than ones over the last week or so, so if you intend to use high-performance, expensive storage, focus on the last week to two weeks.

• How often will you update your storage estimates? Network traffic volume will increase steadily over time, so updating the estimates of how much information you can store is a process you should consider at least quarterly.

Query Processing

The query processing system is a development environment that supports rapid prototyping, data synthesis, and providing contextual data. The system can process data from multiple locations to synthesize it.

Questions to ask when determining query processing requirements include:

• How do developers or analysts touch the query processing system? Limit the number of languages as much as possible, down to two if you can get away with it.

• How do they touch data? The great achievement of SIEM is to provide a developer access to all the data in one database cursor. However you store or hide the data, ensure that the analysts have one access point and consistently named tables (a source IP is a source IP everywhere).

• How will you manage queue contention? Figure out a query that takes about 5 minutes to run, then run it once, 4 times simultaneously, 10 times simultaneously, and 20 times simultaneously.³ Many query systems will gracefully degrade, allowing x number of queries to process simultaneously, then holding off on x+1 until a query finishes. During times of stress, you can expect that analysts will be beating the system constantly, and queue contention is going to kill you.

Real-Time Processing

Real-time processing consists of any analyses that are done à la minute, which may include straight signature matching, specifically crafted high-performance analytics, and logfile generation. As a rule, real-time processing should be distinct from query processing—real-time data should ideally summarize or process data to reduce the amount of query processing needed.

Source Control

I can’t emphasize the importance of a source code repository enough—just make sure everyone knows how to use Git, even if they’re not developers. In particular, the following information should be maintained in the repository:

• Analytics

• Signature sets

• Firewall and IDS configurations⁴

Analytics are obvious, since they are code executed on data. The others are less obvious, but as a rule, anything that is mechanically processed by a detection system or other middlebox in your network should be recorded and changes maintained in the archive. This is a necessity when reconstructing past events—if a change in traffic occurs on a network, the first question the analyst should ask is whether the change is due to the internet or due to the collection system.

The Datafiles

The LBNL datafiles are stored in a file hierarchy; Example 9-2 shows the results of downloading and unarchiving them.

$ gunzip -c SiLK-LBNL-05-noscan.tar
$ gunzip -c SiLK-LBNL-05-scanners.tar
$ cd SiLK-LBNL-05
$ ls
README-S0.txt in    out   silk.conf
README-S1.txt inweb       outweb
$ ls in/2005/01/07/*.01
in/2005/01/07/in-S0_20050107.01 in/2005/01/07/in-S1_20050107.01

When collecting data, SiLK partitions the data into subdirectories that divide traffic by the type of traffic and the time the event occurred. This provides scalability and speeds up analysis. However, it’s also generally a black box, and one we’re breaking right now simply to have some files to work with. For the purposes of demonstration and education, we’re going to work with four specific files:

• inweb/2005/01/06/iw-S0_20050106.20

• inweb/2005/01/06/iw-S0_20050106.21

• in/2005/01/07/in-S0_20050107.01

• in/2005/01/07/in-S1_20050107.01

These files are not special in any way. I chose them just to provide examples of scan and nonscan traffic. The following section discusses how to partition data and what the filenames mean.

Ports and Protocols

The easiest filters to start with are --sport, --dport, and --protocol. As the names imply, they filter on the source port, destination port, and protocol, respectively (see Example 9-8). These values can filter on a specific value (e.g., --sport=80 will pass any traffic where the source port is 80), or a range specified with a dash or commas (so --sport=79-83 will pass anything where the source port is between 79 and 83 inclusive, and could be expressed as --sport=79,80,81,82,83).

$ rwfilter --dport=4350-4360  inweb/2005/01/06/iw-S0_20050106.20
  --pass=stdout | rwcut --field=1-9 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags
  |                  sTime|
 218.131.115.42| 131.243.105.35|   80| 4360|  6|         2|        80|F   A
  |2005/01/06T20:24:21.879|
  148.19.96.160|131.243.107.239|   80| 4350|  6|        27|     35445|FS PA
  |2005/01/06T20:59:42.451|
  148.19.96.160|131.243.107.239|   80| 4352|  6|         4|       709|FS PA
  |2005/01/06T20:59:42.507|
  148.19.96.160|131.243.107.239|   80| 4351|  6|        15|     16938|FS PA
  |2005/01/06T20:59:42.501|
  148.19.96.160|131.243.107.239|   80| 4353|  6|         4|       704|FS PA
  |2005/01/06T20:59:42.544|
$ rwfilter --sport=4000-  inweb/2005/01/06/iw-S0_20050106.20
  --pass=stdout | rwcut --field=1-9 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags
  |                  sTime|
  56.71.233.157|   128.3.148.48|48906|   80|  6|         5|       300| S
  |2005/01/06T20:01:50.011|
   56.96.13.225|   128.3.148.48|50722|   80|  6|         6|       360| S
  |2005/01/06T20:02:57.132|
   56.96.13.225|   128.3.148.48|50726|   80|  6|         6|       360| S
  |2005/01/06T20:02:57.432|
  58.236.56.129|   128.3.148.48|32621|   80|  6|         3|       144| S
  |2005/01/06T20:12:10.747|
   56.96.13.225|   128.3.148.48|54497|  443|  6|         6|       360| S
  |2005/01/06T20:09:30.124|
$ rwfilter --dport=4350,4352  inweb/2005/01/06/iw-S0_20050106.20
  --pass=stdout | rwcut --field=1-9 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags
  |                  sTime|
  148.19.96.160|131.243.107.239|   80| 4350|  6|        27|     35445|FS PA
  |2005/01/06T20:59:42.451|
  148.19.96.160|131.243.107.239|   80| 4352|  6|         4|       709|FS PA
  |2005/01/06T20:59:42.507|
  148.19.96.160|131.243.107.239|   80| 4352|  6|         1|        40|    A
  |2005/01/06T20:59:42.516|
$ rwfilter --proto=1 in/2005/01/07/in-S0_20050107.01 --pass=stdout
 | rwcut --field=1-6 --num-recs=2
            sIP|            dIP|sPort|dPort|pro|   packets|
 35.223.112.236|    128.3.23.93|    0| 2048|  1|         1|
 62.198.182.170|    128.3.23.81|    0| 2048|  1|         1|
$ rwfilter --proto=1,6,17 in/2005/01/07/in-S0_20050107.01 --pass=stdout
 | rwcut --num-recs=2 --fields=1-6
            sIP|            dIP|sPort|dPort|pro|   packets|
  116.66.41.147|131.243.163.201| 4283| 1026| 17|         1|
  116.66.41.147|131.243.163.201| 3131| 1027| 17|         1|
$ rwfilter --proto=1,6,17 in/2005/01/07/in-S0_20050107.01 --fail=stdout
 | rwcut --num-recs=2  --fields=1-6
            sIP|            dIP|sPort|dPort|pro|   packets|
 57.120.186.177|   128.3.26.171|    0|    0| 50|        70|
 57.120.186.177|   128.3.26.171|    0|    0| 50|        81|

Note the use of --fail in the last example. Because there are 255 potential protocols, specifying “everything but TCP, ICMP, and UDP” could be expressed in two ways: either by specifying everything you want (--proto=0,2-5,7-16,18-), or by using the --fail option. I’ll discuss more advanced manipulation of --pass and --fail in the next chapter.

Size

Size options (e.g., bytes and packets) are similar to the protocol and port options in that you express them numerically. Unlike the enumerations (ports and protocols), these numeric values can be expressed only as single digits or ranges, not as comma-separated values. So, --packets=70-81 is acceptable, but --bytes=1,2,3,4 is not.

IP Addresses

The simplest form of IP address filtering simply expresses the IP address directly (see Example 9-9). The following examples show strict filtering on the source (--saddress) and destination (--daddress) address, and the --any-address option. --any-address will match either source or destination addresses.

$ rwfilter --saddress=197.142.156.83 --pass=stdout
   in/2005/01/07/in-S0_20050107.01 | rwcut --num-recs=2
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags|
                  sTime|      dur|                  eTime|sen|
 197.142.156.83|  224.2.127.254|44510| 9875| 17|        12|      7163|        |
2005/01/07T01:24:44.359|   16.756|2005/01/07T01:25:01.115|  ?|
 197.142.156.83|  224.2.127.254|44512| 9875| 17|         4|      2590|        |
2005/01/07T01:25:02.375|    5.742|2005/01/07T01:25:08.117|  ?|
$ rwfilter --daddress=128.3.26.249 --pass=stdout
  in/2005/01/07/in-S0_20050107.01 | rwcut --num-recs=2
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags|
                    sTime|      dur|                  eTime|sen|
211.210.215.142|   128.3.26.249| 4068|   25|  6|         7|       388|FS PA   |
  2005/01/07T01:27:06.789|    5.052|2005/01/07T01:27:11.841|  ?|
 203.126.20.182|   128.3.26.249|51981| 4587|  6|        56|      2240|F   A   |
  2005/01/07T01:27:04.812|   18.530|2005/01/07T01:27:23.342|  ?|
$ rwfilter --any-address=128.3.26.249
  --pass=stdout in/2005/01/07/in-S0_20050107.01 | rwcut --num-recs=2
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|   flags|
                    sTime|      dur|                  eTime|sen|
211.210.215.142|   128.3.26.249| 4068|   25|  6|         7|       388|FS PA   |
  2005/01/07T01:27:06.789|    5.052|2005/01/07T01:27:11.841|  ?|
 203.126.20.182|   128.3.26.249|51981| 4587|  6|        56|      2240|F   A   |
  2005/01/07T01:27:04.812|   18.530|2005/01/07T01:27:23.342|  ?|

Address options accept a variety of range descriptors. Each quad in an IP address can be expressed using the same comma-dash format that protocols and ports use. IP addresses will also accept the character x to mean 0–255. This expression can be used within each quad; SiLK will match each quad separately. In addition to this comma-dash format, SiLK can match on CIDR blocks.

SiLK supports IPv6 by using IPv6’s colon-based notation. The following are all examples of valid IPv6 filters in SiLK, and Example 9-10 shows how to filter them:

::ffff:x
::ffff:0:aaaa,0-5
::ffff:0.0.5-130,1,255.x

# Filtering on the last quad
$ rwfilter --daddress=131.243.104.x inweb/2005/01/06/iw-S0_20050106.20
  --pass=stdout | rwcut --field=1-5 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|
 150.52.105.212|131.243.104.181|   80| 1262|  6|
 150.52.105.212|131.243.104.181|   80| 1263|  6|
  59.100.39.174| 131.243.104.27|   80| 3188|  6|
  59.100.39.174| 131.243.104.27|   80| 3191|  6|
  59.100.39.174| 131.243.104.27|   80| 3193|  6|
# Filtering a range of specific values in the third quad
$ rwfilter --daddress=131.243.104,107,219.x inweb/2005/01/06/iw-S0_20050106.20
   --pass=stdout | rwcut --field=1-5 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|
  208.122.23.36|131.243.219.201|   80| 2473|  6|
205.233.167.250|131.243.219.201|   80| 2471|  6|
   58.68.205.40| 131.243.219.37|   80| 3433|  6|
208.233.181.122| 131.243.219.37|   80| 3434|  6|
   58.68.205.40| 131.243.219.37|   80| 3435|  6|
# Using CIDR blocks
$ rwfilter --saddress=56.81.0.0/16 inweb/2005/01/06/iw-S0_20050106.20
  --pass=stdout | rwcut --field=1-5 --num-recs=5
            sIP|            dIP|sPort|dPort|pro|
   56.81.19.218|131.243.219.201|   80| 2480|  6|
    56.81.16.73|131.243.219.201|   80| 2484|  6|
    56.81.16.73|131.243.219.201|   80| 2486|  6|
    56.81.30.48|131.243.219.201|  443| 2490|  6|
   56.81.31.159|131.243.219.201|  443| 2489|  6|

Time

There are three time options: --stime, --etime, and --active-time. These fields require a time range, which in SiLK is written in the format:

YYYY/MM/DDTHH:MM:SS-YYYY/MM/DDTHH:MM:SS

Note the T separating the day and hour. The --stime and --etime fields filter exactly what it says on the can, which can be a bit counterintuitive; specifying --stime=2016/11/08T00:00:00-2012/11/08T00:02:00 filters any record whose start time is between midnight and two minutes after midnight on November 8, 2016. Records that started before midnight and are still being transmitted during that range will not pass. To find records that occurred within a particular period, use the --active-time filter.

TCP Options

Flows are aggregates of packets, and in the majority of cases, this aggregation is relatively easy to understand. For example, the number of bytes in a flow is the sum of the number of bytes in all the packets that comprise the flow. TCP flags, however, are a bit more problematic. In NetFlow v5, a flow’s flags are the bitwise OR of the flags in its constituent packets—meaning that a flow indicates that a flag was present or absent in the entire flow, but not where. A flow could conceivably consist of a gibberish sequence of flags such as a FIN, then an ACK and SYN. Monitoring software such as Yet Another Flowmeter (YAF) expands NetFlow to include additional flag fields, which SiLK can take advantage of.

The core flag filtering switches are --flags-initial,--flags-all, and --flags-session. These options accept flags in the form <high flags>/<mask flags>. If a flag is listed in the mask, SiLK always parses it. If a flag is listed in the high flags, SiLK passes it only if the value is high. The flags themselves are expressed using the characters in Table 9-2.

The combination of high flags and mask flags tends to confuse people, so let’s review some examples. Remember that the basic rule is that for a flag to be evaluated, it must be in the mask. A flag specified as high but not specified in the mask will be ignored. So:

• Setting the value to S/S will pass any record where the SYN flag is high, regardless of what the other flags are set to.

• Setting the value to S/SA will pass any record where the SYN flag is high and the ACK flag is low.

• Setting the value to SA/SA will pass any record where both the SYN and ACK flags are high.

• A combination like SAF/SAFR will return any record where the SYN, ACK, and FIN flags are high and the RST flag is low, which would be expected of a normal TCP connection.

In addition to these options, SiLK provides a set of flag-specific options in the form of --syn-flag, --fin-flag, and so on for each potential flag. These options take a 1 or 0 as an argument: setting the value to 1 will pass records where the flag is high, 0 will pass records where the flag is low, and not including the option will pass all records.

Helper Options

If you compare rwfilter’s option-based filtering against tcpdump’s BPF filtering, it’s immediately obvious that rwfilter’s approach is much more primitive. This was an intentional decision: rwfilter is focused on processing large volumes as quickly as possible, and the overhead involved in processing some kind of parseable language was deemed too expensive.

What usually trips people up is the lack of obvious not and or operators. For example, if you want to filter out all web sessions, you may try to filter traffic where one port is 80, and the other is ephemeral. The initial attempt might be:

$ rwfilter --sport=80,1024-65535 --dport=80,1024-65535 --pass=stdout

The problem is that this will also pass any flows where the source and destination port are both 80, and flows where the source and destination port are both ephemeral. To deal with such issues, rwfilter has a collection of helper functions that, combined with the --fail option and multiple filters, should be able to address any of these problems.

In the case of ports, the --aport option refers to either the source or the destination port. Using --aport and two filters, you can identify the appropriate sessions as follows:

$ rwfilter --aport=80 --pass=stdout | rwfilter --input-pipe=stdin
   --aport=1024-65535 --pass=stdout

The first filter identifies anything engaged in port 80 traffic, and the second takes that set and identifies anything that also used an ephemeral port.

A number of IP address helper options are available. --anyaddress filters across source and destination addresses simultaneously. --not-saddress and --not-daddress pass records with addresses that don’t match the option specification.

Miscellaneous Filtering Options and Some Hacks

rwfilter has a couple of direct text output options: --print-stat (see Example 9-11) and --print-volume-stat. These can be used to print a summary of the traffic without having to resort to cut, count, or other display tools. They also will print volumes of records that did not pass a filter.

$ rwfilter --print-volume-stat in/2005/01/07/in-S0_20050107.01 --proto=0-255
     |              Recs|           Packets|               Bytes|     Files|
Total|              2019|           2730488|           402105501|         1|
 Pass|              2019|           2730488|           402105501|          |
 Fail|                 0|                 0|                   0|          |
$ rwfilter --print-stat in/2005/01/07/in-S0_20050107.01 --proto=0-255
Files     1.  Read       2019.  Pass       2019. Fail           0.

Note in Example 9-11 the use of the --proto=0-255 option. In almost all invocations, rwfilter expects some form of filtering applied to it, so when you need a filter that passes everything, the easiest approach is just to specify all the protocols. --print-stat and --print-volume-stat output to stderr, so you can still use stdout for pass, fail, and all channels.

Like rwcut, rwfilter has record-limiting commands. --max-pass-records and --max-fail-records can be used to limit the number of records passed through a pass or fail channel.

PMAPs

A SiLK prefix map (PMAP) is a binary file that associates specific subnetworks (prefixes) with tags. PMAPs are used to record various mappings of a network, such as whether a network belongs to a particular organization or ASN, and for country code lookup. Using a source such as GeoIP, you can build a PMAP that associates IP addresses with their country of origin.

The SiLK tool suite expects some basic PMAPs:

address_types.pmap

Describes an address’s type, conventionally indicating whether the address is inside or outside of the network you are monitoring. Specify the default filesystem location for this PMAP using the SILK_ADDRESS_TYPES environmental variable.

country_codes.pmap

This PMAP describes the country code for an address. Specify the default location for this PMAP using the SILK_COUNTRY_CODES environmental variable.

PMAPs, like set files, can be created from text. Example 9-23 shows a simple PMAP file. Note the following attributes:

• The set of labels at the beginning. PMAPs do not store strings, but enumerable types identified by an integer. This enumeration is defined using the labels. You can see that the PMAP in Example 9-23, for instance, stores a 3 to mark normal traffic.

• The default key. Any value that doesn’t match one of the network blocks listed in the map is given the default value.

• The actual declarations. Each declaration consists of a network specification, such as 192.168.0.0/16, followed by a label.

# This is a simple PMAP file that tracks some of the standard RFC 1918
# reserved addresses
#
# First we create some labels
label 0 1918-reserved
label 1 multicast
label 2 future
label 3 normal
#
# Specify the mode; this must be either ip or proto-port. ip in this case
# refers to v4 addresses.
#
mode ip
#
# Everything otherwise not specified is normal
default normal
# Now the maps
192.168.0.0/16    1918-reserved
10.0.0.0/8        1918-reserved
172.16.0.0/12     1918-reserved
224.0.0.0/4       multicast
240.0.0.0/4   future

Once you’ve created a text representation of the PMAP, you can compile the binary PMAP file using the rwpmapbuild command. rwpmapbuild has two mandatory arguments: an input filename, with the file in the text format described previously, and a name for the output file. As with most SiLK commands, rwpmapbuild will not overwrite an existing output file. For example:

$ rwpmapbuild -i reserve.txt -o reserve.pmap
$ ls -l reserve.*
  -rw-r--r-- 1 mcollins staff 406 May 27 17:16 reserve.pmap
  -rw-r--r-- 1 mcollins staff 526 May 27 17:00 reserve.txt

Once a PMAP file is created, it can be added to rwfilter and rwcut using the pmap-file argument. Specifying the use of a PMAP file effectively creates a new set of fields in the filter and cut commands; since PMAP files are explicitly related to IP addresses, these new fields are bound to IP addresses.

Consider Example 9-24, which uses rwcut. In this example, the --pmap-file argument is colon-delimited; the value before the colon (reserve in the example) is a label, and the value after is a filename. rwcut binds the term reserve to the PMAPs for the source and destination IP address, creating two new fields: src-reserve (for the mapping of the source address to the PMAP) and dst-reserve (for the mapping of the destination address).

$ rwcut --pmap-file=reserve:reserve.pmap --fields=1-4,src-reserve,dst-reserve
  traceroute.rwf | head -5
          sIP|          dIP|sPort|dPort|   src-reserve|   dst-reserve|
 192.168.1.12|  192.168.1.1|65428|   53| 1918-reserved| 1918-reserved|
 192.168.1.12|  192.168.1.1|56126|   53| 1918-reserved| 1918-reserved|
 192.168.1.12|  192.168.1.1|52055|   53| 1918-reserved| 1918-reserved|
  192.168.1.1|  92.168.1.12|   53|56126| 1918-reserved| 1918-reserved|


# Using the pmap in filter; note that rwcut is not using the pmap
$ rwfilter --pmap-file=reserve:reserve.pmap --pass=stdout traceroute.rwf
   --pmap-src-reserve=1918-reserved  | rwcut --field=1-5
   | head -5
sIP| dIP|sPort|dPort|pro|
192.168.1.12| 192.168.1.1|65428| 53| 17|
192.168.1.12| 192.168.1.1|56126| 53| 17|
192.168.1.12| 192.168.1.1|52055| 53| 17|
192.168.1.1| 192.168.1.12| 53|56126| 17|

YAF

Yet Another Flowmeter (YAF) is the reference implementation for the IETF IPFIX standard, and is the standard flow collection software for the SiLK toolkit. YAF can read pcap data from files or capture packets directly, which it then assembles into flow records and exports to disk. The tool itself can be entirely configured using command-line options, but the number of options is fairly daunting. At its simplest, a YAF command looks like this:

$ sudo yaf -i en1 --live=pcap -out /tmp/yaf/yaf

This reads data from interface en1 and drops it to the file in the temporary directory. Additional options control how data is read and how it is converted into flow records and other output formats.

yaf output is specified via the --out switch in tandem with the --ipfix and --rotate switches. By default, --out outputs to a file; in the preceding example, the file is /tmp/yaf/yaf, but any valid filename will do (if --out is set to -, then yaf will output to stdout).

When --out is specified with --rotate, yaf writes the output to files that are rotated at an interval specified by the --rotate switch (e.g., --rotate 3600 will update files every hour). In this mode, yaf uses the name specified by --out as a base filename, and attaches a suffix specified in YYYYMMDDhhmmss format, along with a decimal serial number and a .yaf file extension.

When yaf is specified with the --ipfix switch, it communicates IPFIX data to a daemon located elsewhere on the network. In this case (the most complicated option), --ipfix takes a transport protocol as an argument, while --out takes the IP address of the host. The additional --ipfix-port switch takes a port number when needed. Consult the documentation for more information.

The most important options are:

--live

Specifies the type of data being read; possible values are pcap, dag, or napatech. dag and napatech refer to proprietary packet capture systems, so unless you have that hardware, just set --live to pcap.

--filter

Applies a BPF filter to the pcap data.

--out

The output specifier, discussed previously. This will be a file, a file prefix, or an IP address depending on whatever other switches are used.

--ipfix

Takes a transport protocol (tcp, udp, sctp, or spread) as an argument, and specifies that output is IPFIX-transported over the network. Consult the yaf documentation for more information.

--ipfix-port

Used only if --ipfix is specified. Specifies the port that the IPFIX data is sent to.

--rotate

Used only with files. If present, the filename in --out is used as a prefix, and files are written with a timestamp appended to them. The --rotate option takes an argument and the number of seconds to wait before moving to a new file.

--silk

Specifies output that can be parsed by SiLK’s rwflowpack tools.

--idle-timeout

Specifies the idle timeout for flows in seconds. If a flow is present in the flow cache and isn’t active, it’s flushed as soon as it’s been inactive for the duration of the idle timeout. Defaults to 300 seconds (5 minutes).

--active-timeout

Specifies the active timeout for flows, or the maximum amount of time an active flow will be stored in the cache before being flushed. Defaults to 30 minutes (1,800 seconds). Note that the active timeout determines the maximum observed duration of collected flows.

YAF has many more options, but these are the basic ones to consider when configuring flows. Consult the yaf manpage for more details.

rwptoflow

SiLK uses its own compact binary formats to represent NetFlow data that tools such as rwcut and rwcount present in a human-readable form. There are times when an analyst needs to convert other data into SiLK format, such as when taking packet captures from IDS alerts and converting them into a format where IP set filtering can be done on the data.

The go-to tool for this task is rwptoflow. rwptoflow is a packet data to flow conversion tool. It does not aggregate flows; instead, each flow generated by rwptoflow is converted into a one-packet flow record. The resulting file can then be manipulated by the SiLK suite like any other flow file.

rwptoflow is invoked relatively simply with an input filename as its argument. In Example 9-25, the pcap data from a traceroute is converted into flow data using rwptoflow. The resulting raw file is then read using rwcut, and you can see the correspondence between the traceroute records and the resulting flow records.

$ tcpdump -v -n -r traceroute.pcap  | head -6
reading from file traceroute.pcap, link-type EN10MB (Ethernet)
21:06:50.559146 IP (tos 0x0, ttl 255, id 8010, offset 0, flags [none],
    proto UDP (17), length 64)
    192.168.1.12.65428 > 192.168.1.1.53: 63077+ A? jaws.oscar.aol.com. (36)
21:06:50.559157 IP (tos 0x0, ttl 255, id 37467, offset 0, flags [none],
    proto UDP (17), length 86)
    192.168.1.12.56126 > 192.168.1.1.53: 30980+ PTR?
    dr._dns-sd._udp.0.1.168.192.in-addr.arpa. (58)
21:06:50.559158 IP (tos 0x0, ttl 255, id 2942, offset 0, flags [none],
    proto UDP (17), length 66)
    192.168.1.12.52055 > 192.168.1.1.53: 990+ PTR? db._dns-sd._udp.home. (38)
$ rwptoflow traceroute.pcap > traceroute.rwf
$ rwcut --num-recs=3 --fields=1-5 traceroute.rwf
   sIP|  dIP|sPort|dPort|pro|
 192.168.1.12|  192.168.1.1|65428|   53| 17|
 192.168.1.12|  192.168.1.1|56126|   53| 17|
 192.168.1.12|  192.168.1.1|52055|   53| 17|

rwtuc

When correlating data between different sources, you will occasionally want to convert it into SiLK’s format. rwtuc is the default tool for converting data into SiLK representation, as it works with columnar text files. Using rwtuc, you can convert IDS alerts and other data into SiLK data for further manipulations.

The easiest way to invoke rwtuc is to use it as an inverse of rwcut. Create a file with columnar entries and make sure that the titles match those used by rwcut:

$ cat rwtuc_sample.txt
sIP         |dIP        |proto
128.2.11.4  | 29.3.11.4 | 6
11.8.3.15   | 9.12.1.4  | 17
$ rwtuc < rwtuc_sample.txt > rwtuc_sample.rwf
$ rwcut rwtuc_sample.rwf --field=1-6
 sIP| dIP|sPort|dPort|pro|   packets|
  128.2.11.4|  29.3.11.4|    0|    0|  6|         1|
   11.8.3.15|   9.12.1.4|    0|    0| 17|         1|

As the following fragment shows, rwtuc will read the columns, use the headers to determine column content, and stuff any unspecified fields with a default value if no column is provided. rwtuc can also take column specifications at the command line using the --fields and --column-separator switches, as so:

$ cat rwtuc_sample2.txt
128.2.11.4  x 29.3.11.4 x 6 x 5
7.3.1.1    x  128.2.11.4 x 17 x 3
$ rwtuc --fields=sip,dip,proto,packets --column-sep=x < rwtuc_sample2.txt
  > rwtuc_sample2.rwf
$ rwcut --fields=1-7 rwtuc_sample2.rwf
  sIP|  dIP|sPort|dPort|pro|   packets|     bytes|
 128.2.11.4|  29.3.11.4|    0|    0|  6|         5|         5|
    7.3.1.1| 128.2.11.4|    0|    0| 17|         3|         3|

SiLK’s binary format requires values for every field, which means that rwtuc makes a best guess for field values that it doesn’t have. For instance, the previous example specifies packets as a field but not bytes, so rwtuc just defines the packet value to be identical to the byte value.

If there exists a common default value (e.g., all traffic has the same protocol), this value can be defined using one of a number of field-stuffing options in rwtuc. These options are identical to the field filtering options in rwfilter, except they only take single values. For example, --proto=17 sets the protocol of every entry to 17.

In the following fragment, we use the field stuffing command --bytes=300 to set a value of 300 bytes for every entry in rwtuc_sample2.txt:

$ rwtuc --fields=sip,dip,proto,packets --column-sep=x --bytes=300 <
  rwtuc_sample2.txt > rwtuc_sample2.rwf
$ rwcut --fields=1-7 rwtuc_sample2.rwf
  sIP|  dIP|sPort|dPort|pro|   packets|     bytes|
   128.2.11.4|   29.3.11.4|    0|    0|  6|         5|       300|
      7.3.1.1|  128.2.11.4|    0|    0| 17|         3|       300|

The resulting RWF file will contain a value of 300 bytes, even though the byte value is not in the original text file. The packet values, which are specified in the file, are set to whatever was specified there.

rwrandomizeip

rwrandomizeip is a tool to shuffle IP addresses in order to anonymize data for public release. Anonymization is itself a complex process, and should be considered on a case-by-case basis. To that end, rwrandomizeip provides a number of different anonymization techniques, including pure randomization and consistent mapping.

The basic invocation of rwrandomizeip takes an input file and an output file, and generates random addresses for both sets:

$ cat rwtuc_sample3.txt
sIP         |dIP        |proto
128.2.11.4  | 29.3.11.4 | 6
11.8.3.15   | 9.12.1.4  | 17
128.2.11.4  | 29.3.99.8 | 6
9.88.4.17   | 29.3.11.4 | 6
$ rwtuc < rwtuc_sample3.txt | rwrandomizeip stdin stdout | rwcut --fields=1-7
  --ipv6=ignore
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|
    10.93.81.37|   10.85.44.118|    0|    0|  6|         1|         1|
   10.99.53.145| 10.130.150.112|    0|    0| 17|         1|         1|
  10.146.120.29|   10.31.222.59|    0|    0|  6|         1|         1|
    10.3.86.205| 10.206.186.249|    0|    0|  6|         1|         1|
$ rwtuc < rwtuc_sample3.txt | rwrandomizeip stdin stdout | rwcut --fields=1-7
  --ipv6=ignore
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|
 10.147.117.187| 10.161.218.135|    0|    0|  6|         1|         1|
   10.15.216.69|  10.85.128.237|    0|    0| 17|         1|         1|
  10.148.145.16|  10.231.231.13|    0|    0|  6|         1|         1|
   10.255.35.36| 10.240.107.198|    0|    0|  6|         1|         1|

Specifying a seed with the --seed switch (which takes an integer) will randomize addresses consistently between invocations:

$ rwtuc < rwtuc_sample3.txt | rwrandomizeip --seed=590 stdin stdout | rwcut
  --fields=1-7 --ipv6=ignore
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|
  10.147.108.49|  10.207.87.141|    0|    0|  6|         1|         1|
   10.193.249.8| 172.29.236.141|    0|    0| 17|         1|         1|
     10.3.188.2|   10.103.37.28|    0|    0|  6|         1|         1|
  10.40.122.115| 10.247.125.160|    0|    0|  6|         1|         1|
$ rwtuc < rwtuc_sample3.txt | rwrandomizeip --seed=590 stdin stdout | rwcut
  --fields=1-7 --ipv6=ignore
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|
  10.147.108.49|  10.207.87.141|    0|    0|  6|         1|         1|
   10.193.249.8| 172.29.236.141|    0|    0| 17|         1|         1|
     10.3.188.2|   10.103.37.28|    0|    0|  6|         1|         1|
  10.40.122.115| 10.247.125.160|    0|    0|  6|         1|         1|

An alternative approach is to use the --consistent switch; this switch will generate a per-octet randomization that can be recorded in a distinct shuffle file. Once created, the shuffle file be reloaded and reused:

$ rwtuc < rwtuc_sample3.txt | rwrandomizeip --consistent --save-table=ipmap
  stdin stdout | rwcut --fields=1-7 --ipv6=ignore
            sIP|            dIP|sPort|dPort|pro|   packets|     bytes|
  47.116.224.20|  60.107.224.20|    0|    0|  6|         1|         1|
   211.8.97.234|  41.140.114.20|    0|    0| 17|         1|         1|
  47.116.224.20|  60.107.220.71|    0|    0|  6|         1|         1|
   41.24.235.32|  60.107.224.20|    0|    0|  6|         1|         1|

Note that in this example, the IP addresses in 29.3 are consistently mapped to 60.107.

IPv4 Addresses, Their Structure, and Significant Addresses

IPv4 addresses can be expressed using a number of different notations. The most common is the dotted quad format discussed earlier: four integer values between 0 and 255, separated by periods. An address can also be referred to directly as a value, usually in hexadecimal. Consequently, the IP address 0xA1010203 is 161.1.2.3 as a dotted quad, and 2701197827 as a decimal integer.

Groups of IP addresses are usually described linearly (e.g., 128.2.11.3–128.2.3.14), or using a Classless Internet Domain Routing (CIDR) block. CIDR blocks are a mechanism for describing the addresses reachable by picking a particular route. Addresses in CIDR notation are represented by a prefix,² which is a dotted quad representation of the significant bits of an address, and then a mask, which indicates how many bits make up the prefix.

For example, the CIDR block 128.2.11.0/24 consists of all addresses whose first 24 bits are 128.2.11, so any address from 128.2.11.0 to 128.2.11.255 is in that block.

A number of IP addresses are either reserved or fixed by convention in network configuration. For an individual host on a network, the most important are the broadcast address, gateway, and netmask:

• IP networks are logically divided into subnets, collections of contiguous addresses that can all communicate with each other without the need for internal routing. When configuring an IP address, this range is specified using a netmask, which is an IP address with a certain number of its least significant bits zeroed out.

• To communicate outside its subnet, a host will have to talk to a router, and does so using a preconfigured gateway address. The gateway address is simply the IP address of the router’s interface to the subnet. Gateway addresses are customarily assigned the lowest value in the subnet, but this is not a requirement.

• A network’s broadcast address is set to the subnet mask, but with all the host bits high (e.g., for a network with subnet mask 192.168.1.0, the broadcast address is 192.168.1.255). Messages sent to the broadcast address are sent to every target within the network. The broadcast address is one of a number of addresses you should never see outside of local network traffic. Addresses ending in .255, for lack of a better term, smell funny.

A number of IPv4 addresses are reserved for specific networking functions. These addresses are specifically intended for local use and consequently should not be seen crossing networks. The most significant are:

Local identification addresses

These belong to the 0.0.0.0/8 CIDR block (0.0.0.0–0.255.255.255). Local identification addresses are used during the startup sequence for a host that doesn’t have an IP address yet.

Loopback address

The loopback address of a host is 127.0.0.1. Traffic sent to the loopback address is sent back to the host without entering the network. IANA has reserved the entire 127.0.0.0/8 CIDR block (127.0.0.0–127.255.255.255) for loopback, so as with local identification, nothing from the 127.0.0.0/8 CIDR block should be seen crossing network boundaries.³

RFC 1918 netblocks

RFC 1918 defines a number of netblocks for private use. These addresses can be used within local networks with the intent that they never communicate directly with the global internet. The RFC netblocks are 10.0.0.0/8, 192.168.0.0/16, and 172.16.0.0/12. Addresses within these blocks are often assigned automatically by local routing tools or DHCP.

Multicast addresses

Multicast addresses are used to classify specific groups of hosts within a subnet. For example, multicast address 224.0.0.2 is the “all routers” multicast address, and all routers within the subnet will receive traffic sent there. Multicast traffic is primarily the focus of routing and other internet control protocols.

IPv6 Addresses, Their Structure, and Significant Addresses

One of the most significant changes between IPv4 and IPv6 is the number of addresses they make available. IPv6 assigns 128 bits to each address; this ensures plenty of addresses, but introduces some problems in notation.

The default format for an address is eight 16-bit hexadecimal values separated by colons, such as 2001:0010:AF3A:FB31:09A8:08A1:1098:1101. Given that this is a long and clumsy representation, addresses are usually represented using a number of shorthand conventions. When writing IPv6 addresses, apply these rules:

• Leading zeros in any group are omitted, so 01AA:0002 can be written as 1AA:2.

• Consecutive groups of zeros may be replaced with a single pair of colons, so 2001:0:0:0:0:0:0:1 is written as 2001::1. The double-colon reduction can be used only once, so 2001:0:0:0:11:0:0:1 is written as 2001::11:0:0:1.

As with IPv4, multiple IPv6 blocks are reserved for specific functions. The most important reservation at this point is 2000::/3 (as with IPv4, CIDR block notation can be used with IPv6 addresses, and the mask can extend up to 128 bits). IPv6 space is huge, and to help keep routes reasonably close together, all routable traffic in IPv6 should be in the 2000::/3 block. IANA maintains further divisions within the 2000::/3 block, as it does with the /8 registry for IPv4. The master reference is available on the IPv6 Global Unicast Address Assignments page.

Additional address blocks of note include the ::/128 and ::1/128 blocks, which are the unspecified and loopback addresses (the equivalent of 0.0.0.0 and 127.0.0.0 for IPv4).

Of particular interest are the utility address blocks 2001:758::/29 and 2001:678::/29. 2001:758:/29 is specifically assigned to internet exchange points (IXPs); an IXP is a physical location where multiple ISPs interconnect with each other. 2001:678::/29 represents a block of provider-independent addresses; users can contact their RIRs directly for these addresses.

For clarity, a summary of local and unroutable addresses is provided in Table 10-2.

IP Intelligence: Geolocation and Demographics

A number of database and intelligence services provide further information about an IP address. This type of augmentation data includes ownership, geolocation, and demographic information.

It’s important to distinguish this augmentation data from information such as autonomous system, domain name, and WHOIS data. The latter is necessary for the upkeep of the network, and is maintained by internet organizations related to ICANN. Geolocation, demographic data, and ownership are intelligence products. The companies that produce them use a variety of mechanisms including network scanning as well as shoe-leather investigation. This leads to several important qualities:

• The intelligence updates slowly, whereas DNS names can change very rapidly. Intelligence updates require calling up entities, checking public records, and other physical efforts to find out that, say, 128.2.11.214 is no longer involved in selling car parts and is now hosting malware.

• There is always some degree of approximation. As a rule of thumb, intelligence data gets less accurate as you delve down into finer detail. Country information is usually good, but I’m moderately skeptical about city information outside of the US and Western Europe, and I never trust physical location.

• You get what you pay for. The companies that produce this data have customers who need it. Most of the companies started out providing demographic data for large websites, and it’s still common to find limits on the number of queries you can conduct per license. You pay for accuracy and you pay for precision. There are free intelligence databases, but if you want to get finer detail than country codes, prepare to crack open your wallet.

The most commonly used open source reference is MaxMind’s GeoIP, which provides a number of databases for city, country, region, organization, ISP, and network speed. MaxMind also provides free services in the form of “lite” databases for identifying the city and country associated with an IP address. All of its products are downloadable databases and are updated regularly. MaxMind has been providing this service for years, along with a number of APIs in Python and other scripting languages that are available to access the database.

Applied Security has produced a good GeoIP library in Python (pygeoip, also available in pip). pygeoip works with MaxMind’s commercial and free database instances. The following sample script, pygeoip_lookup.py, shows how the API works:

#!/usr/bin/env python
#
# pygeoip_lookup.py
#
# Takes any IP addresses passed to it as input,
# runs them through the MaxMind GeoIP database, and
# returns the country code.
#
# Command-line arguments:
# argv[1]: Filename for a GeoIP database from MaxMind.

include sys,string,pygeoip

gi_handle = None
try:
    geoip_dbfn = sys.argv[1]
    gi_handle = pygeoip.GeoIP(geoip_dbfn,pygeoip.MEMORY_CACHE)
except:
    sys.stderr.write("Specify a database\n")
    sys.exit(-1)

for i in sys.stdin.readlines():
    ip = i[:-1]
    cc = gi_handle.country_code_by_addr(ip)
    print "%s %s" % (ip, cc)

For more extensive information, options include Neustar and Digital Envoy’s Digital Element. Both provide more precise measurement, as well as additional demographic data such as MSA (metropolitan statistical areas, contiguous areas of high population density used by the US government for statistical analysis) and NAICS (North American Industry Classification System, a numerical identifier akin to a Dewey Decimal number for business type) codes. These services are not cheap, however.

DNS Name Structure

A domain name consists of a hierarchical sequence of labels separated by periods, such as www.oreilly.com. Domain names become more general as you read from left to right, ending at the root domain (the root domain is ., but it’s almost always implicit). Domain names do have limits. The total length of a name cannot exceed 253 characters, and individual labels are limited to 63. Finally, domain names are limited to 127 distinct labels, although the character limit should affect that far earlier.

Historically, labels were limited to a restricted subset of ASCII characters. Since 2009, it has been possible to acquire internationalized domain names, which are encoded using character systems such as Chinese, Greek, and so on.⁴ The mechanical limits of 253 characters per name still hold, though the encoding is more complex, as discussed in Chapter 12.

Forward DNS Querying Using dig

The basic DNS query tool is the domain information groper (dig), a command-line DNS client that enables you to query DNS servers for all of the major records. We’ll begin by conducting a simple dig query:

$ dig oreilly.com
dig oreilly.com

; <<>> DiG 9.8.3-P1 <<>> oreilly.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 29081
;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;oreilly.com.			IN	A

;; ANSWER SECTION:
oreilly.com.		383	IN	A	208.201.239.101
oreilly.com.		383	IN	A	208.201.239.100

;; Query time: 10 msec
;; SERVER: 192.168.1.1#53(192.168.1.1)
;; WHEN: Sat Jul 20 19:11:17 2013
;; MSG SIZE  rcvd: 61
$ dig +short oreilly.com
208.201.239.101
208.201.239.100

Let’s examine dig’s display options, and then the structure of the DNS response. As seen in the previous example, the basic dig command provides extensive information about the query, beginning with a list of options invoked, then a DNS header, and then several sections corresponding to the query. Note the QUERY, ANSWER, AUTHORITY, and ADDITIONAL fields in the header line, and how those correspond to the lines in the corresponding sections. Because this domain returned no AUTHORITY or ADDITIONAL records, none are shown in the output. The query is followed by a set of statistics about the query: the server, the time it took, and the size of the message.

dig provides an enormous number of output options; the previous example showed the default display. Individual sections of that display can be turned off using +nocomments (which kills all the comments beginning with a double semicolon), +nostats (killing the statistics at the end), and +noquestion and +noanswer (to eliminate the DNS responses). +short, as illustrated at the end of the previous example, will simply remove all the cruft and show the responses.

dig is a DNS client, so the majority of information seen is from the DNS server itself. dig enables you to query different servers by using @ in the command line. For example:

# 8.8.8.8 is Google's public DNS server; let's query a content
# distribution network using it
$ dig @8.8.8.8 www.foxnews.com
; <<>> DiG 9.8.3-P1 <<>> @8.8.8.8 www.foxnews.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 18702
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;www.foxnews.com.		IN	A

;; ANSWER SECTION:
www.foxnews.com.	282	IN	CNAME	www.foxnews.com.edgesuite.net.
www.foxnews.com.edgesuite.net. 21582 IN	CNAME	a20.g.akamai.net.
a20.g.akamai.net.	2	IN	A	204.245.190.42
a20.g.akamai.net.	2	IN	A	204.245.190.8

;; Query time: 141 msec
;; SERVER: 8.8.8.8#53(8.8.8.8)
;; WHEN: Sat Jul 20 19:48:01 2013
;; MSG SIZE  rcvd: 135

# Query using my default server
$ dig www.foxnews.com

; <<>> DiG 9.8.3-P1 <<>> www.foxnews.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 47098
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;www.foxnews.com.		IN	A

;; ANSWER SECTION:
www.foxnews.com.	189	IN	CNAME	www.foxnews.com.edgesuite.net.
www.foxnews.com.edgesuite.net. 9699 IN	CNAME	a20.g.akamai.net.
a20.g.akamai.net.	9	IN	A	23.66.230.160
a20.g.akamai.net.	9	IN	A	23.66.230.106

;; Query time: 97 msec
;; SERVER: 192.168.1.1#53(192.168.1.1)
;; WHEN: Sat Jul 20 19:48:09 2013
;; MSG SIZE  rcvd: 135

As you can see, querying a CDN-moderated site (Fox News uses Akamai) results in radically different IP addresses for the same name. CDNs manipulate the DNS to ensure that caches of published data are geographically close to their target. If you don’t specify the server using @, dig will default to whatever server the system is configured to use (for example, in Unix systems this is maintained in /etc/resolv.conf).

A CDN is a caching network that makes the internet viable. Before the web, a user might visit four to five hosts in an hour; after the web, a request to a web page might launch a hundred different HTTP requests. The majority of these requests are redirected via DNS to caching servers that are located geographically nearby. CDNs add an annoying wrinkle to web analysis, because a single CDN server may host multiple websites—if a host is identified as part of a CDN, the only organization that can tell you what’s on that host is the CDN provider.

Now, let’s look at the DNS data. DNS is a federated database system, so queries go first to a local DNS server, which sends a response if it possesses the answer to the query. If the server doesn’t have the information, it uses the hierarchical structure of the name to figure out where to send the request, waits for a response, and sends the response back. DNS supports a number of different queries, termed resource records (RRs), and the options sent as part of the query specify the resource record requested as well as options for querying additional servers. The values with As or CNAMEs in the preceding response are resource records.

Note that the DNS header lists eight fields:

opcode

This field was intended to specify a number of different actions, such as queries, inverse queries, and server status. In practice, it should always be set to QUERY. A number of other opcodes exist, but they are used to communicate information between servers.

status

The status of the response. Three messages appear most often: NOERROR indicates that the query was successful, NXDOMAIN indicates that no domain was available, and SERVFAIL indicates that authoritative servers for the domain were unreachable.

id

The message ID. DNS is a UDP-moderated protocol and uses message IDs to track queries and responses.

flags

These provide information on the response; they include qr (set high for a response), aa (set high when the answer is from an authoritative server), ra (recursion desired), and rd (recursion available).

QUERY

This field indicates that the record is simply a copy of the original request; you can see in this case that the query is echoed in what dig refers to as the QUESTION section.

ANSWER

Contains the response.

AUTHORITY

Reserved for records that identify other servers.

ADDITIONAL

Provides additional information, such as the expected responses to future queries.

Additional information is very much a function of the nameserver’s administrators. A common example of its use follows, where the information provides a name lookup for the mail server identified by an MX query:

$ dig +nostats +nocmd mx cmu.edu
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 30852
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 3

;; QUESTION SECTION:
;cmu.edu.			IN	MX

;; ANSWER SECTION:
cmu.edu.		20051	IN	MX	10 CMU-MX-02.ANDREW.cmu.edu.
cmu.edu.		20051	IN	MX	10 CMU-MX-03.ANDREW.cmu.edu.
cmu.edu.		20051	IN	MX	10 CMU-MX-04.ANDREW.cmu.edu.
cmu.edu.		20051	IN	MX	10 CMU-MX-01.ANDREW.cmu.edu.

;; ADDITIONAL SECTION:
CMU-MX-03.ANDREW.cmu.edu. 20412	IN	A	128.2.155.68
CMU-MX-01.ANDREW.cmu.edu. 20232	IN	A	128.2.11.59
CMU-MX-02.ANDREW.cmu.edu. 20051	IN	A	128.2.11.60

Now, let’s discuss what those resource records actually mean. DNS has upward of 20 resource records for different functions. The major ones are:

A

An answer record, providing the IP address associated with a particular name.

AAAA

Like A, but provides an IPv6 address for a name.

CNAME

Relates two names, a canonical name and an alias.

MX

Returns the mail server for a domain.

PTR

Points to a canonical name; mostly used for DNS reverse lookups.

TXT

Contains arbitrary text data.

NS

Describes the nameserver for an address.

SOA

Provides information about the authoritative nameserver for an address.

dig starts all resource records with the same four values: a name, a time to live (TTL), a class, and an identifier for the RR (for example: cmu.edu, 20051, IN, MX). The name is passed with the query. The TTL indicates for how long (in seconds) the value of the name can be trusted; DNS relies heavily on caching and the TTL provides instructions on when to refresh the cache. The class will almost invariably be IN (internet); other class names are possible, but outside the scope of this book.

A and AAAA (address) provide basic DNS functionality: they associate the queried name with an IP address. A records provide IPv4 addresses, and AAAA records provide IPv6 addresses. By default, dig queries for A records, while other record types are specified by adding them to the command line, as seen here:

$ dig +nocomment +noquestion +nostats +nocmd www.google.com
www.google.com.		55	IN	A	74.125.228.81
www.google.com.		55	IN	A	74.125.228.83
www.google.com.		55	IN	A	74.125.228.84
www.google.com.		55	IN	A	74.125.228.80
www.google.com.		55	IN	A	74.125.228.82
$ dig +nocomment +noquestion +nostats +nocmd aaaa www.google.com
www.google.com.		18	IN	AAAA	2607:f8b0:4004:802::1014

Note that the query to Google responds with five A records. This is an example of round robin DNS allocation, a common load balancing technique. In round robin allocation, the same domain name is assigned to multiple IP addresses. Consequently, when a query chooses an IP address to contact for the name, it effectively picks the name randomly from the set of targets. Round robin DNS allocation is one of many DNS hacks that make reverse lookups (IP addresses from names) incredibly annoying.

Note also the short TTL values in the response. If a particular Google server goes down, the TTL guarantees that in 55 seconds, the user has good odds of contacting another server.

Canonical name (CNAME) records are used to associate an alias to a canonical name. For example, consider lookups for www.oreilly.com:

$ dig +nocomment +noquestion +nostats +nocmd www.oreilly.com
www.oreilly.com.	3563	IN	CNAME	oreilly.com.
oreilly.com.		506	IN	A	208.201.239.101
oreilly.com.		506	IN	A	208.201.239.100

As this shows, the name www.oreilly.com actually points to oreilly.com. www.oreilly.com does not have an IP address; it points to oreilly.com, and that name has an IP address. Canonical names are used for shortcuts (as in the previous example), and also to manage content distribution. The example using Fox News showed how Akamai first aliases all of Fox News’s sites into its own network names using CNAME.

DNS provides lookup functions for email through the agency of the mail exchange (MX) record. MX records record the addresses of mail servers for a particular domain. For example, if I want to send mail to jbro@andrew.cmu.edu, I can find the mail server for doing so by looking up the MX records for cmu.edu:

$ dig  +noquestion +nostats +nocmd mx cmu.edu
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 49880
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 2

;; ANSWER SECTION:
cmu.edu.		21560	IN	MX	10 CMU-MX-03.ANDREW.cmu.edu.
cmu.edu.		21560	IN	MX	10 CMU-MX-04.ANDREW.cmu.edu.
cmu.edu.		21560	IN	MX	10 CMU-MX-01.ANDREW.cmu.edu.
cmu.edu.		21560	IN	MX	10 CMU-MX-02.ANDREW.cmu.edu.

;; ADDITIONAL SECTION:
CMU-MX-01.ANDREW.cmu.edu. 21519	IN	A	128.2.11.59
CMU-MX-02.ANDREW.cmu.edu. 21159	IN	A	128.2.11.60

MX records include a server name (such as CMU-MX-03.ANDREW.cmu.edu), as well as a priority value for the email server. The weighting value is used to choose a mail server: mail clients should pick mail servers in order of ascending priority (i.e., 1 should be chosen before 10).

Of note in this example are the A records shoved into the additional section. These records resolve the CMU-MX-01 and CMU-MX-02 addresses. This reflects a conscious decision by CMU’s DNS administrators to include this information and reduce the number of lookups done.

Nameserver (NS) records are used to find the authoritative nameserver for a zone. For example, for O’Reilly Media:

$ dig +nostat ns oreilly.com

; <<>> DiG 9.8.3-P1 <<>> +nostat ns oreilly.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 32310
;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;oreilly.com.			IN	NS

;; ANSWER SECTION:
oreilly.com.		3600	IN	NS	nsautha.oreilly.com.
oreilly.com.		3600	IN	NS	nsauthb.oreilly.com.

Now look at the NS record for a site managed by a CDN, such as Fox News again:

$ dig +nostat ns foxnews.com

; <<>> DiG 9.8.3-P1 <<>> +nostat ns foxnews.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 38538
;; flags: qr rd ra; QUERY: 1, ANSWER: 8, AUTHORITY: 0, ADDITIONAL: 5

;; QUESTION SECTION:
;foxnews.com.			IN	NS

;; ANSWER SECTION:
foxnews.com.		300	IN	NS	usc2.akam.net.
foxnews.com.		300	IN	NS	ns1.chi.foxnews.com.
foxnews.com.		300	IN	NS	ns1-253.akam.net.
foxnews.com.		300	IN	NS	dns.tpa.foxnews.com.
foxnews.com.		300	IN	NS	usw1.akam.net.
foxnews.com.		300	IN	NS	usw3.akam.net.
foxnews.com.		300	IN	NS	asia3.akam.net.
foxnews.com.		300	IN	NS	usc4.akam.net.

;; ADDITIONAL SECTION:
usw1.akam.net.		28264	IN	A	96.17.144.195
usw3.akam.net.		50954	IN	A	69.31.59.199
asia3.akam.net.		28264	IN	A	222.122.64.134
usc4.akam.net.		28264	IN	A	96.6.112.196
usc2.akam.net.		88188	IN	A	69.31.59.199

Note that in this case, the authoritative nameservers are largely owned by akam.net (Akamai). Fox News is hosted by Akamai’s CDN, and Akamai modifies the names of the hosts as necessary in order to boost performance.

Start of Authority (SOA) records contain summary information about the authoritative server for a domain. These records are most commonly encountered during failed lookups. When an address isn’t found, the SOA information for that zone’s server is returned instead:

$ dig @8.8.4.4 +multiline +nostat zlkoriongomk.com

; <<>> DiG 9.8.3-P1 <<>> @8.8.4.4 +multiline +nostat zlkoriongomk.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 11857
;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 0

;; QUESTION SECTION:
;zlkoriongomk.com.	IN A

;; AUTHORITY SECTION:
com.			899 IN SOA a.gtld-servers.net. nstld.verisign-grs.com. (
				1374373035 ; serial
				1800       ; refresh (30 minutes)
				900        ; retry (15 minutes)
				604800     ; expire (1 week)
				86400      ; minimum (1 day)
				)

The SOA field begins with the source host, followed by a contact email address (note that the email address uses a dot rather than an at-sign as a separator). After this address comes a serial number, which indicates how many times the source file has been modified, and then timeout statistics. Note the +multiline option for dig; this will provide a multiple-line, more human-readable output for the SOA record.

The TXT field is a wildcard field used for any text output that the server administrator feels like passing. For example, Google passes strings for managing Google Apps:

$ dig +short txt google.com
"v=spf1 include:_spf.google.com ip4:216.73.93.70/31 ip4:216.73.93.72/31 ~all"

The DNS Reverse Lookup

A reverse lookup is the process of reconstructing a DNS name from an IP address. For example, if I want to find out who owns 208.201.139.101, I do so using dig -x:

$ dig +nostat -x 208.201.139.101

; <<>> DiG 9.8.3-P1 <<>> +nostat -x 208.201.139.101
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 7519
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;101.139.201.208.in-addr.arpa.	IN	PTR

;; ANSWER SECTION:
101.139.201.208.in-addr.arpa. 21600 IN	PTR	host-d101.studley.com.

Reverse lookups are requests to get DNS names from IP addresses. Note that the question section does not request the IP address, 208.201.139.101, but 101.139.201.208.in-addr.arpa, which lists the fields of the IP address in reverse order. When DNS does a reverse lookup, it creates a special domain name to query in the in-addr.arpa TLD.⁵ The string of digits and periods used for a reverse lookup is the original IP address reversed. This is because DNS names and IP addresses are defined in a contradictory fashion. A DNS name becomes more finely defined (from TLD to domain to individual host) by reading from right to left, while IP addresses are more finely defined reading from left to right.

Reverse lookups are a kludge. Note that the record returned in the answer is a pointer (PTR) record. PTR records are not automatically created with the canonical A records, but are instead registered separately by the NIC. More important, there’s no requirement that a PTR record be registered, and the relationships between names and IP addresses are tenuous at best.

For example, consider a CDN. If I look up one of Fox News’s IP addresses, such as 23.66.230.66, I get this:

$ dig +nostat +nocmd -x 23.66.230.66
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 56379
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;66.230.66.23.in-addr.arpa.	IN	PTR

;; ANSWER SECTION:
66.230.66.23.in-addr.arpa. 290	IN
PTR	a23-66-230-66.deploy.static.akamaitechnologies.com.

The CDN becomes an informational dead end; the answer from the reverse lookup has no meaningful relation to the names in the original query.

In general, DNS information is best collected at the time of the original query. The uncertainty of reverse lookups is part of the reason for this. However, even if reverse lookups worked perfectly, attackers often use very short-lived names. Where possible, record domain names as they’re used (such as the URL in HTTP logs) rather than trying to reconstruct them after the fact.

Using whois to Find Ownership

While DNS can provide information on a domain’s name, the meat of ownership information is provided by WHOIS. This is a federated protocol (defined in RFC 3912) that lists the putative owners of DNS names. The standard whois query on a domain will return ownership and contact information for a domain, as seen in Example 10-1.

$ whois oreilly.com

<boilerplate>

   Domain Name: OREILLY.COM
   Registrar: GODADDY.COM, LLC
   Whois Server: whois.godaddy.com
   Referral URL: http://registrar.godaddy.com
   Name Server: NSAUTHA.OREILLY.COM
   Name Server: NSAUTHB.OREILLY.COM
   Status: clientDeleteProhibited
   Status: clientRenewProhibited
   Status: clientTransferProhibited
   Status: clientUpdateProhibited
   Updated Date: 26-may-2012
   Creation Date: 27-may-1997
   Expiration Date: 26-may-2013

<more boilerplate>

   Registered through: GoDaddy.com, LLC (http://www.godaddy.com)
   Domain Name: OREILLY.COM
      Created on: 26-May-97
      Expires on: 25-May-13
      Last Updated on: 26-May-12

   Registrant:
   O'Reilly Media, Inc.
   1005 Gravenstein Highway North
   Sebastopol, California 95472
   United States

   Administrative Contact:
      Contact, Admin  nic-ac@oreilly.com
      O'Reilly Media, Inc.
      1005 Gravenstein Highway North
      Sebastopol, California 95472
      United States
      +1.7078277000      Fax -- +1.7078290104

   Technical Contact:
      Contact, Tech  nic-tc@oreilly.com
      O'Reilly Media, Inc.
      1005 Gravenstein Highway North
      Sebastopol, California 95472
      United States
      +1.7078277000      Fax -- +1.7078290104

   Domain servers in listed order:
      NSAUTHA.OREILLY.COM
      NSAUTHB.OREILLY.COM

You’ll note that a WHOIS entry for a domain returns an enormous amount of boilerplate information. You will also find that the information returned has no particular fixed format—WHOIS information is the electronic equivalent of 3×5 index cards. Depending on who owns the card and how they decide to administer it, you may get phone numbers and biographies, or nothing at all.

A good way to get a feel for the differences in registration is to take a look at the registration files for different countries. There is no central WHOIS database—instead, depending on the top-level domain, WHOIS information may be maintained by any of a number of WHOIS servers. For example, Russian WHOIS data (the .ru domain) is maintained by whois.ripn.net, French by lvs-vip.nic.fr, and Brazilian by registro.br. Fortunately, the good folks at whois-servers.net provide aliases for every country and TLD, and depending on your whois implementation, the information may be baked into the executable for you already.

At the minimum, any whois implementation will provide the ability to specify a lookup server using the -h switch. So, whois -h ru.ripn.net will query that server directly. Several whois implementations offer a country-specific -c option, making whois -c RU identical to querying whois.ripn.net.

In addition to providing information on domain names, whois is also useful for providing information on address allocation and ownership. If whois is called with an IP address rather than a name, like in Example 10-2, it will provide information on the organization that owns that address, often in the form of a netblock. For example, if I look up the whois information for Voila, a French search engine, I get different information based on whether I look at RIPE (the European top-level registry) or the French NIC. RIPE is informative; the French NIC is considerably less so.

$ dig +short voila.fr
193.252.148.80

$ whois -h whois.ripe.net 193.252.148.80
% This is the RIPE Database query service.
% The objects are in RPSL format.
%
% The RIPE Database is subject to Terms and Conditions.
% See http://www.ripe.net/db/support/db-terms-conditions.pdf

% Note: this output has been filtered.
%       To receive output for a database update, use the "-B" flag.

% Information related to '193.252.148.0 - 193.252.148.255'

% Abuse contact for '193.252.148.0 - 193.252.148.255' is 'gestionip.ft@orange.com'

inetnum:        193.252.148.0 - 193.252.148.255
netname:        ORANGE-PORTAILS
descr:          France Telecom
descr:          internet portals for multiple services
country:        FR
admin-c:        WPTR1-RIPE
tech-c:         WPTR1-RIPE
status:         ASSIGNED PA
remarks:        for hacking, spamming or security problems send mail to
remarks:        abuse@orange.fr
mnt-by:         FT-BRX
source:         RIPE # Filtered

role:           Wanadoo Portails Technical Role
address:        France Telecom - OPF/Portail/DOP/Hebex
address:        48, rue Camille Desmoulins
address:        92791 Issy Les Moulineaux Cedex 9
address:        FR
phone:          +33 1 5888 6500
fax-no:         +33 1 5888 6680
admin-c:        WPTR1-RIPE
tech-c:         WPTR1-RIPE
nic-hdl:        WPTR1-RIPE
mnt-by:         FT-BRX
source:         RIPE # Filtered

% This query was served by the RIPE Database Query Service version 1.60.2 (WHOIS4)

$ whois -h fr.whois-servers.net 195.152.120.129
%%
%% This is the AFNIC Whois server.
%%
%% complete date format : DD/MM/YYYY
%% short date format    : DD/MM
%% version              : FRNIC-2.5
%%
%% Rights restricted by copyright.
%% See http://www.afnic.fr/afnic/web/mentions-legales-whois_en
%%
%% Use '-h' option to obtain more information about this service.
%%
%% [96.255.98.126 REQUEST] >> 195.152.120.129
%%
%% RL Net [##########] - RL IP [#########.]

You will find that the situation is reversed with Asian information. The APNIC WHOIS is often fairly sparse, but the WHOIS entries at the country level are usually informative.

WHOIS information is particularly useful when you can’t get much useful data out of a DNS reverse lookup. If you can’t find the specific domain name, you can use whois to at least find the block of addresses that host the domain.

DNS Blackhole Lists

Reputation information such as DNS blackhole lists (DNSBLs) are generated by a number of organizations as a form of threat intelligence. A DNSBL is a DNS-based IP address database used primarily as an antispam technique. The first DNSBLs were actually implemented using the Border Gateway Protocol (BGP, see Chapter 19 for more information) and were intended to actively drop routes associated with spammer IP addresses. Modern DNSBLs are instead DNS-moderated, and serve as reputation databases for email software. For example, a mail transfer agent can consult a DNSBL to determine if the sending IP is a spammer and react accordingly.

DNSBLs work by providing a reverse lookup–style functionality on their DNS servers. For example, I can look up an echo address on a DNSBL using dig:

$ dig 2.0.0.127.sbl.spamhaus.org

; <<>> DiG 9.8.3-P1 <<>> 2.0.0.127.sbl.spamhaus.org
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 45434
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;2.0.0.127.sbl.spamhaus.org.	IN	A

;; ANSWER SECTION:
2.0.0.127.sbl.spamhaus.org. 300	IN	A	127.0.0.2

;; Query time: 39 msec
;; SERVER: 192.168.1.1#53(192.168.1.1)
;; WHEN: Sun Jul 28 15:10:23 2013
;; MSG SIZE  rcvd: 60

The address I intended to query was 127.0.0.2. Note that, as with a reverse lookup, I reversed the IP address. After reversing the address, I attached it to the name of the list and query. This process is effectively a reverse lookup without relying on the hardcoded .arpa TLD. Instead, the response is provided by an A record provided by Spamhaus’s SBL server.

DNSBLs differ depending on the list and provider. Providers may provide several different forms of lists for different categories of traffic. Different providers will also provide different policies for adding or removing addresses to or from the DNSBL. How different organizations handle delisting (address removal) radically impacts the character of the list. Most automatically drop an address a fixed number of days after the last abuse; others require manual intervention.

Some notable DNSBLs include:

Spam and Open Relay Blocking System (SORBS)

SORBS provides over 15 different DNSBLs that categorize hosts into a number of different behaviors. It’s particularly useful for categorizing dynamic addresses such as dialup and DSL addresses through a specialized list, the Dynamic User and Host List (DUHL).

Spamhaus

A nonprofit private company that produces a number of distinct blacklists and whitelists, Spamhaus’s most commonly used lists are the Policy Block List (PBL, for end-user addresses), Spamhaus Block List (SBL, for known spam addresses), and Exploits Block List (XBL, for hijacked IP addresses and bots). These lists are accessible as a single combined service, ZEN.

SpamCop

Currently owned by Cisco Systems, SpamCop began as a private effort and eventually became part of IronPort’s email reputation system. Currently, SpamCop provides one public list, the SpamCop Block List (SCBL).

DNSBLs are useful for identifying hostile activity. Using a DNSBL, an analyst can determine whether a particular address has been doing something hostile elsewhere on the internet and possibly what kind of activity it was. They supplement the more basic lookup information discussed earlier by providing some idea of a site’s past history.

DNSBLs are designed to be real-time tools that work primarily with mail agents, not to support forensic analysis. Records will change quickly and unpredictably, so an address may be recognized by the DNSBL as hostile at the time of an event, but be delisted when an analyst examines it later. Most of the blacklists sell some kind of feed or data dump that, for forensic purposes, is preferable.

General Search Engines

The two most useful general-purpose search engines are Google and the Internet Archive. In the case of Google, it’s omnipresent, there are a number of powerful search predicates, and you have access to cached sites. If you’re actively engaged in work outside of the English language/Roman alphabet, then it helps to be familiar with international search engines such as Naver (Korea), Yandex (Russia), or Baidu (China), as well as the various language-specific Googles.

Regardless of the search engine, you want to identify predicates that will help you refine the search to find specific sites or technical terms. For example, in Google, you can literalize a search by using quotes (e.g., Googling “the google” returns the exact phrase “the google” from the Google). Other predicates of note include site: (which will search only for a specific domain name—handy for identifying subdomains of the same domain), inurl: (which looks for a string in a URL), and cache: (which returns the latest version of a URL from Google’s cache, avoiding directly contacting the site).

After Google, the Internet Archive is useful when you’re looking for context or the history of a website. If a particular domain name appears that you’ve never seen before, it’s useful to check the archive for a history of that domain. If a site changes radically, the Internet Archive has a reasonable chance of maintaining a pre-change version. The Alrwais paper mentioned at the end of this chapter is a good example of using the Internet Archive to track changes.

Scanning Repositories, Shodan et al

Not all scanners are malicious. A number of threat intelligence groups scan the Internet on a regular basis, providing information on vulnerabilities. Notable repositories include:

Censys

Censys is a scanning team that provides a search engine hosted at the University of Michigan. Censys regularly scans the entire IPv4 address space, Alexa’s million busiest hosts, and other hosts for a constantly updated list of vulnerabilities.

Shodan

Shodan is the oldest internet-wide vulnerability scanning system. Currently, it markets itself as the search engine for IoT, but historically it has scanned for everything.

Both of these engines scan for a specific set of vulnerabilities, and are pretty good about listing what they look for—be aware that, particularly as a defender, their primary value is in scanning you rather than looking at what other sites host.

Histograms

A histogram is the fundamental plot for ratio and interval data; it is a count of how often a variable takes each possible value. A histogram consists of a set of bins, which are discrete ranges of values, and frequencies. Thus, if you can receive packets at any rate from 0 to 10,000 a second, you can create 10 bins for the ranges 0 to 999, 1,000 to 1,999, and so on. A frequency is the number of times that the observed value occurred within the range of the bin.

A histogram is valuable for data analysis because it helps you find structure in a variable’s distribution, and structure provides material for further investigation. In the case of the histogram, that structure is generally a mode, the most commonly occurring value in a distribution. In a histogram, modes appear as peaks. Histogram analysis almost invariably consists of two questions:

1. Is the distribution normal or another one I know how to use?

2. What are the modes?

As an example of this type of analysis, take a look at the histogram in Figure 11-3. This is a histogram of flow size distributions for BitTorrent sessions, showing a distinctive peak between about 78–82 bytes. This peak is defined by the BitTorrent protocol: it’s the result of a BitTorrent peer asking another peer if it has a particular piece of a file, and getting back “no” as an answer.

Figure 11-3. A distribution of BitTorrent flow sizes

Modes enable you to ask new questions. Once you’ve identified modes in a distribution, you can go back to the source data and examine the records that produced a mode. In the example in Figure 11-3, you could go back to the times in the 250–255 mode and see whether the traffic showed any distinctive characteristics—short flows, long flows, communications with empty addresses, and so on. Modes direct your questions.

This process of visualizing, then returning to the repository and pulling more detailed data is a good example of the iterative analysis shown in Figure 11-2. EDA is a cyclic process where analysts will return to the source (or multiple sources) repeatedly to understand why something is distinctive.

Bar Plots (Not Pie Charts)

A bar plot is the analog to a histogram when working with univariate qualitative data. Like a histogram, it plots the frequency of values observed in the dataset by using the heights of various bars. Figure 11-4 is an example of such a plot, in this case showing the counts of various services from network traffic data.

Figure 11-4. A bar plot showing the distribution of major services

The difference between bar plots and histograms lies in the binning. Qualitative data can be grouped into ranges, and in histograms, the bins represent those ranges. These bins are approximations, and the range of values they contain can be changed in order to provide a more descriptive image. In the case of bar plots, the different potential values of the data are discrete, enumerable, and often have no ordering. This lack of ordering is a particular issue when working with multiple bar plots—when doing so, make sure to keep the same order in each plot and to include zero values.

In scientific visualization, bar plots are preferred over pie charts. Viewers have a hard time differentiating fine variations in pie slice sizes—variations that are much more apparent in bar plots.

The Five-Number Summary and the Boxplot

The five-number summary is a standard statistical shorthand for describing a dataset. It consists of the following five values:

• The minimum value in a dataset

• The first quartile of the dataset

• The second quartile or median of the dataset

• The third quartile of the dataset

• The maximum value in the dataset

Quartiles are points that split the dataset into quarters, so the five numbers translate into the smallest value, the 25% threshold, the median, the 75% threshold, and the maximum. The five-number summary is a shorthand, and if you’re looking at a lot of datasets very quickly, it can provide you with a quick feel for what the sets look like.

The five-number summary can be visualized using a boxplot (Figure 11-5), which is also called a box-and-whiskers plot. A boxplot consists of five lines, one for each value in the five-number summary. The center three lines are then connected as a box (the box of the plot), and the outer two lines are connected by perpendicular lines (the whiskers) of the plot.

Figure 11-5. A boxplot and the corresponding histogram

Generating a Boxplot

Pandas directly provides a five-number summary via the describe method on a Series. For example:

>>> import numpy as np
>>> import pandas as pd
>>> data = pd.Series(np.random.normal(25,5,size=100))
>>> data.describe()
count    100.000000
mean      24.747831
std        4.905132
min       13.985350
25%       21.432594
50%       24.666327
75%       27.704180
max       36.785944
dtype: float64

matplotlib provides basic plotting functionality with boxplot (Figure 11-6):

> boxplot(data)

Figure 11-6. An example boxplot

Note that this plot produced a series of crosses outside the whiskers. These are outliers, meaning they are far outside the first and third quartiles. By default, a low value is considered an outlier if its distance to the first quartile is more than 1.5 times the interquartile range (the difference between the first and third quartiles). Similarly, a high value is considered an outlier if its distance to the third quartile is more than 1.5 times the interquartile range.

I rarely find boxplots to be useful on their own. If I’m dealing with a single variable, I’m going to get more information out of a histogram. Boxplots become more valuable when you start stacking bunches of them together—a situation where histograms are going to be just too busy to be meaningfully examined.

Scatterplots

Scatterplots are the workhorse of quantitative plots, and show the relationship between two ordinal, interval, or ratio variables. The primary challenge when analyzing scatterplots is to identify structure among the noise. Common features in a scatterplot are clusters, gaps, linear relationships, and outliers.

Let’s start exploring scatterplots by looking at completely unrelated data. Figure 11-7 is an example of a noisy scatterplot, generated in this case by plotting two uniform distributions against each other. This is a boring plot.

Figure 11-7. A boring scatterplot

Clusters and gaps are changes in the density of a scatterplot. The boring scatterplot in Figure 11-7 is a plot of uniform variables of unrelated density. If the two variables are related, then there should be a change in the density of the data somewhere on the plot. Figure 11-8 shows an example of clusters and gaps. In this example, there is a marked increase in activity in the lower-left quadrant, and a marked decrease in the upper-right quadrant.

Figure 11-8. Clusters and gaps in data

Linear relationships, as the name indicates, appear in scatterplots as a line. The strength of the relationship can be estimated from the density of the points around the line. Figure 11-9 shows an example of three simple linear relationships of the form y=kx, but each relationship is progressively weaker and noisier.

Figure 11-9. Linear relationships in data

Other Visualizations and Their Role

The visualizations discussed in this chapter are, so far, derived from the data represented. A number of specialized visualizations are also useful for the analyst; we will discuss them here.

Pairs plots and trellising

A pairs plot is a form of specialized multivariate visualization for data analysis and exploration. Given a data frame with a set of columns, a pairs plot is a stacked set of scatterplots representing every combination of columns. Pandas provides a scatterplot via its plotting tools, in the form of a scatter_matrix function:

>>> import pandas as pd
>>> import matplotlib.pyplot as plt
>>> data = pd.read_csv('voldata.csv')
>>> data.columns.values
array(['Time', 'Volume', 'Articles', 'Users'], dtype=object)
>>> axes = pd.tools.plotting.scatter_matrix(data)
>>> plt.show()

The result is shown in Figure 11-10. As this figure shows, the 4 columns in the array result in 16 plots, 1 for each variable pairing. Pairs plots vary in practice, and different tools will tweak the results in different ways—the default Pandas version in Figure 11-10 plots the diagonal (which consists of the variable plotted against itself) with a histogram, where other platforms may use the title, or remove the redundant plots and leave a stairstep-like visualization.

Figure 11-10. The resulting pairs plot from volume data

A pairs plot, like this one, is also a good example of trellising, a good technique for clearly visualizing multivariate data. A trellised plot consists of one or more small plots that are stacked adjacent to each other (horizontally, vertically, or both). Trellis plots are, in my experience, preferable to multicolor plots.

When developing trellis plots, you will have to consider how to coordinate information across multiple axes. Since trellis plots generally consist of multiple small plots, wasting space reprinting the same labels is confusing and expensive. Note that the plot in Figure 11-10 relies on the fact that the various pairs share axes in common and consequently only prints the axis labels on the outside of the plot. If you are plotting a trellis, align all the values on a common axis and provide a single label.

Spider plots

Spider plots (so called because they look like a spiderweb) are a specialized type of two-dimensional plot that plots information radially. Figure 11-11 shows an example of this type of plot: in this case, the number of active hours a host showed per day for a week.

Figure 11-11. An example of a spider plot

I find spider plots most useful for visualizing cyclical data, such as activity over the course of the business cycle for several weeks, or activity per hour. Since the plot links the end of one cycle to the beginning of the next, common activity is more clearly represented than if you’re looking at a set of linear plots. An alternative use of spider plots is to visualize attributes along multiple differing datasets. This approach lends itself well to trellising.

Building a spider plot in matplotlib requires a bit of work. An example of spider plot generation is available on the matplotlib website, but it requires more work than the other plots shown so far.

ROC curves

Receiver operating characteristic (ROC) curves are a form of specialized visualization associated with binary classification systems (such as most IDSs). Binary classifiers end up with one of four results when run: they either detect something that is there (a true positive), detect something that isn’t there (false positive), don’t detect something that is there (false negative), or don’t detect something that isn’t there (true negative). ROC curves evaluate the true positive and false positive rates of a detection system: the sensitivity of the system as a function of its (inverted) specificity.

Figure 11-12 shows an example of a ROC curve in action. Despite being on a two-dimensional field, ROC curves are actually three-value plots. These three values are the false positive rate, the true positive rate, and an operating characteristic, which is the variable you use to tune the ROC curve. In the example in Figure 11-12, the operating characteristic is the number of packets used for the threshold, and is expressed using lines pointing to the label. Depending on the plotter, ROC curves may individually label points with the operating characteristic or use pointers, as in this example.

Figure 11-12. An example ROC curve

ROC curves are a common visualization technique for binary classification, but be aware that the rates used in ROC curves are conditional—the true positive rate is the probability of detecting an event if the event happened, and the false positive rate is the probability of detecting an event if the event didn’t happen. Both of these rates are ultimately driven by the probability of the event happening in the first place,⁴ which brings us back to the base rate problem, as discussed in Chapter 3.

Operationalizing Security Visualization

EDA and visualization are part of the exploratory process and, as such, are somewhat rough around the edges. The EDA process involves a large number of dead ends and false starts. During the operationalization phase of an analytic process, the visualizations will need to be modified in order to supplement action and response. Additional processing and modification are needed to polish a visualization sufficiently for it to work on the floor. The following subsections provide examples of good and bad visualizations and rules for addressing the problems of visualizing data for information security.

Rule one: Bound and partition your visualization to manage disruptions

When plotting security information, you need to expect and manage disruptions—after all, the whole point of looking for security events is to find disruptive activity. Plotting features like autoscaling can work against you by hiding data when something weird happens. For example, consider a count of anomalous events such as in Figure 11-13. This plot has two anomalies, but one is obscured by the need to plot the second.

Figure 11-13. Autoscale’s impact on disruptive event visualization

There are two strategies for dealing with these spikes. The first is to use logarithmic scaling on the dependent (y) axis. Log scaling replaces the linear scale with a logarithmic scale. For example, the ticks on the axis go from being 10, 20, 30, 40 to 10, 100, 1000, 10000. Figure 11-14 shows a logarithmic plot of the same phenomenon. Using a logarithmic scale will reduce the difference between the major anomaly and the rest of the data.

Figure 11-14. Using a log scale plot to limit the impact of large outliers

A logarithmic scale is suitable for EDA, and most tools provide an option to automatically plot data this way. With R, you pass in a log parameter to the plotting command to indicate which axis should be logarithmic (e.g., log="y").

I don’t like using logarithmic scales when developing an operational visualization, however. With logarithmic scales you tend to lose information about typical phenomena—the curve for typical traffic in Figure 11-14 is deformed by the logarithmic scale. Also, the explanation of what a logarithmic scale is a bit recondite; I don’t want to have to explain logarithmic scaling over and over again. When somebody is looking at the same data repeatedly, I’d rather keep it linear.

For these reasons, I prefer to keep the scaling on a plot consistent and identify and remove outliers. When developing an operational plot, I estimate the range of the plot, and usually set the upper limit displayed to the 98th percentile of the observed data. Then, when an anomaly occurs, I plot it separately and differently from the other data to indicate that it is an anomaly. Figure 11-15 shows a simple example of this.

Figure 11-15. Partitioning anomalies out from normal data

The anomaly in Figure 11-15 is identified by the single line indicating that it’s off the scale. The second anomaly (at 07:11) is not detected by that process, but the event is now obvious through visualization. That said, the anomaly marker is completely meaningless without further information and training, which leads into rule two.

Rule two: Label anomalies

If rule one is in place, then you’ve already established some basic rules for discerning anomalies from normal traffic. Now, apply those rules to identify the anomalies and modify the visualization to make them stand out for the reader.

An operational visualization is an aid to anomaly detection, so the same rules apply as for constructing IDSs (see “Prefetching Data”)—you should prefetch data to reduce the operator’s response time. As an example, the anomaly in Figure 11-16 is annotated with information about what caused the anomaly as well as some statistics.

Figure 11-16. Labeling anomalies to aid investigation

Labeling anomalies on the plot can be useful for rapid reference, but if there are too many anomalies (and working off of rule one, you should expect that there will be too many anomalies), you will end up sacrificing clarity in the image. You can see this happening in Figure 11-16, where the label, while informative, is already consuming about a fifth of the horizontal space available. A better approach is to explain the anomalies in a separate table next to the visualization, which allows you to include as much data as necessary.

Rule three: Use trendlines, distinguish artifacts from observations

Operational visualizations need to balance summarization and smoothing techniques that can help the analyst process data without getting mired in details, while at the same time providing the analyst with the actual data and not thinking for him. As a result, when I operationally visualize data I prefer to include the raw data and some kind of smoothing trendline at the same time. Figure 11-17 is a simple example of this kind of visualization, where a moving average is used to smooth out the observed disruptions.

Figure 11-17. Moving average over direct observations

When creating visualizations like this, you need to ensure that the analyst can clearly differentiate between the data (the original information) and the artifacts you’ve created to aid analysis. You also need, as per rule one, to keep track of the impact of disruptive events—you don’t want them interfering with your smoothing.

Rule five: Annotate with contextual information

In addition to labeling anomalies, it’s good to include unobtrusive contextual data that can help facilitate analysis. The example shown in Figure 11-18 adds some gray bars to indicate whether activity is taking place during or outside business hours.

Figure 11-18. Adding some color to identify time of day

Is It Normal?

There are a diverse family of techniques for determining whether or not a dataset is normally distributed, or, to be more precise, can be satisfactorily modeled using a normal distribution. Parametric distributions, if applicable, open up a number of tools to us. The problem is that in raw network data they’re rare. Among the techniques discussed in this chapter are:

• Histograms, for visualizing the distribution

• Quantile-quantile (QQ) plots, for comparing the data against a normal distribution

• Goodness of fit tests, such as the K-S or S-W tests

Visualizations (histograms and QQ plots) are, in my opinion, the preferable option. My interest in acquiring a distribution is utilitarian. I’m looking for reasonable thresholds and something that matches a theoretical distribution well enough that I can use other tools, because I don’t have the control to make very sensitive measurements. Attackers will usually be fairly easy to identify once you’ve picked the right metric.

The classic mistake with using means and standard distributions without looking at the data is that most network security datasets have a number of outliers. These outliers end up producing ridiculously large standard deviations, and the resulting threshold is triggered only for egregious events.

Simply Visualizing: Projected Values and QQ Plots

There are two ways to generate a visualization to test against a distribution. The first approach is to compare a histogram against a theoretical model (generally some distribution). There are a variety of ways to do this using Pandas, so I’m going to show one simple example. This example, using matplotlib’s mlab (MATLAB compatibility) module, is representative of the basic process: generate a histogram with a fixed set of bins that will serve as the x points, then generate the y values using the normpdf function, and plot the results:

>>> import matplotlib.pyplot as plt
>>> from scipy.stats import norm
>>> import matplotlib.mlab as mlab
>>> import numpy.random
# Generate a hundred points of normally distributed random data
# with a mean of 20 and a standard deviation of 5
>>> data = numpy.random.normal(20,5,100)
>>> n,bins,other = plt.hist(data,normed=1)
# Generate the mean and standard distribution for a model
>>> mean,sd = norm.fit(data)
>>> mean, sd
(20.596980651919221, 5.1886885182512357)
# You can just as easily do this 'by hand'
>>> yv = mlab.normpdf(bins,mean,sd)
>>> plt.plot(bins,yv,'r',linewidth=2)
[<matplotlib.lines.Line2D object at 0x113bc1990>]
>>> plt.xlabel('Value')
<matplotlib.text.Text object at 0x113f1e810>
>>> plt.ylabel('Probability')
<matplotlib.text.Text object at 0x114d8a710>
>>> plt.title('Comparison of Histogram and Model')
<matplotlib.text.Text object at 0x113f0e850>
>>> plt.show()

The resulting image is shown in Figure 11-19.

Figure 11-19. Example of comparing distributions

Straight comparison against an assumed distribution (that is, assuming a distribution is normal and plotting it just to eyeball it) is trivial. I do it by default, whatever toolkit I’m using, just so that I have some idea of what the data looks like; it’s quick, but it’s really just testing against one assumption. For more exploratory work, you need to use something like a QQ plot or the other visualizations discussed in this chapter.

A QQ plot compares the distributions of two variables against each other. It’s a two-dimensional plot, with the x-axis being the values of one distribution normalized as quantiles, and the y-axis being values of the second distribution normalized as quantiles. For example, if I break each distribution into 100 centiles, the first point is the first percentile for each, the 50th point is the 50th percentile for each, and so on.

Figures 11-20 and 11-21 show two QQ plots, with the companion code following. These plots were generated using the probplot function found in the scipy stats library. The first plot, a normal distribution, shows the expected behavior when two similar distributions are plotted on a QQ plot—the values track the diagonal. There is some deviation but it isn’t very severe. Compare the results with the uniform distribution in the second figure; in this one, significant deviations happen on the ends of the plot.

Figure 11-20. Example QQ plot against a normal distribution

Figure 11-21. Example QQ plot against a uniform distribution

Here’s the code that generates these plots:

# Generate normal and uniform distribution data
>>> normal = numpy.random.normal(20,5,1000)
>>> uniform = numpy.random.uniform(10,30,1000)
>>> results = stats.probplot(normal,dist='norm',plot=plt)
>>> plt.show()
>>> results = stats.probplot(uniform,dist='norm',plot=plt)
>>> plt.show()

The full pandas stack has QQ plotting stuffed away in a number of locations. In addition to the calls in stats, the statsmodels.qqplot function will provide a similar plot.

Fit Tests: K-S and S-W

Goodness of fit tests compare observed data against a hypothetical distribution in order to determine whether or not the data fits the distribution. Determining that a phenomenon can be satisfactorily modeled with a distribution enables you to use the distribution’s characteristic functions to predict the values.

Everyone’s standard approach for this is the normal, or Gaussian, distribution, also known as the bell curve. If data can be modeled by a normal distribution (and snarking aside, it’s called normal because it’s pretty normal), you can generate an estimate from a small sample of data and reasonably predict the probability of other values. Given a mean of μ and a standard deviation of σ, a normal distribution has a probability density function of the form:

If traffic can be satisfactorily modeled with a distribution, it provides us with a mathematical toolkit for estimating the probability of an occurrence happening. To get something that does behave that way, expect that you will have to run heavy heuristic filtering to remove the outliers, oddities, and other strange conditions.

This matters because if you use the mathematics for a model without knowing if the model works, then you run the risk of building a faulty sensor. There exist, and any toolkit provides, an enormous number of different statistical tests to determine whether you can use a model. For the sake of brevity, this text focuses on two tests, among a number provided by scipy’s stats library. These are:

Shapiro-Wilk (shapiro.test)

The Shapiro-Wilk test is a goodness of fit test against the normal distribution. Use this to test whether or not a sample set is normally distributed.

Kolmogorov-Smirnov (ks.test)

A goodness of fit test to use against continuous distributions such as the normal or uniform distribution.

All of these tests operate in a similar fashion: the test function is run by comparing two sample sets (either provided explicitly or through a function call). A test statistic describing the quality of the fit is generated, and a p-value produced.

The Shapiro-Wilk test is a normality test; the null hypothesis is that the data provided is normally distributed. See Example 11-1 for an example of running the test.

# Test to see whether a random normally distributed
# function passes the Shapiro test
>>> scipy.stats.shapiro(numpy.random.normal(100,100,120))
(0.9825371503829956, 0.12244515120983124)
# W = 0.98; p-value = 0.12
# We will explain these numbers in a moment
# Test to see whether a uniformly distributed function passes the Shapiro test
>>> scipy.stats.shapiro(numpy.random.uniform(1,100,120))
(0.9682766199111938, 0.006203929893672466)

All statistical tests produce a test statistic (W in the Shapiro-Wilk test), which is compared against its distribution under the null hypothesis. The exact value and interpretation of the statistic are test-specific, and the p-value should be used instead as a normalized interpretation of the value.

The Kolmogorov-Smirnov (KS) test is a simple goodness of fit test that is used to determine whether or not a dataset matches a particular continuous distribution, such as the normal or uniform distribution. It can be used either with a function (in which case it compares the dataset provided against the function) or with two datasets (in which case it compares them to each other). See the test in action in Example 11-2.

># The KS test in action; let's create two random uniform distributions
>>> scipy.stats.ks_2samp(
          numpy.random.normal(100,10,1000),
	  numpy.random.normal(100,10,1000))
Ks_2sampResult(statistic=0.026000000000000023, pvalue=0.88396190167972111)
#------------------------------------------

The KS test has weak power. The power of an experiment refers to its ability to correctly reject the null hypothesis. Tests with weak power require a larger number of samples than more powerful tests. Sample size, especially when working with security data, is a complicated issue. The majority of statistical tests come from measurements in the natural sciences, where acquiring 60 samples can be a bit of an achievement. While it is possible for network traffic analysis to collect huge numbers of samples, the tests will start to behave wonkily with too much data; small deviations from normality will result in certain tests rejecting the data, and it can be tempting to keep throwing in more data, effectively crafting the test to meet your goals.

Unicode, UTF, and ASCII

As noted previously, Unicode isn’t an encoding scheme, it is a standard for relating code points to characters. The Unicode standard specifies up to 1,114,112 code points, each of which is stored in one of 16 65,536-point code planes. We care primarily about plane zero, which contains all the characters in the sets listed in Table 12-1.

Encoding, which is to say the process of actually representing the characters, is managed primarily via UTF-8 (Unicode Text Format, RFC 3629). UTF-8 is a variable-length encoding scheme specifically designed to handle a number of problems involved in transmission and in its predecessor standard, UTF-16. This means that Unicode encoding has a number of header and delimiter conventions that limit the efficiency of the system. The value 129, for instance, is going to stretch across 2 bytes. The following example shows this in action, as well as the germane Python commands:

# This is done in Python 2.7; the Python 3 version merges the uni*
# functions for ease of use.
>>> s=unichr(4E09)
# unichr is the Unicode equivalent of chr; note that I enter the
# hexadecimal index.  All it cares about is the index value.
>>> print(s)
三
>>> print(unichr(19977))
三
# print is important, direct text dump is going to give me the
# abstract Unicode encoding that Python uses.  Note the u and \u
# characters.  The u before the string indicates it's Unicode,
# the \u indicates it's an unsigned sixteen bit--Python effectively
# uses UTF-16 internally for representation.
>>> s
u'\u4e09'
# Now, let's convert from utf-16 to utf-8.
>>> s.encode('utf-8')
'\xe4\xb8\x89'
# Note that this is 3 bytes; a utf-8 representation includes
# overhead to describe the data provided.  Let's compare it
# with vanilla ASCII.
>>> s=u'a'
>>> print s
a
>>> s
a
# Note that we're in ASCIIland and it's treated as a default.
>>> s.encode('utf-8')
'a'
>>> ord(s)
97

Note that in the example, as soon as I went to the a character, the encoding function and everything else dropped all of the hexadecimal and integer encoding. UTF-8 is backward compatible with ASCII (American Standard Code for Information Interchange), the 7-bit⁶ character encoding standard.

Encoding for Attackers

Having discussed the general role of encoding, now let’s talk about the role of encoding for an attacker. For attackers, encoding is a tool for evasion, slipping information past filters intended to stop them, delaying defenders from figuring out that something is amiss. To that end, the attackers can rely on a number of different techniques to manipulate encoding, abetted by the implicit dependencies encoding strategies have.

Base64 encoding

Base encoding⁷ is an encoding technique originally developed for email that currently serves as a workhorse for data transfer, including malware.

The goal of base64 encoding is to provide a mechanism for encoding arbitrary binary values using commonly recognized characters. To do so, it maps binary values to values between 0 and 63, assigns each code point a common, easily recognizable character, and then encodes the values using that character. The base64 encoding standard involves 64 code points representing the characters A–Z, a–z, and 0–9, and two characters that differ by standard—we’ll say + and / for now.

Figure 12-1 shows the basic process of base64 encoding. Note that the process includes a padding convention; when working with bytes, base64 encoding neatly transfers 3 bytes into 4 characters. If your string isn’t a multiple of three, you’ll need to zero-pad up to three and then add equals signs at the end of the encoded string to indicate this.

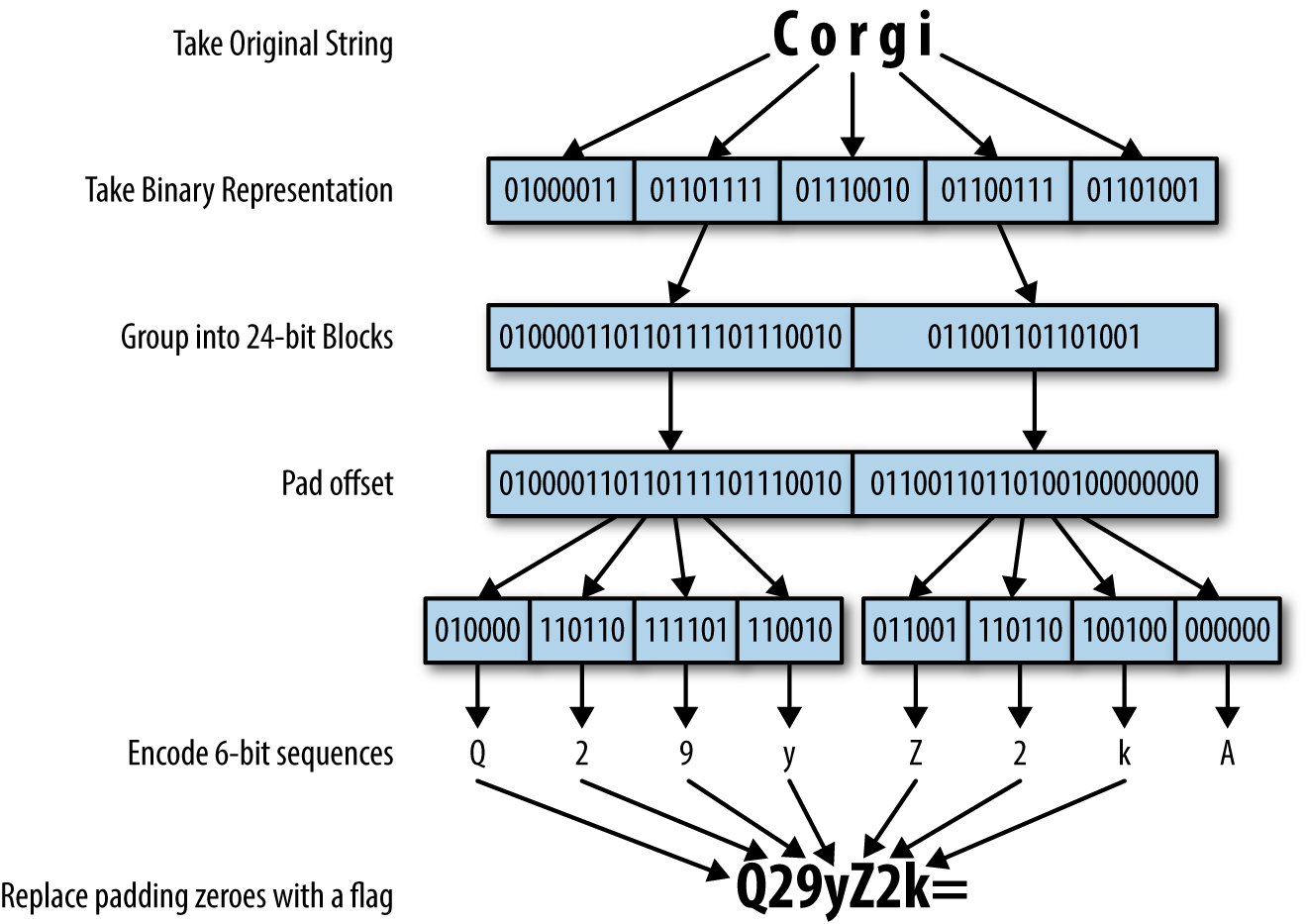

Figure 12-1. Base64 encoding in action

Base64 encoding is cheap and omnipresent; Python includes a standard library in the form of base64, and JavaScript has btoa and atob functions to handle it. This makes it a pretty easy and quick way to hide text directly.

In addition to base64, HTML natively supports a completely different encoding, called numeric character references (NCRs). Numeric character references encode values using the format &#DDDD;, where DDDD is the index of the corresponding code point in Unicode. NCRs can use decimal (e.g., 三) or hex (e.g., &#0x4E09;).

The fastest way to identify base64 is to look for characters that base64 doesn’t cover, but which you expect to see: commas, spaces, periods, and apostrophes. Long sequences of text without those will be unusual. NCRs are recognizable by the use of ampersands.

Finding a String

The go-to tool for finding a particular string is grep (the generalized regular expression processor). When using grep, remember that its default input is regular expressions—consequently, when entering IP addresses, you can run into overmatches. For example:

$ grep 10.16 http_example.txt  | grep '10:16'
10.147.201.99 - - [17/Sep/2016:10:16:14 -0400] "HEAD / HTTP/1.1" 200 221 "-" "-"
10.147.201.99 - - [17/Sep/2016:10:16:16 -0400] "GET / HTTP/1.1" 200 2357 "-" "-"
$ grep 10.16 http_example.txt  | grep -v '10:16' | head -1
10.16.94.206 - - [18/Sep/2016:05:57:16 -0400] "GET
   /helpnew/faq/faq_simple_zh_CN.jsp HTTP/1.1" 404 437 "-"
   "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_4) AppleWebKit/537.36
   (KHTML, like Gecko) Chrome/36.0.1985.125 Safari/537.36"

Since the . character is a wildcard in regular expressions, grep looks for both the address and the time signature. Ensure that you match a literal dot using the \. construct:

$ grep '10\.16' http_example.txt | head -1
10.16.94.206 - - [18/Sep/2016:05:57:16 -0400] \
  "GET /helpnew/faq/faq_simple_zh_CN.jsp HTTP/1.1" 404 437 "-" \
  "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_4) AppleWebKit/537.36 \
    (KHTML, like Gecko) Chrome/36.0.1985.125 Safari/537.36"

Python strings support two searching methods: find and index. Of the two, I prefer find over index purely because index raises an exception when it fails to find a string. I’m intentionally avoiding discussing the re library for now; I’ll discuss regular expressions a bit more later.

Manipulating Delimiters

The tr tool provides a number of handy utilities for splitting delimiters. Without other switches, tr will do an ordered substitution of the contents of one list with another list. Here’s an example of how this works:

$ echo 'dog cat god' | tr 'dog' 'bat'
bat cat tab

As the example shows, tr transposes the individual characters, not the entire string. To do this in Python, you need to use a string’s .translate method. This method takes a translation table, which is best generated using the maketrans function from the string library. Here’s an example:

>>> from string import maketrans
>>> 'dog cat god'.translate(maketrans('dog','bat'))
'bat cat tab'

tr includes a number of other handy routines, the most important one being -s. The squeeze operation will reduce multiple copies of a specified character down to one, particularly important when working with spaces. For example:

$ echo 'a||b|c' | tr -s '|'
a|b|c

The most Pythonic way to do this is to split the series into a list, filter out empty elements, and then join the list using the original delimiter. For example:

>>> '|'.join(filter(bool, 'a||b|c'.split('|')))
'a|b|c'

Splitting Along Delimiters

cut is capable of splitting files along delimiters, characters, bytes, or other values as needed. To use delimiters, specify a -d argument and then a -f for the fields:

$ echo 'a|b|c' | cut -d '|' -f 3,1
a|c

Note that -f doesn’t pay attention to the ordering—you get the fields in the order they appear in the file. Also note that the -d argument takes a single character.

In Python, the .split method converts strings to lists, after which you can manipulate them as normal. Given how Python slicing works, it’s generally preferable to use the itemgetter function after that to get ordered elements:

>>> from operator import itemgetter
>>> itemgetter(2,1,5)('a|b|c|d|e|f'.split('|'))
('c', 'b', 'f')

In passing, NumPy arrays provide an arbitrary selection operator via double brackets ([[).

Regular Expressions

Regular expressions are the most powerful tool directly available for text analysis. In this section, I will provide a very brief overview of their use, as well as some rules for ensuring that they don’t get out of hand. In general, my largest caution about using regular expressions is that they are very expensive—regular expressions are effectively an interpreted programming language for matching text, and there are often much more effective and faster mechanisms for achieving the same results, such as tr.

A regular expression is a sequence of characters specifying how to match another sequence of characters. In its simplest form, a regular expression is just a string. Here is an example of regular expression matching in Python:

>>> import re
>>> re.search('foo','foobar')
<_sre.SRE_Match object at 0x100431cc8>
>>> re.search('foo','waffles')

Python regular expressions are implemented by the re library. As this example shows, a successful regular expression search will return a match object; a failure of the search function will return None.

The re library contains three key functions: search, match, and findall. search searches through the target string and terminates on the first match; match succeeds only on an exact match. Both search and match return match objects on success, or None on failure. findall will search for every instance of a regular expression and return a list of successful matches:

>>> re.match('foo','foobar')
<_sre.SRE_Match object at 0x100431cc8>
>>> re.match('foo','barfoo')
# Note the failure; this is because of the positioning of foo - the characters
# bar precede it.
>>> re.search('foo','foobar')
<_sre.SRE_Match object at 0x1004318b8>
>>> re.search('foo','barfoo')
<_sre.SRE_Match object at 0x100431cc8>
# Search works because it isn't an exact match
>>> re.findall('foo','foofoo')
['foo', 'foo']

Regular expressions provide a rich language for wildcarding. The most basic wildcards involve the use of the ., ?, +, and * characters. . specifies a match for a single character, while the other three specify the order of the match. ? indicates zero or one instances, + one or more, and * zero or more:

>>> re.findall('foo.+','foo foon foobar')
['foo foon foobar']
>>> re.findall('foo.?','foo foon foobar')
['foo ', 'foon', 'foob']
>>> re.findall('foo.','foo foon foobar')
['foo foon foobar']
>>> re.findall('foo*','foo foon foobar')
['foo', 'foo', 'foo']
>>> re.findall('foo.*','foo foon foobar')
['foo ', 'foon', 'foob']

Instead of simply matching on one or more characters, regular expressions can be grouped into parentheses. The order characters can then be applied to the whole expression:

>>> re.findall('f(o)+','foo foooooo')
['o', 'o']
>>> re.findall('f(o)+','foo')
['o']

When you use a group, the matches will only return the characters in the group. This is handy for extracting specific terms. For example:

>>> re.findall('To: (.+)','To: Bob Smith <bob@smith.com>')
['Bob Smith <bob@smith.com>']
>>> re.findall('To: (.+) <','To: Bob Smith <bob@smith.com>')
['Bob Smith']
>>> re.findall('To: (.+) <(.*)>','To: Bob Smith <bob@smith.com>')
[('Bob Smith', 'bob@smith.com')]

Groups can also express a number of options, via a bar, and a specific number of instances by putting the range in curly braces:

>>> re.findall('T(a|b)','To Ta Tb To Tb Ta')
['a', 'b', 'b', 'a']
>>> re.findall('T(a){2,4}','To Ta Taa Taaa')
['a', 'a']

Square brackets are used to match a range of characters:

>>> re.findall('f[abc]','fo fa fb fo fc')
['fa', 'fb', 'fc']

Finally, a couple of special notes. The ^ and $ symbols are used to match the beginning and end of a string:

>>> re.findall('^f[o]+','foo fooo')
['foo']
>>> re.findall('f[o]+','foo fooo')
['foo', 'fooo']
>>> re.findall('f[o]+$','foo fooo fo')
['fo']

You can match any of the control characters (e.g., {, +, etc.) by slapping a \ in front of them:

>>> re.findall('a\+.','ab a+b')
['a+b']

That was a very basic introduction to regular expressions, but I’ll also make some practical observations.

First, if you’re using regular expression matching with a new tool, check to see how much regular expression parsing the tool does. At the minimum, regular expressions tend to be broken into a basic syntax, an extended syntax (ERE), and PCRE (Perl Compatible Regular Expression) syntax. The default grep tool, for example, doesn’t recognize extended syntax, so the first command here produces no output:

$ echo 'foo' | grep 'fo.?'
$ echo 'foo' | egrep 'fo.?'
foo

Most modern environments will use ERE, and everything I’ve discussed in this chapter should work if the parser recognizes ERE. PCRE, yet more powerful, usually requires additional libraries, and there is a standard PCRE tool (pcregrep) for parsing those expressions. If you expect to be doing a lot of Unicode work, I suggest going straight to PCRE.

Second, keep notes. Outside of one-off parsing, you’re most likely going to use regular expressions to repeatedly parse and normalize logfiles as part of the analysis infrastructure. The logfile format changes, regular expressions fail, and you’re left trying to figure out what that string of line noise actually means. A useful aid to this documentation process is to use capture groups, to ensure that you can track what you’re watching for.

Third, use regular expressions for what they’re good for, and keep them simple. Matching string. is an expensive way to match string. As a rule of thumb, if I’m not doing something at least as complex as a conditional (e.g., (a|b)) or a sequence count (e.g., a{2,3}), I’m looking for a simpler approach. Regular expressions are expensive—many common tasks, such as squeezing spaces, are three to four times slower using REs.

Finally, if you’re working in Python, make sure you’re compiling, and know the difference between match and search and findall. Since match requires that you express the full string, it tends to necessitate a considerable amount more complexity and performance than search does.

N-Gram Analysis

An n-gram is a sequence of n or more tokens. For example, when parsing characters in a text string, an n-gram will be n or more individual characters in sequence, such as turning “waffles” into the trigrams “waf”, “aff”, “ffl”, “fle”, and “les”. The same principle can be used for words in a sentence (“I have”, “have pwnd”, “pwnd your”, “your system”) or any other token.

The key feature of n-gram decomposition is the use of this sliding window. n-gram decompositions produce a lot of strings from a single source, and the process of analyzing the n-grams is computationally expensive. However, n-gram analysis is, in my experience, a very good “I don’t know what’s in this data yet” technique when you’re looking at previously unknown piles of text. With many of the following distance techniques, you may use them interchangeably with the original strings or with n-grams.

Jaccard Distance

Of the three comparison metrics I will discuss in this section, the Jaccard distance is the cheapest to implement, but also the least powerful. Given two strings, A and B, the Jaccard distance is calculated as the ratio of the intersection of A and B over the union of A and B. Jaccard distance is trivial to calculate using Python’s set operators, as shown here:

def jaccard(a,b):
    """
    Given two strings a and b, calculate the Jaccard distance
    between them as characters
    """
    set_a = set(a)
    set_b = set(b)
    return float(len((set_a.intersection(set_b))))/float(len(set_a.union(set_b)))

Jaccard distance is quick to implement, and it’s easy to implement a very fast version of the set when you know all the potential tokens. It’s also normalized: a value of 0 indicates no characters in common, and 1 indicates that all characters are in common. That said, it’s not a very powerful distance metric—it doesn’t account for duplicated characters, string ordering, or the presence of substrings, so the strings “foo” and “ofoffffoooo” are considered as identical as “foo” and “foo”.

Hamming Distance

The Hamming distance between two strings of identical length is the total number of individual characters within those strings that differ. This is shown in Python in the following example:

def hamming(a,b):
    """
    Given two strings of identical length, calculate the Hamming
    distance between them.
    """
    if len(a) == len(b):
	return sum(map(lambda x:1 if x[0] == x[1] else 0, zip(a,b)))
    else:
	raise Exception, "Strings of different length"

Hamming distance is a powerful similarity metric. It’s fast to calculate, but it’s also restricted by string size, and the lack of normalization means that the values are a little vague. In addition, when you calculate a Hamming distance, you have to be very clear about what your definition of a different token is. For example, if you decide to use individual bits as a distance metric, you will find that UTF-16 encodings and UTF-8 encodings of the same strings will have different values due to the encoding overheads!

Levenshtein Distance

The Levenshtein distance between two strings is described as the minimum number of single character operations (insertions, deletions, or character substitutions) required to change one string to another string. For example, the strings “hax0r” and “hacker” have a Levenshtein distance of 3 (add a c before the x, change x to k, change 0 to e).

Levenshtein distance is one of those classic “let’s learn dynamic programming” examples, and is a bit more complex than I want to dive into in this chapter. The leven​shtein function in text_examples.py provides an example of how to implement this distance metric.

Levenshtein distance is sensitive to substrings and placement in ways that Hamming distance isn’t. For example, the strings “hacks” and “shack” have a Hamming distance of 5 but a Levenshtein distance of 2 (add an s at the beginning, drop an s from the end). However, it’s a considerably more computationally expensive algorithm to implement than Hamming distance, and you may end up paying a performance cost for identifying phenomena that are discernible using a cheaper algorithm.

Entropy and Compressibility

The entropy (properly, Shannon entropy) of a signal is the probability that a particular character will appear in a sample of that signal. This is mathematically formulated as:

That is, the sum over all the observed symbols of their probabilities by their information content (the log of their entropy).

The entropy as formulated here describes the number of bits required to describe all of the characters observed in a string. So, the entropy of the string “abcd” would be 2 (there are four unique symbols), and the entropy of the string “abcedfgh” would be 3 (8 unique symbols). Signals that are high-entropy are noisy—they look like the data is randomly generated, as the probability of seeing any particular token is largely even. Low-entropy signals are biased toward repeated patterns; as a rule of thumb, low-entropy data is structured, has repeated symbols, and is compressible.

Natural language is low-entropy, and most logfiles are low-entropy; compressed data is high-entropy (compression is about finding entropy and exploiting it), and encrypted data is high-entropy (because the goal is to look like noise). Figure 12-3 shows this phenomenon in more depth; this figure shows the results, respectively, of compressing and encrypting data (in this case, 10,000-character samples of the complete works of Shakespeare). As the example illustrates, the entropy of natural-language text hovers at around 5 bits/character, while that of compressed and encrypted data is approximately 8 bits/character.

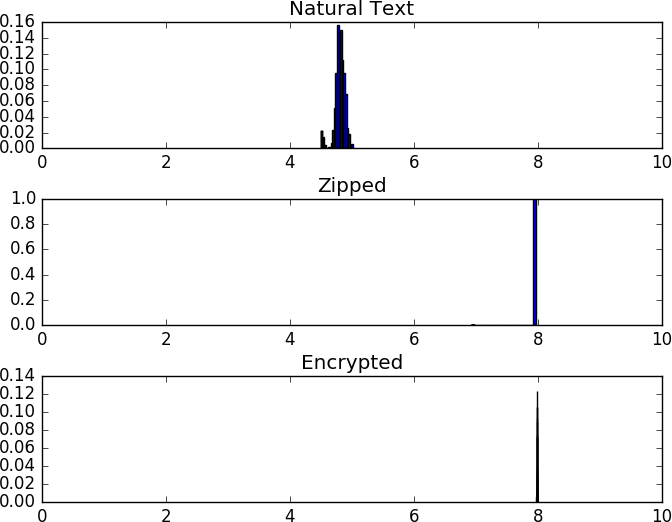

Figure 12-3. A comparison of entropy for different systems

Selectively sampling and approximating entropy is a good quick-and-dirty technique to check for compression or encryption on a dataset.

Homoglyphs

In http_example.txt, there’s a line that reads:

10.193.9.88 - - [19/Sep/2016:19:36:11 -0400] "POST
/wp-loаder.php HTTP/1.1" 404 380 "-" "Mozilla/5.0
(Windows NT 6.0; rv:16.0) Gecko/20130722 Firefox/16.0"

Let’s look for it:

$ cat http_example.txt | grep loader
$ cat http_example.txt | grep 10.193.9.88
10.193.9.88 - - [19/Sep/2016:19:36:11 -0400] "POST
/wp-loаder.php HTTP/1.1" 404 380 "-" "Mozilla/5.0
(Windows NT 6.0; rv:16.0) Gecko/20130722 Firefox/16.0"

What sorcery is this? The a in the logfile is actually the Unicode character 0x430, or the Cyrillic lowercase a. Thus, the first request returns no results. This is an example of a homoglyph—two code points with identical-appearing glyphs. Homoglyph attacks rely on this similarity; to the human eye the characters look identical, but they are encoded differently and an analyst grepping for the former will not find the latter.

Homoglyphs are a particular problem when dealing with the DNS. Internationalized domain names (IDNs) include mechanisms to ease the process of creating multi-code-page domain names, resulting in demonstrated attacks. Unfortunately, there’s no fast and easy way to determine whether something is a homoglyph—they are literally fooling sight. Generally, the best rule of thumb is to try to work within a specific code page (such as in the US, catching anything with a character code above 127). Alternatively, there are tables of known homoglyphs (see the next section for more information) that can provide you with lists of characters to watch out for.

Lookup Failures

Fumbles usually happen because the destination doesn’t exist in the first place. This can be a transient phenomenon due to misaddressing or movement, or it can be due to someone addressing a resource that never existed.

Keep in mind that people rarely enter addresses by hand. Most users will never directly enter an IP address, instead relying on DNS to moderate their communications. Similarly, apart from a TLD, users rarely enter URLs by hand, instead copying or clicking them from other applications. When someone does enter a faulty address or URL, it usually means that something further up the chain of lookup protocols that got him there failed.

When a target moves, misaddressing is a common phenomenon. In the case of a misaddress, the target does exist, but the source is misinformed about the address. For example, an attacker may enter the wrong name or IP address, or use an earlier IP address after a host moves.

Every site has unused IP addresses and port numbers. For instance, a /24 (class C) address space allows 254 addresses (2 more are reserved for special purposes), but the network usually uses only a fraction of them. An unused address or port number is called dark space. Legitimate users rarely try to access dark space, but attackers almost always do. However, knocking on the door of an unused IP address or port is not dangerous in itself, and is so common that tracking it isn’t worthwhile.

Misaddressing is often a common mode failure, meaning that it will not be limited to one or two users, but to a large community. The classic example of a misaddress is somebody sending a message to a mailing list and mistyping a URL. When this happens, you don’t see one or two errors, and you don’t see individual errors. You see the exact same meaningless string occurring over and over again, coming from dozens if not hundreds of sites. If you see a large number of fumbles coming from different sites, all identical and all indicating a misspelling, then it’s a good sign that the error has a common cause such as a misconfigured DNS server, a faulty redirect on the web server, or an email with the wrong URL.

Automation

People are impatient. Very often, when they can’t actually reach a site, they may retry once, but then they’ll go off and find something better to do with their time. Conversely, automated systems retry connections as a reliability measure, and will often return after a relatively short interval to see if the target is up and running.

On a network traffic feed, this means that a protocol that is human-driven (SSH, HTTP, Telnet) is likely to have a lower failure rate per connection than protocols that are largely automated (SMTP, peer-to-peer communications).

Scanning

Scanning is the most common form of attack traffic observed on the network. If you own a nontrivial chunk of IP space (say, a /24 or more), you will literally be scanned thousands of times a day.

Scanning is one of the great sources for bogus security figures. If you classify a scan as an attack, then you can claim to be dealing with thousands of attacks per day. Attacks you’re going to do precisely nothing about, but still thousands. Scanning is easy, fun, and stupid amusement for script kiddies.

Imagine that your network is a two-dimensional grid, where the x-axis shows your IP addresses and the y-axis shows the ports. The grid will then have 65,536 by k cells, where k is the total number of IP addresses. Now, every time a scanner hits a target (an IP/port combination), mark a cell. If you’re interested in all the capabilities of a single host, you may open up a connection to every port it has, resulting in a single vertical line on the grid: a vertical scan. The complement to a vertical scan is a horizontal scan, where the attacker communicates with every host on the network, but only on a specific port.

As a rule of thumb, defenders scan vertically and attackers horizontally. The difference is primarily opportunistic—attackers scan a network horizontally because they are uninterested in the targets outside of the vulnerabilities they can exploit. An attacker who is interested in a specific target may well scan it vertically. Defenders scan vertically because they can’t predict what an attacker will hit.

If an attacker knows something about the structure of a network ahead of time, she may use a hit list, a list of IP addresses that she knows or suspects may be vulnerable. An example of a common hit-list attack is where the attacker begins by using a blind scan of a network to identify SSH hosts and then, sometime later, uses that list to begin password attacks.¹

IP Fumbling: Dark Addresses and Spread

Let us begin by considering fumbling at the IP level, without access to any other information provided by protocols such as TCP or services such as HTTP. At this level, there are two techniques for identifying fumbling: communication with dark addresses, and communication with excessive addresses (spread).

A dark address is any IP address within a network that does not currently host an asset. As discussed earlier, any nontrivial network will likely have dark addresses, and legitimate users have no reason to contact them. At the IP level, the best way to determine if communications were to a dark address is to maintain a network map; see Chapter 19 for an in-depth discussion on processes for doing so.

That said, a network map is not relying on actual network information—it’s relying on a model of the network that was constructed some time before the event. At the most extreme end, a map of a DHCP network has a limited viable lifetime, but even a statically addressed network will see new services and hosts arrive on a regular basis. When using a network map, make sure to regularly test its integrity using one of the other techniques listed in this section.

Once you’ve constructed a map, it’s a matter of combining the map with incoming traffic data to determine whether or not a host is communicating with a dark address. Example 13-1 shows this process using SiLK and the example datafile. In this example, we construct an IP set from the list of dark addresses, then use it to partition out legitimate users from hosts.

$ cat hosts.txt
10.128.5.8
$ rwsetbuild hosts.txt > light.set
$ cat > network.txt
10.128.5.0/24
$ rwsetbuild network.txt | rwsettool --difference - light.set > dark.set
$ rwsetcat --count-ip network.set light.set dark.set
network.set:256
light.set:1
dark.set:255
$ rwfilter --dipset=dark.set --pass=stdout fumbling_example.rwf | rwuniq --field=sip
--packets --dip-distinct | head -3
                                    sIP|        Packets|dIP-Distin|
                              10.3.64.3|            277|       254|
                             10.45.9.23|            284|       254|

I use the term spread to refer to the number of distinct addresses a host communicates with. As a rule of thumb, individual users talk with a relatively limited number of addresses within a particular network. Figure 13-1 shows this behavior in action. In this figure, there are seven dark and one lit addresses—the legitimate user only talks to the one lit address, while the scanners contact all eight addresses within the network. The end result is that the number of distinct IP addresses a legitimate host talks to hangs at around one address (plus or minus some error), while the scanners talk to a much higher ratio.

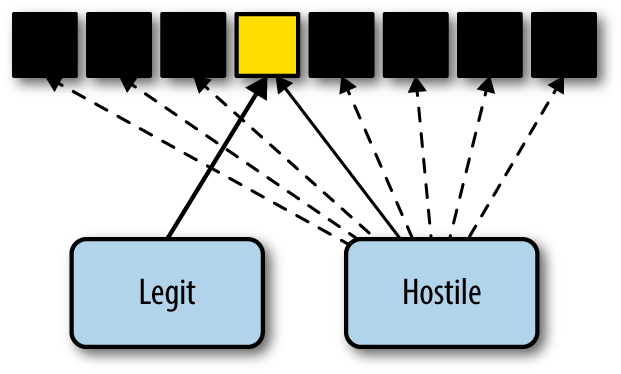

Figure 13-1. Communications with dark addresses and spread

In SiLK, you can calculate spread using rwuniq --dip-distinct, as shown in Example 13-1. Spread is easily estimated via histograms. The example shown in Figure 13-2 is a bit exaggerated for a legitimate network, but only in the sense that the number of scanners is too small—on large internet-facing networks, I expect SSH scanning to dwarf legitimate SSH traffic.

Figure 13-2. A histogram showing spread in action

TCP Fumbling: Failed Sessions

Identifying failed TCP connections requires some understanding of the TCP state machine and how it works. As we’ve discussed before, TCP imposes the illusion of a stream-based protocol on top of the packet-based IP. This simulation of a stream is produced using the TCP state machine, shown in Figure 13-3.

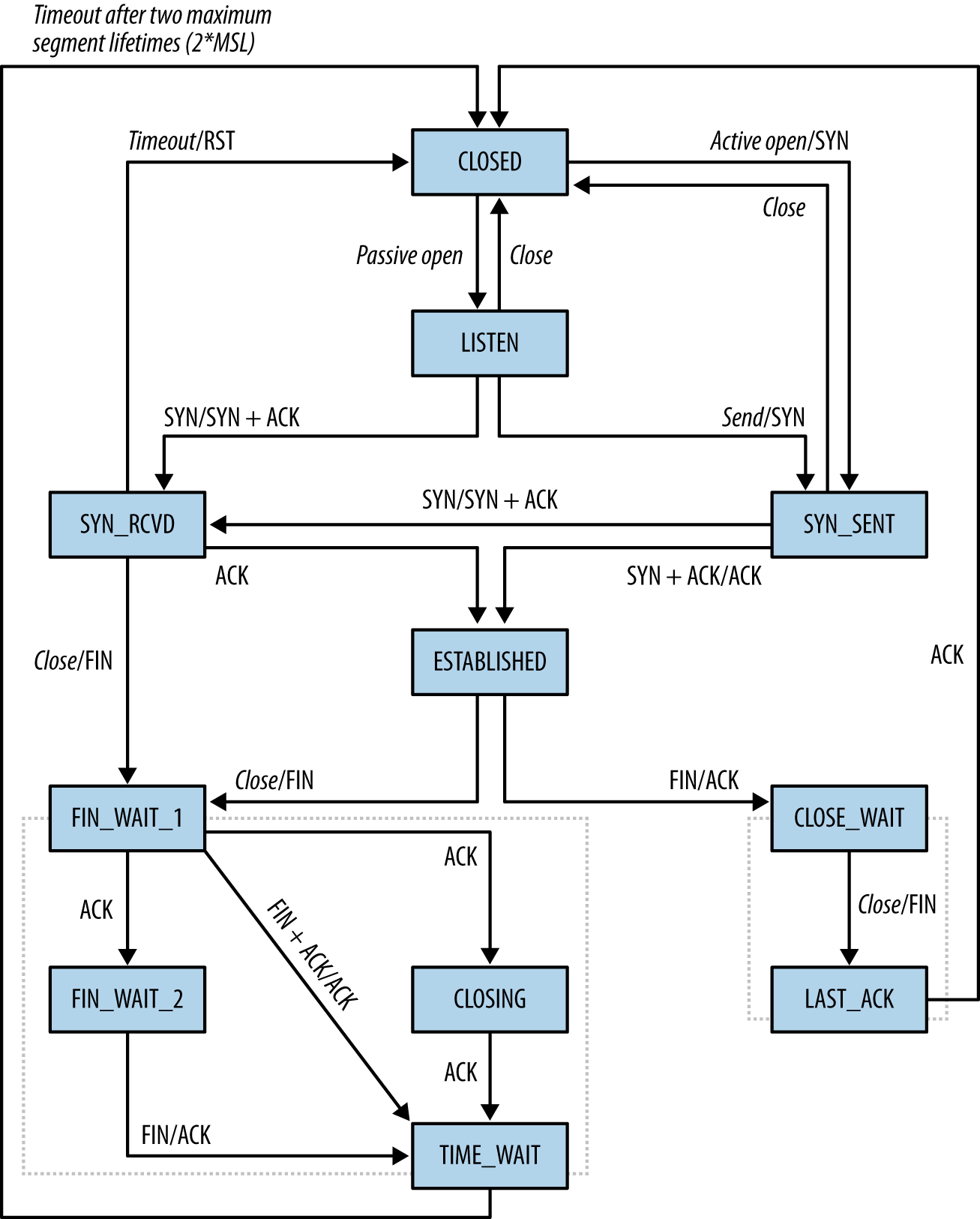

Figure 13-3. The TCP state machine, from texample.net

Under normal circumstances, a TCP session consists of a sequence of handshake packets that set up initial state:

• On the client side, the transition is from SYN_SENT (client sends an initial SYN packet) to ESTABLISHED (client receives a SYN|ACK packet from server, sends an ACK in response), and then to normal session operations.

• On the server side, the transition is from LISTEN to SYN_RCVD (receives a SYN, sends a SYN|ACK), and then to ESTABLISHED (receives an ACK).

• For either side, closure consists of at least two packets (CLOSE_WAIT to LAST_ACK or FIN_WAIT_1 to CLOSING/FIN_WAIT_2 to TIME_WAIT).

The net result of these transitions is that a well-behaved TCP/IP session requires at least three packets simply to set up the connection. This is overhead required by TCP, and does not include any communications done by the protocol itself. Throw in a standard MTU of 1,500 bytes, and most legitimate sessions are going to consist of at least several dozen packets.

Automated retry attempts add another layer of complexity to the problem. RFC 1122 establishes basic guidelines for TCP retransmission attempts and recommends a minimum of three retransmissions before giving up on a connection. The actual retry value is usually softcoded and stack-dependent; for example, in Linux systems, the number of retries generally defaults to three and is controlled by the tcp_retries1 TCP variable. In Windows systems, the TcpMaxConnectRetransmissions registry value in HKLM\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters governs this behavior.

An analyst can identify fumbling by looking at a variety of indicators, depending on the type of data the operator has available and the degree of accuracy necessary. I will discuss several here, such as unidirectional flow filtering, looking for dark ports, and seeing spikes in alert messages.

Unidirectional flow filtering

If you have access to both sides of a session (i.e., client to server, server to client), identifying complete sessions is simply a matter of joining the two sides together. In the absence of that information, it’s still possible to guess whether packets are part of a whole session.

In my personal experience, I find flows to be more effective than individual packets for detecting fumbling. A fumbling attacker doesn’t interact with a service proper because there is no payload to examine. At the same time, identifying fumbling involves looking for multiple identically addressed packets that occur around the same time, which is the textbook definition of a flow.

Depending on the amount of information needed and the precision required, a number of different heuristics can identify fumbles in TCP flows. The basic techniques involve looking at flags, packet counts, or payload size and packet count.

Flags are a good indicator of fumbling, but using them is complicated by a messy collection of corner cases happily exploited by scanners to differentiate different IP stack implementations. Recall from Figure 13-3 that a client sends an ACK flag only after receiving an initial SYN + ACK from the server. In the absence of a response, the client should not send an ACK flag; consequently, flows with a SYN and no ACK flag are a good indicator of a fumble. There exists the potential that a response came outside of the timeout of the flow collector, but that’s rare in applied cases.

Attackers craft packets with odd flag combinations in order to determine stack and firewall configurations. The best known of these combinations is the “Christmas tree” packet (so called because all flags are lit up like a Christmas tree), setting SYN ACK FIN PUSH URG RST. Combinations of flags with both SYN and FIN high are common as well. When dealing with long-lived protocols (such as SSH), it’s not uncommon to encounter a packet consisting solely of an ACK. These packets are TCP keep-alive packets and are not fumbling.

Another odd nonfumbling behavior is backscatter. Backscatter occurs when a host opens a connection to an existing server using a spoofed address, and the server sends the corresponding response to the original spoofed address. Figure 13-4 shows this in more detail, but here’s a brief walkthrough of the process:

1. The host at 100.2.3.99 targets 11.65.80.99 and sends a spoofed packet claiming to be from 39.8.44.3.

2. 11.65.80.99 receives the spoofed packet and responds as normal to the IP address it sees the message originating from: 39.8.44.3.

3. 39.8.44.3 receives a packet acknowledging an open session from 11.65.80.99 and is now confused.

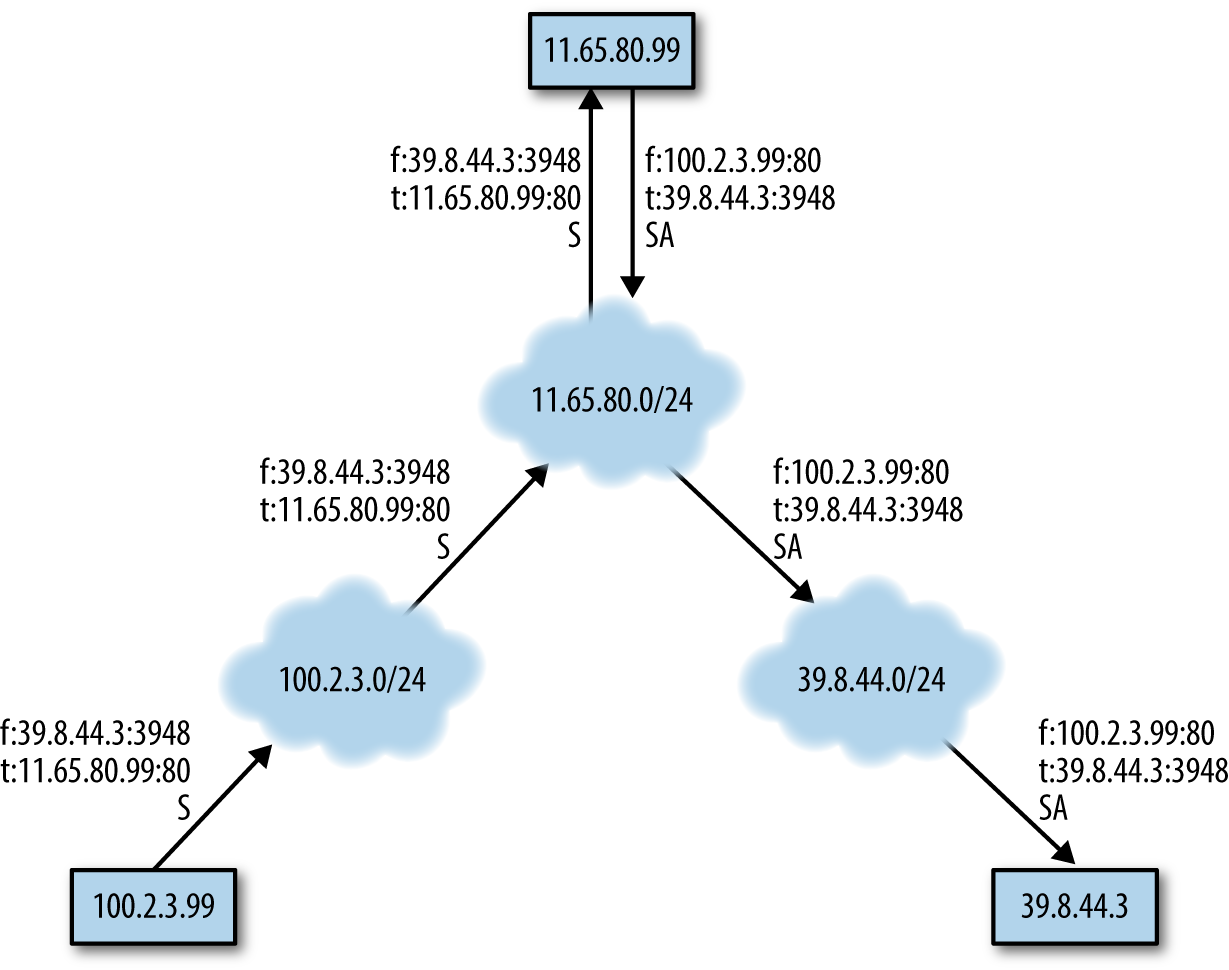

Figure 13-4. Backscatter in action

The larger a network is, the more backscatter it will receive—so much so that there are several organizations running internet telescopes around large dark spaces in order to estimate and characterize this network background radiation. On a large enough network, you will see enough backscatter that, at first glance, it will be confused with fumbling.

An easy, if rough, indicator of whether a flow shows a complete session is to simply look at the number of packets. A legitimate TCP session requires at least three packets of overhead before it considers transmitting service data. Furthermore, most stacks set their retry value to between three and five packets. These rules provide a simple filter: TCP flows that have five packets or less are likely to be fumbles.

Flow size can be complemented by looking at the ratio of packet size to number of packets. TCP SYN packets contain a number of TCP options of variable length. During a failed connection, the host will send the same SYN packet options repeatedly. Consequently, if a flow is an n-packet SYN fumble, we can expect that the total number of bytes sent is n×(40 + k), where k is the total size of the options.

ICMP Messages and Fumbling

ICMP is actually designed to inform a user that she has failed to make a connection. ICMP type 3 messages (destination unreachable) are supposed to be sent to a host to indicate that the target network (code 0), host (code 1), or port (code 3) cannot be reached by the client packet. ICMP also provides messages indicating that a route is unknown (code 7) or administratively prohibited (code 13).

With the exception of pings, ICMP messages appear in response to failures in other protocols. Several messages, such as host or net unreachable, originate from some point other than the destination address—generally the nearest router. ICMP messages may also be filtered, depending on the policies of the network in question, and consequently not received by your sensors.

This asymmetry means that when tracking fumbling from ICMP traffic, it is more productive to look for the responses. If you see a sudden spike in messages originating from a router, it’s a good bet that the target it’s sending the messages to has been probing that router’s network. You can then look at the host’s traffic to identify what it communicated with that might be suspicious.

HTTP Fumbling

Recall that each HTTP transaction returns a three-digit status code, with the 4xx family of status codes reserved for client errors. In the 4xx family, the two most important and common access errors are 404 (not found) and 401 (unauthorized).

404 indicates that a resource was not available at the URL specified by the requestor, and is the most common HTTP error in existence. Users will often trigger 404 errors by hand, such as when they mistype a complex URL. Misconfiguration will often cause problems as well, such as when someone publicizes a URL that doesn’t exist.

These types of errors, from a misconfigured URL announcement or fat-fingering, are relatively easy to identify. Fat-fingering should be relatively rare. Fat-fingered URLs will rarely repeat—if one user is mistyping, he’ll mistype slightly differently each time. At the same time, since fat-fingering is an individual mistake, the same fat-fingering will not appear from multiple locations. If you see the same mistake coming from multiple discrete locations, that is more likely to be a result of a misconfigured URL announcement. Such an announcement may be identifiable by examining the HTTP Referer header. If the Referer points to a site you have control over, then you can identify and fix the error on that site.

The third common source for 404 errors is bots scanning HTTP sites for well-known vulnerabilities. Because most modern HTTP sites are built on top of a collection of other applications, they often carry vulnerabilities from one or more of their component applications. These vulnerabilities are well known, placed in common locations, and consequently hunted for by bots everywhere. The URLs referenced in Example 13-2 are all associated with phpMyAdmin, a common MySQL database management tool.

223.85.245.54 - - [16/Feb/2013:20:10:12 -0500]
        "GET /pma/scripts/setup.php HTTP/1.1" 404 390 "-" "ZmEu"
223.85.245.54 - - [16/Feb/2013:20:10:15 -0500]
        "GET /MyAdmin/scripts/setup.php HTTP/1.1" 404 394 "-" "ZmEu"
188.230.44.113 - - [17/Feb/2013:16:54:05 -0500]
         "GET http://www.scanproxy.net:80/p-80.html HTTP/1.0" 404 378 "-"
194.44.28.21 - - [18/Feb/2013:06:20:07 -0500]
       "GET /w00tw00t.at.blackhats.romanian.anti-sec:) HTTP/1.1" 404 410
     "-" "ZmEu"
194.44.28.21 - - [18/Feb/2013:06:20:07 -0500]
       "GET /phpMyAdmin/scripts/setup.php HTTP/1.1" 404 397 "-" "ZmEu"
194.44.28.21 - - [18/Feb/2013:06:20:08 -0500]
       "GET /phpmyadmin/scripts/setup.php HTTP/1.1" 404 397 "-" "ZmEu"
194.44.28.21 - - [18/Feb/2013:06:20:08 -0500]
       "GET /pma/scripts/setup.php HTTP/1.1" 404 390 "-" "ZmEu"
194.44.28.21 - - [18/Feb/2013:06:20:09 -0500]
       "GET /myadmin/scripts/setup.php HTTP/1.1" 404 394 "-"

Unlike the 404 errors discussed earlier, 404 scanning is generally identifiable by being completely unrelated to the actual structure of a site. Attackers are guessing that something is there and are going by the documentation and common practice to try to reach a vulnerable target.

401 errors are authentication errors, and come from HTTP’s basic access authentication mechanism—which you should never use. 401 authentication was baked into the HTTP standard early on,³ and uses unencrypted base64-encoded passwords to authenticate a user’s access to protected directories.

Basic access authentication is a disaster and should not be used by any modern web server. If you do see 401 errors in your system logs, you should identify and eliminate the source of them on your server. Unfortunately, basic authentication still occasionally pops up in embedded systems as the only form of authentication available.

SMTP Fumbling

For our purposes, SMTP fumbling occurs when a host sends mail to a nonexistent address. Depending on SMTP server configurations, this will result in one of three actions: a rejection, a bounce, or (in the case of a catch-all configuration) redirection to a catch-all account. All of these events should be logged by the SMTP server that makes the final routing decision.

Analyzing SMTP fumbles runs into the same problem that analyzing all SMTP traffic does: spam. There are a lot of failed addresses sent in SMTP messages because spammers will send mail to every conceivable address.⁵ Fumbling (misaddressing) may exist, but these efforts are relatively innocuous and likely to be drowned in spam. At the same time, the reasons for attackers to fumble (reconnaissance) are effectively pointless because spammers don’t probe to see whether an address exists; they spam it.

There may be one good reason to analyze failed SMTP addresses: uncovering deception. In several APT-type spear-phishing emails, I’ve seen the attackers seed the To: line with realistic-looking but fake addresses. I assume that the addresses are either out of date due to enterprise turnover or intentionally added to provide the mail with a veneer of legitimacy.

DNS Fumbling

Generally, failed DNS lookups result in an NXDOMAIN message, so if someone is fumbling with DNS (e.g., probing a domain for common names such as mail.domain, smtp.domain, www.domain, etc.) you can expect to see a spike in NXDOMAIN messages.

One potential false positive here is ISP-based DNS hijacking. When an ISP engages in DNS hijacking, it will not send an NXDOMAIN response, instead sending an IP address pointing to some internal service it controls. Check your upstream DNS services by sending bogus domains and verify that you actually get NXDOMAIN messages back.

Building Fumbling Alarms

When tracking fumbles, the goal is to raise an alarm when there’s suspicion that fumbling is not simply accidental. To do so, the alarm must first collect fumbling events using the rules discussed previously in this chapter. Mechanisms include:

1. Creating or consulting a map of targets to determine whether the attacker is reaching a real target.

2. Examining traffic for evidence of a failure to connect. Examples of failures to connect include:

   1. Asymmetric TCP sessions, or TCP sessions without ACK flags

   2. HTTP 404 records

   3. Email bounce logs
